DJI Zenmuse H30T Drone Payload
DJI Zenmuse H30T

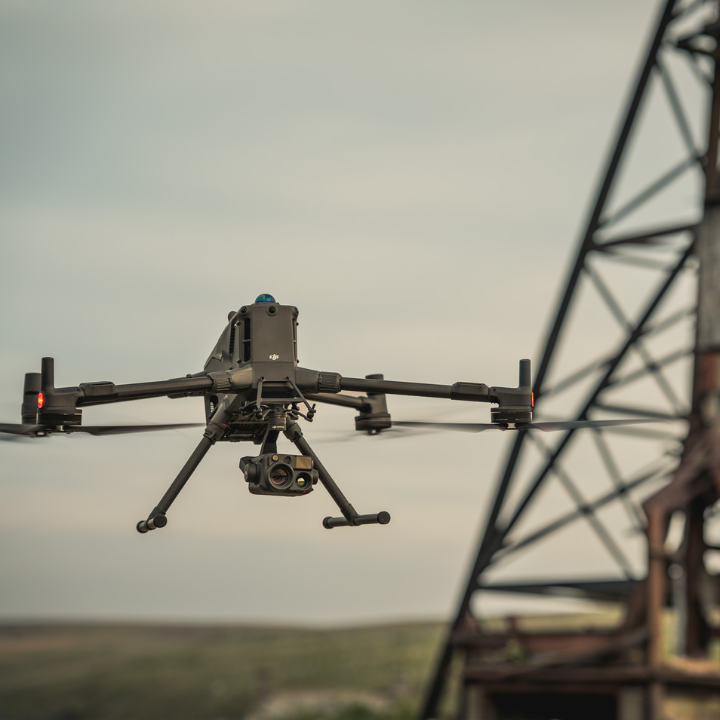

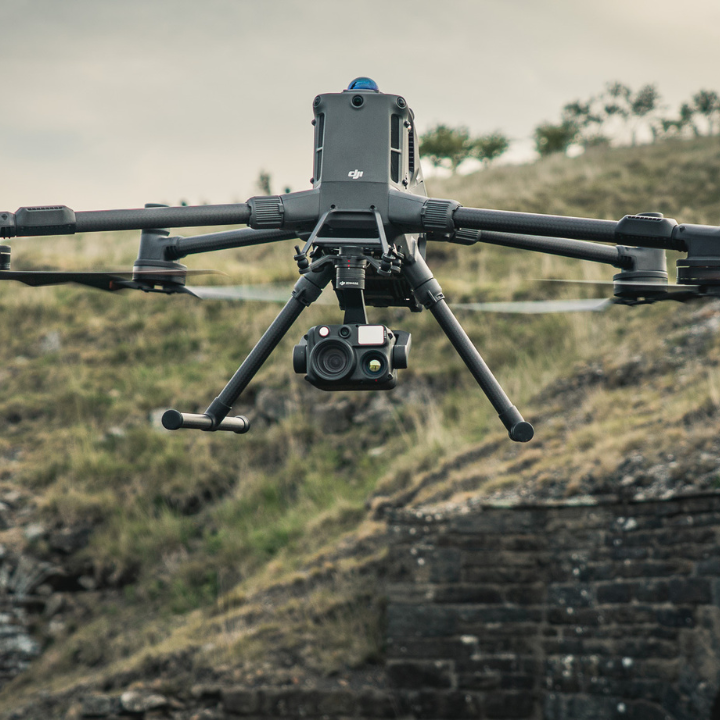

The DJI Zenmuse H30T is a flagship multi-sensor payload integrating five modules: Wide and zoom cameras with night vision, NIR auxiliary light, a laser rangefinder, and thermal camera.
It is an all-weather (IP54-rated) payload and can be used with the DJI M350 RTK and DJI M300 RTK (with the DJI RC Plus).
The H30T has a 1280 x 1024 @ 30fps thermal sensor, as well as a 48MP wide-angle camera, a 40MP zoom camera with 34x optical zoom and 400x max digital zoom. The wide and zoom cameras support night scene mode.
The H30T also features a laser rangefinder with 3,000m measurement range, and an NIR auxiliary light.
Key Features Of DJI Zenmuse H30T
- Upgraded Thermal Sensor: 1280 x 1024 resolution - improved by 4x. 32x maximum digital zoom. Supports zoom and infrared and a simultaneous split-screen display.
- Improved Visual Zoom Camera: 400x digital zoom and 34x optical zoom with 40MP zoom camera, with optimised stabilisation.
-
Wide-angle Camera: 48MP 1/1.3-inch CMOS sensor. Maximum video resolution of 3840 x 2160 @ 30fps.
- Laser Rangefinder: Enhanced range of 3-3000 m at an accuracy of 0.2 m under 500 m and 1m over 500 m.
- NIR Auxiliary light: Light up dark environments up to 100 metres away using NIR bands. These bands detect infrared vibrations (invisible to humans) within 850 meters by capturing their overtones and combinations of absorption bands.
- Detect Details: The H30T has a superior observation effect on target details 700m away compared to the H20 Series.
- Multi-Touch Gesture: Easily manage the camera features of the H30T using the touchscreen settings on the DJI RC Plus Controller, enabling straightforward user navigation to access its advanced camera settings
- Night Vision: Activate night mode with the H30T options of full-colour or black-and-white to achieve higher clarity and accuracy at night and in dark places.

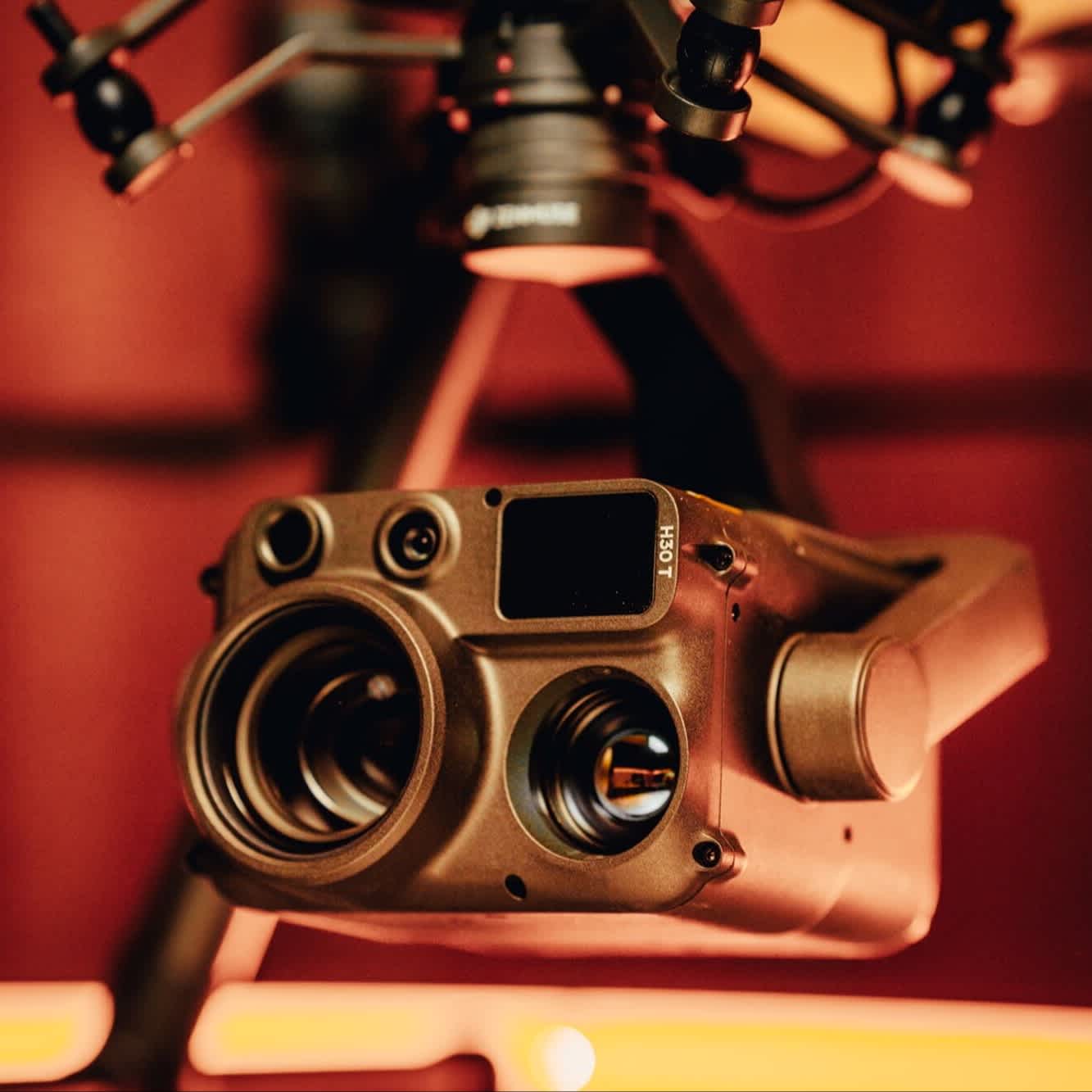

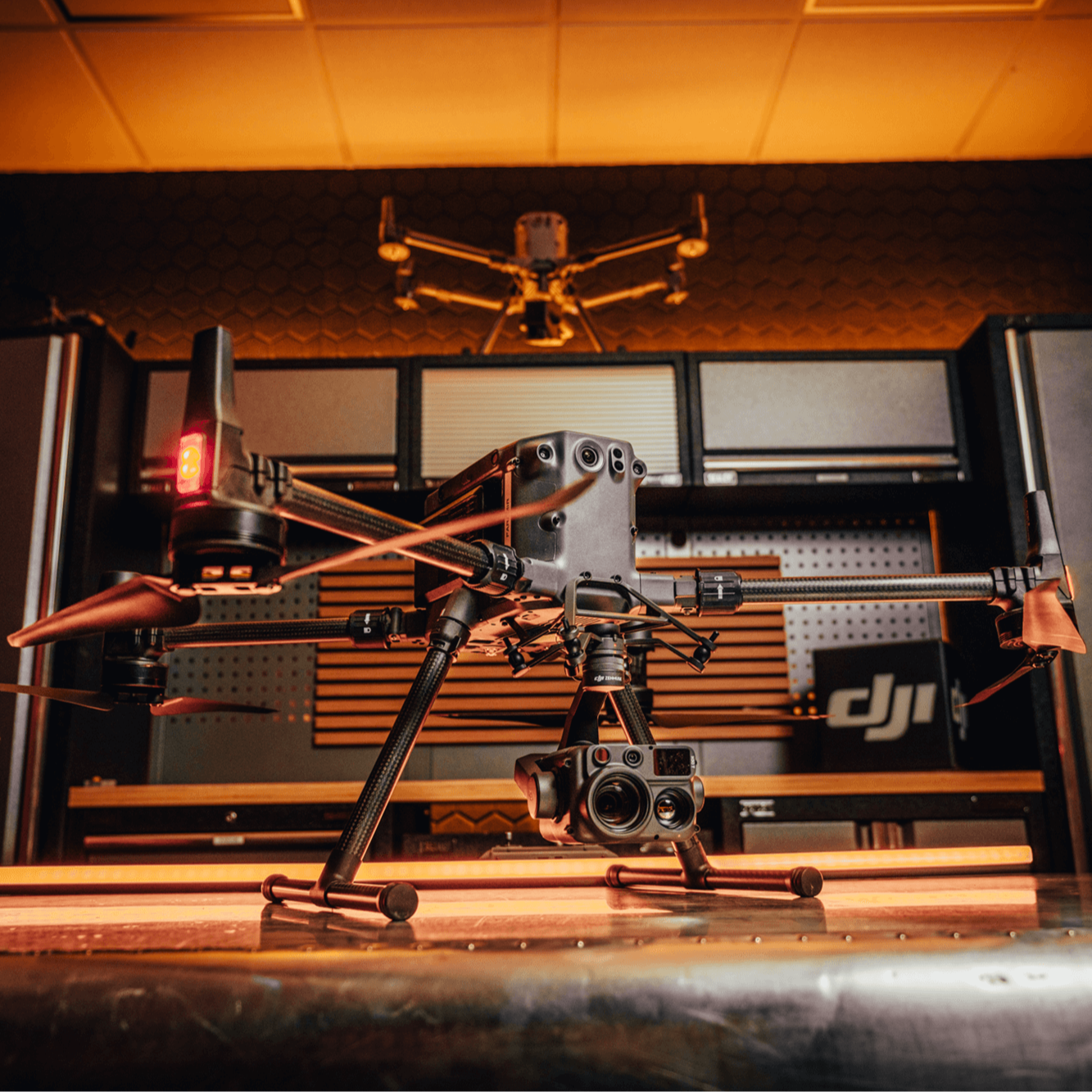

H30T Thermal Camera
The H30T has an upgraded thermal sensor, to help you capture better quality infrared data.
-
1280 x 1024 Infrared Resolution: The thermal camera has a resolution of 1280 x 1024 - which is 4x better than the H20T. It also has 32x digital zoom. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ensuring the infrared images remain clear.
-
High-Res Mode: H30T supports three infrared gain modes. High Gain mode provides precise temperature measurements; Low Gain mode enables a wider temperature range; and the new High-Res mode is ideal for observing objects, people or animals with small temperature differences.
-
Visual and IR Cameras Simultaneous Zoom: The zoom and thermal cameras support Link Zoom - which scales the RGB and thermal images in tandem to maintain the same viewpoint.
- Wide Temperature Range: Use the infrared density filter (available separately) to measure temperatures up to 1600°C - which is 3x the previous generation.
H30T Night Scene Mode
- NIR Auxillary Light: When activated, the auxiliary light, also known as the IR Spotlight, and the IR Light option will turn on automatically. This switches the camera view to black and white while the auxiliary light enhances illumination at the centre of the screen.
- Black and White Mode: In this mode, the landscape appears in black and white, and infrared light can be used to illuminate the area below without causing excessive brightness.
- Full-Colour Mode: With this feature, the IR filter that would cut out the infrared light is removed, allowing you to see a brighter landscape.
- Enhanced Noise Reduction: In the night vision setting, you will find the noise reduction options, enabling you to quiet the background noise as you film.
- Laser-Assisted Focussing: By default, a laser range finder aids focusing.
-
Night Scene Mode: With Night Scene mode and IR Light activated, the laser spot is visible at the centre of the black-and-white camera view. You have the option to deactivate the laser module in On-Demand Mode, which turns it off when the RNG function is not in use.
H30T Visual And Zoom Cameras
- Zoom Camera: 1/1.8-inch CMOS with effective pixels of 40MP. Supports night scene mode.
- Superior Zoom Performance: 34x max optical zoom and 400x max digital zoom. Optimised stabilisation in telephoto video, maintained clarity during zooming, and faster focusing speed.
- Better Object Detection From Afar: H30T has a better observation effect on target details at 700 metres compared to the performance of the H20 Series.
-
Wide Angle Camera: 1/1.3-inch CMOS wide camera with 48MP. Equivalent focal length of 24mm.
- Recording: Obtain 4K and 1K resolution. Continuous recording for up to 2 hours.
- Smart Capture: Smart Capture Mode enables the camera to assess the light intensity and dynamic range before capturing an image.
- Laser Rangefinder: Enhanced laser rangefinder with up to 3,000m maximum measuring distance. Real-time display of latitude and longitude coordinates and altitude.
H30T Smart Features
- Storage-Friendly Bit Rate: H30T dynamically compresses videos to save storage and CBR, which maintains a constant bit rate.
- Foreground Stabilisation: When videoing, foregrounds can be made the centre of focus easily for more accurate and reliable inspection data.
- Electronic Dehazing: Enhance footage quality with Electronic Dehazing, clarifying imagery from the zoom camera for a clearer, less distorted filming environment.
- Smart Track: Enable accurate tracking of moving objects, such as vehicles or people, through automated identification, positioning, and continuous tracking, ensuring they stay centered in the picture and maintain suitable proportions for viewing.
-
AI Spot Check: Use this feature to improve the accuracy of your tasks. The algorithm autonomously compares the target area with the real-time image to adjust the camera's shooting angle, ensuring precise operations.
- H30T Flight Planning: Use Waypoints for precise mission planning (ideal for inspections) or conduct emergency response mapping to locate and model routes.
