Boscam Galaxy D2 FPV Monitor Review

Boscam Galaxy D2 FPV Monitor Review

Review of the new Boscam Galaxy D2 FPV monitor by Heliguy. You can buy the Boscam Galaxy D2 FPV monitor from us online.

Last updated: Feb 26, 2021

1 minute read

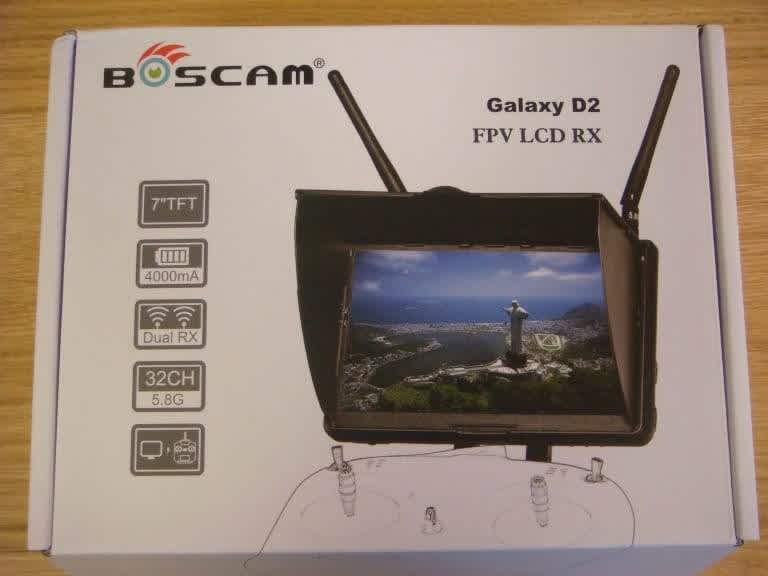

The New Galaxy D2 FPV Monitor From Boscam. Boscam galaxy d2 This monitor has a foldable sunshade that also acts as a screen protector when not in use. The unit itself also looks very clean and well designed. Galaxy

What's in the box of the Boscam Galaxy

Boscam galaxy d2 There is a charger included separately. It also comes with deans connector if you'd like to run it from an external battery, a mounting bracket for radio receivers and a AV lead fir inputting and outputting audio and video. It also comes with mounting plate for tripod stand Boscam galaxy d2 On-off switch, and the mini-dip switches to select the channels on R1 and R2. Diversity is selected by choosing the same channel on both sides. Boscam galaxy d2 It has 3 video outputs 1 for each receiver and 1 that automatically selects the best one for output. There is also a video input Boscam galaxy d2 There is only one switch to switch between R1 and R2's channel when not in diversity mode. Charging led (red = charging, green = charged): the initial charge took about 4-5 hours to full on my 1.5A 12v charger. Pros Large bright screen Well built, high quality plastic Clean design, not many switches/buttons to fiddle with Built in 4000mah lipo (presumably) with good battery life foldable sunshade which acts as screen protector when not in use Mounting clip for radio receiver well thought and very sturdy Cons Charging took quite long to full charge Does not have OSD to change screen settings - contrast, brightness etc etc Default contrast is too high - "burns out" highlight areas and reduced the amount of detail Boscam galaxy d2The high contrast makes it a little hard to see on a bright days light due to the clipping washing out alot of the detail. Boscam Galaxy D2 Specs Screen: 7'' TFT LCD screen, LED backlight LCD panel resolution: 800x480 TV lines: 400TVL (a DVD is 500TVL so 400 is ok) Brightness: 400 cd/m² Contrast: 500:1 View Angle: 140/120 degree (Horizontal/Vertical) Antenna Connector: RP-SMA Channel: 5.8G Input; 4 Brands/ 32 Frequency selectable Size: 176x112x24mm (Height of light shield:102mm) Battery: Built-in 4000mA Li-Po battery DC: 12V/1A Power Consumption: 600mA at 12V(maximum) Advanced Specs Spatial resolution: 450x380 Active deinterlacing: none Deinterlacing method: Blend 3D noise reduction: none
