DJI has updated the firmware for the Phantom 4 RTK and users are urged to upgrade as soon as possible.
The company has issued the upgrade to 'improve flight safety and user experience', saying it should address a number of issues and offer users additional options and support.
DJI has advised that, because the firmware update is fairly large, it could take some time to upload.

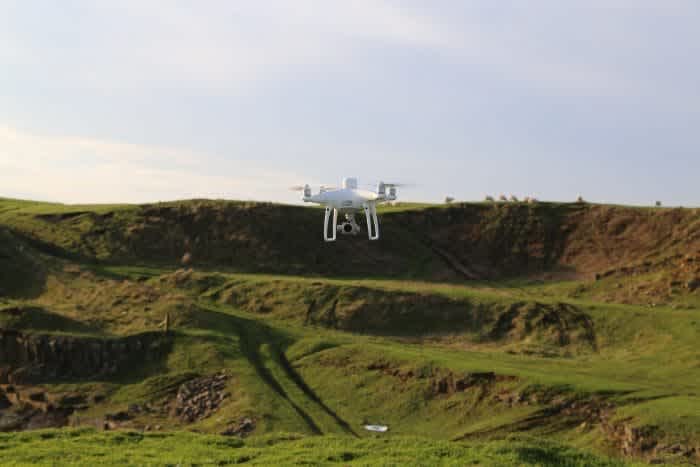

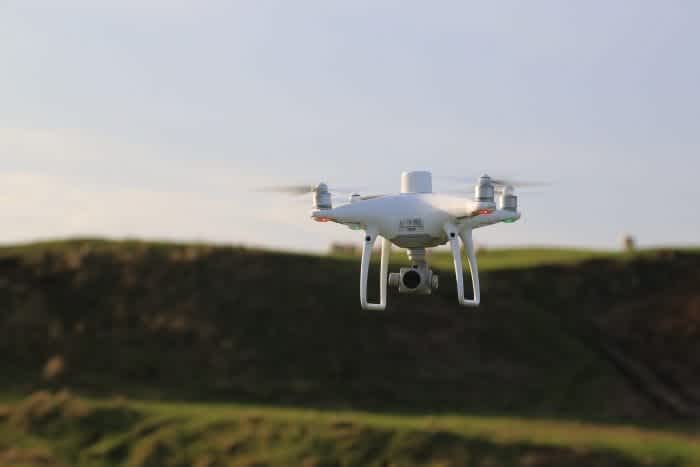

The Phantom 4 RTK was launched in the autumn and is a high-class mapping and surveying drone, offering centimetre-level positioning data in real-time.
What’s New?
- Added support for the remote controller without a built-in display for use with Mobile SDK apps.
- Added Timed Shooting mode in Photogrammetry and Linear Flight operations.
- Added the option in Advanced Settings when planning a Photogrammetry operation to set the margin of the operation area automatically.
- Added support for export and import of the planned operations using a micro SD card.
- Added support for RTCM 3.2 MSM3 when using custom network RTK.
- Added the option in General Settings in Camera View to select Grid as FPV Display Mode.
- Added the function to centre the gimbal by double tapping the gimbal pitch status bar in Camera View.
- Cancelled the limit for the length of the flight route when planning an operation.
- Optimised the calculation for the flight route and operation duration.
- Fixed occasional issue: App crash caused by some random operations.
- Fixed occasional issue: There was no marker for the breakpoint after pausing the operation.
- Fixed occasional issue: The storage path of the pictures shot during automatic operations was wrong.
- Fixed issue: Wrong display of some text in the app.
- Fixed issue: Wrong display of GSD value when system language was Japanese.
Upgrade Method
Upgrade with DJI Assistant 2 for Phantom or DJI Assitant 2 for MG
Download and install DJI Assistant 2 for Phantom:
https://dl.djicdn.com/downloads/dji_assistant/20181028/Phantom/DJI+Assistant+2+For+Phantom+2.0.6.exe
1: Connect your aircraft/remote control to your computer
2: Open DJI Assistant 2 for Phantom
3: Upgrade the aircraft firmware to V 01.07.0116
Download and install DJI Assistant 2 for MG:
https://dl.djicdn.com/downloads/dji_assistant/20181028/MG/DJI+Assistant+2+For+MG+2.0.10.exe
1: Connect your aircraft/remote control to your computer
2: Open DJI Assistant 2 for MG
3: Upgrade the aircraft firmware to V 01.07.0116,upgrade the remote control to V 01.07.0116
Firmware update 'may take a long time'
Users who are installing the firmware update are being advised to be aware of the following:
- This firmware update may take a long time. Please wait and DO NOT power off the aircraft during updating.
- Be sure to update the firmware for both the aircraft and the remote controller.
Otherwise they will not work together. - It is not recommended to use this firmware with a PC GS Pro of v1.2.0 or lower. Otherwise some functions may not work properly.
