Linking your M200 aircraft with the remote
A step by step guide for linking your Matrice 200 series remote control with the Matrice 200, 210 and 210 RTK.
The DJI Matrice 200 is a high-performance drone designed for professional and industrial applications. To ensure seamless communication between your aircraft and remote controller, you’ll need to complete the linking process.
Follow this step-by-step guide to link your Matrice 200 with the remote controller.
Linking instructions

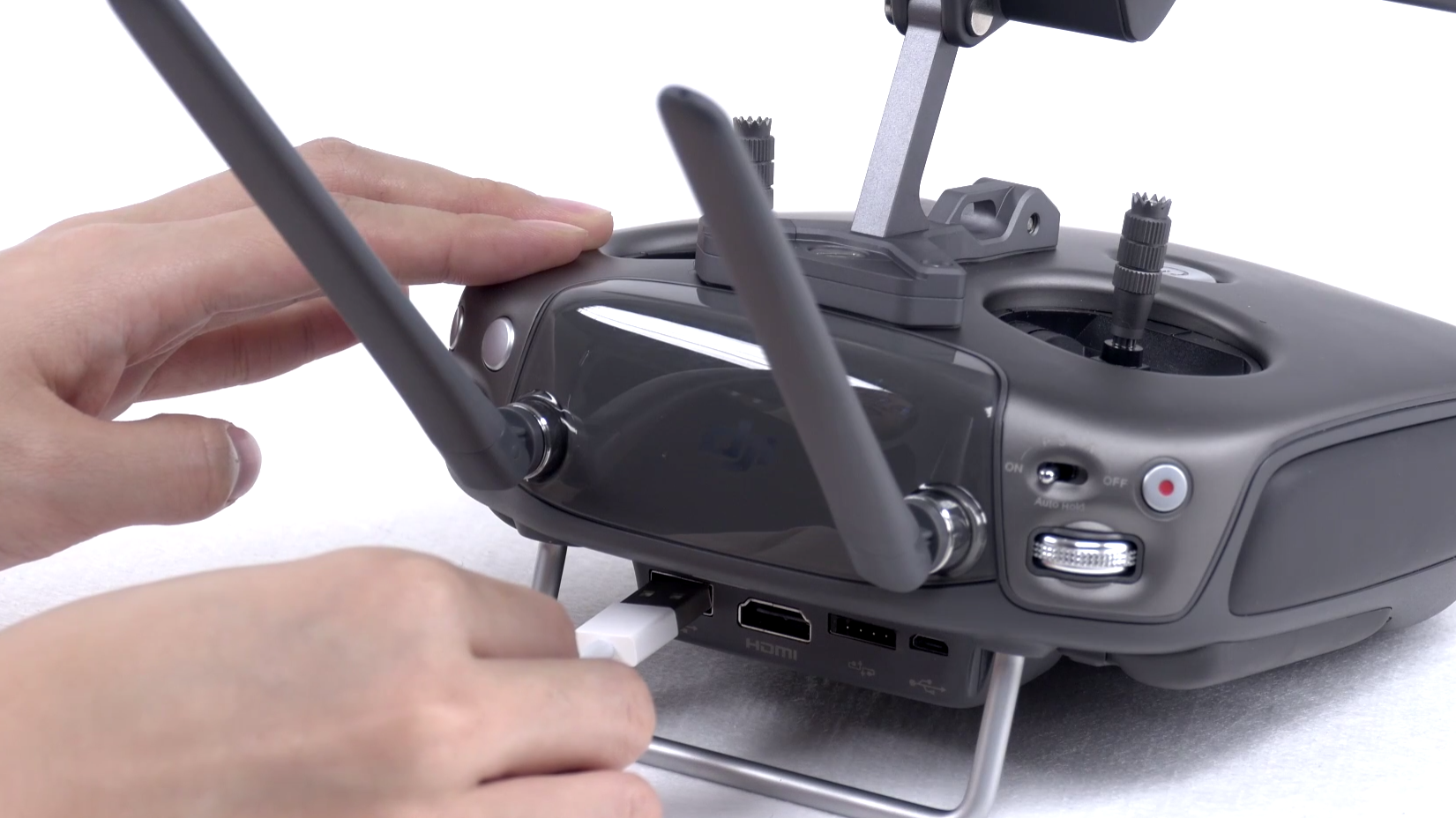

Connect your mobile device to the controller.
Turn on your remote controller.
Turn on your aircraft.
Open the DJI GO 4 app, tap the RC icon at the top of the screen, and enter remote controller settings.
Select "Linking Remote Controller" and tap “OK” on the “Link RC” pop-up prompt.
The remote controller will beep twice, and the indicator will flash blue.
On the aircraft, open the rear compartment and press the “Linking Button.” This button also serves as the “Linking Status Indicator.”
The "Linking Status Indicator" will flash red quickly.
Once linking is complete, the remote and aircraft indicators will turn green.
Summary
Your DJI Matrice 200 is now successfully linked to the remote controller and ready for operation. Ensure the connection remains stable before your flight, and check that all firmware is up to date.
