Matrice 300 BS60 Battery Station
Keep the mission going for longer with the new battery station

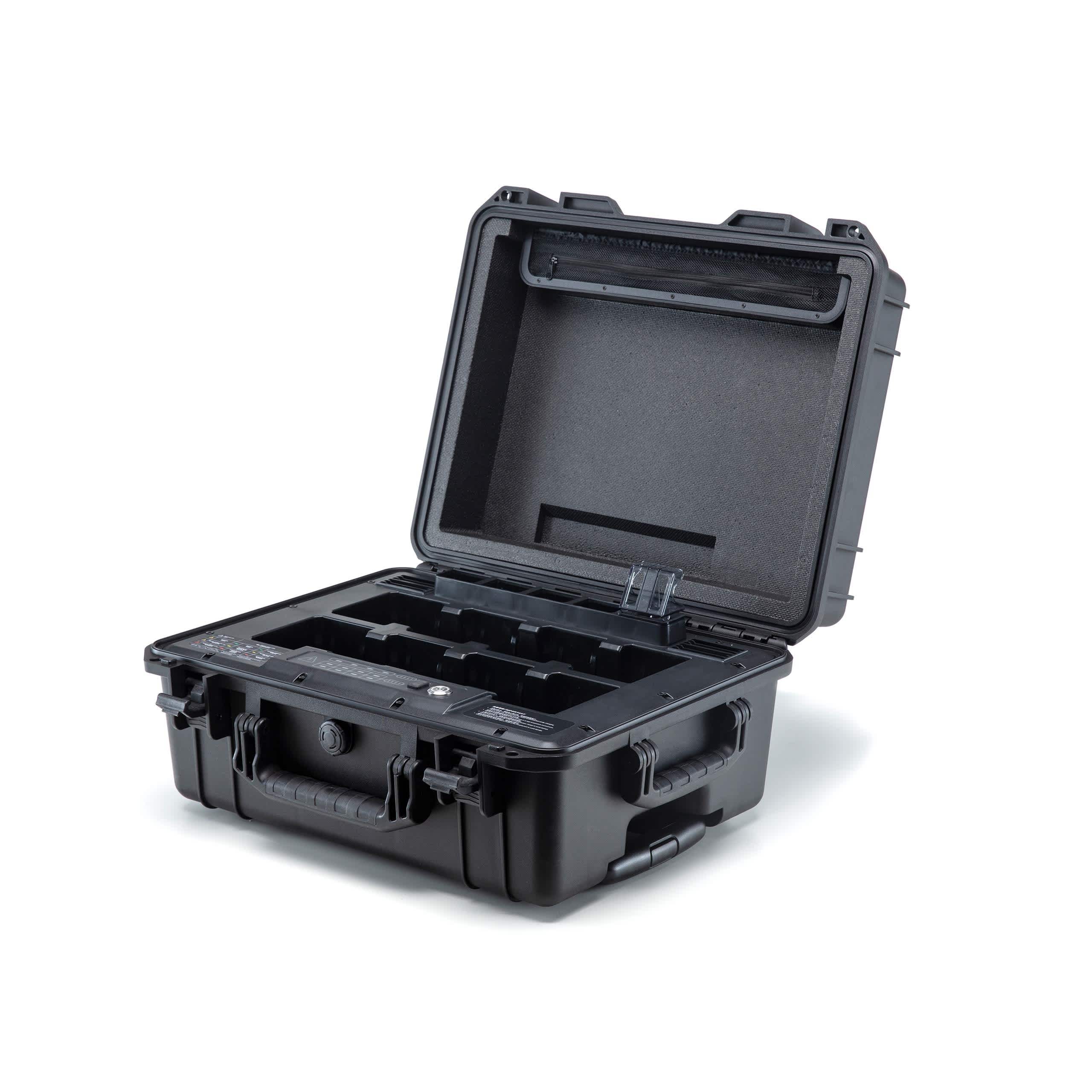

BS60 Battery Station for TB60 Batteries
The new Battery Station helps you take your flight further. It manages up to eight flight batteries and four remote controller batteries, while fast charging allows you to conduct your missions without running out of power.
This all-in-one charging and storage solution charges two batteries to full capacity within 60 minutes to enable continuous flight time.
As well as being compatible with the TB60 batteries, the battery station is also compatible with the new generation TB65 batteries, released with the DJI M350 RTK. When using with the TB65 batteries with the battery station, ensure that all the firmware has been updated.
TB60 Intelligent Flight Battery
With this new drone comes a new battery, in the form of the TB60 Intelligent Flight Battery.
TB60 is high-capacity and hot-swappable, enabling operators to change batteries without powering off, saving time during critical missions.
DJI BS60 Battery Station FAQs
Answers to your most common queries.
It can simultaneously store eight TB60 Intelligent Flight Batteries and four WB37 Intelligent Batteries. It can charge two TB60 Intelligent Flight Batteries and one WB37 Intelligent Battery at the same time. Batteries with the highest battery levels will be recharged first, followed by the ones with lower levels.
With 220V power supply: It takes about 60 minutes to fully charge two TB60 Intelligent Flight Batteries; and about 30 minutes to charge them from 20% to 90%.
With 110V power supply: It takes about 70 minutes to fully charge two TB60 Intelligent Flight Batteries, and about 40 minutes to charge them from 20% to 90%.
- Before using, mark two TB60 Intelligent Flight Batteries as a pair that will always be charged/discharged together to ensure optimal performance.
- Do not charge immediately after a flight. Let the battery cool down to room temperature before charging.
- The ideal charging temperature of TB60 Intelligent Flight Battery is 15°C-40°C;
- The ideal storage temperature of TB60 Intelligent Flight Battery is 22°C-30°C. Make sure they are stored in an environment that is free of moisture and not in direct sunlight.
- If a battery won’t be in use for more than 10 days, discharge it until the battery level drops to 40% - 65%, and store it properly. Charge and then discharge the battery every three months to keep it healthy.
The operating temperature of the TB60 Intelligent Flight Battery is -20°C to 50°C. When the battery is used in a low-temperature environment, note that the battery life will be reduced. To optimise performance in the cold, it is recommended to warm the battery up to 15°C before use.
When charging the batteries in an environment between -20°C and 5°C, the self-heating function will be activated to raise the battery's temperature to above 5°C.
Once installed on the aircraft and the power is turned on, if the battery’s temperature is low, it will automatically self-heat to keep the temperature at about 16°C to 20°C.
The capacity of the TB60 Intelligent Flight Battery is 274 Wh and cannot be carried on board airplanes according to airline regulations.
When the battery is stored for a long time, to ensure storage safety and to extend battery life, the battery will automatically start self-discharging to about 65%. It’s normal for the battery to feel slightly warm during this process.
The M300 RTK can take off if the voltage discrepancy of the two batteries is within 0.7 V. If it is unable to take off, the app will inform you that ‘the power discrepancy in the two batteries is too large’.
BS60 Battery Station Specs
|Maximum Capacity/td>TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4
|Input||100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz|
|Max. Input Power||1070W|
|Operating Temperature||-20°C to 40°C (-4°F to 104°F)|
