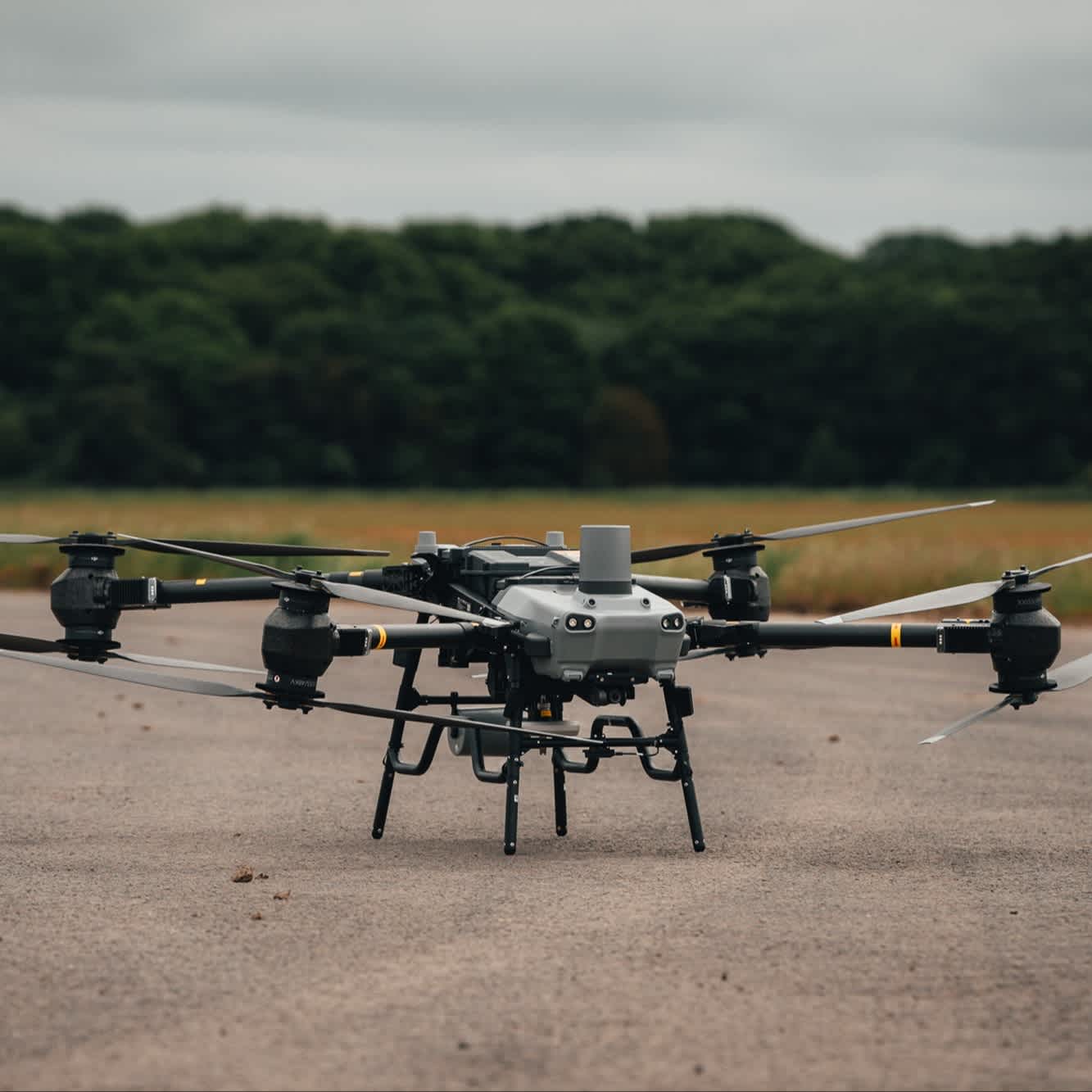

DJI FlyCart 30 Delivery Drone

The DJI FlyCart 30 is a delivery drone with large payload capacity, long operation range, and intelligent features.

This heavy-lift aerial delivery platform is designed to overcome traditional transport constraints and increase efficiency and transportation in complex scenarios.

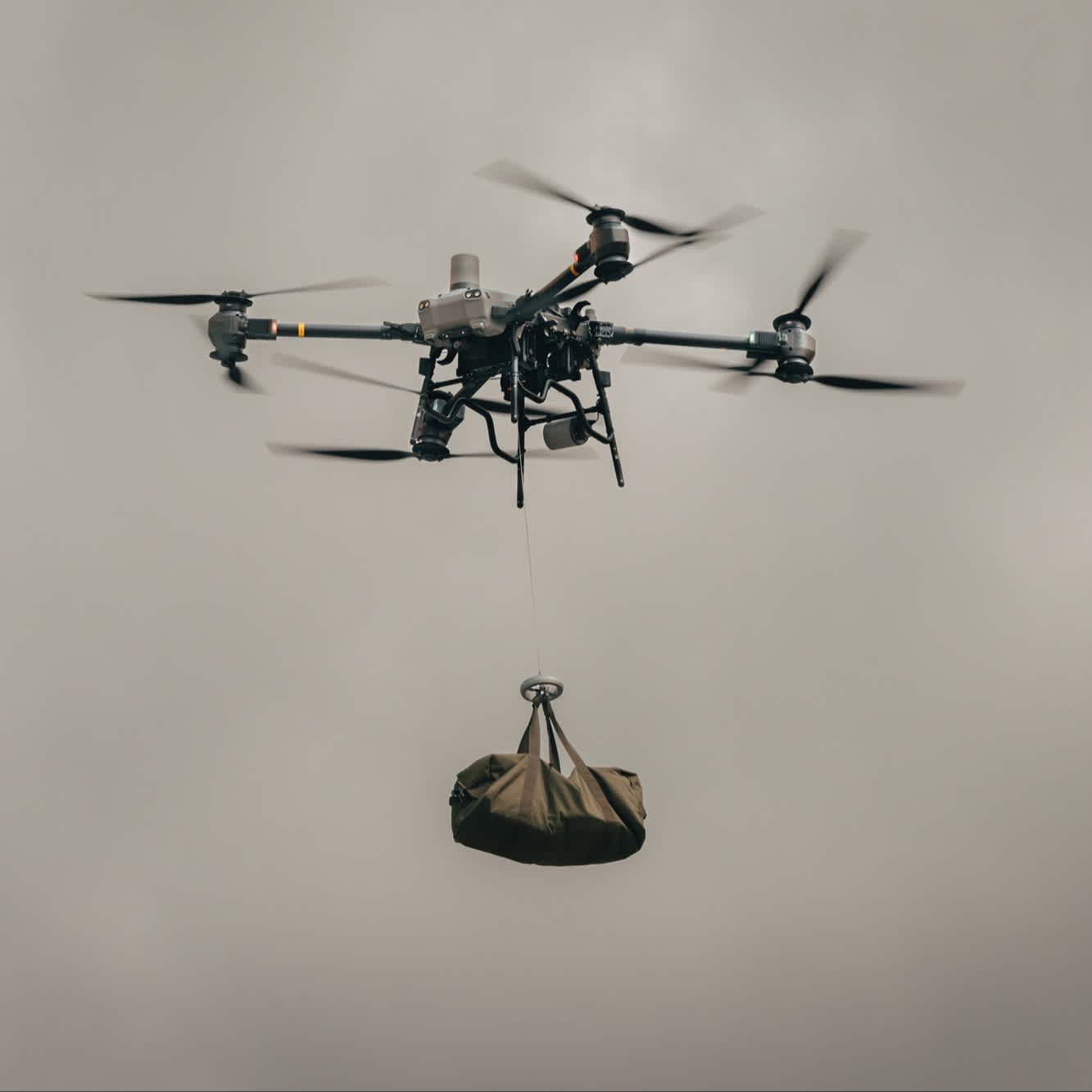

DJI FlyCart 30 supports two modes of transportation: Cargo mode and Winch mode - enabling the drone to meet a range of delivery needs.

Carry up to 30kg (with dual batteries) and cover up to 16km with a full payload.

It features advanced safety features, including an integrated parachute, FPV camera, IP55 weather protection, and added redundancy.

Deploy DJI FlyCart 30 alongside the DJI Delivery Hub: An all-in-one cloud-based air delivery management system.

DJI FlyCart 30, which is a highly-responsive and eco-friendly transportation solution, benefits a range of applications, including public safety/emergency supply, offshore and ship-to-shore, and delivery of items, including medical equipment.

.


DJI FlyCart 30 Accessories


Heavy Payloads, Long Distance

DJI FlyCart 30 can carry a maximum payload of 40kg with a single battery or 30kg with dual batteries.

With a full payload and dual batteries, it can travel up to 16km in one flight. It can reach a maximum speed of 20m/s, with a cruising speed of 15m/s.

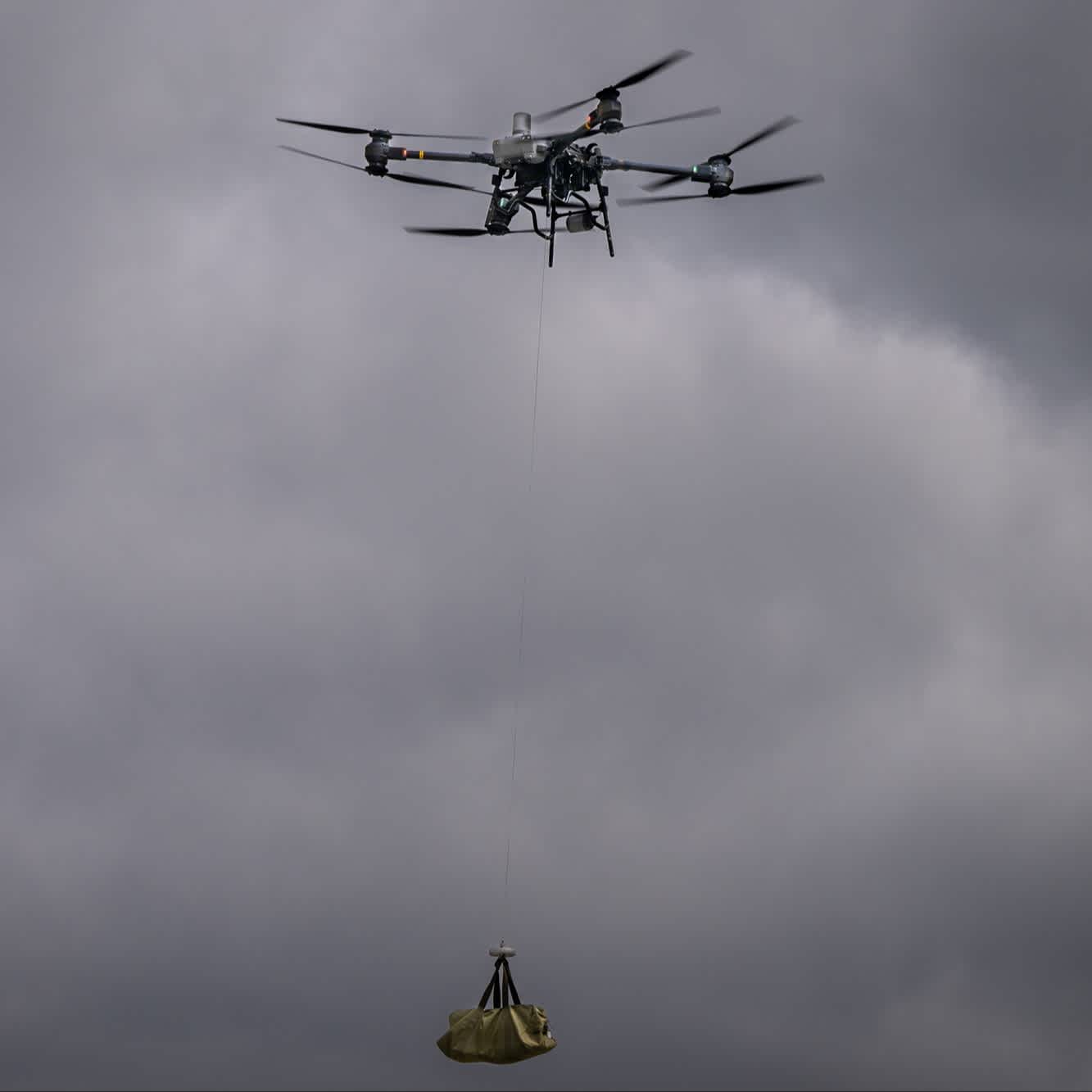

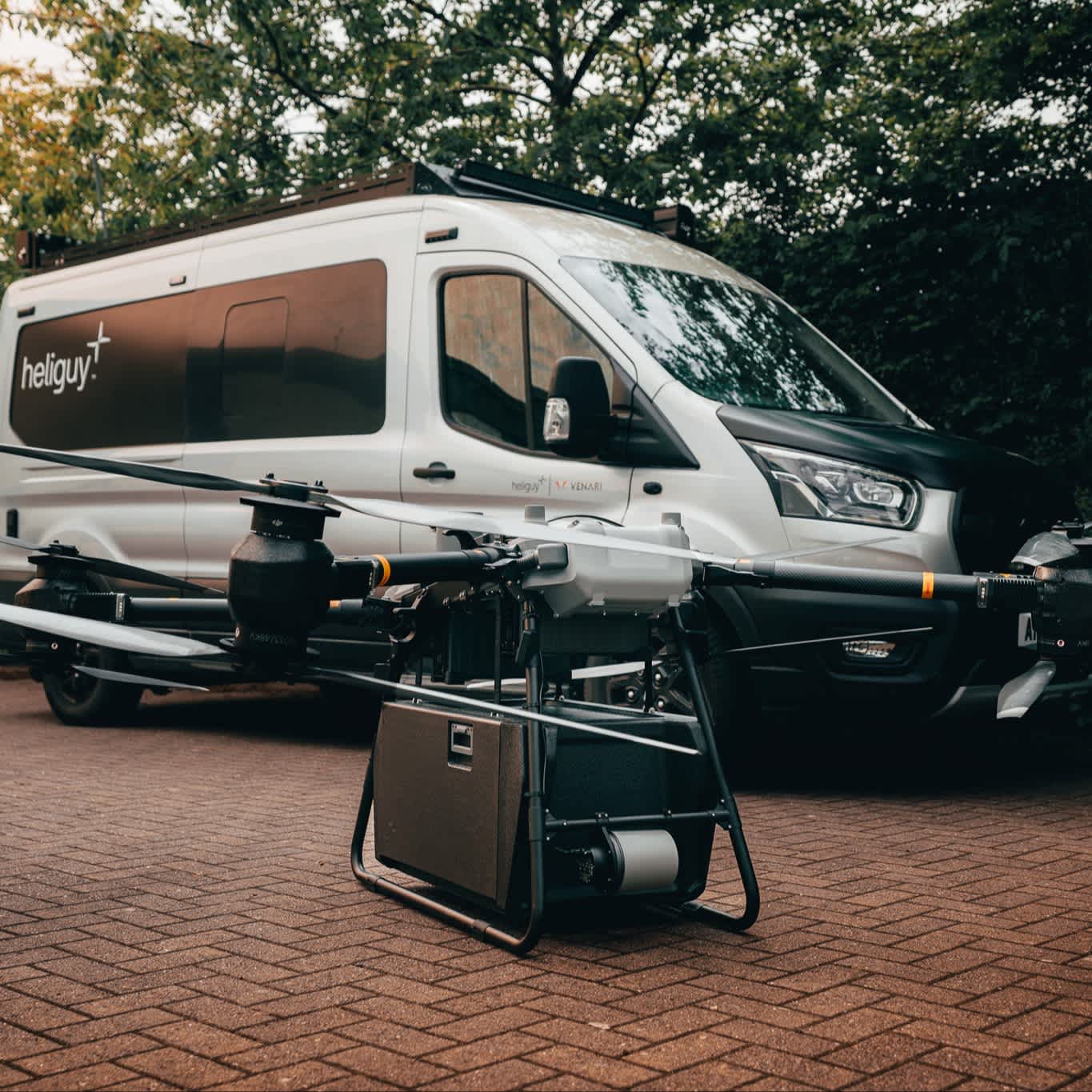

Deploy the DJI FlyCart 30 in Cargo mode or with a winch.

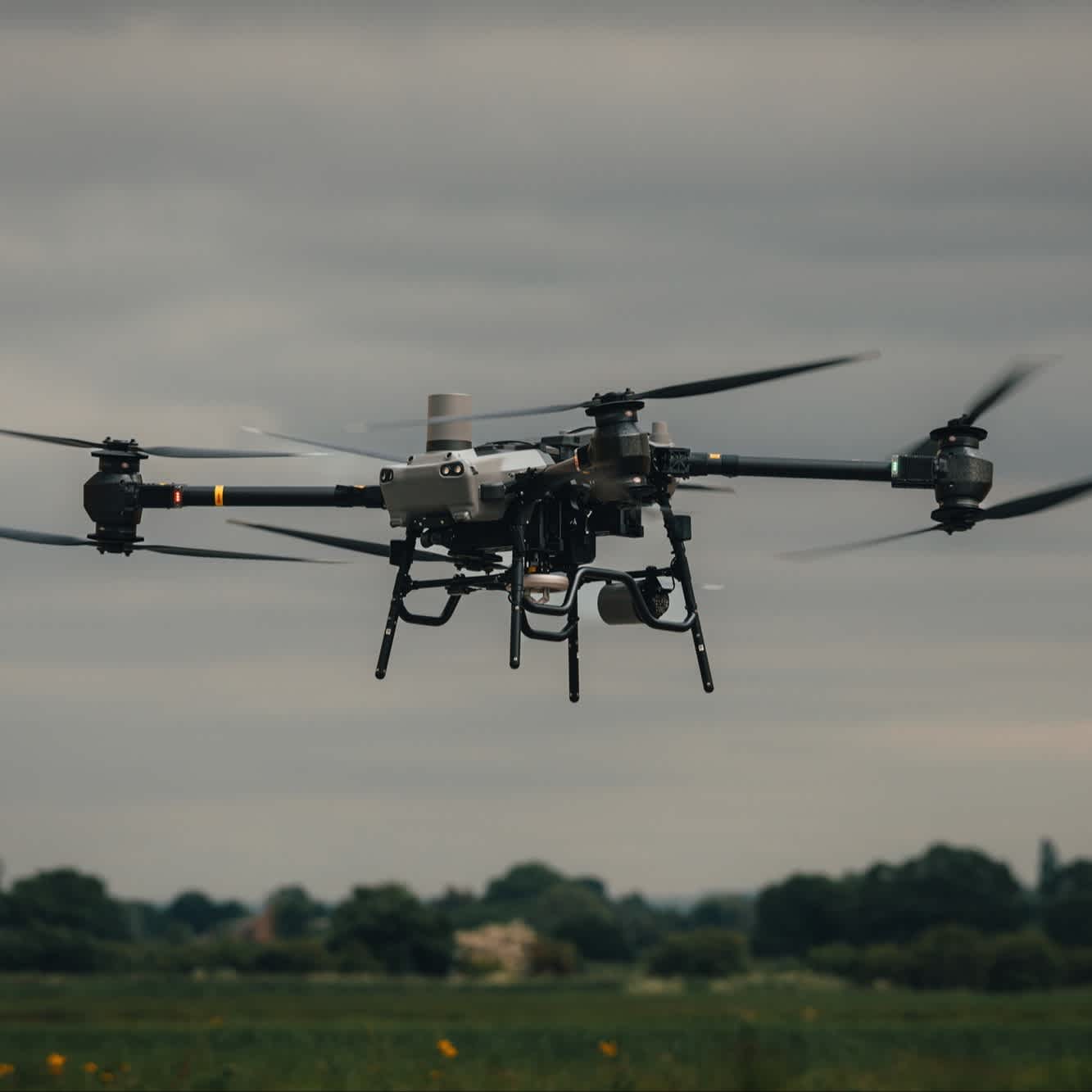

DJI FlyCart: Safety & Reliability

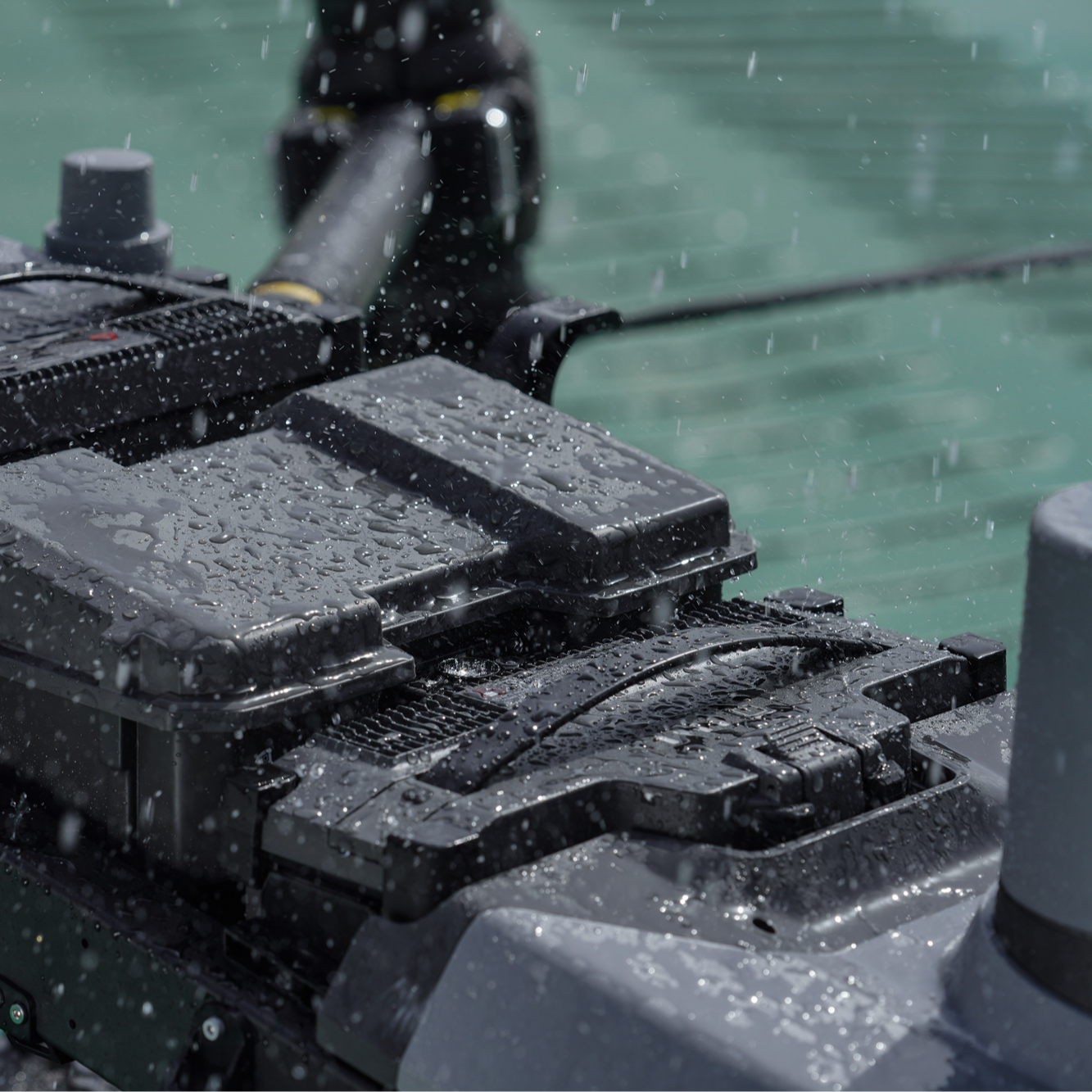

  • All-weather Performance: Operating Temperature: -20°C to 45°C; IP55 protection; Max wind speed resistance: 12m/s.
  • Alternative Landing Sites: Set multiple alternate landing sites for safe landing in case of an emergency, such as low battery, loss of control, or overheating.
  • Integrated Parachute: Opens at a minimum altitude of 60m. Land stably at 6m/s with a full load. Propellers stop rotation and audio and visual alerts are triggered during parachute deployment.
  • Take-off And Landing Protection: Includes pedestrian and obstacle detection at take-off, near-ground deceleration protection; and centimetre-level RTK positioning and motor status.
  • Stable Signal: Four-antenna O3 video transmission; High-resolution FPV gimbal supports real-time and clear live feeds of the surrounding flight environment.
  • Multidirectional All-weather Intelligent Obstacle Sensing: Includes Dual Binocular Vision obstacle sensing distance up to 50m; and front and rear radars.
  • Crewed Aircraft Warning: Built-in ADS-B signal receiver; 15km sensing distance; Early warning reporting based on altitude, speed, and direction of the FlyCart 30 from crewed aircraft.
  • Multi-Level Redundancy: Includes sensor and propulsion system redundancy; image transmission link backup; dual intelligent flight battery backup; and battery hot-swapping.
  • DJI RC Plus: Control DJI FlyCart with the DJI RC Plus, which supports Dual Operator Mode for improved safety and operation and extends operational range.
  • DJI Pilot 2: Powers manual flight, and displays real-time flight status and cargo status. In extreme weather or other abnormalities, DJI Pilot 2 alerts of risks and supports alternate landing site management.


Intelligent Modes

  • Cruise Control: Mitigates pilot fatigue.
  • Real-time Terrain Sensing: Remote controller displays altitude information to help you visualise terrain changes.
  • Route Recording: Add waypoints in real-time and record their locations for quick and accurate route planning.
  • Backtrack RTH: Return to the home point following historical flight track. The optimal route is generated based on flight waypoints.

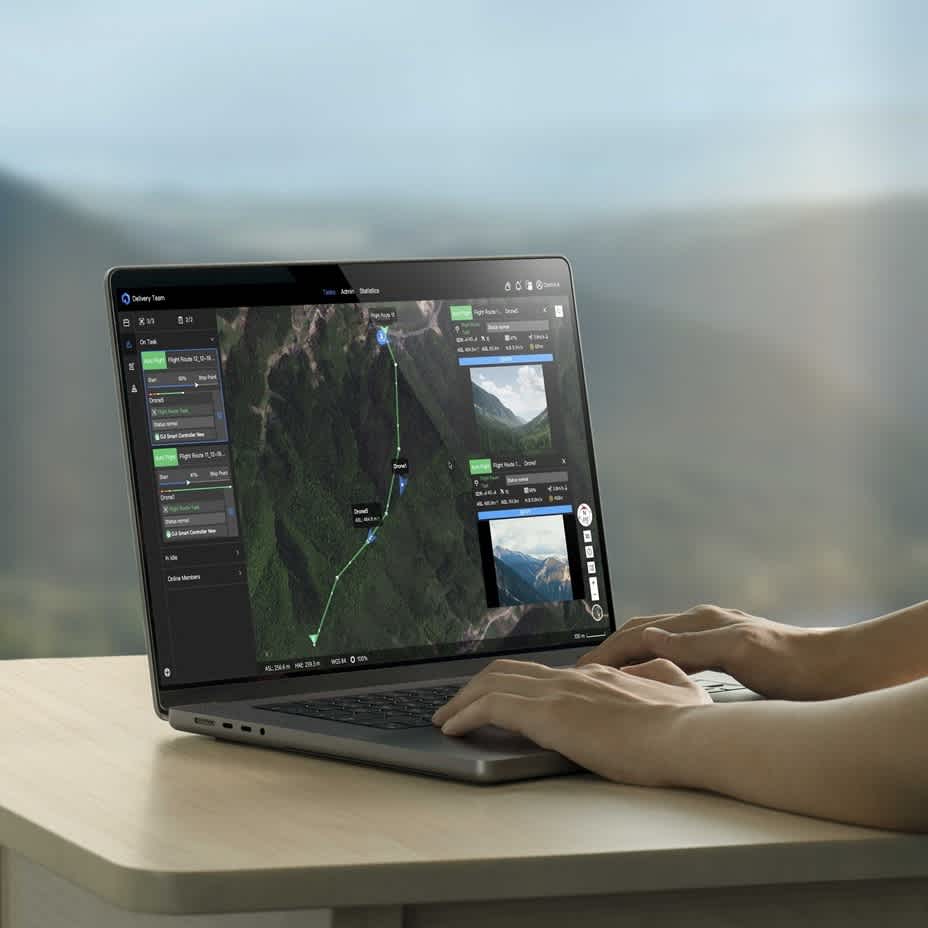

DJI Delivery Hub

DJI Delivery Hub is a one-stop, cloud-based air delivery management solution.

  • Efficient Task Planning And Execution: Remotely create, schedule and allocate tasks and devices; remotely control the drone and payload; and automatic execution of route tasks.
  • Route Planning: Plan complex flight routes quickly based on a 2.5D Base Map; merge routes; route-elevation conflict check, including displaying waypoint elevation apps based on DEM data.
  • Comprehensive Status Monitoring: Real-time display of flight status; Drone FPV camera live view; Error alerts; and notification of multi-device task status.
  • Team Management: Monitor and manage fleet health status and maintenance information; in-depth data visualisation by collecting and displaying data across device, route, and time.

Product specification

DJI FlyCart 30

Specification Value
Aircraft
Weight 42.5 kg (without battery)
65 kg (with two DB2000 batteries)
Max Takeoff Weight 95 kg (with cargo at sea level)
Max Diagonal Wheelbase 2200 mm
Dimensions (L x W x H) Arms unfolded, propellers folded: 1590 x 1900 x 947 mm
Arms & propellers unfolded: 2800 x 3085 x 947 mm
Arms & propellers folded: 1115 x 760 x 1027 mm
Folding Method Towards body
Loadable Battery Quantity 2
Hovering Endurance (empty weight, with max battery capacity) 29 mins (dual battery mode)
15 mins (single battery mode)

*The data was collected in controlled conditions: Zero altitude and a windless environment. For reference only.
Hovering Endurance (max weight, with max battery capacity) 18 mins (30 kg weight load, dual battery mode)
8 mins (40 kg weight load, single battery mode)

*The data was collected in controlled conditions: Zero altitude and a windless environment. For reference only.
Max Flight Distance (empty weight, with max battery capacity) 28 km (dual battery mode)
12 km (single battery mode)

*The data was collected in controlled conditions: Zero altitude and windless environment, at a constant speed of 15m/s. For reference only.
Max Flight Distance (max weight, with max battery capacity) 16 km (30 kg weight load, dual battery mode)
8 km (40 kg weight load, single battery mode)

*The data was collected in controlled conditions: Zero altitude and windless environment, at a constant speed of 15 m/s. For reference only.
Max Flight Time (max weight, with max battery capacity) 18 mins (30 kg weight load, dual battery mode)
9 mins (40 kg weight load, single battery mode)

*The data was collected in controlled conditions: Zero altitude and a windless environment, at a constant speed of 15 m/s. For reference only.
Operating Temperature -20°C to 45°C
Ingress Protection Rating IP55
Hovering Accuracy (with strong GNSS signal) RTK positioning enabled: ±10 cm horizontal, ±10 cm vertical
RTK positioning disabled: ±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
RTK/GNSS Operating Frequency RTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
GNSS: GPS L1, BeiDou B1I, Galileo F1, Galieo E1, QZSS L1
Max Pitch Angle 30°
Max Ascent Speed 5 m/s

*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.
Max Descent Speed 3 m/s (vertical)
5 m/s (tilted)

*The data was collected in controlled conditions: Zero altitude and a windless environment, with a 30 kg payload. For reference only.
Max Horizontal Speed 20 m/s*The data was collected in controlled conditions: Zero altitude and a windless environment, with a 30 kg payload, for reference only.
Max Flight Altitude 6000 m (without payload)
Max Wind Speed Resistance 12 m/s

*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.
Propulsion System
Stator Size 100 x 33 mm
Motor KV Value 48 rpm/V
Max Motor Power 4000 W/rotor
Propellers Material Carbon fiber composite
Propellers Diameter 54 inch
Propellers Type Foldable double-blade propellers
Main-rotor Diameter 1375 mm
Rotor Quantity 8
LED Light
Effective Illumination Distance 10m
Illumination Mode 60 Hz, automatically switch on according to ambient light
DJI O3 Image Transmission
Model Pigeon (with DDR)-2T4R
Signal Effective Distance 20 km (FCC) 8 km (CE/SRRC/MIC)

*Measured with FCC compliance in unobstructed environments with typical interference. Data is for reference only. The actual transmission distance may vary depending on the environment's obstruction and interference conditions. Please pay attention to reminders in the app.
O3 Operating Frequency 2.4000 to 2.4835 GHz
5.725 to 5.850 GHz

*Some countries or regions do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details.
EIRP 2.400 GHz - 2.4835 GHz:
<33 dBm (FCC)
<20 dBm (CE/SRRC/MIC)

5.725 GHz - 5.850 GHz:
<33 dBm (FCC)
<30 dBm (SRRC)
<14 dBm (CE)
Data Security AES-256
ADS-B Supported
Forward and Backward Active Phased Array Radar
Model Number RD241608RF (forward)
RD241608RB (backward)
Altitude Detection Fixed altitude range: 1.5-200 m
Rear Obstacle Avoidance Sensible distance (rear): 1.5-50m.

FOV Forward: 360° horizontal, ±45° vertical,±45°upward; Backward: ±45° horizontal, 360° vertical.

Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m away from the aircraft.

Safe distance: 3.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking).

Sensing direction: Multi-direction.
Binocular Vision System
FOV Horizontal: 90; Vertical: 106°
Work Environment Requirements Normal lighting with clearly textured surfaces
FPV Camera
Resolution 1920 x 1440
DFOV 149°
Frame Rate 30fps
Type Full HD FPV Single Axis Gimbal Camera
Fill Light Supported
Frame Rate 30fps
Cargo Case
Dimension 754 x 472 x 385 mm (LxWxH)
Inner Space 573 x 416 x 305 mm (LxWxH)
Material EPP plus aluminum alloy frame
Weighing Feature Supported
Weight Approx. 3 kg
Load Capacity 0-40 kg
Parachute
Max Payload ≤ 95 kg
Dimension 300x200x120 mm (LxWxH)
Weight Approx. 2.1 kg
Automatic Reaction Time Approx. 1000 ms
Descending Speed ≤ 6 m/s (at sea level, no wind)
Parachute Shape Square
Material Nylon
Surface Area Approx. 22 ㎡
Minimum Opening Height 60 m
Operating Temperature -20°C to 45°C
Ingress Protection Rating IP55
Mainboard Power-off Battery Life ≥ 1 hour
Memory Card Capacity Real-time record for 10 flights
Buzzar Alarm Supported
Lighting Alarm Supported
Manual Opening Supported
Automatic Opening Supported
Winch System (Optional)
Model A2EWI-30A
Dimensions 252 x 195 x 193 mm (L x W x H)
Body Weight 2.5 kg (without clump and couple)
Clump Weight 1.9 kg
Couple Weight 0.6 kg
Touchdown Release Feature Supported
Payload Capacity 5-30 kg (dual battery)5-40 kg (single battery)
Cable Length 20 m
Max Retraction Speed 0.8 m/s
Operating Temperature -20° to 45° C
Ingress Protection Rating IP55
Weighing Function Supported
Cut Cable Protection Supported
Swing Control Feature Supported
Manual Operation Supported
Automatic Operation Supported
Deceleration Protection Supported

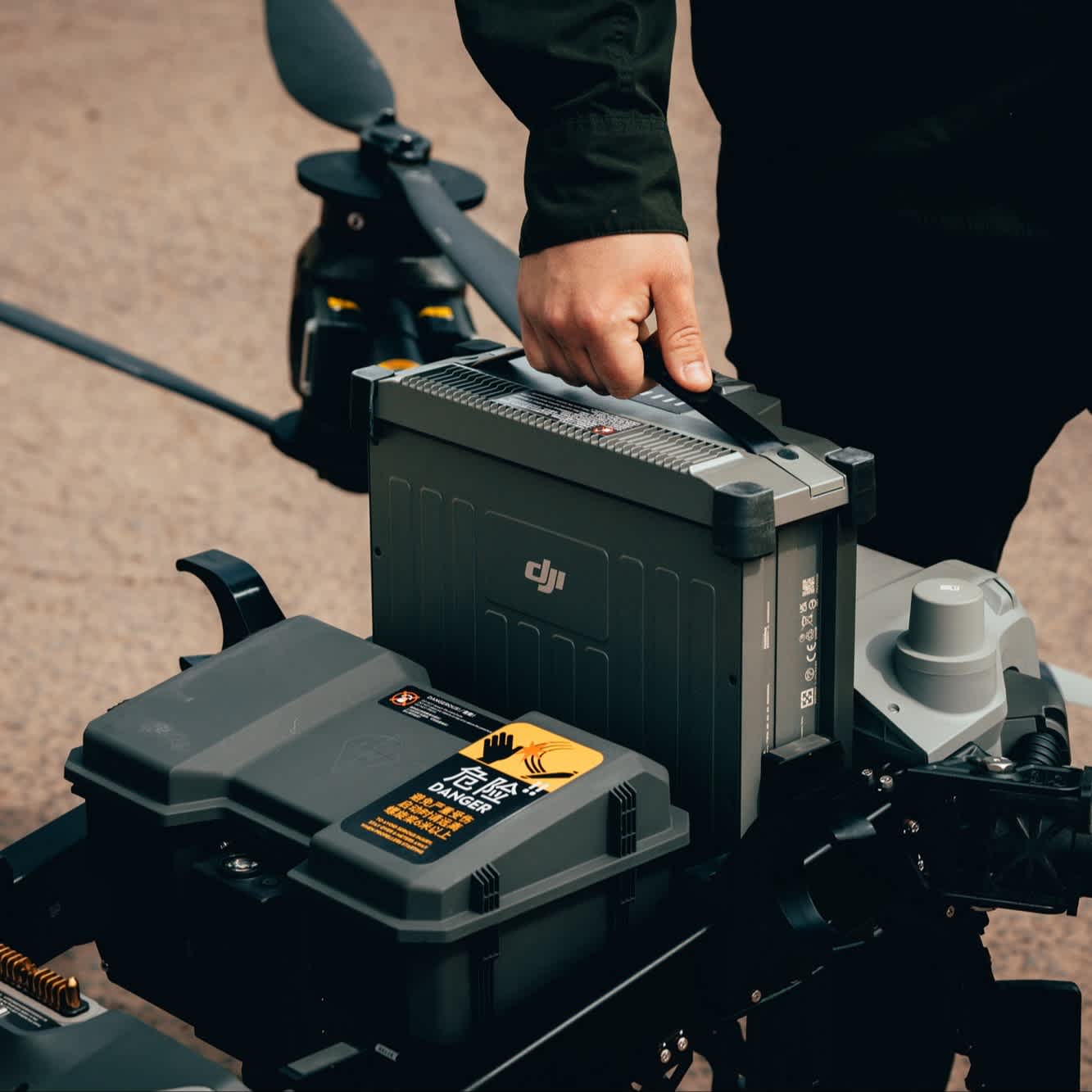

DJI DB2000 Intelligent Battery
Model DB2000
Capacity 38000 mAH
Nominal Voltage 52.22 V
Type 14S1P
Energy 1984.4 Wh
Weight Approx. 11.3 kg
Installation Method Plug
Dimensions 316 x 152 x 279 mm (L x W x H)
Operating Temperature -20° to 45° C
Charging Rate 5 to 15°C: 1.0C;
15 to 45°C: 2.5C
Max Charging Power 5700 W
Automatic Heating Feature Supported (when the battery temperature is below 10°C, pressing and holding the button or turning on the drone will activate the self-heating function. When the battery temperature is below 20°C, connecting the charger to the battery will activate the self-heating function. Charging and discharging in a low-temperature environment may reduce the battery's lifespan)
DJI C8000 Intelligent Charger
Model CHX101-7000
Input 90-264 V AC
Output 42-59.92 V DC
Max Output Power 7200 W (Dual input)3600 W (Single input)
Output Channel Quantity 2
Protection Feature The feature is designed to respond to issues including overheating, overvoltage, undervoltage, short circuits, fan stalls, etc.
Operating Temperature -20°C to 45°C
Charging Security Connector protection feature available
Remote Controller
Type DJI RC Plus
App DJI Pilot 2
Operating Frequency 2.400-2.483 GHz
5.725-5.850 GHz
EIRP 2.400-2.4835 GHz:

<33 dBm (FCC)
<20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz:

<33 dBm (FCC)
<23 dBm (SRRC)
<14 dBm (CE)
Operating Temperature -20°C to 50°C
Charging Environment Temperature 5°C to 40°C
Built-in Battery Life 3.3 hours
External Battery 2.7 hours
Charging Method Use a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended.
Charging Time 2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method).
Ingress Protection Rating IP54
Video Output Interface HDMI
Wi-Fi Protocol Wi-Fi 6
Wi-Fi Working Frequency 2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Bluetooth Protocol Bluetooth 5.1
Bluetooth Working Frequency 2.4000 - 2.4835 GHz
EIRP <10 dBm
GNSS GPS+Galileo+BeiDou
Screen 7.02 inch touch LCD display screen, resolution 1920*1200, brightness 1200 nits
Dual Operator Mode Supported
