How do I install and remove the DJI Matrice 3D Series Intelligent Flight Batteries?

Follow these steps to install and remove DJI Matrice 3D Series Intelligent Flight Batteries: Install: Open the battery locking arm, insert the Intelligent Flight Battery into the compartment until it clicks, then close the arm until the orange mark is hidden, indicating it's locked. Remove: Open the battery locking arm and press the release button to remove the battery.

How does the DJI Matrice 3D Series Intelligent Flight Battery's self-heating function work?

When the battery temperature is below 18°C (64.4°F), self-heating activates once the battery is inserted and the aircraft is powered on, turning off automatically after takeoff. The aircraft cannot take off if the battery temperature is below 10°C (50°F).

DJI Matrice 3D Series Intelligent Flight Battery

£0.00

Tax included in UK & Shipping calculated at checkout

50-days return policy
Return your item within 50 days of purchase.
Full refund available for unopened, sealed, and unactivated items.
Opened products may still qualify for a refund - if unused.
For orders over £100, heliguy™ can arrange your return via DPD or in-person drop-off - just contact us.
Next-day delivery - order before 3 pm
Order before 3pm (Monday–Friday) for next-working-day delivery across most of the UK*. Free on orders over £99.
UK Saturday delivery (at additional cost) available on orders placed before 3pm Friday*.
Orders placed after 3pm Friday dispatched on Monday.
No deliveries on Sundays or Bank Holidays.
* Some UK regions - such as Northern Ireland, Channel Islands, Isle of Man, Scottish Highlands & Islands, and Scilly Isles - may require 2-3 working days for delivery.

This Intelligent Flight battery powers the DJI Matrice 3D Series drones, which operate with DJI Dock 2 for up to 50 minutes per flight.

DJI Matrice 3D Series Intelligent Flight Battery

DJI Matrice 3D Series Intelligent Flight Battery Photo 2

Intelligent Flight Battery for the DJI Matrice 3D Series

Fly For Up To 50 Minutes

Auto-Discharging Function: This battery automatically discharges to 96% if it is idle for three days and to 60% if it is idle for nine days to prevent swelling.
Battery Level Display: The battery level LEDs display the current battery level, so you can always be informed of your battery's power level.
Balanced Charging: Automatically balances the voltages of battery cells during charging.
Temperature Detection: Only charges when the temperature is between 5° and 45° C (41° and 113° F) to prevent damage.
Over-Discharge Protection: Disabled to ensure flight safety and allow continuous output; over-discharged batteries are locked to prevent charging.
Short Circuit Protection: Automatically cuts power if a short circuit is detected. Battery Cell Damage Protection: Provides a warning prompt if a damaged battery cell is detected.
Hibernation Mode: Saves power by entering Hibernation mode when not inserted in the aircraft.
Communication: Transmits voltage, capacity, and temperature information to the aircraft.
Water-Resistant & Dust-Resistant: Meets IP54 rating standards after installation in the aircraft.

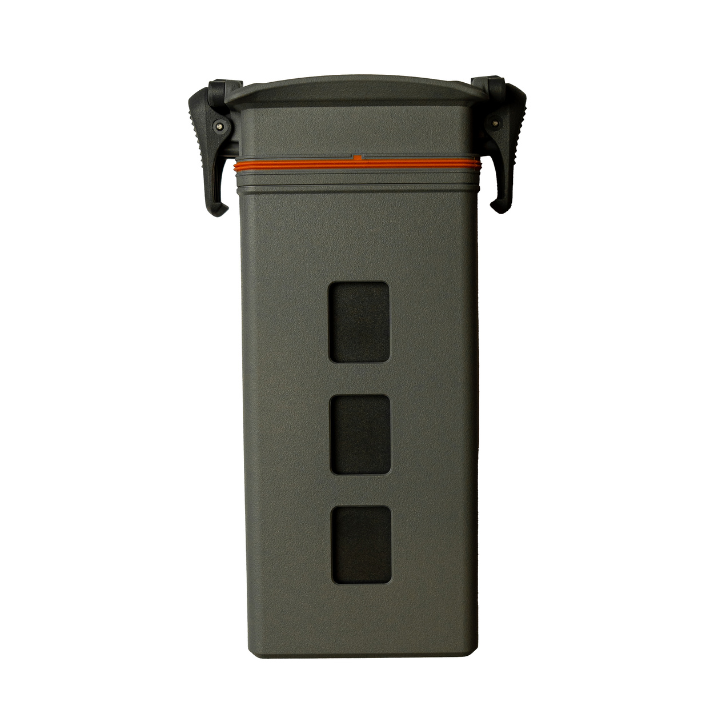

DJI Matrice 3D Series Intelligent Flight Battery in front of a white background.
