DJI Mavic 3 Multispectral

New standard for portable multispectral drones

The DJI Mavic 3 Multispectral is designed for precision agriculture and environmental monitoring.

It is equipped with a multispectral imaging system that quickly captures crop growth information to achieve more effective crop production.

The Mavic 3M includes an RTK module that achieves centimetre-level positioning.

The Mavic 3 Multispectral is a highly-portable drone: It's foldable design and 951g weight means it can be carried in a bag to enable farmers to carry out operations at anytime.

It has 43 minutes of flight time and can complete the surveying and mapping operations of an area as vast as 2 square kilometers in a single flight.

Mavic 3M Cameras

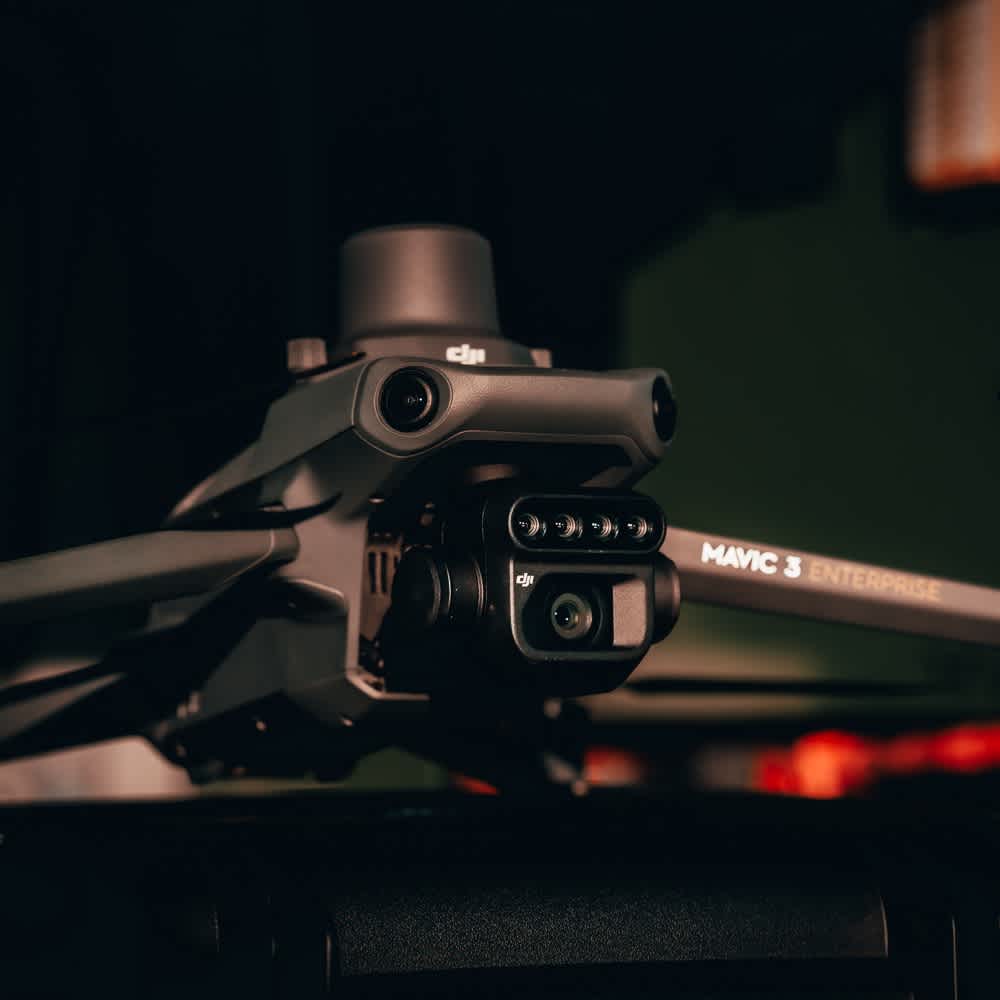

The DJI Mavic 3M has a newly-upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras. This enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.

Multispectral Cameras

The Mavic 3M has four 5MP multispectral cameras. Infact, the Mavic 3M is the world’s smallest 4-band multispectral drone camera.

Its built-in camera array combines Green, Red, Red Edge, and Near Infrared sensors.

  • Near Infrared: 860 nm ± 26 nm
  • Red: 650 nm ± 16 nm
  • Red Edge: 730 nm ± 16 nm
  • Green: 560nm ± 16 nm

These sensors support the NDVI, GNDVI, and NDRE vegetation indexes to provide farmers with vital information.

  • NDVI: Makes it possible to detect plants under stress, differentiate between crops, and determine at which stage they are in their growing cycle.
  • NDRE: Provides insights on chlorophyll content in leaves.
  • GNDVI: Useful for estimating photosynthetic activity, as well as water and nitrogen content in the plant canopy.

RGB Camera

Beyond its multispectral capabilities, the Mavic 3M has a visual camera to empower agriculture and mapping workflows.

It features:

  • 20MP wide camera; 4/3 CMOS
  • Mechanical shutter (1/2000s fastest mechanical shutter speed)
  • 0.7 second interval shooting - high-speed burst when RGB camera is used
  • Large pixel size: 3.3μm pixels
  • Improved low-light software

With these key features, the Mavic 3M is engineered for rapid aerial surveys and data quality.

These camera specs, together with the drone’s 43 minute maximum flight time, mean that the Mavic 3M can capture data across up to 2 square kilometers in a single flight.

Sunlight Sensor

The Mavic 3M has a built-in sunlight sensor that captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction.

This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.

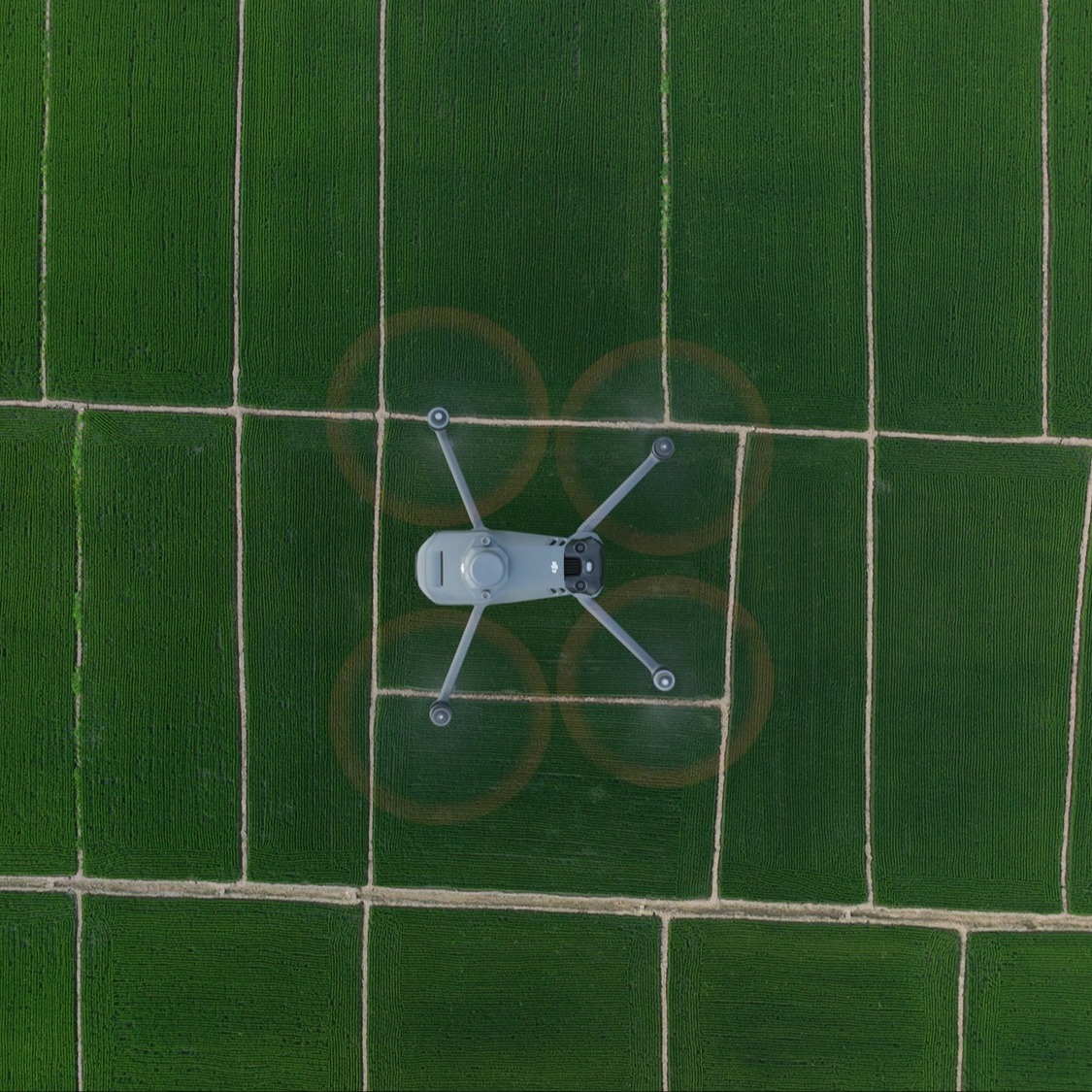

RTK Module Included

The Mavic 3M comes with an RTK module, allowing agricultural professionals to conduct high-precision aerial surveys with care, efficiency and - crucially - without the need for Ground Control Points.

The RTK module enables centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging centre.

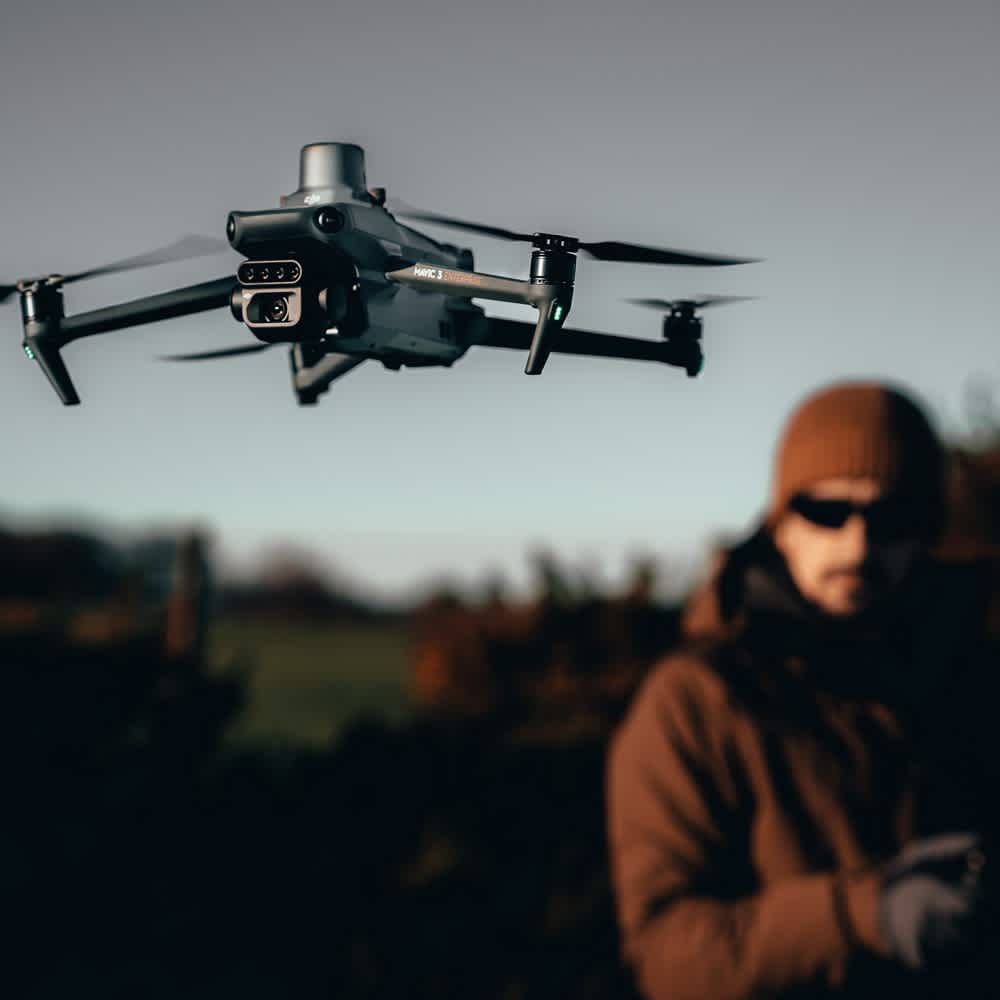

Enhanced Safety Features

The Mavic 3M has an advanced suite of safety features.

    • Advanced Pilot Assistance System (APAS 5.0): State-of-the-art obstacle sensing and navigation. Data from six vision and two wide-angle sensors are assessed in real-time to detect obstacles in every direction and - when using Avoid mode - reroute your flight path accordingly.
    • Advanced Return To Home: This smart feature optimises your flight path to preserve battery and get your aircraft home safe and sound at the touch of a button.
    • AirSense: The built-in AirSense system provides an early warning of nearby crewed aircraft transmitting ADS-B signals.
    • O3 Enterprise Transmission: The Mavic 3M comes with DJI’s O3 Enterprise transmission technology. It sets the standard for video and control stability and provides a reliable link between pilot and aircraft. The Mavic 3M has a transmission range of 8km (CE).

The Mavic 3M comes with Enterprise Shield cover (Basic, 1 year).

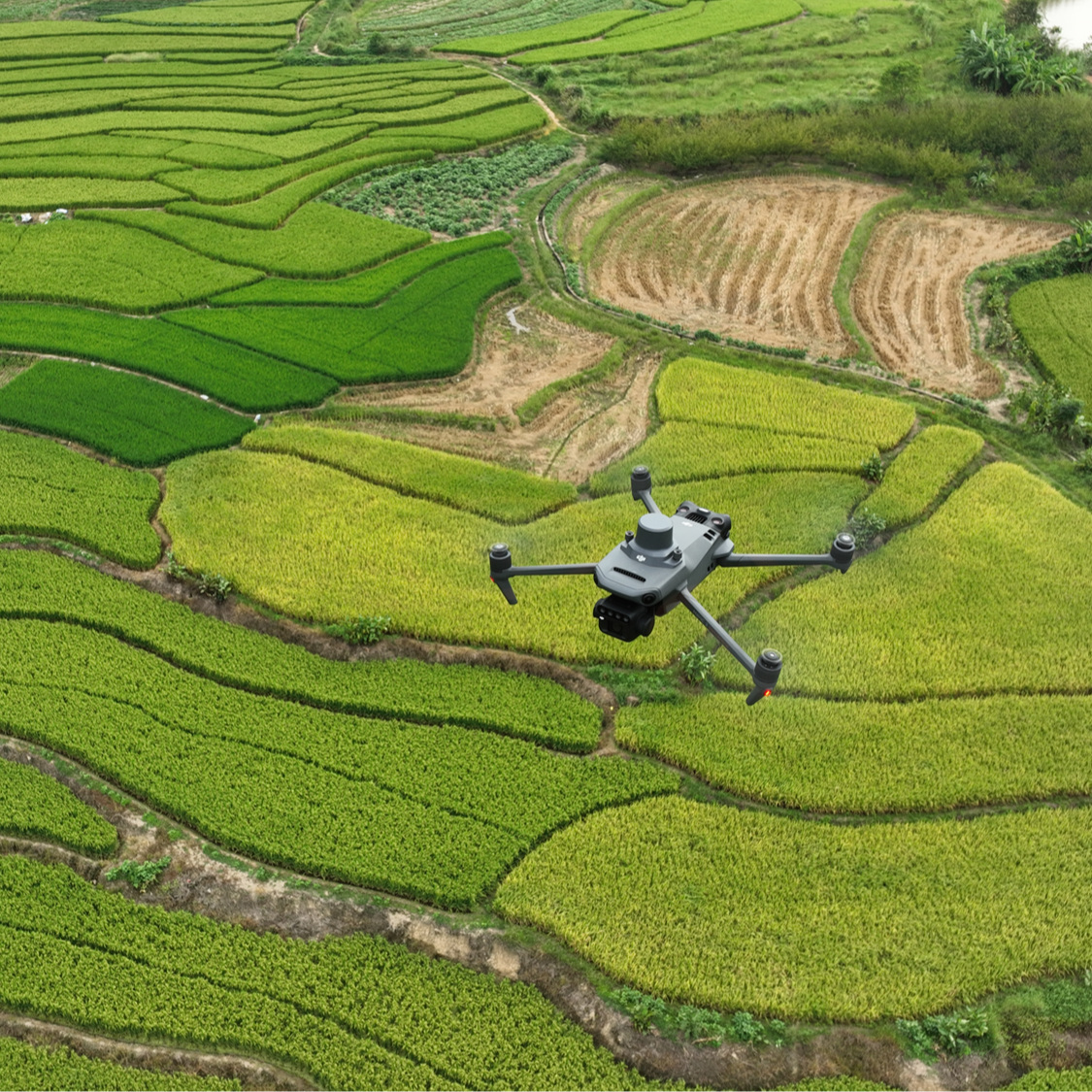

Smart Terrain Follow

The Mavic 3M offers Terrain Follow, helping you maintain an even altitude as you fly a survey mission across varying terrain.

By smoothly adjusting according to the terrain, you can secure the integrity of your data while it’s gathered, without having to account for any differences in post-processing.

For situations when you weren't able to import a DSM or local elevation data pre-flight, the Mavic 3M's collision avoidance sensors can take over by detecting the ground below and automatically adjusting flight height accordingly.

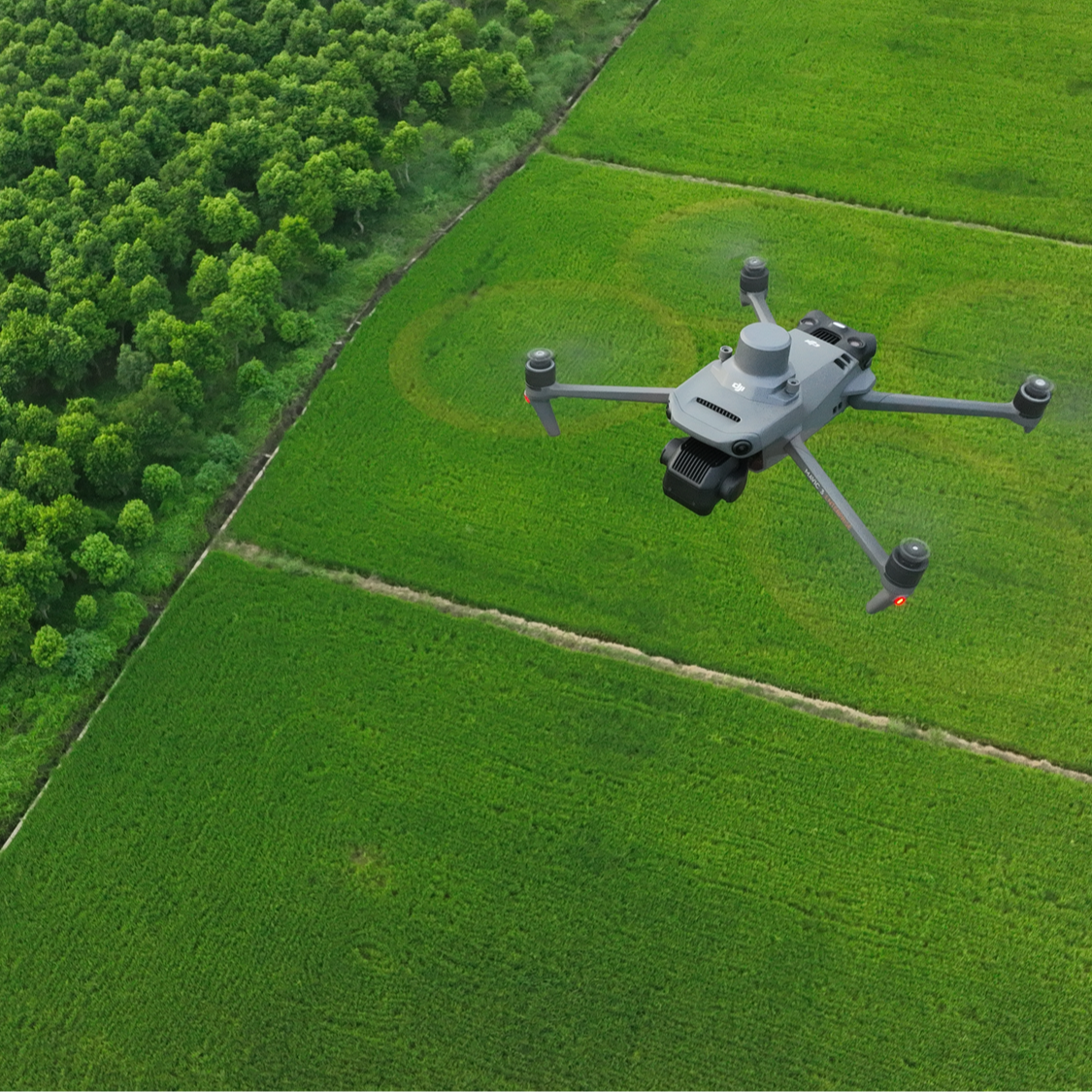

Intelligent Field Scouting

The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Platform in real time through a 4G network.

It can find abnormalities, such as emergence deficiencies, weed pressure, and crop lodging in a timely manner.

It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, using AI identification for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.

Mavic 3E Customisation

Build a solution tailored to your needs with Cloud API and MSDK.

Cloud API
The Mavic 3M can be directly connected to a third-party cloud platform via Pilot 2's built-in DJI Cloud API based on the MQTT protocol. There is no need to develop an app separately to enable the transmission of UAV equipment information, live streaming, photo data, and other information.

MSDK
The Mavic 3M supports Mobile SDK 5 (MSDK5) with a fully open-source production code sample. The MSDK5 makes it possible to develop a proprietary control app for UAV field patrol, smart surveying, and other scenarios, making it more user-friendly.

Full Software Suite

The Mavic 3 Multispectral is fully compatible with the DJI SmartFarm app, allowing agriculture professionals to coordinate any data gathered with spraying and spreading operations.

SmartFarm comes with a range of features for streamlined workflows, including intuitive mission planning, a full fleet overview, field management, data assessment, and effortless collaboration between teams.

Data captured by Mavic 3M is also fully compatible with DJI Terra, so you can easily and efficiently create maps and models of your targets.

The Mavic 3M comes with a three-month DJI Terra Full licence (one device) and one-year access to the DJI SmartFarm Platform.

*Please note that the DJI Smart Agricultural Platform will be supported in Q2 of 2023.

DJI Mavic 3 Multispectral FAQs

Answers to your most frequently asked questions.

FAQs

What should I be aware of when using the DJI Mavic 3M’s sunlight sensor?

You should avoid blocking the sunlight sensor when it is in use. For example, the vegetation indices, such as NDVI, cannot be obtained when it is blocked. In addition, you should avoid rubbing the sensor, since its performance will be affected if the surface is scratched.

FAQs

Is DJI Mavic 3M waterproof?

No.

FAQs

How does DJI Mavic 3M use network RTK services without a 4G network card (including a SIM card)?

You can connect to the network RTK by using Wi-Fi on the remote controller.

FAQs

Is the DJI Mavic 3M network RTK service bound to the remote controller or the aircraft?

It is bound to the remote controller.

FAQs

How many cameras does DJI Mavic 3M have? What are the wavelengths for the multispectral cameras?

DJI Mavic 3M features four 5.5MP single-band cameras and one 20MP RGB camera.

The single-band cameras are as follows: green (G) 550 nm ± 16 nm, red (R): 650 nm ± 16 nm, Red edge (RE): 730 nm ± 16 nm, and Near-infrared (NIR): 860 nm ± 26 nm.

FAQs

What is the focal length of each camera of the DJI Mavic 3M Multispectral Camera?

Multispectral focal length: 4.34 mm (focal length); 25 mm (35mm equivalent focal range).

Visible focal length: 12.29 mm (focal length); 24 mm (35mm equivalent focal range)

FAQs

Is the image taken by DJI Mavic 3M a DN value or a reflectance value?

DN value.

FAQs

Does DJI Mavic 3M support image position compensation?

Each of the five camera sensor centres has been compensated in the photo EXIF coordinates according to its position relative to the on-board D-RTK antenna phase center.

When the images are mapped, the DJI Terra or DJI SmartFarm Platform automatically uses this parameter for position compensation to ensure the accuracy of the map position.

FAQs

Does the DJI Mavic 3M camera have distortion correction?

Distortions in visible and multispectral cameras are individually corrected before they are shipped.

FAQs

Does the DJI Mavic 3M camera correct vignetting?

The original photo generated does not come with vignetting correction, but the parameters used for vignetting correction are included with each photograph.

FAQs

Are the locations of photos taken by DJI Mavic 3M time synced?

All five cameras are time synchronised.

FAQs

Where are the photos taken by the DJI Mavic 3M camera saved?

The storage paths are as follows:

For normal photography: SD card-DCIM-DJI_2022********_***

For flight path operation: SD card-DCIM-DJI_2022********_***_task name

FAQs

What does the DJI Mavic 3M Multispectral camera do?

It detects the reflective strength of the object being photographed over different bands and is widely used in agriculture and forestry for crop health, vegetation coverage, water environment pollution monitoring, and more.

FAQs

How far can DJI Mavic 3M transmit images?

FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km

*The above data was measured by the aircraft in an unobstructed, interference-free outdoor environment. It shows the farthest communication distance for one-way, non-RTH flights under each standard. During flight, pay attention to RTH reminders in the DJI Pilot 2 App.

FAQs

How much memory does the DJI RC Pro Enterprise Edition have?

The ROM of the remote control is 64GB. For extended storage capacity, microSD card use is also supported.

FAQs

Does DJI Mavic 3M support MSDK?

Yes.

FAQs

Does the DJI Cellular module come with a free SIM card?

No. According to real-name requirements, SIM cards must be purchased and activated with the user’s real name.

FAQs

Does the DJI Cellular module support 5G networks?

No.

FAQs

Is the DJI RC Pro Enterprise Edition compatible with the DJI Phantom 4 RTK, DJI Phantom 4 Multispectral, and the T-Series agricultural drone remote controller?

No.

FAQs

What are the specifications for DJI Mavic 3M’s battery?

5,000 mAh, 15.4 V, 77 Wh.

FAQs

How long does it take to charge the DJI Mavic 3M’s Intelligent Flight Battery?

When used with a DJI 100W USB-C Power Adapter, it takes about 1 hour and 10 minutes to fully charge an Intelligent Flight battery with the DJI Mavic 3M Charging Hub (100 W).

When connecting directly to the aircraft via the DJI 100W USB-C Power Adapter, it takes about 1 hour and 20 minutes to fully charge an Intelligent Flight battery.

FAQs

How long does a DJI Mavic 3M’s battery last?

43 minutes.
* This data was measured using DJI Mavic 3M in windless conditions at sea level at a constant speed of 36 kph until the battery reached 0%. Use for reference only. Please pay attention to RTH prompts in the DJI Pilot 2 app when flying.

FAQs

Does the DJI Mavic 3M charger, battery, and charging hub support fast charging protocols (PD/QC/PPS)?

Yes.

FAQs

Are the batteries for DJI Mavic 3M compatible with DJI Mavic 3 Series and DJI Mavic 3 Enterprise Series aircraft?

Yes.

FAQs

Which interface of the DJI 100W USB-C Power Adapter does the DJI Mavic 3M’s 100W battery charging hub need to connect to?

It is recommended to connect to the C1 port.

FAQs

Does DJI Mavic 3M support KML and KMZ file imports and what are the import path requirements?

The DJI Pilot 2 App supports importing polygon boundaries and waypoint missions for pre-planned aerial photography with KML/KMZ files.

Import path: Route > KMZ Import > Select Table of Contents > Internal Storage/SD Card > Locate the KML/KMZ file.

FAQs

Does DJI Mavic 3M support DSM file imports and what are the import path requirements?

The DJI Pilot 2 App supports importing DSM data for terrain follow during aerial surveying.

DSM files are imported as follows: Flight Path > Create Flight Path> Mapping Mission > Terrain Follow > DSM File Selection > Select Table of Contents > Internal Storage/SD card > Find DSM File for Import.

FAQs

Does DJI Mavic 3M support flight path inspection?

Yes. You can schedule a flight path by importing a KMZ or KML file or, create flight path on Pilot 2.

FAQs

Does DJI Mavic 3M support real-time display of vegetation indices, such as NDVI, through the remote controller?

Yes, the vegetation indices, such as NDVI, can be viewed in real-time on the remote controller during flight.

FAQs

Does DJI Mavic 3M support real-time display of vegetation indices, such as NDVI, through the remote controller?

Yes, the vegetation indices, such as NDVI, can be viewed in real-time on the remote controller during flight.

FAQs

Does DJI Mavic 3M support dual control?

No.

FAQs

Does DJI Mavic 3M support multi-aircraft control?

No.

FAQs

Does DJI Mavic 3M support access to DJI Flighthub 2?

Not currently.

FAQs

Does DJI Mavic 3M support timelapse, motionlapse, Follow Me, TapFly, or Hyperlapse?

No.

FAQs

What are DJI Mavic 3M’s flight altitude and speed limitations?

Flight Height: 500 m;

Flight Speed: Maximum horizontal flight speed is 21 m/s, minimum horizontal flight speed is 1 m/s (no wind, near sea level)

FAQs

How do I check the solar altitude angle of the work area for the corresponding time?

Via https://keisan.casio.com/exec/system/1224682277.

Input the corresponding coordinates along with the date and time zone to confirm the sun’s altitude angle changes over time for that day.

FAQs

How do I determine flight altitude based on the required GSD?

Visible camera (orthophoto): (H/37.2) cm/pixel.

Multispectral camera (orthophoto): (H/21.7) cm/pixel.

FAQs

Does DJI Mavic 3M support terrain-follow aerial surveying for orchards with high slopes?

DJI Mavic 3M can directly perform terrain-follow aerial surveying via downward vision. It can also import DSM data for terrain-follow aerial surveying.

FAQs

Does DJI Mavic 3M support AI Spot-Check?

Yes. You can automate routine inspections and capture consistent results every time.

Onboard AI recognises the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.

FAQs

Which accessories of DJI Mavic 3M are the same as those of DJI Mavic 3?

The Intelligent Flight battery and propeller guard.

FAQs

Does DJI Mavic 3M support D-RTK2 mobile station?

Yes.

FAQs

Does DJI Mavic 3M come standard with the RTK Module?

Yes.

FAQs

What accessories does the PSDK port on top of the DJI Mavic 3M’s body support?

The PSDK port supports the RTK Module and official DJI Mavic 3 Enterprise Series Speaker

FAQs

Does the DJI Mavic 3M come standard with a DJI Mavic 3 Enterprise Series Speaker?

Optional. Additional purchase required.

FAQs

How does the DJI 100W USB-C Power Adapter charge the batteries of DJI RC Pro Enterprise Edition and DJI Mavic 3M?

The DJI 100W USB-C Power Adapter comes with a USB-C power cable that can sustain 100 W of power output. Direct connection to the DJI RC Pro Enterprise Edition has a charging power of 30 W, direct connection to the aircraft has a charging power of 88 W, and direct connection to the charging hub has a charging power of 100 W.

FAQs

Do DJI Mavic 3M’s accessories support the PD/QC/PPS fast-charging protocol?

The DJI Mavic 3M’s Intelligent Flight battery, DJI 100W USB-C Power Adapter, and DJI Mavic 3 Charging Hub (100 W) all support PD and PPS fast charging protocols. DJI RC Pro Enterprise Edition supports PD and QC protocols.

Customer Reviews

No reviews yet Write a review

Product specification

DJI Mavic 3 Multispectral

Specification Value
Aircraft
Net Weight (with propellers and RTK module) 951 g
Max Takeoff Weight 1,050 g
Dimensions (Folded/Unfolded) Folded (without propellers): 223 x 96.3 x 122.2 mm (Length x Width x Height)
Unfolded (without propellers): 347.5 x 283 x 139.6 mm (Length x Width x Height)
Diagonal Length Diagonal: 380.1 mm
Max Ascent Speed 6 m/s (Normal Mode)
8 m/s (Sport Mode)
Max Descent Speed 6 m/s (Normal Mode)
6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind) 15 m/s (Normal Mode)
Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode)
*The max speed in the EU cannot exceed 19 m/s.
Max Wind Speed Resistance 12 m/s
*Max wind resistance during takeoff and landing.
Max Take-off Altitude Above Sea Level 6000 m (without a payload)
Max Flight Time (without wind) 43 minutes
*Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
Max Hover Time (without wind) 37 minutes
*Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
Max Flight Distance 32 km
*Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at 57.6 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
Max Tilt Angle 30° (Normal Mode)
35° (Sport Mode)
Max Angular Velocity 200°/s
GNSS GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)
Hovering Accuracy Range Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled)
Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled)
Operating Temperature -10° to 40° C (14° to 104° F)
Internal Storage N/A
Motor Model Number 2008
Propeller Model Number 9453F Enterprise Edition
Light Sensor Built-in module
RGB Camera
Image Sensor 4/3 CMOS
Effective Pixels: 20 MP
Lens FOV: 84°
Equivalent focal length: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞
ISO Range 100-6400
Shutter speed Electronic shutter: 8-1/8000 s
Mechanical shutter: 8-1/2000 s
Max Image Size 5280 x 3956
Photo Shooting Mode Single shot: 20 MP
Timelapse: 20 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 3/5/7/10/15/20/30/60 s
Panorama: 20 MP (original material)
Video Resolution H.264:
4K: 3840 x 2160@30fps
FHD: 1920 x 1080@30fps
Max Video Bitrate 4K: 130Mbps
FHD: 70Mbps
Supported File System exFAT
Image Format JPEG/DNG (RAW)
Video Format MP4 (MPEG-4 AVC/H.264)
Multispectral Camera
Image Sensor 1/2.8-inch CMOS, effective pixels: 5 MP
Lens FOV: 73.91° (61.2° x 48.10°)
Equivalent focal length: 25 mm
Aperture: f/2.0
Focus: Fixed Focus
Multispectral Camera Band Green (G): 560 ± 16 nm;
Red (R): 650 ± 16 nm;
Red Edge (RE): 730 ± 16 nm;
Near infrared (NIR): 860 ± 26 nm;
Gain Range 1x-32x
Shutter Speed Electronic Shutter: 1/30~1/12800 s
Max Image Size 2592 x 1944
Image Format TIFF
Video Format MP4 (MPEG-4 AVC/H.264)
Photo Shooting Mode Single shot: 5 MP
Timelapse: 5 MP
TIFF: 2/3/5/7/10/15/20/30/60 s
Video Resolution H.264
FHD: 1920 x 1080@30fps
Video content: NDVI/GNDVI/NDRE
Max Video Bitrate Stream: 60 Mbps
Gimbal
Stabilisation System 3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -27° to 27°
Controllable Range Tilt: -90° to 35°
Pan: Uncontrollable
Max Control Speed (tilt) 100°/s
Angular Vibration Range ±0.007°
Sensing System
Sensing System Type Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
Forward Distance Measuring Range: 0.5 m to 20 m
Detection Range: 0.5 m to 200 m
Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, vertical 103°
Backward Distance Measuring Range: 0.5 m to 16 m
Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s
FOV: Horizontal 90°, vertical 103°
Lateral Distance Measuring Range: 0.5 m to 25 m
Effective Obstacle Avoidance Speed: Flight speed ≤15 m/s
FOV: Horizontal 90°, vertical 85°
Upward Distance Measuring Range: 0.2 m to 10 m
Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s
FOV: Front and rear 100°, left and right 90°
Downward Distance Measuring Range: 0.3 m to 18 m
Effective Obstacle Avoidance Speed: Flight speed ≤6 m/s
FOV: Front and rear 130°, left and right 160°
Operating Environment Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.); Adequate lighting (>15 lux, environments with normal indoor fluorescent light exposure)
Video Transmission
Video Transmission System DJI O3 Image Transmission Industry Edition
Live View Quality Remote Controller: 1080p/30fps
Operating Band 2.400-2.4835 GHz
5.725-5.850 GHz
*In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
Max Effective Signal Distance (Unobstructed, No interference) FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
*Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication range for one-way, non-Return to Home flights under each standard. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
Max Transmission Distance (Obstructed) Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
*Data measured in an unobstructed environment with typical interference under various standards. The actual flight distance may vary and is for reference only.
Max Download Speed 15 MB/s (with DJI RC Pro Industry Edition)
Latency (depending on environment and mobile device) Approximately 200 milliseconds
Antennas 4 antennas, 2 transmitting and 4 receiving
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Other Supports the DJI Cellular module
DJI RC Pro Enterprise Edition
Image Transmission System DJI O3 Image Transmission Industry Edition
Max Effective Signal Distance (Unobstructed, No interference) FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
*Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication range for one-way, non-Return to Home flights under each standard. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
Operating Band of Image Transmission 2.400-2.4835 GHz
5.725-5.850 GHz
*In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
Antennas 4 antennas, 2 transmitting and 4 receiving
Operating Band of Image Transmission and Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Wi-Fi Protocol 802.11 a/b/g/n/ac/ax
Support 2×2 MIMO Wi-Fi
Wi-Fi Operating Band 2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
*In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
Wi-Fi Operating Band and Transmitter Power (EIRP) 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)
Bluetooth Protocol Bluetooth 5.1
Bluetooth Operating Band 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP) <10 dBm
Screen Resolution 1920 x 1080
Screen Size 5.5 inches
Screen Frame Rate 60 fps
Screen Brightness 1,000 nits
Touch-Screen 10-point multi-touch
Battery Lithium-ion battery (5000 mAh, 7.2 V)
Charging Type 100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended
Rated Power 12 Watts
Storage Capacity Internal Memory (ROM): 64 GB
Supports microSD card usage to increase storage capacity
Charging Time Approx. 1.5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger)
Approximately 2 hours (measured using a 12V USB charger)
Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)
Operating Time Approx. 3 hours
Video Output Port Mini-HDMI Port
Operating Temperature -10° to 40° C (14° to 104°F)
Storage Temperature Range <1 month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature 5° to 40° C (41° to 104° F)
Supported DJI Aircraft DJI Mavic 3E
DJI Mavic 3T
DJI Mavic 3M
*Further drones to be supported in the future
GNSS GPS + Galileo + GLONASS
Dimensions Antenna is folded and no control sticks are installed:
183.27 x 137.41 x 47.6 mm (Length x Width x Height)
Antenna unfolded and control sticks are installed:
183.27 × 203.35 × 59.84 mm (Length x Width x Height)
Weight Approx. 680 g
Model Number RM510B
Storage
Supported microSD Cards Aircraft:
Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list
Recommended microSD Cards Remote Controller:
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO Plus 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC

Aircraft:
SanDisk Extreme 32GB V30 A1 microSDHC
SanDisk Extreme PRO 32GB V30 A1 microSDHC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 1066x 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V90 A1 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC
Kingston Canvas React Plus 256GB V90 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC
Battery
Capacity 5000 mAh
Standard Voltage 15.4 V
Max Charging Voltage 17.6 V
Battery Type LiPo 4S
Chemical System Lithium Cobalt
Energy 77 watt-hours
Weight 335.5 g
Charging Temperature 5° to 40° C (41° to 104° F)
Battery Charger
Input 100V to 240V (AC), 50Hz to 60Hz, 2.5A
Output Power 100 Watts
Output Maximum output power of 100 Watts (total)
When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power.
Charging Hub
Input USB-C: 5V to 20V, 5.0A
Output Battery Port: 12V to 17.6V, 8.0A
Rated Power 100 Watts
Charging Type 3 batteries on charging rotation
Charging Temperature 5° to 40° C (41° to 104° F)
RTK Module
Dimensions 50.2 x 40.2 x 66.2 mm (Length x Width x Height)
Weight 24±2 g
Interface USB-C
Power Approximately 1.2 watts
RTK Position Accuracy Fixed RTK:
Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm

What's in the Box

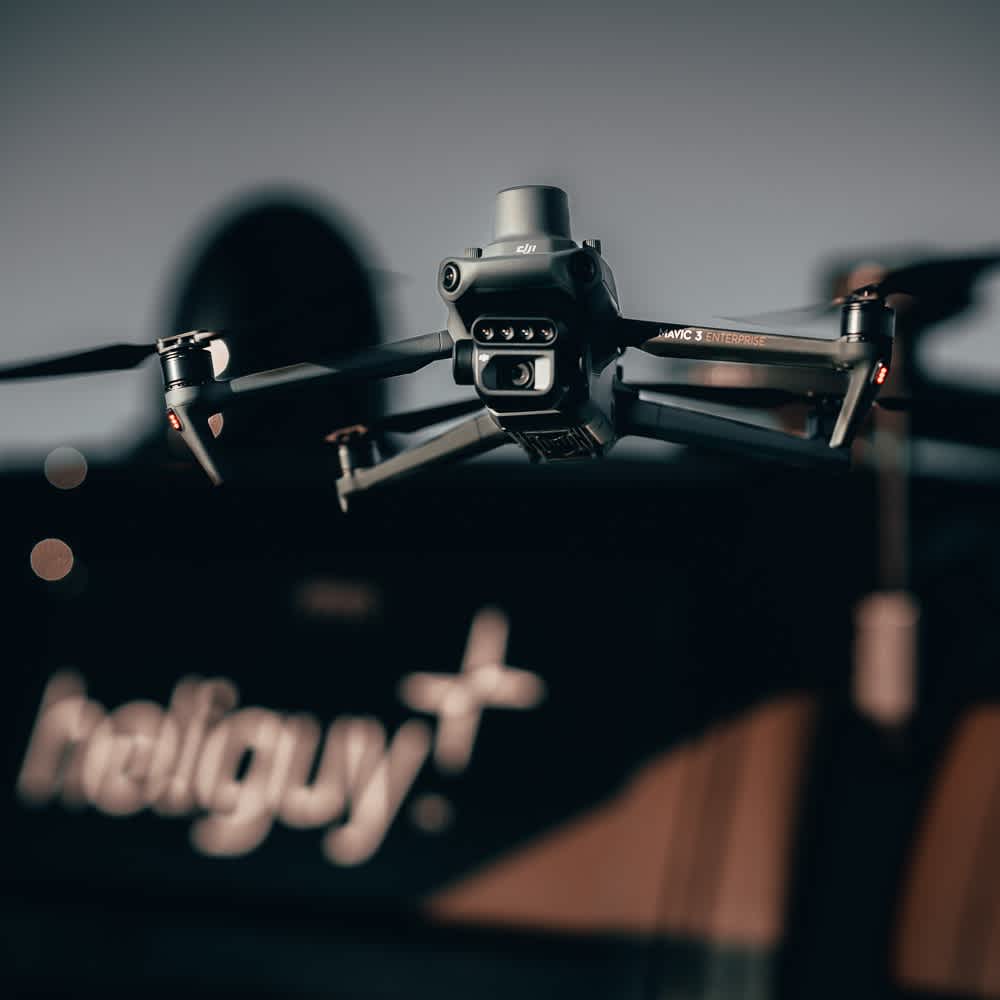

DJI Mavic 3 Multispectral

Mavic 3 Multispectral (with RTK Module and microSD card installed) x 1
Remote Controller (DJI RC Pro Enterprise) x 1
Power Cable x 1
USB-C Cable x 1
Propeller (pair) x 3
Charger x 1
USB-C to USB-C Cable x 1
Carrying Case x 1
Screwdriver x 1

Training by Drone
heliguy™ Training Tools
