Full Description

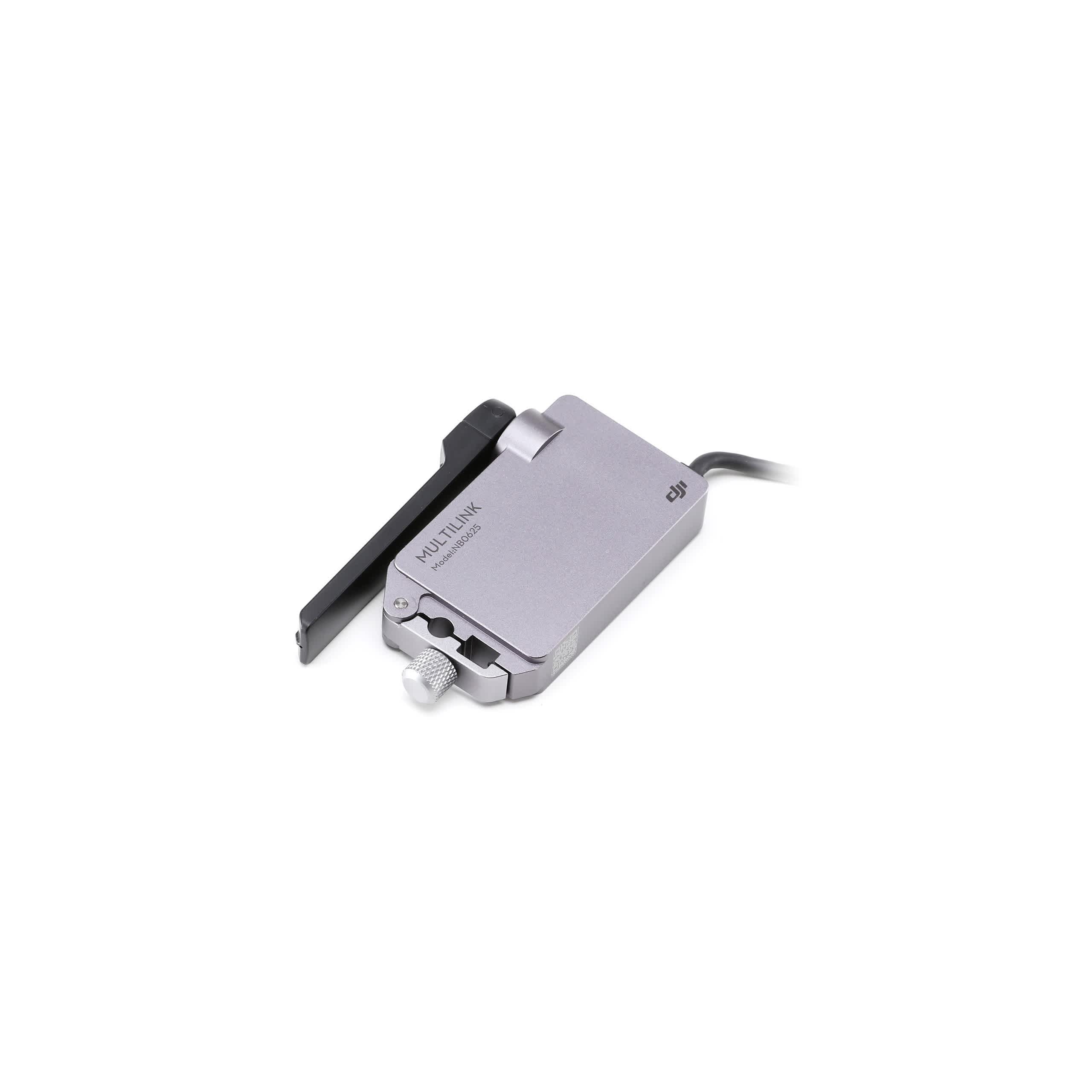

DJI Multilink

Connect Inspire 2 and Cendence remote controls using DJI's Multilink.

Slave controllers can be connected to Multilink, resulting in a star network with the master controller acting as the hub.

Slave remotes can send commands through the master remote to the aircraft and receive live feeds from the aircraft itself.

Multilink allows camera operators to focus on getting the perfect video or photo, while allowing one or two other pilots to control the aircraft.

The DJI Multilink has a theoretical max communication distance of 150m.

It is available as a standalone product, or in a money saving 3-pack.

Product Specification

DJI Multilink Specifications

Operating Frequency

2400-2483.5 MHz, 5725-5850 MHz

EIRP

2.4 GHz: FCC<25 dBm, CE<20 dBm, SRRC<20 dBm
5.8 GHz: FCC<29 dBm, CE<14 dBm, SRRC<19 dBm

Maximum Communication Distance

150 m (2.4 GHz)
100 m (5.8 GHz)

Input

4.2-5.5 V, 1 A Max

Maximum Delay (From Master to Slave 3)

7.5 ms (5.8 GHz)
11.1 ms (2.4 GHz)

Minimum Delay (From Master to Slave 1)

2.5 ms (5.8 GHz)
3.7 ms (2.4 GHz)

Operation Environment Temperature

-20 ℃ to 40 ℃
(-4 ° to 104 ° F)

Compatible DJI Devices for CAN Port

DJI Focus
Inspire 2 Remote GPS module
Patch Antenna

Compatible DJI Remotes

Cendence Remote Controller
Inspire 2 Remote Controller
