FLIR Vue TZ20 Thermal Camera

FLIR Vue TZ20 Thermal Camera

Login to view prices.
/
Tax included & Free Delivery
Notify Me When Available

Need advice on this product?

Ask a Question

Our experts are on hand to help you.

FAQs

Full Description

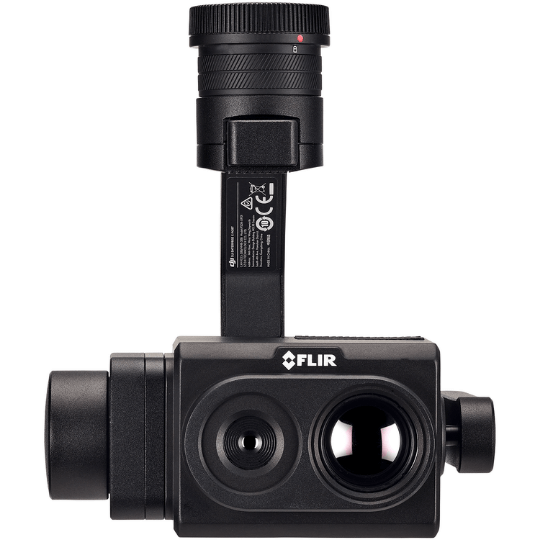

FLIR VUE TZ20 Thermal Camera

Dual thermal zoom camera for drones.

Groundbreaking Solution For Mission Efficiency

The FLIR Vue TZ20 is an innovative dual thermal zoom payload, compatible with the DJI M300 RTK and DJI M200 Series V2 and uses the DJI Pilot app.

This plug-and-play FLIR thermal imaging solution provides a wide 95° field of view (FOV) to cover large areas during a single flight, as well as a narrow 18° FOV to instantly put more pixels on target.

The three-axis gimbalised camera has a 20x thermal zoom to further support situational awareness and home in on your target.

Operators can gather crisp and clear data through the two 640 × 512 non-radiometric Boson cameras and record clear imagery with the full-featured VGA thermal camera module.

The camera is a robust solution, with a -20°C to 45°C (-4°F to 113°F) operating temperature range and an IP44 rating.

Versatile Thermal Drone Camera For A Variety Of Missions

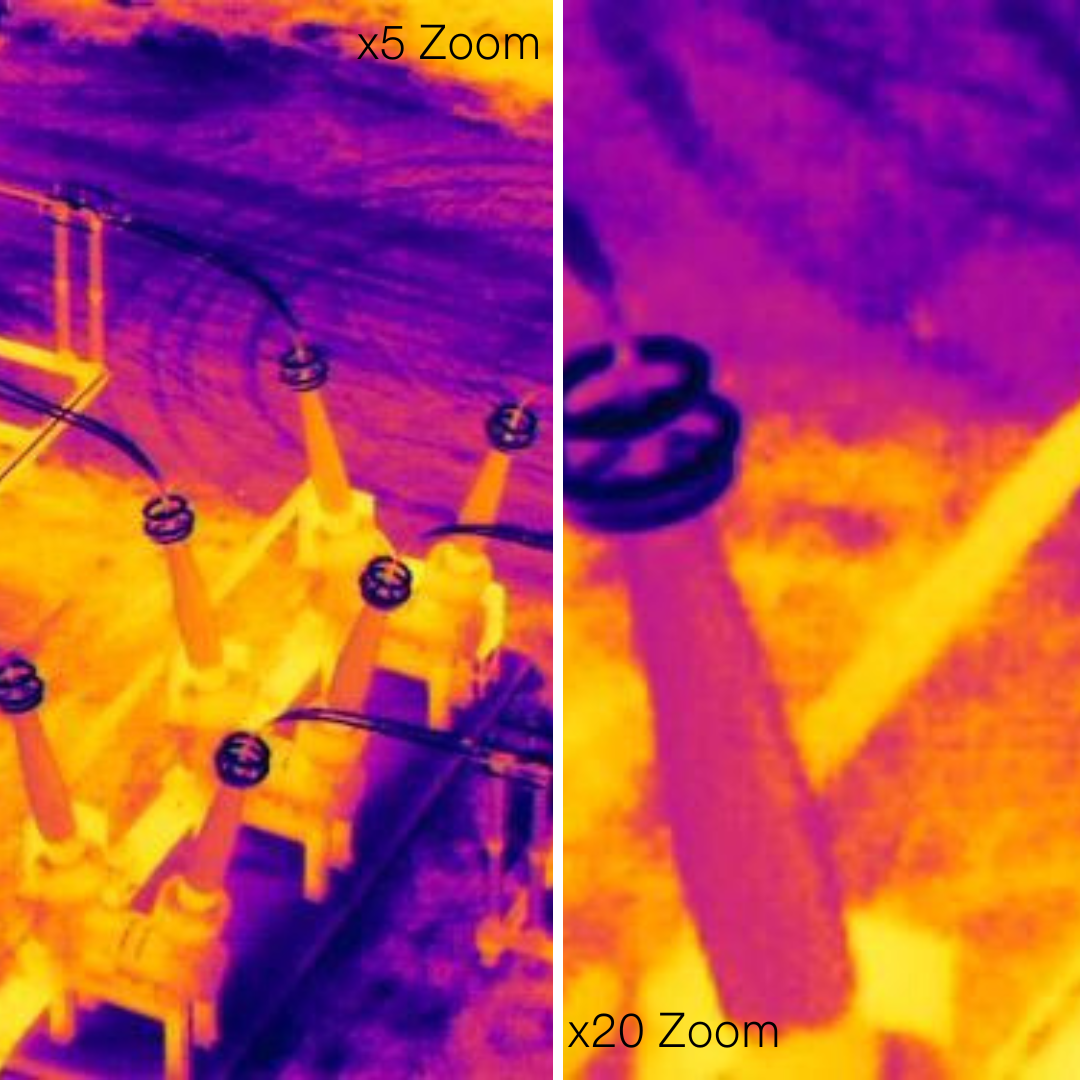

Capture Quality Data With 20x Thermal Zoom.

Utilities: 5x Zoom

Utilities: 20x Zoom

Make Critical Decisions Safely And Efficiently

The capabilities of the FLIR Vue TZ20 make it a powerful tool for a range of industry applications. These include:

  • Firefighting
  • Search and rescue
  • Law Enforcement
  • Security/Surveillance
  • Wildlife Management
  • Water Management
  • Waste Management
  • Solar Inspection
  • Roof Inspection
  • Agriculture

The improved image detail combined with the 20x zoom helps teams assess situations and make critical decisions from afar - perfect for efficient and safe decision-making and data collection.

The improved image detail combined with the 20x zoom helps teams assess situations and make critical decisions from afar - perfect for efficient and safe decision-making and data collection.

Open up the accordions below to see images of the FLIR Vue in action in a range of scenarios. The images show the zoom capabilities, up to the 20x zoom.

Flying At 250 Feet: 1x to 20x Zoom

1x Zoom

5x Zoom

10x Zoom

20x Zoom

Flying At 400 Feet: 1x to 20x Zoom

1x Zoom

5x Zoom

10x Zoom

20x Zoom

Utility Missions: 1x to 20x Zoom

1x Zoom

5x Zoom

10x Zoom

20x Zoom

Search And Rescue Operations: 1x to 20x Zoom

1x Zoom

5x Zoom

10x Zoom

20x Zoom

Informed Decision-making

Obtain thermal data in a variety of palettes.

Real-time Data

The FLIR Vue TZ20 has a range of features to ensure you collect the best data possible.

View a scene in a variety of colour palettes. These include white hot, black hot, iron, rainbow, lava, Arctic, RainHC, Coldest, Hottest, BW, DRainbow, and Colour Wheel 6.

The FPV screen has numerous options, including FFC image calibration to reduce noise, while AGC lock holds constant temperature to colour when moving. The sensor enables operators to select the Scene Dynamic Range, choosing between low gain and high gain.

The camera's app displays real-time data. Save images in JPEG/TIFF formats, and videos in the MOV/TIFF formats.

How The TZ20 Performs At Altitude - Black Hot Palette

Ideal For Law Enforcement And Search And Rescue

Black Hot is a useful thermal colour palette. The opposite of White Hot, it displays warmer objects as black and cooler objects as white.

Black Hot displays body heat in a clear, lifelike image, making it a favourite among law enforcement and search and rescue teams.

25 Feet

50 Feet

100 Feet

250 Feet

FLIR Vue tz20 compatible with dji drones

Integrate With Leading DJI Airframes

Bolster Your M300 RTK Or M200 Series V2 Missions

The FLIR Vue TZ20 drone camera is a ready-to-fly out-of-the-box solution which can be quickly integrated with DJI's latest commercial drone solution, the M300 RTK, as well as the Matrice 200 Series V2.

The camera can be paired with these drones through the Skyport V2.0 gimbal.

With its dual thermal zoom capabilities, the TZ20 is a powerful solution, especially when paired with other payloads.

This is especially true of the M300 RTK, which can carry three payloads at a time, including FLIR drone cameras.

Operators are also able to record in-flight on two included MicroSD cards.

The DJI Pilot app can be used with the FLIR Vue TZ20.

Product Specification

Dimensions

Payload: 75 × 70 × 55 mm
With Gimbal: 128 × 154× 141 mm

Weight

640 g

Mechanical Interface

Skyport 2.0

Electrical Interface

Skyport 2.0, 13.6 V/4 A

Array format

2 Boson 640 × 512

Pixel Pitch

12 μm LWIR

IR Camera Optics

Wide FOV: 95° HFOV, 4.9 mm EFL

Narrow FOV: 18° HFOV, 24 mm EFL

Thermal sensitivity

50 mK @ F/1.0

Zoom

5x optical (WFOV/NFOV), 4x digital
Effective zoom: 1x (95°), 2x, 5x, 10x, 20x (4.5°)

Imagery

Images: JPEG/TIFF
Video: MOV/TIFF

Streaming

640 × 512 @ 30 Hz

Storage

2 micro SD cards

Ground Control

DJI Pilot App

Gimbal

3-axis
Pitch: 30° to -120°
Yaw: ±320°

Airframe Compatibility

DJI M300 RTK and Matrice 200 Series V2

Operational and Storage Temperature

-20°C to 45°C (-4°F to 113°F)

Tested EMI performance

-20°C to 60°C (-4°F to 140°F)

Environmental Sealing

IP44
