Full Description

GL60+ Spotlight

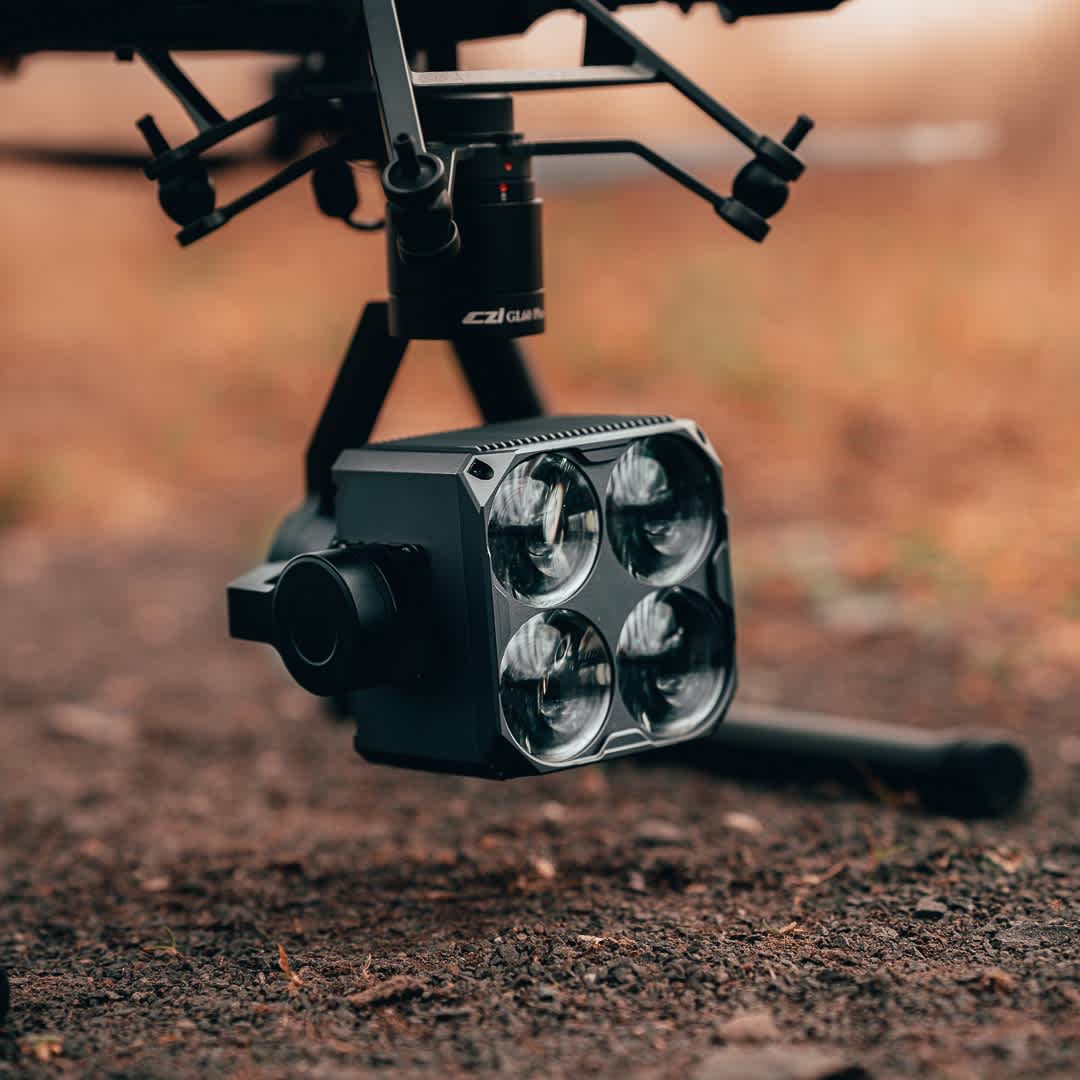

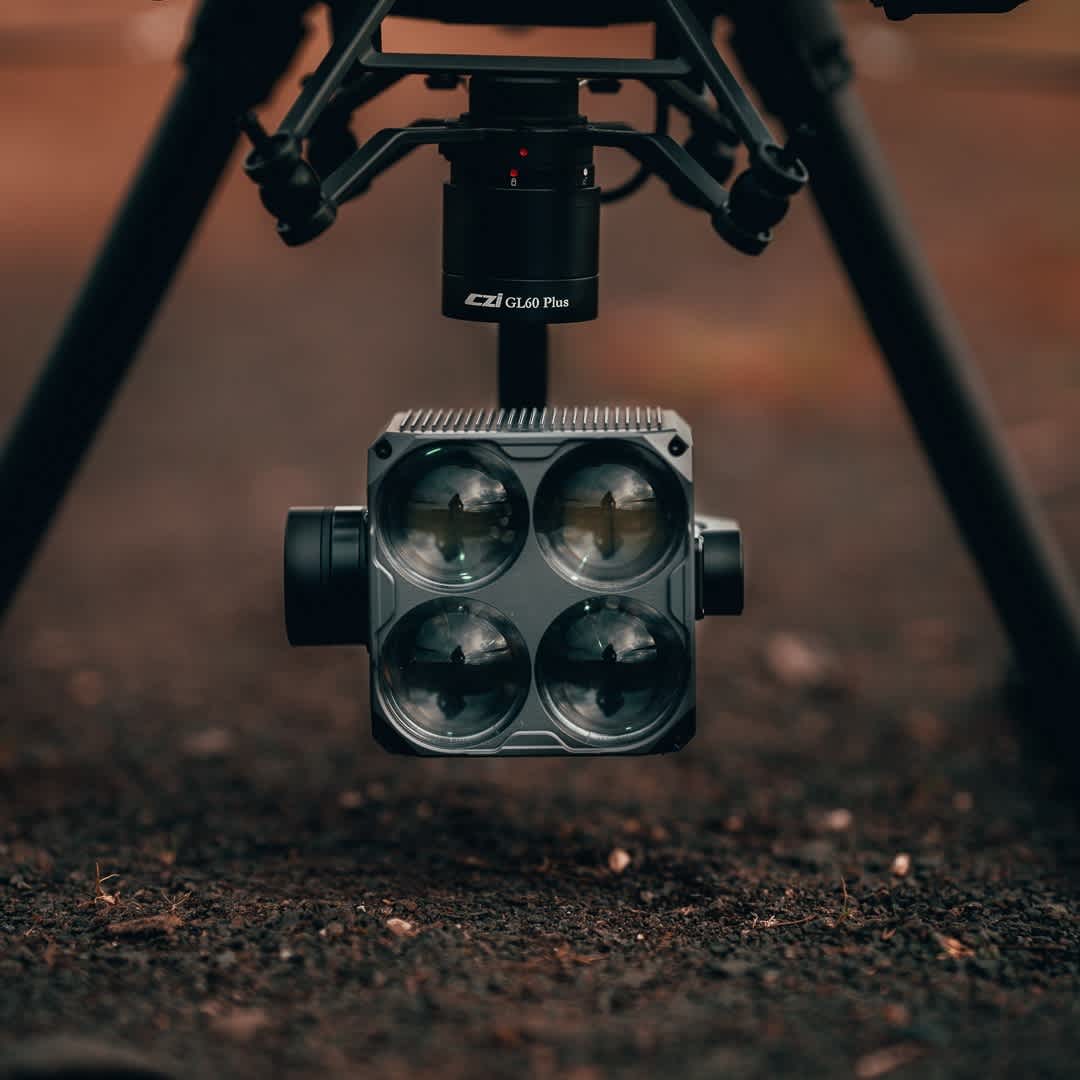

The CZI GL60 Plus Gimbal Spotlight is a powerful and bright spotlight.

It is a plug-and-play payload, compatible with the DJI M300 RTK and DJI Matrice 200 Series V2, via the DJI SkyPort V2.0 interface.

The GL60 Plus gimbal searchlight adopts 4 groups of optical imaging components, each group consists of 4 lenses combined, emitting a sharp light column an angle of 15 degrees, with consistent colour and brightness.

The GL60 Plus emits a stable output of 24lux optimal illumination, with effective irradiation distance up to 150 meters and effective illumination area is of 1225 square meters.

The GL60 Plus Spotlight is compatible with DJI M200V2, M300RTK and other series of UAVs through DJI SkyPort V2.0 interface, which can meet the needs of night inspection, warning and disperse and orientation indication, power grid patrol, search and rescue and other night operations.



GL60 Plus Spotlight Use Cases And Applications

The GL60 Plus Spotlight is a versatile tool that can be used for a range of applications.

It can also be used alongside other payloads, such as the H20 Camera Series for the M300 RTK (pictured), to combine the bright spotlight with other imaging capabilities such as zoom, thermal, and laser rangefinder to enhance mission effectiveness.

Suitable use cases for the GL60 Plus Spotlight include:

  • Drone night patrol;
  • Search and rescue;
  • Night time or low-light inspections;
  • Film / TV light supplement;
  • Electric power repair or powerline patrol;
  • Emergency lighting, following a power cut or after an incident such as a fire.
GL 60 Zoom Spotlight on Matrice 300 RTK DJI Drone

Product Specification

Specification

Value

Electrical

DJI SkyPort V2.0

Weight

750g

Size

126 X 131 X 167mm

FOV

15°

Supply Voltage

PSDK 17V + OSDK 24V

PSDK 17V

Total Power

128W

68W

LED Power

120W

60W

Illumination

13400 LUMEN ± 3%

8000 LUMEN ± 3%

Illumination efficiency

111.67 lm/w

133.33 lm/w

Searching distance

50m 100m 150m

50m 100m 150m

Light Spot diameter

3.2m 26.4m 39.5m

13.2m 26.4m 39.5m

Illumination area

136m² 544m² 1225m²

136m² 544m² 1225m²

Central illumination

85Lux 24Lux 11Lux

45Lux 12Lux 6Lux

Gimbal movement range

Pitch -110 degree to + 30 degree;
Horizontal +/- 200 degree
