How many versions are there of the Lixel L2 Pro?

There are three versions of the Lixel L2 Pro. These are: 16 Channel - 120m scan range; 320,000 pts per second 32 Channel - 120m scan range; 640,000 pts per second 32 Channel - 300m scan range; 640,000 pts per second

What levels of accuracy can be achieved with the Lixel L2 Pro?

The Lixel L2 Pro can obtain high-precision real-time data featuring: Real-time Absolute Accuracy: 3cm* Relative Accuracy: 1cm** Horizontal and Vertical Accuracy: 0.015° Repeatability: 2cm *The disconnection distance of the control point/RTK is less than 100m **The distance between the two points is less than 100m

Can the XGRIDS Lixel L2 Pro be drone mounted?

Yes, the XGRIDS Lixel L2 Pro can be mounted to a drone. It can be used with the DJI M350 RTK and DJI M300 RTK when deployed with the Lixel L2 Pro drone mounting bracket (available separately).

Lixel L2 Pro

£0.00

Tax included in UK & Shipping calculated at checkout

50-days return policy
Return your item within 50 days of purchase.
Full refund available for unopened, sealed, and unactivated items.
Opened products may still qualify for a refund - if unused.
For orders over £100, heliguy™ can arrange your return via DPD or in-person drop-off - just contact us.
Next-day delivery - order before 3 pm
Order before 3pm (Monday–Friday) for next-working-day delivery across most of the UK*. Free on orders over £99.
UK Saturday delivery (at additional cost) available on orders placed before 3pm Friday*.
Orders placed after 3pm Friday dispatched on Monday.
No deliveries on Sundays or Bank Holidays.
* Some UK regions - such as Northern Ireland, Channel Islands, Isle of Man, Scottish Highlands & Islands, and Scilly Isles - may require 2-3 working days for delivery.

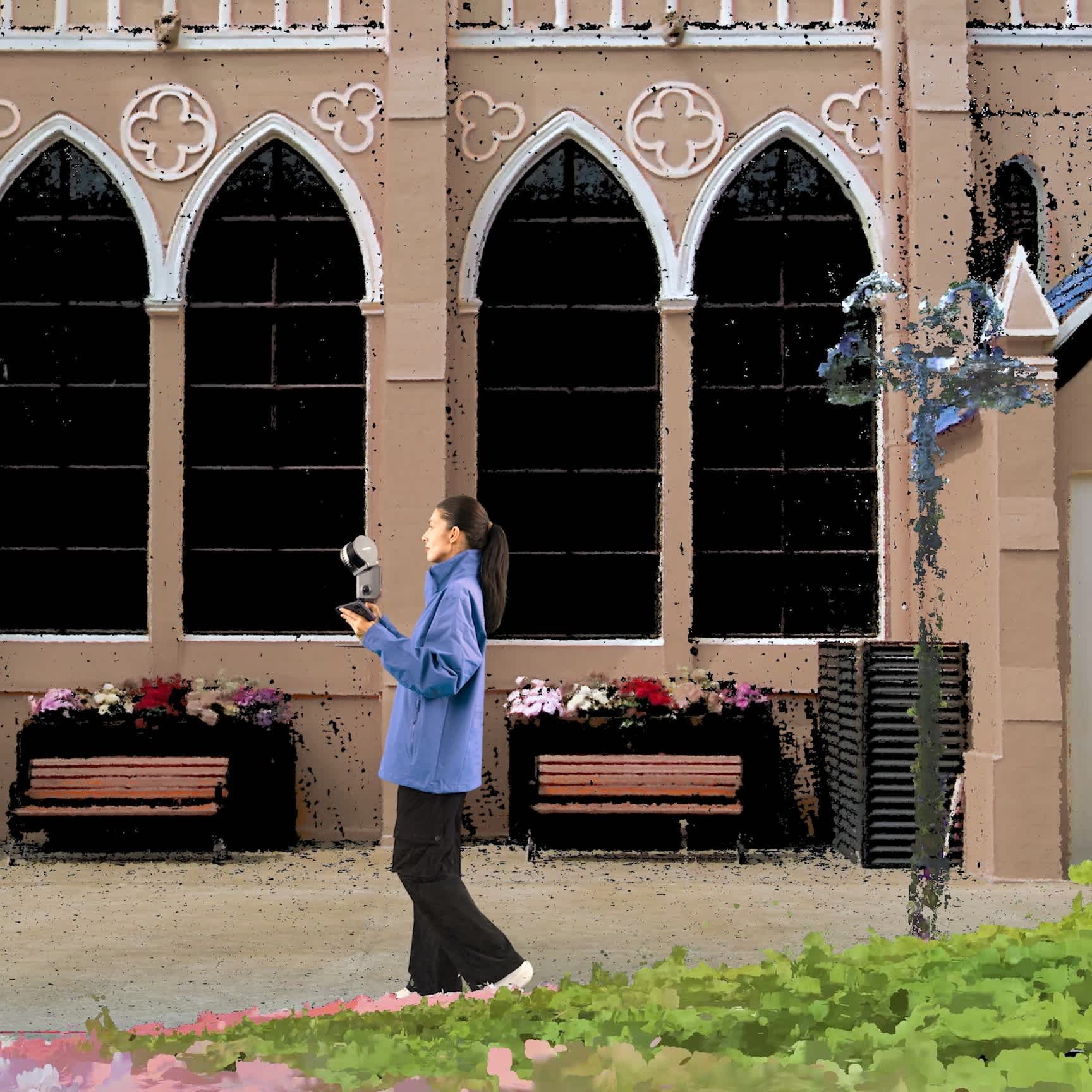

The XGRIDS Lixel L2 Pro is a highly integrated, high-precision handheld scanner for 3D reconstruction and reality capture, featuring an all-in-one design and simple one-touch operation. It can also be used with the DJI M350 and M300 RTK when used with the XGRIDS L2 Pro drone mounting bracket.

Lixel L2 Pro Features a rotating LiDAR scanner, dual 48MP panoramic camera, high-precision IMU, and multi-SLAM technology. Create Gaussian Splats for reality capture and true-colour point-clouds in real-time.
Different Scanner Options Three options of the Lixel L2 Pro are available: The 16 Channel, which captures 320,000 pts/s with a 120m scan range; or the 32 Channel, which captures 640,000 pts/s, and is available with either a 120m or 300m scan range.
Complimentary Software Each scanner purchase includes three lifetime licence keys for Lixel Studio, allowing up to three users to access the software for one-click data processing. In addition, download the free LixelGo app for live, on-site scanning control.
Lixel CyberColor for Gaussian Splats Generate photo-realistic Gaussian Splats with Lixel CyberColor software - available from heliguy™ .
Survey Support Access the support of our in-house survey specialists to integrate the Lixel L2 Pro into your operations, and for end-to-end workflow advice. The team also offers data-processing support. Contact us to also discuss rental options.

Lixel L2 Pro Key Features

Versatile handheld laser scanner

Fully-Integrated: This all-in-one sensor features a rotating LiDAR module, dual 48MP panoramic cameras (removing the need for external cameras), high-precision 6DOF IMU, and multi-SLAM to maximise performance.
Reality Capture: Use with Lixel CyberColor to create Gaussian Splats for reality capture.
Real-time True-colour Outputs: Obtain photo-quality true-colour point clouds in real-time. These real-time outputs rival other sensors' post-processing quality.
Dense Point Clouds: 1 million points/㎡ with 1mm spacing for dense point clouds and 5mm point cloud thickness for more accurate mapping and line drawing.
Map In Complex Environments: Multi-SLAM algorithms enhance adaptability and reliability in challenging and complex environments. Ideal for mapping indoors, underground, or in structures like subways and tunnels.
Accessory Ecosystem: Combine with an Extension Pole, RTK Module, Phone Mount, or Supporting Harness to enhance usability and flexibility.
Software Suite: Compatible with the LixelGo app for one screen, one-click operation, and LixelStudio 3.0, an all-in-one point cloud processing software.
Versatile Tool For Industry: Deploy L2 Pro for topographical mapping, agriculture and forest surveys, engineering, and use within Smart Cities.
Drone Mounting: Deploy with the DJI M350 RTK or DJI M300 RTK, when used with the XGRIDS L2 Pro drone mounting bracket (available separately).

Dataset created with the XGRIDS Lixel L2 Pro.

Outdoor Real-Time Usable Data

High accuracy, true-colour point clouds

Real-time Output of Coloured Point Clouds With Absolute Coordinates: Supports WGS84/CGCS2000 systems.
High Precision In Real-time: Comparable to the post-processing accuracy of previous models. Absolute accuracy can reach 3cm, even when RTK signal is disconnected with a trajectory length under 100m. Relative accuracy can reach 2cm between any two points within 100m.
Enhanced Outdoor Real-time Colouring: Device calibration is accurate to millimeter level, resulting in high-precision coloring without misalignment.
Real-time Human Shadow Removal: Continuously optimised.
Increased Point Cloud Density: Achieves 1mm point spacing for clearer details. Post-processing Filtering reduces point cloud thickness to 5mm.

Improved User Experience

Optimised for hardware and App

One-click on the device switch to USB mode.
One-click on the device to add control point.
Direct connection between phone and device via data cable for stable communication, bypassing network issues.
Tilt warning system that alerts users when the device exceeds a 30° tilt angle.

Lixel CyberColor

Groundbreaking Advancement in 3D Content Generation

Ultra-realistic Model Generation: Based on multi-SLAM algorithms and 3DGS technology, Lixel CyberColor uses Gaussian Splatting to enable the creation of true-to-life, vast 3D models and overcomes the challenges associated with modelling large spaces and complex environments.
Enhanced 3DGS Algorithm: Realistic rendering in diverse environments, reducing model sizes by 90% (compared to open-source 3DGS algorithms) through proprietary data-compression technology.
Infinate-scale Rendering: Supports large-size 3D scenes for various platforms.
Seamless Integration: Combine with professional 3D software and platforms. Lixel CyberColor plugins and SDKs will be available for platforms such as Unity, UE, Web and Mobile.
Immersive Experience: Unparalleled VR interaction experiences.
LiDAR Integration: Use in conjunction with the XGRIDS L2 Pro scanner for cm-level model precision.
AI-powered Dynamic Object Removal: Reconstruct highly-detailed digital twins and remove objects from the scene.

Lixel CyberColour for groundbreaking 3D model creation.

Software Suite

LixelGo app & upgraded LixelStudio

LixelGo: Companion app for one screen one-click operation, real-time viewing of camera images, elevation details, and true-colour points clouds, and complete display of operating status, such as battery power, network, memory, and range.
LixelStudio: Companion software platform. LixelStudio 3.0 upgrades include dongle-free activation; support for importing trajectory and control point files; support for more coordinate systems; ellipsoids, and projections; and improved stockpile measurement algorithms.

Lixel L2 Pro scanner is compatible with the LixelGo companion app.
