Rental Emlid Reach RS2
Rental Emlid Reach RS2
Rental Emlid Reach RS2
Rental Emlid Reach RS2
Rental Emlid Reach RS2

Rental Emlid Reach RS2

£199.99 inc VAT weeklyRegular price
Purchase Price: £2,131.99

Base Rental Price

£-

Delivery & Collection

£20

Estimated Insurance

- Hobbyist
- Commercial

Currently -12 units in stock.

Rent with heliguy logo black

No capital outlay & no depreciating asset

Service & maintenance outsourced

Try before you buy

Eliminate down time

Mitigate risk of drone advancements

Rental Information
4 Step Rental Process

Full Description

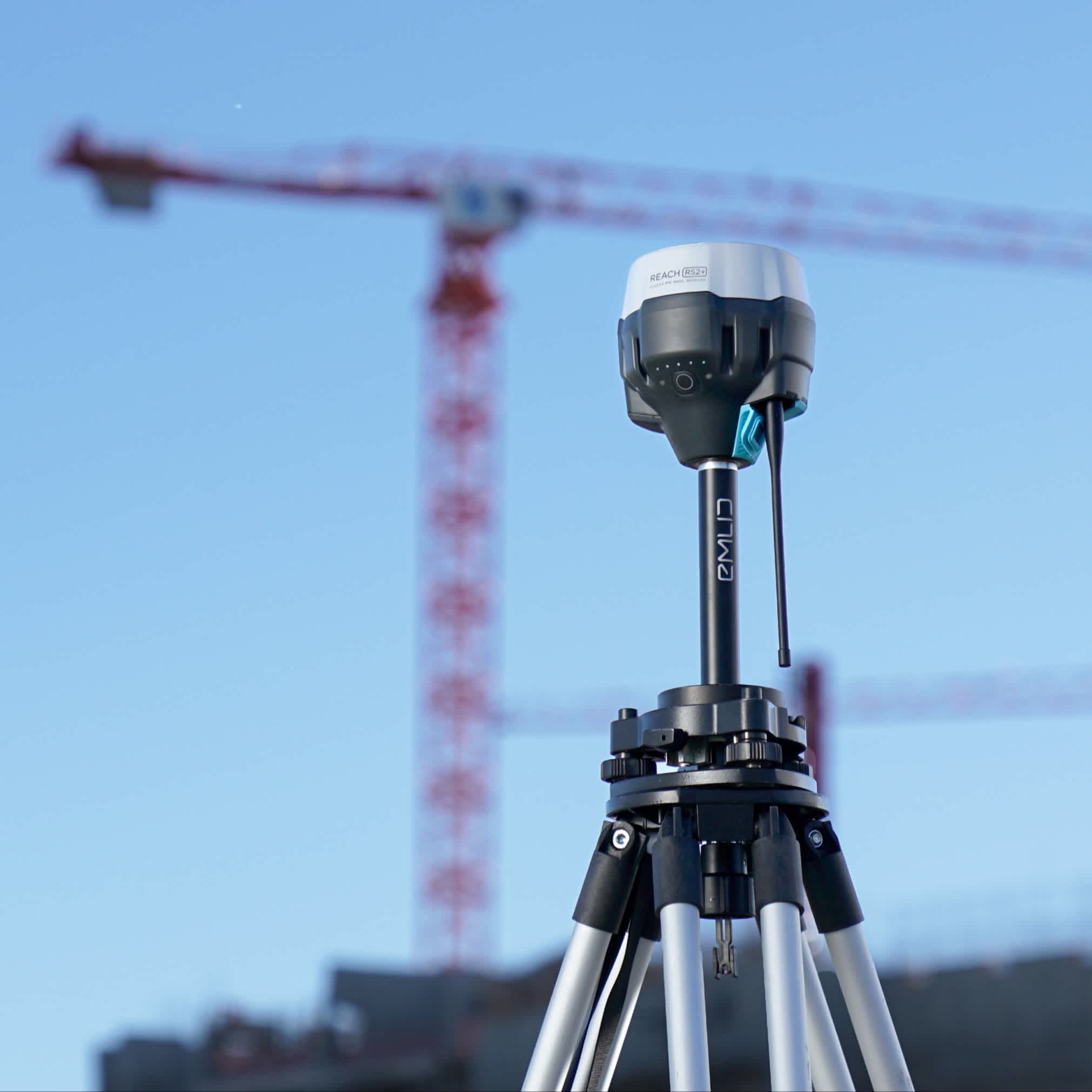

RENTAL EMLID REACH RS2

Multi-band, centimetre-accurate GNSS receiver

The Emlid Reach RS2 is a multi-band GNSS receiver which allows you to collect data with centimetre accuracy.

The receiver gets a fixed position within seconds and is designed to work in RTK (up to 60km) and PPK modes (up to 100km).

With Reach's RINEX logs, obtain accurate coordinates on any point on earth.

Reach RS2 has a built-in cellular modem for hassle-free NTRIP connections in the field.

All receivers go with internal LoRa radio working on up to 8km distance. LoRa radio is used to connect rover to base when internet-delivered corrections are not available.

Reach RS2 is engineered to work in the most challenging environments. It has an IP67 rating and is made of polycarbonate.

The battery lasts for 16 hours when working in RTK and for up to 22 hours when logging (in PPK mode).

The Reach RS2 comes with the ReachView app - a user-friendly data collection software.

Deploy the Reach RS2 for surveying, mapping and navigation. It can be used with a drone.

The Reach RS2 is a powerful yet cost-effective solution, compared to other receivers on the market.

What's in the Box

Emlid Reach Rs2 Kit

Product Specification

Emlid Reach RS2 Product Specification

SpecificationValue
Mechanical
Dimensions126 x 126 x 142mm
Weight950g
Temperature-20 °C to +65°C
Ingress protectionIP67 water and dustproof
GNSS
Signal trackedGPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I, Galileo E1-B/C, E5b
Number of channels184
Update ratesUp to 10 Hz
Connectivity
UHF LoRa radioFrequency Range: 863–928MHz
Power: 0.1W
Distance: Up to 8km
3.5G modemRegions: Global
Bands: Quad-band,
850/1900,
900/1800MHz
SIM Card: Nano-SIM
Wi-Fi802.11 b/g/n
Bluetooth4.0/2.1 EDR
PortsRS-232, USB-C
Electrical
Autonomy16hrs as 3.5G RTK rover, 22hrs logging
BatteryLiFePO4 6400 mAh, 6.4V
External power input6–40V
ChargingUSB-C 5V 2A
Data
Position outputNMEA, LLH/XYZ
CorrectionsNTRIP, VRS, RTCM3
Data loggingRINEX at update rate
up to 10Hz
Internal storage16GB
Positioning
PrecisionStatic: H: 4mm+0.5ppm
V: 8mm+1ppm
PPK: H:5mm+0.5ppm
V:10mm+1ppm
RTK: H: 7mm+1ppm
V:14mm+1ppm
Convergence time~5s typically
IMU9DOF

Required Documents for Rental

Training

Suggested training is the A2 CofC. Open the dropdowns below for more details.

Open Category Flights

If you are flying this drone in the Open Category, you have two options:

  1. A Valid A2 CofC: Fly in the A2 subcategory, fly up to 50m horizontally of uninvolved people.
  2. No A2 CofC: Fly in the A3 subcategory, no uninvolved people present within the area of flight, and no flights must take place within 150m horizontally of residential, commercial, industrial or recreational areas.

To obtain a valid A2 CofC, conduct online A2 CofC drone training with heliguy™. Click here for more details.

Specific Category

The Specific Category covers operations that present a greater risk than that of the Open Category, or where one or more elements of the operation fall outside the boundaries of the Open Category.

For this, a GVC is needed to be able to apply for an Operational Authorisation (similar to the former PfCO) from the CAA to operate in the Specific Category.

If you require a GVC to operate this drone, you can conduct online drone training with heliguy™. Click for more information.

Or you can take our PfCO to GVC Conversion Course. Click for more information.

For more information about the rules, read our UK Drone Laws blog.

Registration

Each pilot flying this aircraft requires a unique Flyer ID.

Pilots not in possession of a valid Flyer ID must visit the CAA’s drone registration website and complete the free online theory test to receive a Flyer ID. Each pilot must have their Flyer ID on them when flying this aircraft.

This rental drone is already labelled with an Operator ID, belonging to heliguy™. Therefore, a separate Operator ID is not required for heliguy™ drone rental.

Insurance

All drones require a valid insurance policy to rent.

We recommend Coverdrone's short term insurance designed to insure the drones on a temporary basis.

Coverdrone can offer buy as you fly insurance to almost all pilots who meet the training and registration requirements for that drone.

Get insurance from Coverdrone

You will need to provide Coverdrone with:

  • Product Name: Mavic 3 Combo
  • Rental period:
  • Equipment Value: [the full value]
  • Hirer Name: heliguy™
  • Email: info@heliguy.com

Coverdrone will issue you with three documents - a Statement of Fact, Policy Schedule, and Evidence of Cover. The Policy Schedule is the official policy document and proof of cover, so please upload this here, as part of your rental application with heliguy™.

Identity Verification

You will also be required to complete a two-step identification process: Supplying a copy of your driving licence or passport, as well as a copy of a recent utility bill or bank statement which matches the shipping address.

Rental Process

Choose Your Equipment

We offer a range of rental equipment, including drones, payloads, batteries, and other items.

This enables you to dynamically scale your operations on a risk-free, cost-effective short-terms basis, tailoring the equipment to suit your needs.

All you need to get started is to pick your rental equipment. Click to view our rental stock.

Choose Dates

You’ve selected your equipment. Now it is time to say how long you want it for.

Our rental packages are available to hire in weekly slots, but you can rent the equipment across multiple weekly blocks, where available.

We've adjusted our rental offering and removed the variable time periods to reduce admin time and cut the cost of your rental bundle. Our new prices for weekly hire periods give you substantially better value than our previous daily rates.

As long as your rental package is processed by 1pm, we can ship your equipment by next-day courier, Monday to Friday.

Upload Documentation

Before you rent equipment from us, you will need to upload some important documentation

This is based on having the right drone training qualification and UK drone registration requirements - where applicable - and a suitable insurance policy in place, which needs to be submitted to us.

You will also be required to complete a two-step identification process: Supplying a copy of your driving licence or passport, as well as a copy of a recent utility bill or bank statement which matches the shipping address.

Please check the box to confirm you have the required documents and use the forms to upload them directly to the site or Click here to learn more and get the relevant documents.

Get Equipment

Your equipment will be dispatched by next-day courier to your address.

When it comes to returns, we offer collections for all rentals.

Delivery and collection fee will be quoted to you before you confirm your booking.

Returning Your Equipment

Repackage all of your rental equipment before 9am on the day of return, ready for DPD courier collection. Collection will be from the location agreed prior to the rental. Any changes, please contact heliguy™ as soon as possible.

Customers are responsible for removing all information from controllers, memory cards / internal storage and logs prior to returning equipment to heliguy™.

Advantages of Rental

No capital outlay & no depreciating asset

Simply put - your upfront cost to access the very latest in drone technology will be substantially lower.

Any time you purchase new equipment, the value begins to depreciate on the asset you've bought almost immediately.

Our rental service protects you from the depreciation of these assets and ensures that your operations are always at the cutting-edge of drone technology.

The heliguy™ rental service will prevent an unused drone costing you money!

Service & maintenance outsourced

Forget firmware updates that delay jobs.

Stop stressing about the massive disruption caused by downtime when your drone is not operational.

The heliguy™ rental service gives you and your business access to well-maintained, up-to-date equipment so that your operations can run like clockwork.

Hours and hours spent maintaining your equipment is now freed up for you to go out there and do what you to best.

Try before you buy

Renting enables you to test the equipment first before deciding to buy it.

This allows you to evaluate the very latest drone equipment without the huge upfront cost and risk of broken workflows as you transition to a different fleet.

Numerous heliguy™ clients have found that through a low-cost rental, they've been able to see the massive advantages of upgrading their fleet for themselves, making internal buy in for a full purchase much simpler.

Eliminate down time

If you damage your equipment during your operations - which happens to the best of us - you could be waiting days, weeks or even months to get back in the air.

Those delays are costing you and your business.

With heliguy™ drone rental - those concerns are a thing of the past.

Our huge investment in our rental fleet means that we have backup units available and ready to be shipped to you when things go wrong.

Make downtime a thing of the past!

Mitigate risk of drone advancements

One of the biggest advantages of using the heliguy™ rental service is to ensure that you're at the forefront of drone use.

The technology available in the drone sector progresses at a tremendous rate.

Outdated equipment gets devalued quickly and can become less reliable with continued use without servicing.

By using our rental service you're making sure that you and your business get access to the very best equipment at all times.

Product specification

Rental Emlid Reach RS2

Emlid Reach RS2 Product Specification

SpecificationValue
Mechanical
Dimensions126 x 126 x 142mm
Weight950g
Temperature-20 °C to +65°C
Ingress protectionIP67 water and dustproof
GNSS
Signal trackedGPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I, Galileo E1-B/C, E5b
Number of channels184
Update ratesUp to 10 Hz
Connectivity
UHF LoRa radioFrequency Range: 863–928MHz
Power: 0.1W
Distance: Up to 8km
3.5G modemRegions: Global
Bands: Quad-band,
850/1900,
900/1800MHz
SIM Card: Nano-SIM
Wi-Fi802.11 b/g/n
Bluetooth4.0/2.1 EDR
PortsRS-232, USB-C
Electrical
Autonomy16hrs as 3.5G RTK rover, 22hrs logging
BatteryLiFePO4 6400 mAh, 6.4V
External power input6–40V
ChargingUSB-C 5V 2A
Data
Position outputNMEA, LLH/XYZ
CorrectionsNTRIP, VRS, RTCM3
Data loggingRINEX at update rate
up to 10Hz
Internal storage16GB
Positioning
PrecisionStatic: H: 4mm+0.5ppm
V: 8mm+1ppm
PPK: H:5mm+0.5ppm
V:10mm+1ppm
RTK: H: 7mm+1ppm
V:14mm+1ppm
Convergence time~5s typically
IMU9DOF

What's in the Box

Rental Emlid Reach RS2

Emlid Reach Rs2 Kit
