Are there different versions of the XGRIDS Lixel L2?

Yes, there are two versions of the XGRIDS Lixel L2. These are the 32-channel or the 16-channel. The Lixel L2 (32 channel) has a 300m scan range and can scan 640,000p/s for a broader scanning perspective and upgraded point-cloud quality. In comparison, the L2 (16 channel) has a 120m scan range and can achieve 320,000p/s. The 16 channel version is less expensive than the 32 channel option.

How accurate is the Lixel L2 scanner?

The Lixel L2 scanner can obtain 1.2cm relative accuracy; 2cm repeat accuracy; 3cm absolute accuracy, and 0.015° horizontal accuracy. Repeatability accuracy, horizontal accuracy, and absolute accuracy are all measured when RTK has a fixed solution throughout the entire process; The relative accuracy is the medium error measured in an indoor space of 15,000 square meters.

Can the XGRIDS Lixel L2 be drone-mounted?

Yes. While the Lixel L2 is a handheld scanner, it can also be mounted to a drone. A drone mount is available separately to enable the L2 to be integrated with the DJI M350 RTK and DJI M300 RTK drones.

Can the XGRIDS Lixel L2 be used indoors?

Yes, the Lixel L2 can be used to collect data in indoor environments.

XGRIDS Lixel L2 (32 Channel)

£0.00

Tax included in UK & Shipping calculated at checkout

50-days return policy
Return your item within 50 days of purchase.
Full refund available for unopened, sealed, and unactivated items.
Opened products may still qualify for a refund - if unused.
For orders over £100, heliguy™ can arrange your return via DPD or in-person drop-off - just contact us.
Next-day delivery - order before 3 pm
Order before 3pm (Monday–Friday) for next-working-day delivery across most of the UK*. Free on orders over £99.
UK Saturday delivery (at additional cost) available on orders placed before 3pm Friday*.
Orders placed after 3pm Friday dispatched on Monday.
No deliveries on Sundays or Bank Holidays.
* Some UK regions - such as Northern Ireland, Channel Islands, Isle of Man, Scottish Highlands & Islands, and Scilly Isles - may require 2-3 working days for delivery.

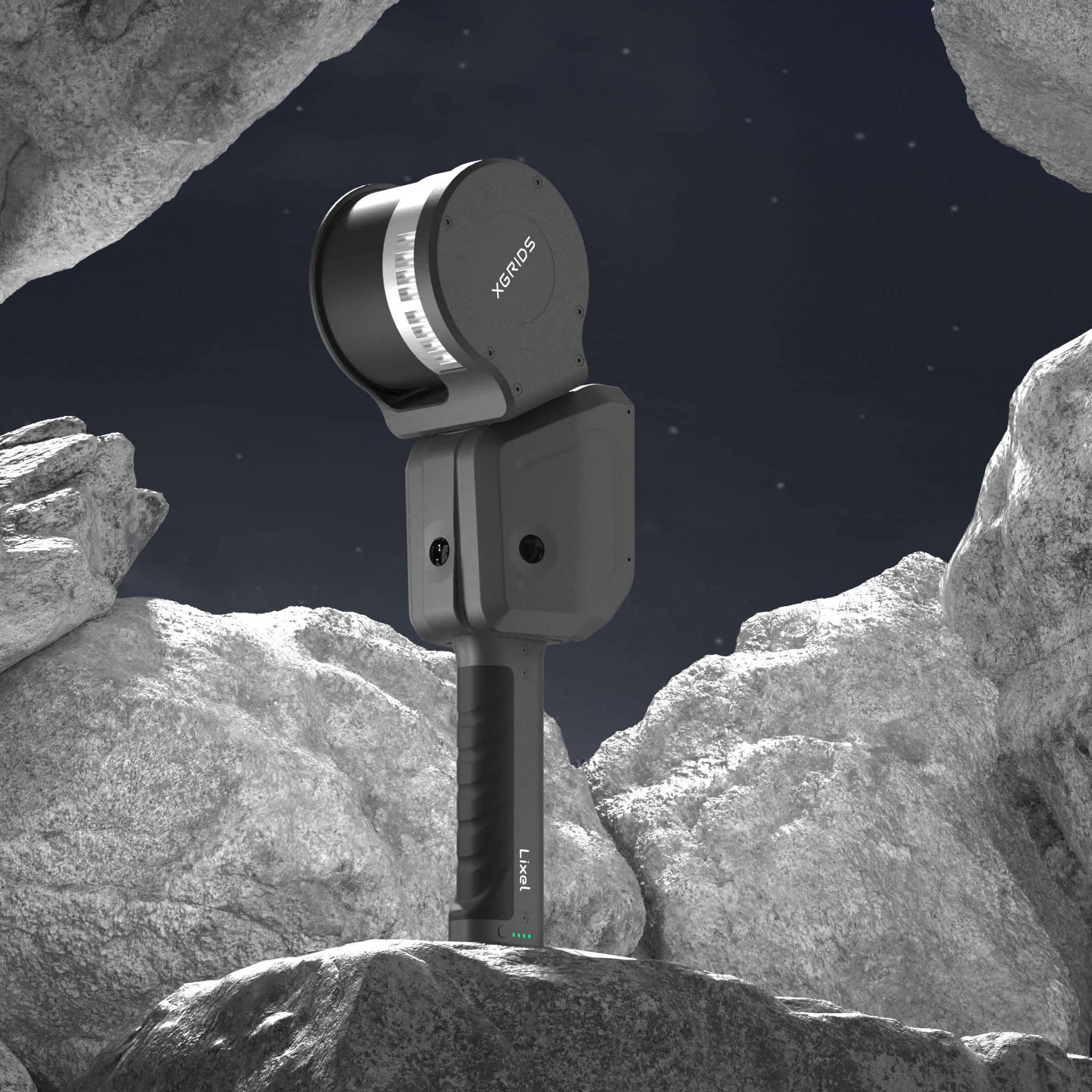

XGRIDS Lixel L2 (32 channel) is a flagship 3D scanner for on-the-go mapping. It transforms the efficiency and quality of 3D modelling.

True-colour Point Clouds Powered by a multi-SLAM algorithm, Lixel L2 delivers real-time true-colour point cloud models with cm-level accuracy. It has a 300m scan range and can scan 640,000p/s.
Versatile XGRIDS Lixel L2 can be drone-mounted to the DJI M350/M300 RTK.
Complimentary Software Each scanner purchase includes three lifetime licence keys for Lixel Studio, allowing up to three users to access the software for one-click data processing. In addition, download the free LixelGo app for live, on-site scanning control.
Survey Support Access the support of our in-house survey specialists to integrate the Lixel L2 into your operations and for end-to-end workflow advice. The team also offers data-processing support.

Quality Data On The Go

Vividly Recreate Real-World Enviroments

Detailed Data: Lixel L2-32 has a 300m scan range and can scan 640,000p/s, yielding a broader scanning perspective and upgraded point-cloud quality.
True-colour Point Clouds: Generate true-colour point clouds that vividly replicate real-world environments.
Real-time Outputs: Real-time outputs and preview consistency enable you to see reconstruction results and directly generate .las models.
Complex Operations: Multi-SLAM algorithm ensures wide compatibility across scenarios and enables excellent performance in complex and indoor environments. Newly-added RTK enhances real-time calculations.
High Accuracy: 1.2cm relative accuracy; 2cm repeat accuracy; 3cm absolute accuracy; and 0.015° horizontal accuracy.
Quality Data: Point cloud thickness within 1cm; Significant reduction in noise points; Even and delicate point clouds for more accurate measurements.

Industry Applications

Versatile 3D Scanning for the World of Work

Mapping And Surveying: Real-time scanning and modelling hardware and software reshape the survey and mapping process, improving efficiency in and out of the field. Benefit from real-world 3D, land-air fusion, and DEM/DSM generation.
Smart City: Realise digital management in the city lifecycle. Map above and below ground and collect data for grid management, urban renewal, and CIM/BIM.
Emergency Security: Quickly-generate on-site 3D models for rapid and real-time feedback of the situation, providing data support for emergency command.
Energy And Mining: Digitise the mining and utilities sector. Digital mining, stockpile measurement, and power inspection.
XR/Robotics: Real-time spatial maps for overall spatial perception and instant localisation.
Metaverse: Create a personalised Metaverse experience for Metaverse interaction and management solutions.

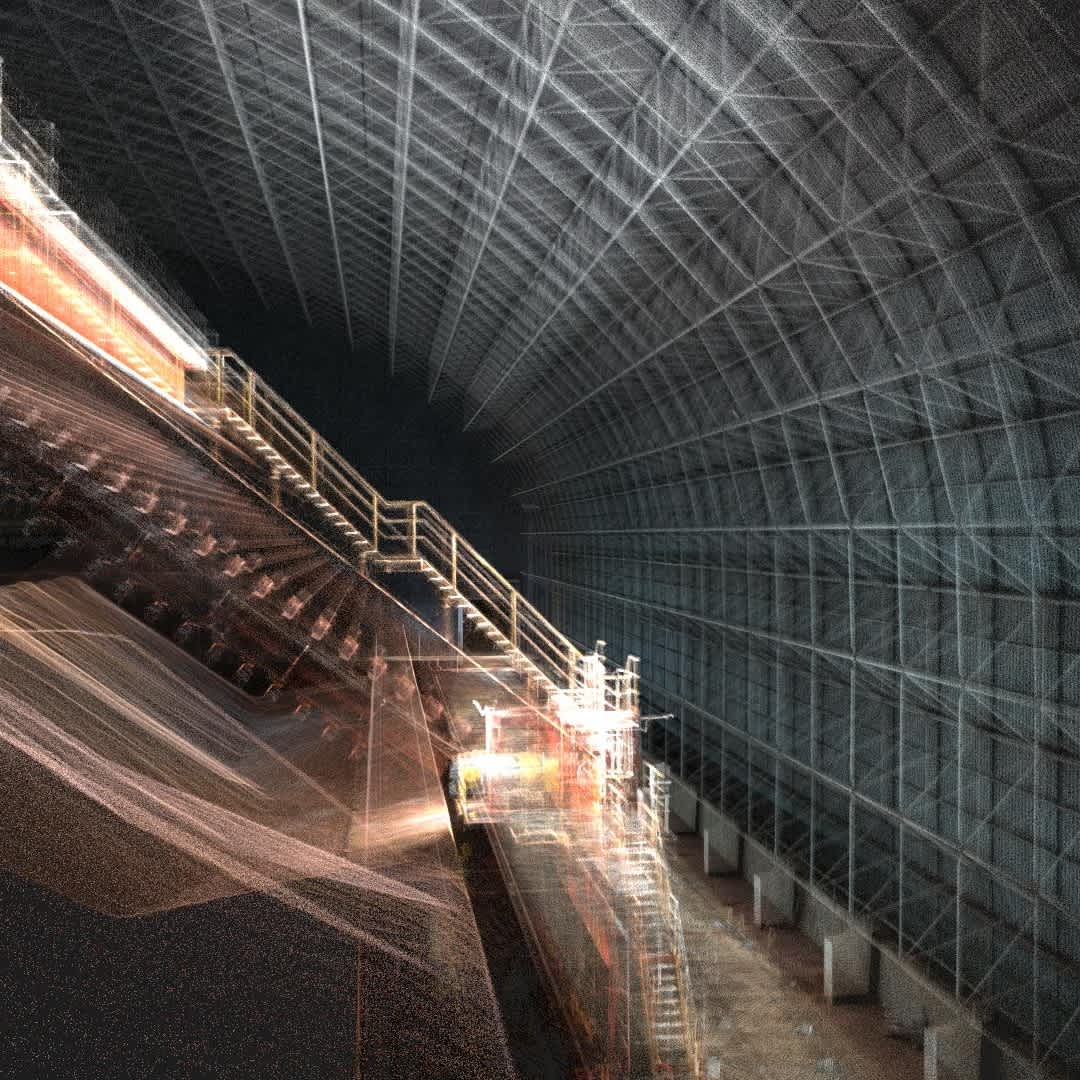

XGRIDS Lixel L2 can benefit multiple industry applications.

LixelStudio

Intelligent 3D Processing Software

One-stop Processing Services: Developed by XGRIDS, LixelStudio provides viewing, editing, and one-stop processing services for laser point clouds and other data.
Massive Data Loading: Load large point clouds simultaneously, with no pressure on clipping, measuring, and rendering.
Data Vectorisation: CAD, BIM, 3D white model, and other data can be more compact and user-friendly.
AI Spatial Understanding: Monolithic and semantic segmentation, and dynamic object removal help with space information.
Industry Plugins: Abundant and expandable plugins meet the data needs of various industries.
Remote Sync: 5G network for real-time viewing and downloading enables remote operations.
Complementary Software: LixelStudio is included in the cost of the Lixel L2.

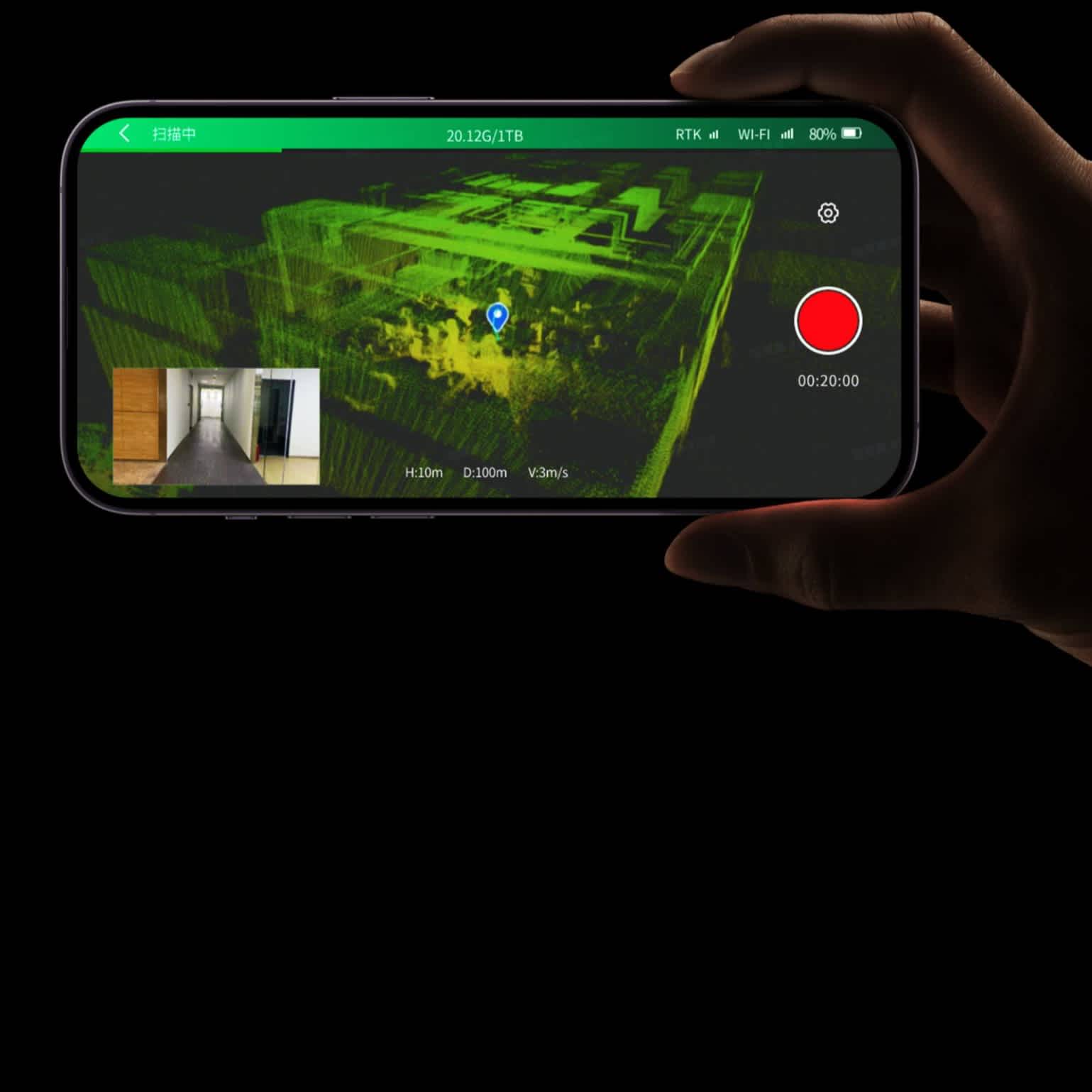

LixelGo App

Simplified Control

Companion App: LixelGO is a companion app for your XGRIDS scanner, enabling easy control and one-click operation via a mobile phone, facilitating on-the-go mapping. At this time, the LixelGo App only supports Android devices.
Real-time Insights: View camera images, elevation information, and true-colour point clouds in real-time to avoid missing or incorrect data collection.
Status Updates: The app displays a range of status information, such as battery power, network, memory, and range. Also control RTK settings and breakpoint rescan.
