DJI Dock 4 and Matrice 5TD: How they support BVLOS compliance
Discover how the Matrice 5TD's independent FTS and AP1 Parachute support BVLOS approvals, with EU C5/C6 and UK5/UK6 class markings and a SORA compliance package.

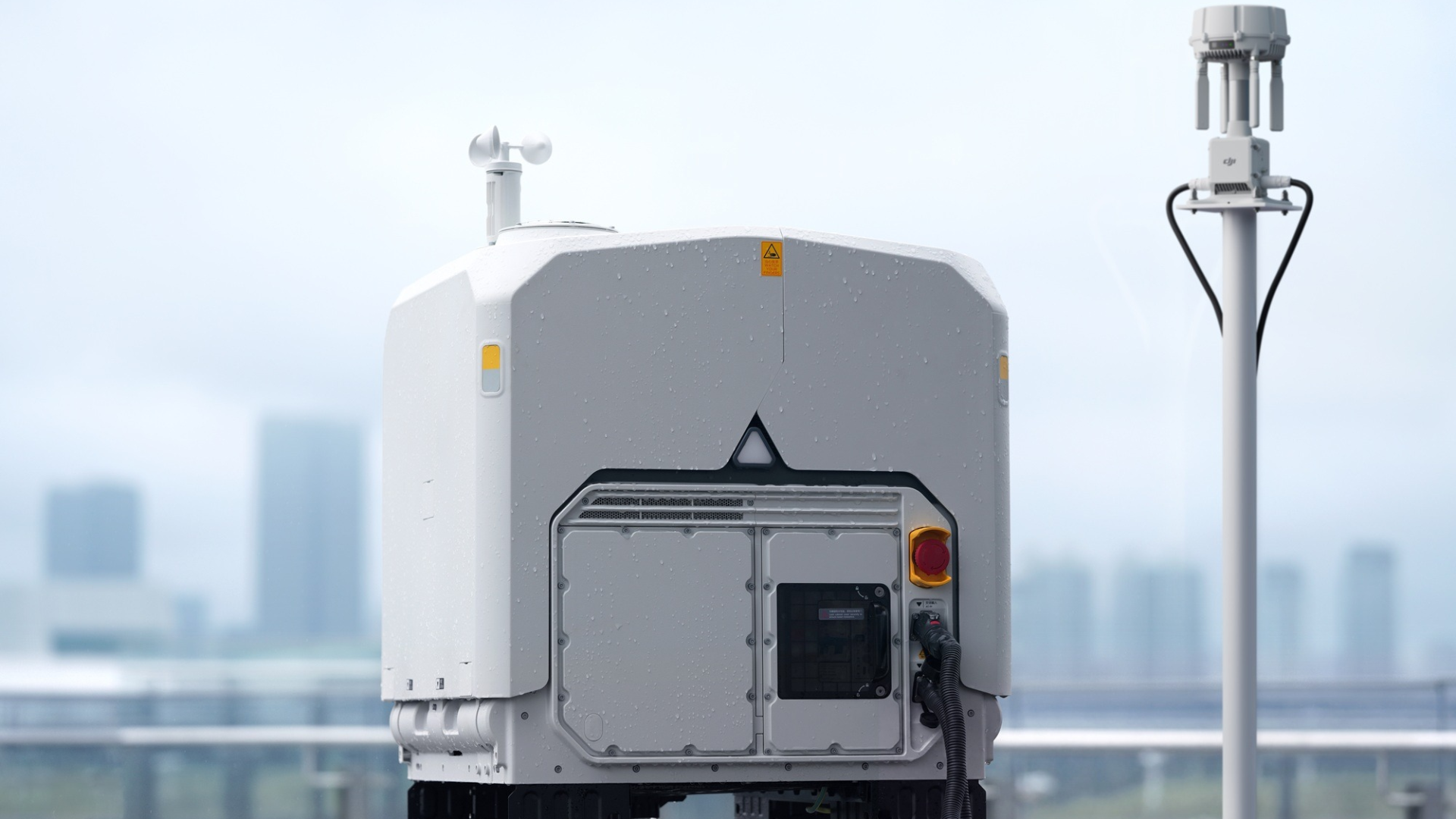

DJI Dock 4 and the Matrice 5TD are the first DJI drone-in-a-box system to combine a built-in independent Flight Termination System with a first-party parachute, meeting EU C5/C6 and UK5/UK6 compliance requirements out of the box, with the AP1 installed.
For organisations planning remote or beyond visual line of sight (BVLOS) operations, that changes how much of the safety case starts already done. This blog explains what the new safety architecture means for regulatory approvals, which other features matter for remote operations, and where it leaves existing DJI Dock 3 users.
Key takeaways
Class markings out of the box: With the DJI AP1 Parachute installed, the Matrice 5TD meets EU C5/C6 and UK5/UK6 requirements. UK and EU production units ship with the AP1 pre-installed.
Independent FTS: The Flight Termination System is built into the aircraft and segregated from the main flight controller, so it keeps working even if the primary control link is lost.
M2 ground-risk mitigation: DJI says the AP1 is documented against ASTM F3322 and EASA MoC 2511 and 2512, giving operators evidence to support the ground-risk section of a SORA application.
SORA templates: DJI has co-authored a SORA compliance package aligned to SORA 2.0 and 2.5, so operators don't start their risk assessment from a blank page.
Built for remote operations: Automated 25-second battery swaps, a -40°C to 50°C operating range, integrated LiDAR and mmWave radar, and dual 4G connectivity all support reliable unattended flights.
AI-assisted control: FlightHub 2 Copilot lets remote pilots plan routes and issue commands in plain language, with every AI action requiring human confirmation.
A class marking is not an approval: Operators still need the right Operational Authorisation, such as an STS-02 declaration in the EU or a UK SORA-based application.
Expert BVLOS support: heliguy™'s in-house regulatory team secured UK SORA SAIL II BVLOS approval for remote DJI Dock 3 operations for Network Rail. heliguy™'s in -house regulatory team can help with your BVLOS authorisations. heliguy™ also has a team of in-house Dock specialists, including solutions engineers and accredited technicians.
Dock 3 context: Dock 3 and the Matrice 4TD already hold C6 with DJI's independent FTS Module, but the module shares a slot with enhanced transmission, so operators must choose one. C5 required a third-party parachute kit. The Matrice 4TD is not compatible with Dock 4.
Expert insight
During DJI's Dock 4 launch, Nicolas, an independent regulatory safety expert who reviewed DJI's documentation and test reports for the system, explained what the testing behind the AP1 Parachute and FTS means for operators:
"We thoroughly reviewed data from over 100,000 real-world flight operations with zero unintended deployments, alongside over 500 controlled deployment tests. This rigorous testing, now fully documented to meet the ASTM F3322 and EASA MoC 2511 and 2512 standards, gives operators a robust starting point for their regulatory submissions."
On why the class markings matter beyond Europe, he added:
"European drone rules are highly influential, but they're built on a risk assessment methodology called SORA. Because SORA is becoming the international consensus, achieving these EU C5 and C6 and UK5 and UK6 class markings proves that this systems' hardware and design capabilities natively comply with globally-recognised risk control standards."
Why BVLOS needs a different safety approach
In BVLOS and remote operations, nobody on site can see the aircraft or step in if something goes wrong. Regulators therefore want evidence that the aircraft can be contained within its operational volume, and that a failure won't cause serious harm on the ground.
Dock 4 and the Matrice 5TD address both through two systems working together: an independent Flight Termination System (FTS) and the AP1 Parachute.
Independent Flight Termination System
The Matrice 5TD's FTS is hard-installed in the aircraft. On Dock 3, the Matrice 4D Series uses a dedicated DJI FTS Module instead: a removable module, supplied in the box, which the operator fits into a purpose-built housing on the aircraft, before use.
The Matrice 5TD's FTS is segregated from the normal flight-control system and is designed to keep working even if the primary control link is completely lost.
Key points:
Automatic and manual triggers: Flight termination can be initiated by the system or by the remote pilot.
Geocage protection: A breach of the defined operational volume can trigger termination, supporting the containment requirements behind C6/UK6.
Standards alignment: DJI identifies MoC 2511 compliance as part of the FTS architecture.
Connectivity: At least one 4G SIM card is required for the FTS connectivity arrangement.

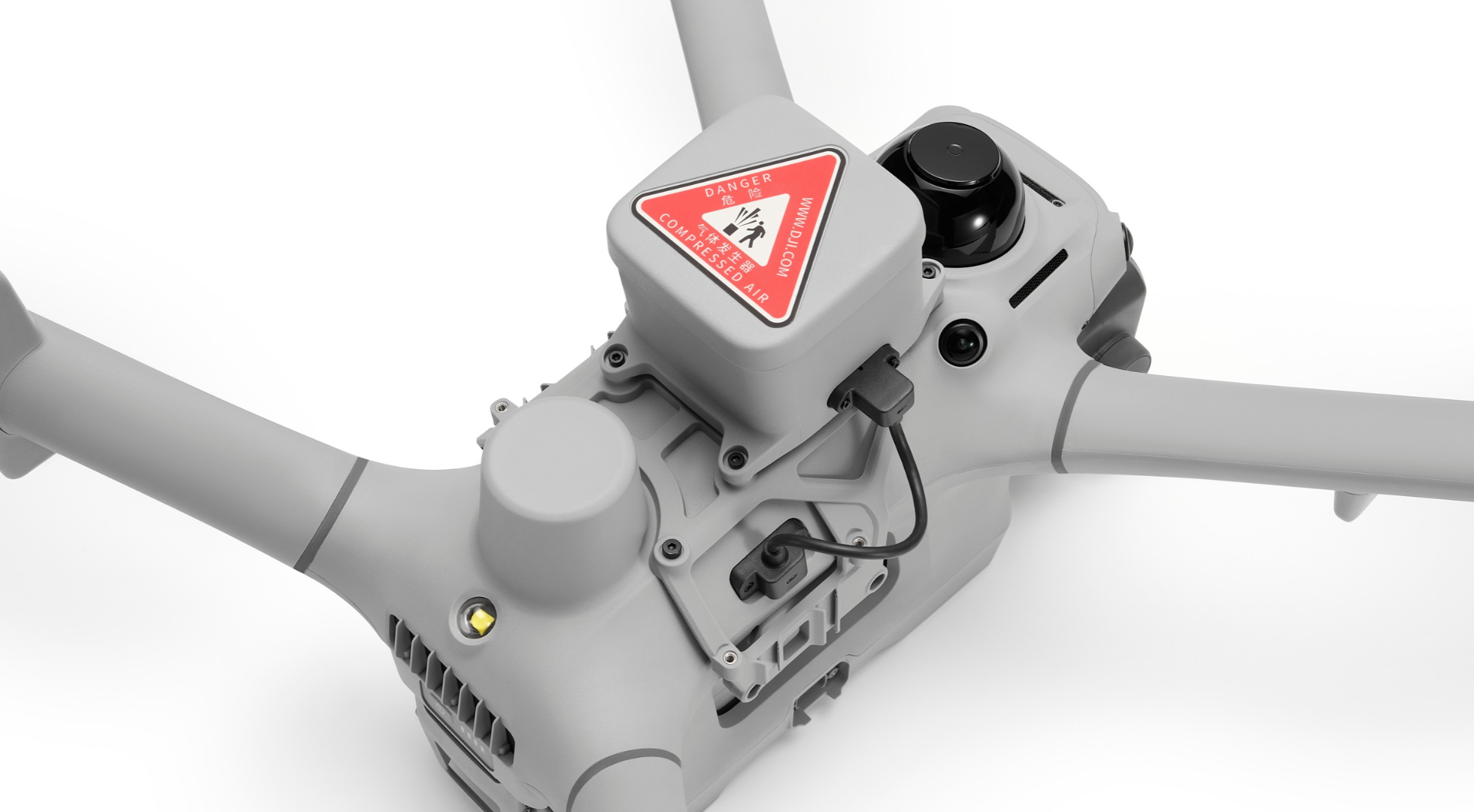

AP1 Parachute and M2 ground-risk mitigation
The AP1 Parachute reduces the consequences of a failure by slowing the aircraft's descent. For UK and EU production units, the Matrice 5TD is supplied with the AP1 - pictured below, installed.

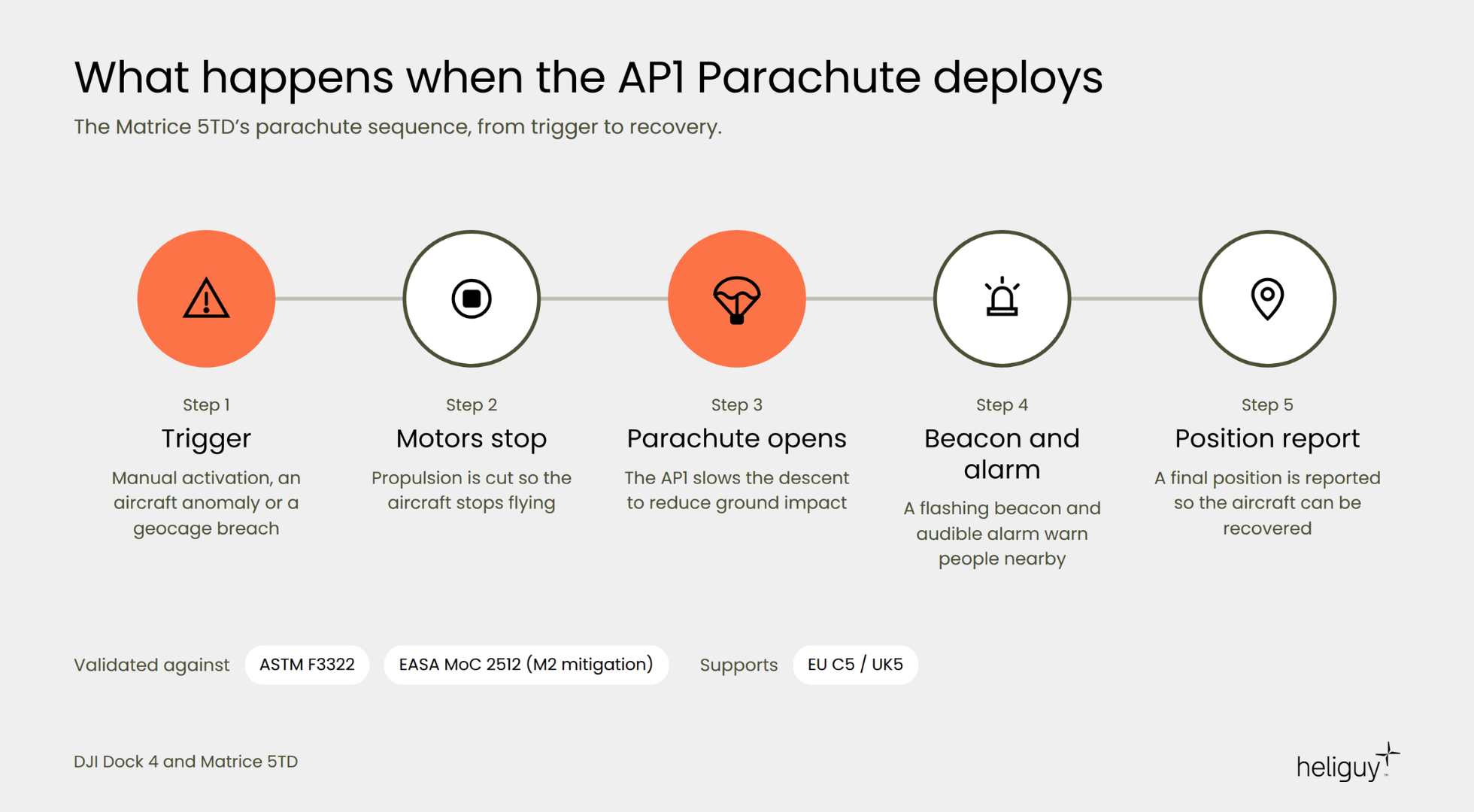

The parachute deploys after specified triggers, including manual activation, aircraft anomalies and geocage breaches. When it fires, the motors stop, the parachute opens, and a flashing beacon and audible alarm activate, followed by a final position report.
DJI states the AP1 has been validated against ASTM F3322 and supports EASA M2 mitigation requirements under MoC 2512.
As part of ASTM F3322 validation, DJI ran more than 45 deployment tests in hovering and full-speed flight scenarios.
In SORA terms, M2 mitigation reduces ground risk, which can lower the overall risk level of an operation.

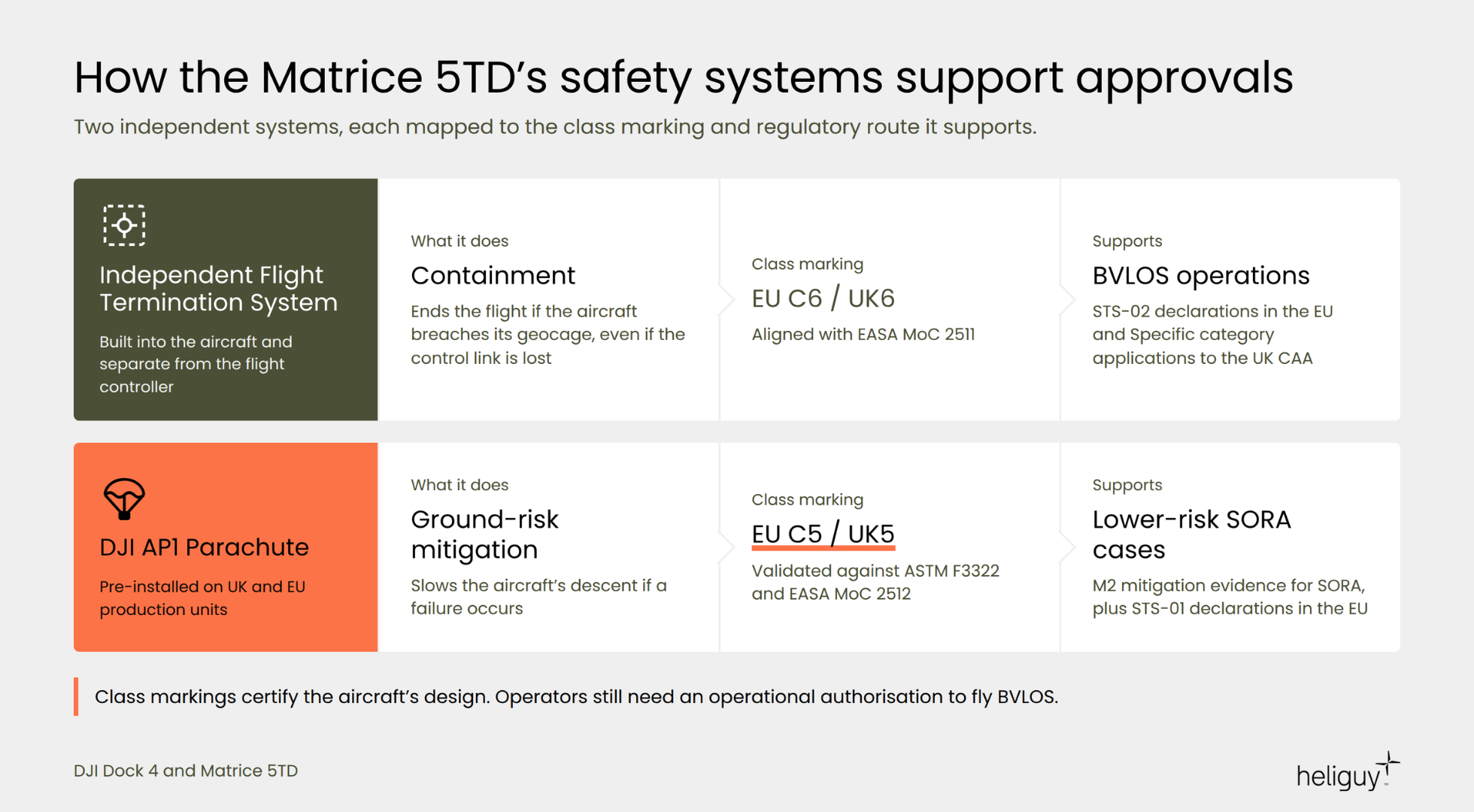

What C5/C6 and UK5/UK6 mean for your approvals
Class markings certify that the aircraft's design meets set technical requirements. They do not authorise an operation on their own.
Class marking | What it demonstrates | How it can be used |
|---|---|---|
EU C5 | Ground-risk mitigation (parachute) and safety features for operations over a controlled ground area | Enables STS-01 declarations (VLOS) in the EU |
EU C6 | Containment, including an independent FTS and geocaging | Enables STS-02 declarations (BVLOS over sparsely populated areas) in the EU |
UK5 / UK6 | The UK equivalents of C5 and C6 | Supports Specific category applications to the UK CAA, including under UK SORA |
For BVLOS, C6/UK6 is the key marking. C5/UK5 adds value beyond VLOS work, because the parachute's M2 mitigation can strengthen a SORA safety case.
Operators still need the right authorisation, competent remote pilots and a suitable operations manual. The class markings simply mean much of the aircraft's technical evidence is already in place.

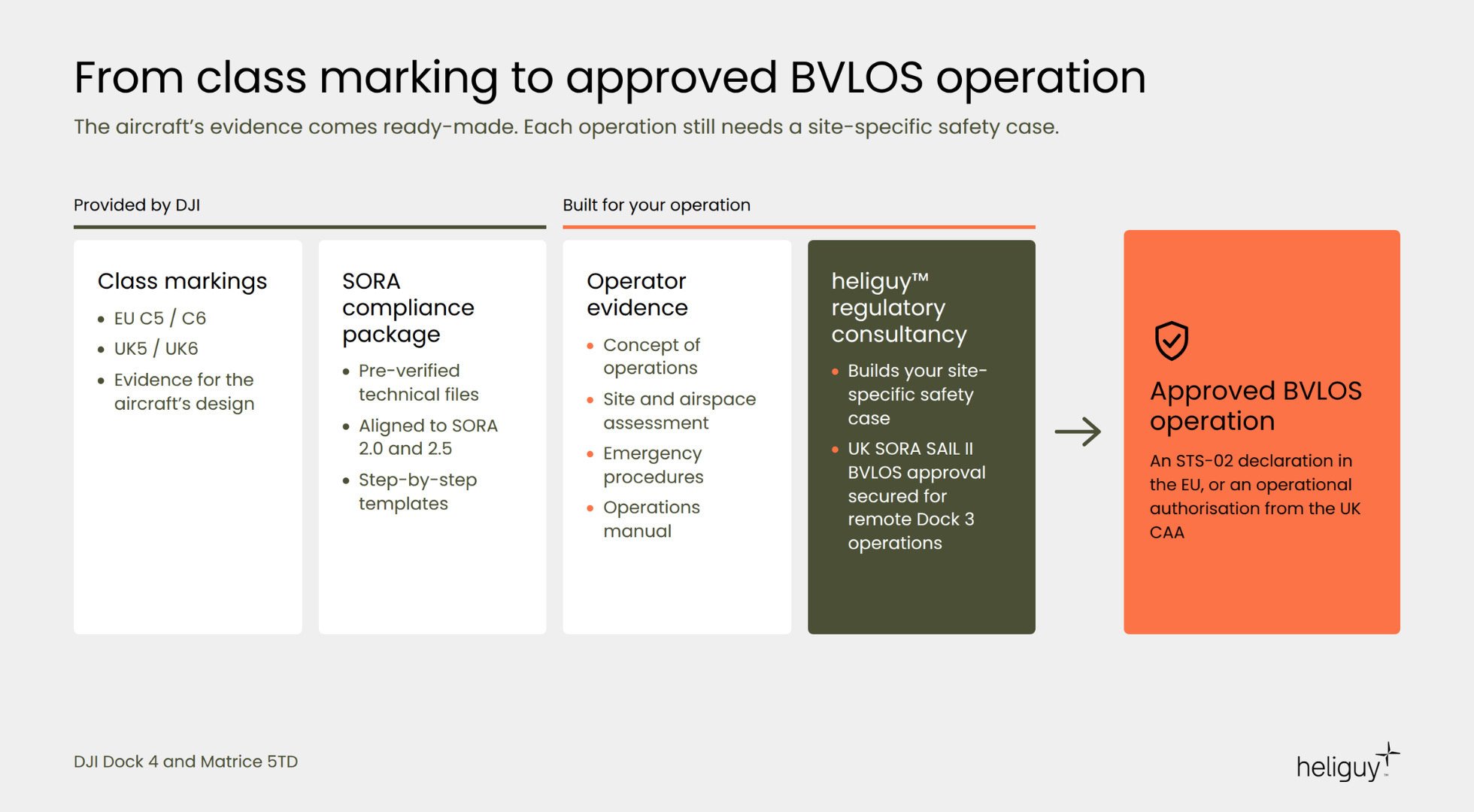

A SORA compliance package to speed up applications
DJI has co-authored a SORA compliance package that aligns Dock 4's technical files with SORA 2.0 and 2.5 requirements.
Existing authorised operators: Organisations with an approved fleet can reference the pre-verified reports when adding Dock 4.
First-time dock operators: Step-by-step templates guide operators through the local risk assessment process.
This matters because SORA is increasingly used outside Europe, so the same evidence can support applications in other jurisdictions that adopt it.
DJI's templates cover the aircraft and dock. Every application still needs operator-specific evidence, such as a concept of operations, site and airspace assessments, emergency procedures and an operations manual.
This is where heliguy™'s in-house regulatory team can help, turning DJI's technical files into a complete, site-specific safety case for your operation.

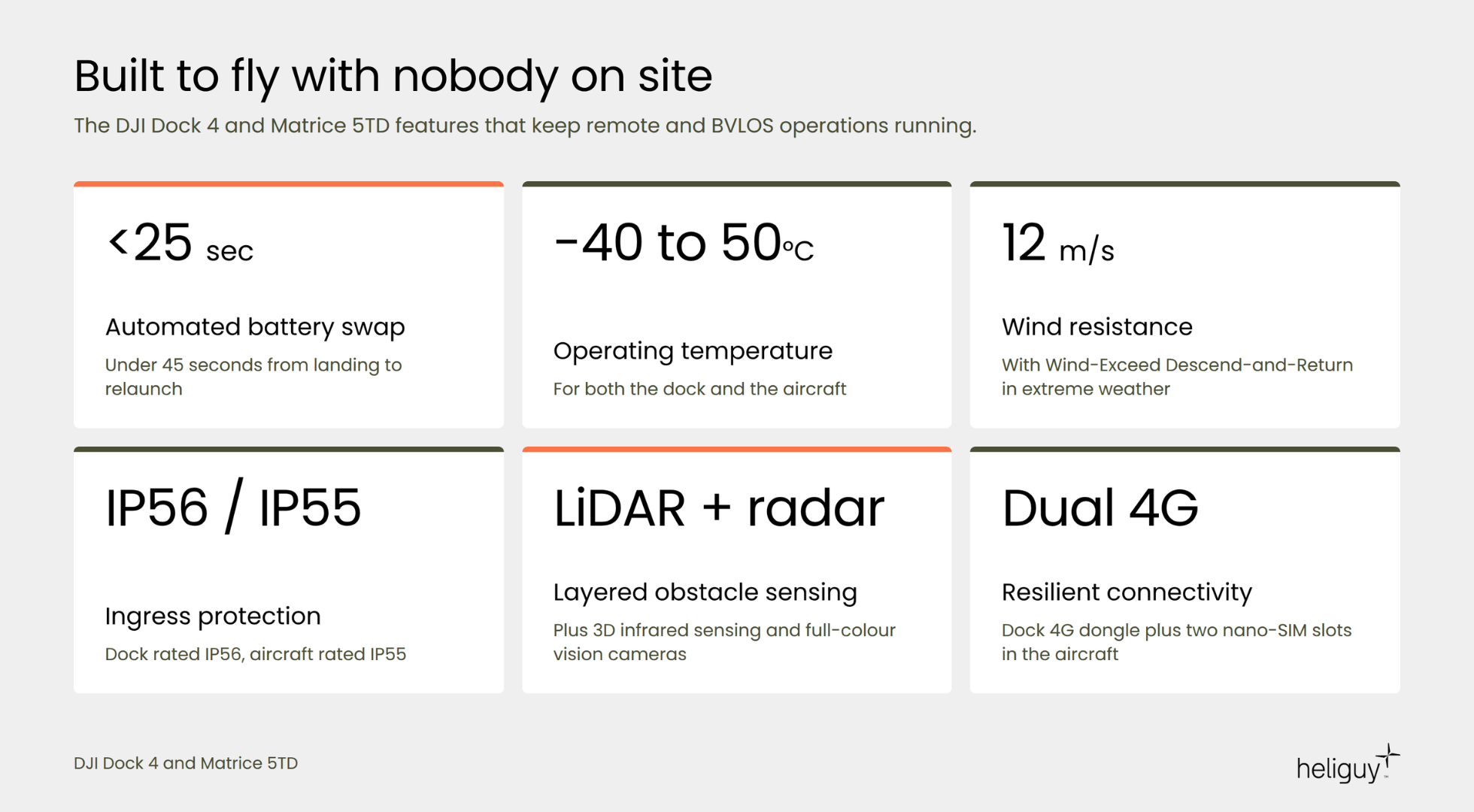

Features that support reliable remote operations
Compliance is only part of a successful BVLOS programme. The aircraft and dock also need to work reliably with nobody on site. Several Dock 4 and Matrice 5TD features support this.
Automated battery swapping and rapid redeployment
Dock 4 swaps the aircraft's battery in under 25 seconds, with an overall turnaround of under 45 seconds. The dock stores up to three batteries across four compartments.
If mains power is lost, the dock can still swap batteries and launch, as long as two or more batteries remain. For remote sites, that resilience reduces the risk of a dock being unavailable when it is needed.
Operating in extreme conditions
Both Dock 4 and the Matrice 5TD operate from -40°C to 50°C. The dock is rated IP56 and the aircraft IP55, and both handle winds up to 12m/s.
The dock preheats batteries in freezing weather and uses compressor-based air conditioning in high heat. The aircraft's propellers use anti-icing materials, and Wind-Exceed Descend-and-Return brings the aircraft home safely in extreme weather.
Layered obstacle sensing
The Matrice 5TD combines LiDAR, millimetre-wave radar, 3D infrared sensing and full-colour vision cameras. These sensors complement each other, helping the aircraft detect hazards such as wires at night, with no on-site pilot to spot them.
The aircraft also supports Remote ID and can detect Remote ID-equipped DJI drones within 200m. This is not a full airspace surveillance or detect-and-avoid system.
Resilient connectivity
The DJI O4 Ground Station raises the transmission, RTK and storage modules above ground-level obstructions, improving line of sight. Dock 4 has a built-in dual 4G dongle, and the Matrice 5TD has two nano-SIM slots, so it can run the FTS and 4G enhanced transmission at the same time, across different mobile networks.
Base station roaming lets the aircraft move between ground stations across larger operational areas.
Emergency manual control
The Matrice 5TD will support the DJI RC Plus 2 as an emergency controller, providing basic manual flight and live video when a pilot needs to intervene. This feature is set to come with firmware 19.1.

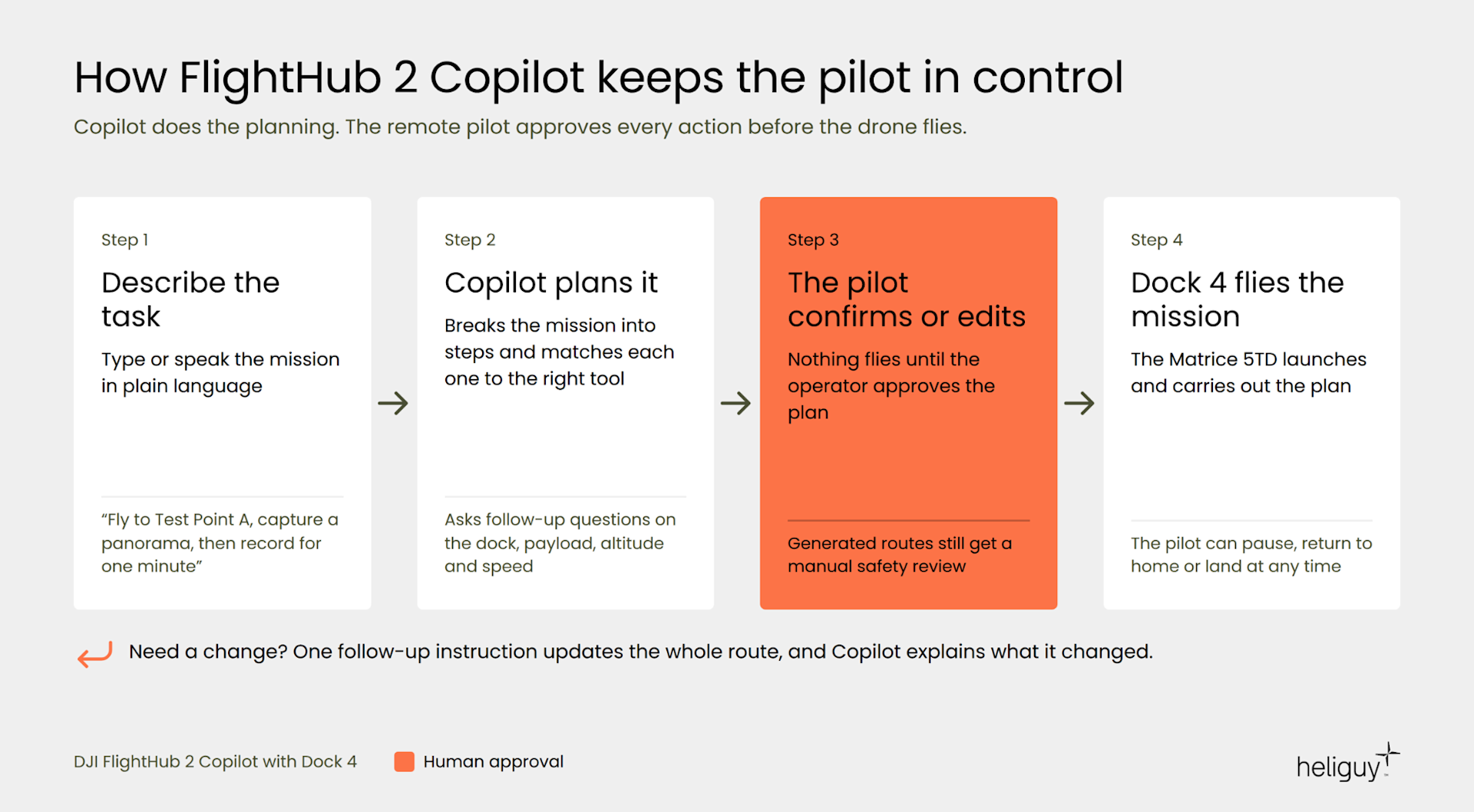

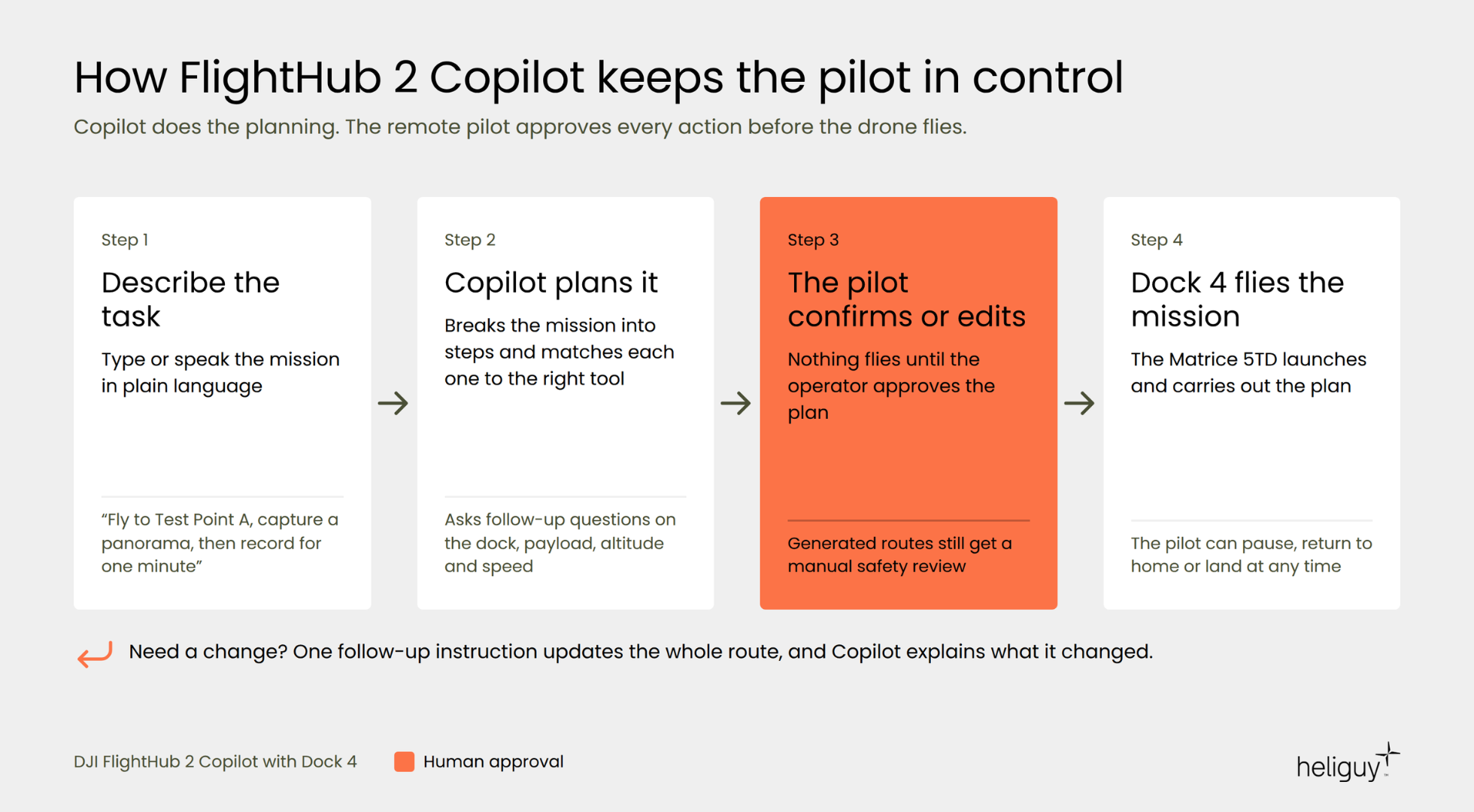

FlightHub 2 Copilot: AI-assisted remote control
DJI FlightHub 2 is the central platform for managing docks, planning missions and reviewing data. Its new FH Copilot tools are designed to make remote operations faster to set up while keeping a human in control.
Conversational Remote Control: Operators describe what they want the drone to do, and Copilot's built-in AI agent turns it into drone instructions. Every AI action needs explicit human confirmation, and operators can pause the process at any time.
Flight Route Planning: Operators can describe an area in words, draw a box on screen or tap to mark it. Copilot works out the area and objects involved and generates suitable waypoint routes.
Workflow and reporting tools: Copilot also supports workflow configuration and report generation, reducing manual setup for repeatable missions.
The human-in-the-loop design is important for BVLOS. Regulators expect a remote pilot to stay responsible for the flight, and Copilot keeps that pilot in control of every action.
DJI states that Copilot data is processed and stored in an AWS Frankfurt cluster, and that user data is not used to train AI models without authorisation.
DJI Enterprise App
The DJI Enterprise App extends dock operations to people away from the control room. Features include live streaming, Dispatch Me, annotations and calendar functionality.
For public safety and security teams, this means ground crews can see live footage and request a deployment from their phone, without needing a FlightHub 2 workstation.
Already on Dock 3?

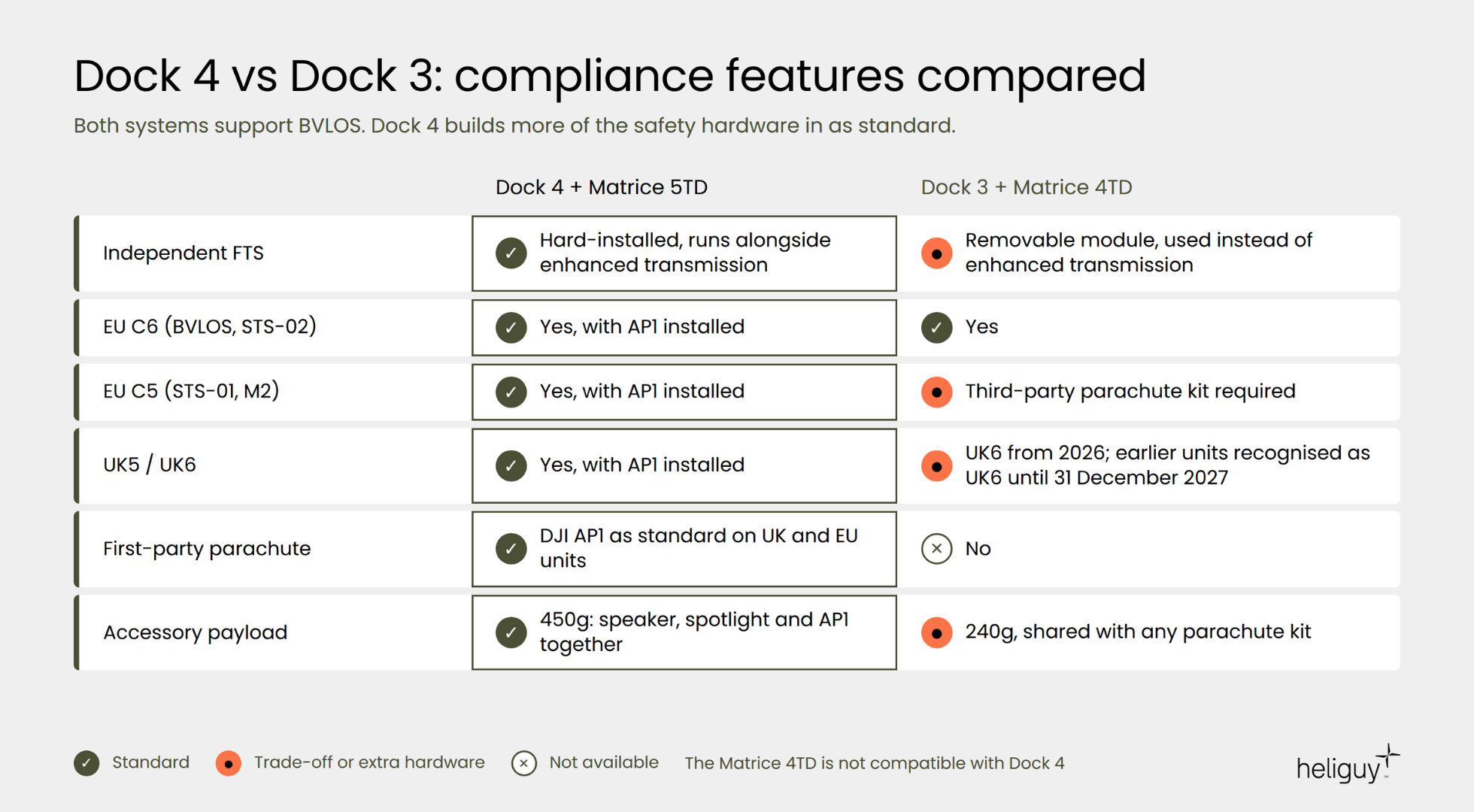

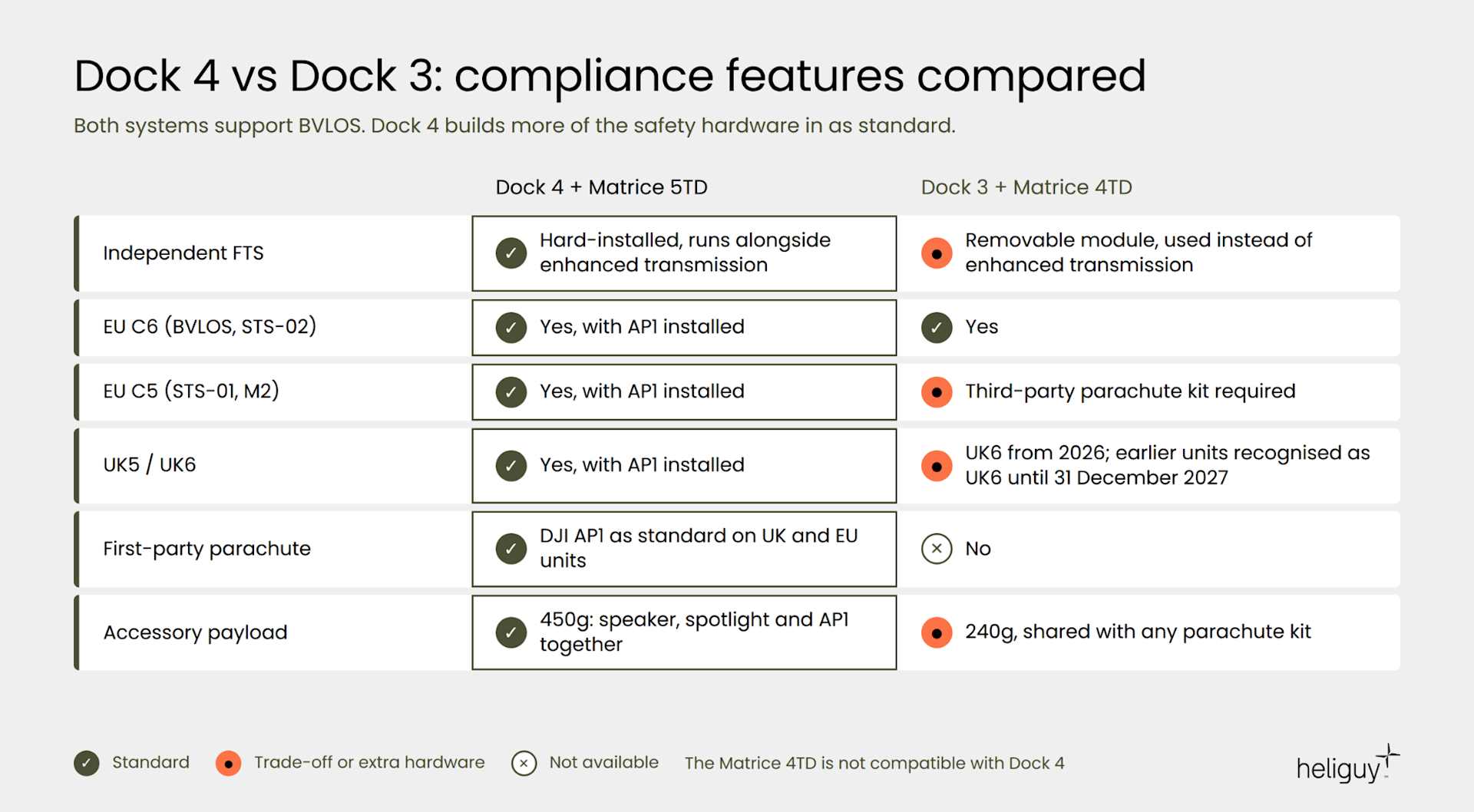

Dock 3 and the Matrice 4TD remain capable BVLOS platforms. The Matrice 4D Series already holds C6 certification with the DJI FTS Module, and DJI has since extended this to standalone flights with the RC Plus 2 Enterprise, on firmware 17.1.5 or later.
The main compliance differences are the FTS design and the parachute. On the Matrice 4TD, the FTS is a dedicated DJI module that runs independently of the flight controller, C2 link and FlightHub 2, with its own 4G link and trigger portal. Because it occupies the same slot as the enhanced transmission dongle, operators have to choose between the FTS and enhanced transmission. Reaching C5 meant fitting a third-party parachute kit.
The Matrice 5TD has the FTS hard-installed, with two SIM slots so the FTS and enhanced transmission run together, and includes DJI's own AP1 as standard on UK and EU units.
This also affects what else the aircraft can carry. On the Matrice 4TD, a third-party parachute kit adds weight and uses up part of the aircraft's 240g accessory allowance, leaving less capacity for accessories such as a speaker or spotlight.
The Matrice 5TD's 450g payload capacity supports the DJI speaker, spotlight and AP1 Parachute, so operators don't have to choose between safety systems and mission accessories.
How heliguy™ supports your BVLOS programme
Class markings and SORA templates give you a strong starting point, but turning them into an approved operation still takes expertise. heliguy™ supports organisations from first enquiry to live remote operations.
UK SORA consultancy: Our in-house regulatory team secured UK SORA SAIL II BVLOS approval for remote DJI Dock 3 operations supporting Network Rail. We can help you build your Dock 4 safety case and application.
Deployment and installation: Site assessment, configuration advice, and installation support from accredited DJI Dock technicians.
Training: Technical and operational training for remote pilots and dock operators.
Ongoing support: Access to our in-house specialists throughout your drone programme.
Planning a Dock 4 deployment? Speak to heliguy™ about your BVLOS approval.
Summary
DJI Dock 4 and the Matrice 5TD bring BVLOS compliance closer to ready-made. The independent FTS and pre-installed AP1 Parachute meet EU C5/C6 and UK5/UK6 requirements without third-party add-ons, backed by documented testing and DJI's SORA compliance package.
Around that safety core, rapid battery swapping, an extreme-weather operating range, layered obstacle sensing, resilient connectivity and FlightHub 2 Copilot support dependable remote operations.
Class markings don’t replace an operational approval. But with Dock 4, operators start their BVLOS application with the aircraft’s containment and ground-risk evidence already certified, documented, and ready to reference.
That shifts the work from proving the aircraft is safe to proving the operation is, and shortens the path from first enquiry to routine remote flights. For organisations ready to take drone-in-a-box beyond visual line of sight, Dock 4 and the Matrice 5TD set a new baseline.
