DJI Matrice 400 Battery Station & TB100 Battery Guide

A comprehensive guide to setting up, charging and managing the DJI Matrice 400 battery station and TB100 batteries.

This guide explains how to use the BS100 Intelligent Battery Station and TB100 Intelligent Flight Battery for the DJI Matrice 400, including charging, management, self-discharge settings and firmware updates.

BS100 Intelligent Battery Station overview

The BS100 battery station includes multiple battery ports:

  • Up to three TB100 Intelligent Flight Batteries

  • Up to two WB37 batteries

It can charge one TB100 battery and one WB37 battery at the same time.

When several batteries are installed, the station charges the battery with the highest power level first.

Charging batteries

Charging TB100 Batteries:

  1. Lift the TB100 battery handle.

  2. Align the connectors with the port.

  3. Insert the battery and press the handle down to secure it.

Charging WB37 Batteries:

Insert the WB37 battery into the corresponding port.

Charging modes

The battery station offers four charging modes:

  • Ready-to-Fly Mode: Charges each battery to 90% and keeps it at 90% for quick deployment.

  • Standard Mode: Charges each battery to 100% in sequence.

  • Silent Mode: Charges at a lower power level with reduced noise.

  • Turbo Mode: Charges at a higher power level, producing more noise.

The station also includes a USB-C port for charging the remote controller.

Monitoring battery status in DJI Pilot 2

  1. Open DJI Pilot 2

  2. Connect the remote controller to the battery station via the USB-C port.

  3. Power on the battery station.

  4. Go to Health Management System > Battery Station Mgmt.

Here you can view:

  • Battery station status

  • Battery levels

  • Remaining charging time

  • Temperature, voltage and cycle count for each TB100 battery

  • Storage time at high voltage

Self-discharge settings

  1. Tap Self-Discharge Settings.

  2. View the current self-discharge timer for all batteries.

  3. Drag the bar to set the desired number of days.

  4. Tap Confirm Change.

  5. The updated self-discharge days will appear on the interface.

Exporting battery logs

  1. Tap Log Export.

  2. Select the log you want to upload.

  3. Upload the log and share the generated QR code with DJI Support for analysis.

  4. You can also save logs locally: Go to Health Management System > Manage Logs > Local Logs to view stored data.

Firmware updates

  1. Go to Battery Station Mgmt.

  2. Tap Firmware Update.

  3. Tap Update All to update all TB100 batteries installed in the station.

Battery self-heating

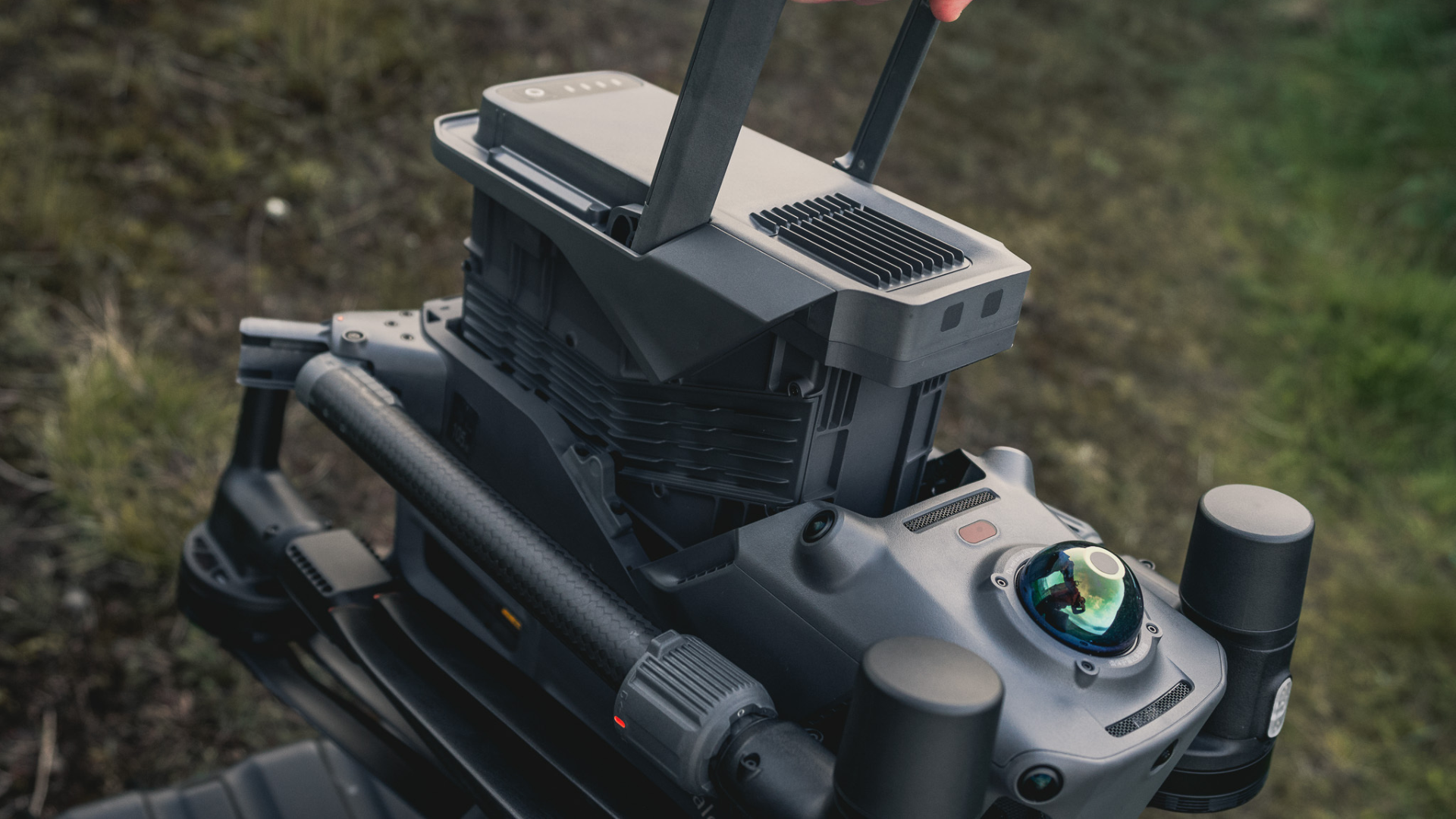

When anstalled on the Aircraft:

If a battery’s temperature is below 20°C, it will automatically begin heating until it reaches 20°C.

It then enters insulation mode, lasting 30 minutes.

When not installed:

  1. Press and hold the battery button for 5 seconds to manually start self-heating.

  2. The battery indicator will flash.

  3. After heating, it enters insulation mode.

  4. Press and hold the button for 5 seconds again to exit self-heating.

  5. In cold environments, always allow the battery to finish heating before flight.

  6. Charge and discharge the battery every three months to maintain performance
