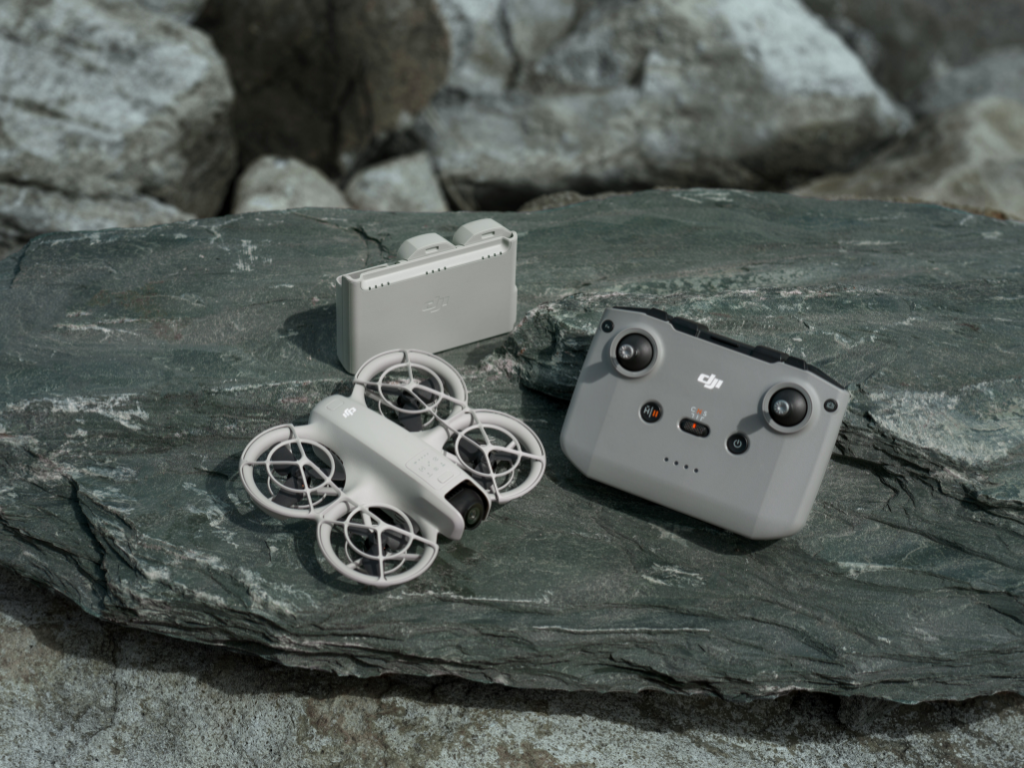

DJI Neo First Use with Remote Control Guide

• This guide provides the key steps to prepare the DJI Neo for flight with the remote controller;

• Walks you through the process for auto and manual takeoffs;

• Explains how to control DJI Neo's movement, altitude, and orientation during flight;

• Shares instructions for capturing high-quality photos and videos using the remote and app;

• Introduces QuickShots and FocusTrack features to create dynamic and engaging footage;

• Details the procedures for safely returning and landing the drone;

• Offers guidance on storing DJI Neo correctly to keep it in top condition.

From preparing for flight to controlling the drone and capturing impressive photos and videos, this tutorial provides all the information you need for a successful experience.

Discover how to utilise QuickShots and FocusTrack for creative footage, execute safe takeoffs and landings, and store your DJI Neo correctly after use.

These clear instructions will help you operate your DJI Neo with confidence and take full advantage of its features.

Pre-flight preparations

1. Check the flight environment: Ensure the area is open, unobstructed, and well-lit.

2. Verify components: Confirm the Intelligent Flight Battery, propellers, and propeller guards are securely mounted.

3. Remove the gimbal protector: Carefully detach the gimbal protector before powering on.

4. Check the battery level: Press the power button on the tail of DJI Neo to verify sufficient battery power.

5. Power on the drone: Press and hold the power button for two seconds to turn on DJI Neo.

6. Position the aircraft: Place DJI Neo on flat ground with the rear facing you.

Setting up the Remote Controller

1. Set the flight mode: Toggle the Flight Mode Switch on the remote controller to N-mode.

2. Prepare the control sticks: Remove the sticks from their storage slots and attach them to the remote controller.

3. Secure your smartphone: Clamp your smartphone securely to the remote controller and ensure it is properly connected.

4. Power on the remote controller: Press and hold the power button for two seconds to activate it.

Configuring the flight settings

1. Access settings: Go to camera view in the app, open "System Settings", and tap "Safety".

2. Set the RTH height: Adjust the RTH height to be higher than the tallest nearby building or object.

3. Verify GNSS status: Ensure the GNSS status icon is white to confirm a stable signal.

Take Off and landing

1. Perform Auto Takeoff:

   1. Tap the "Take Off" icon in the app.

   2. Press and hold the prompt icon to enable Auto Takeoff.

2. Land automatically:

   1. Tap the "RTH" icon in the app.

   2. Press and hold the prompt in the pop-up window to land DJI Neo automatically.

3. Perform Manual Takeoff (Mode 2 example):

   1. Pull both sticks to the bottom of the remote controller and push them inwards or outwards to start the motors.

   2. Release the sticks and gently push the left stick up to take off manually.

Basic flight controls

1. Control altitude and orientation: Use the left stick to adjust the drone's altitude and orientation.

2. Manage movement: Use the right stick to fly forward, backward, left, or right.

3. Hover in place: Press the Flight Pause button on the remote controller to make DJI Neo hover.

4. Monitor telemetry: Check flight data such as distance and speed in the app.

5. Optimise transmission: Keep the remote controller antenna facing DJI Neo.

Using camera features

1. Switch modes: Press the Photo/Video button once to toggle between photo and video modes.

2. Capture footage: Press the Shutter/Record button on the top right of the remote controller to take photos or start/stop video recording.

3. Adjust gimbal tilt: Use the Gimbal Dial on the top left of the remote controller to control the gimbal tilt.

4. Modify camera settings: Tap "Camera Parameter Settings" in the app to make adjustments.

5. View footage: Tap the Playback icon in the app to review and download captured media.

QuickShots

1. Enable QuickShots mode:

   1. Select "QuickShots" in the camera view.

   2. Choose a subject and tap "Start" to begin recording pre-set shots.

2. Exit QuickShots: Tap the red icon or press the Flight Pause button to stop the recording and hover.

3. Prevent interruptions: Avoid accidental stick movements that may stop the recording.

FocusTrack

1. Activate FocusTrack:

   1. Enable Subject Scanning or manually select a subject in the app.

   2. Choose from "Spotlight", "POI", or "ActiveTrack" modes to track or follow a subject.

2. Control recording: Start or stop recording using the Shutter/Record button or app controls.

3. Exit FocusTrack: Press the Flight Pause button to exit the mode.

Return and landing

1. Initiate RTH: Tap the "RTH" icon in the app or press the RTH button on the remote controller.

2. Cancel RTH: Stop RTH by tapping the "Cancel" icon or pressing the Flight Pause button if needed.

3. Regain control: After cancelling RTH, manually resume control of DJI Neo.

4. Land automatically: Tap the "RTH" icon and press and hold the prompt in the pop-up window to land DJI Neo.

Post-Flight maintenance and storage

1. Clean the aircraft: Clear air intakes on both sides of DJI Neo to prevent blockage.

2. Attach the gimbal protector: Reattach the gimbal protector for safe storage.

3. Store accessories: Remove and store the smartphone, cables, and control sticks properly.

Additional Control Options

1. Explore other modes: Palm Control and Mobile App Control are also available for DJI Neo.

2. Learn more: Watch additional videos for further guidance.

Summary

From pre-flight preparations to mastering takeoff, operating the drone, capturing stunning footage, and performing safe landings, you’re now ready for a smooth and enjoyable flying experience.

By following these steps, you can make the most of advanced features like QuickShots and FocusTrack while ensuring proper post-flight storage and maintenance.

For additional support or questions, don’t hesitate to contact heliguy™.
