Drone-in-a-box for the oil & gas industry

As oil and gas operations demand greater efficiency and safety, drone-in-a-box systems are emerging as a critical solution—delivering autonomous inspections, real-time intelligence, and scalable monitoring across complex industrial sites.

Key takeaways

• A drone-in-a-box transforms oil and gas inspection operations by improving inspection coverage, consistency and timeliness.

• Intelligent detection and real-time data sharing improve situational awareness, enabling faster identification of anomalies.

• DJI Dock 3 provides advanced features such as FlightHub 2 , Matrice 4D, and Matrice 4TD, supporting automated missions and efficient inspection workflows.

• Shell Pernis benefits from 1,000+ remote drone-in-a-box flights a month.

• heliguy™ Dock team provides end-to-end drone-in-a-box support such as BVLOS trainings.

Drones are increasingly used across the oil and gas industry to support infrastructure inspection, asset monitoring, and security operations. Drone-in-a-box systems take this capability further through autonomous, continuous monitoring.

A drone-in-a-box system can support oil and gas operations by:

• Automating routine inspections, reducing reliance on labour-intensive ground patrols.

• Improving monitoring coverage across large areas and remote infrastructure.

• Enhancing safety by limiting personnel exposure to hazardous environments.

• Enabling frequent and consistent inspections through scheduled autonomous missions.

• Providing real-time data and intelligent alerts to support faster decision-making.

In this blog, we will explore how drone-in-a-box technology works, how it addresses traditional inspection challenges, and how DJI Dock enables modern, autonomous workflows.

We will also examine a real-world deployment from Shell, illustrating how a drone-in-a-box can transform large-scale infrastructure inspections in the oil and gas industry.

Expert insight

"The deployment of autonomous drones and robotic systems across oil and gas is no longer a future ambition — it is happening now, and the trajectory is exponential. As regulation evolves and autonomy becomes core infrastructure rather than emerging technology, the organisations deploying at scale today are building the operational backbone of industrial inspection for the next decade and beyond."

- Ruairi Hardman, Business Development Manager at heliguy™

What is drone-in-a-box?

A drone-in-a-box is a fully automated drone that is housed in a protective box when not in use.

The box is designed to provide shelter for the drone when it is not operational and can also serve as a launching/landing pad and a charging hub.

The drone-in-a-box is programmed to take off, fly a predetermined route, and return to its box autonomously, without the need for a pilot.

The DJI Dock ecosystem is engineered to operate 24/7. The drone lands, recharges, takes off, and executes missions programmed remotely in DJI FlightHub 2.

Challenges in traditional oil and gas inspections

Oil and gas infrastructure is often spread across vast, remote, and complex environments, making routine inspection and monitoring difficult. Traditional inspection methods, such as manual patrols and conventional drone operations, can struggle to deliver consistent, timely, and comprehensive oversight. Key challenges include:

High time and labour costs

Manual inspections have a long time cycle which increases man hours and costs. The timeliness of feedback and response on frontline issues is relatively low.

Difficult and hazardous working environments

Treacherous and challenging terrain often in remote areas. Hazardous and combustible environments greatly increase safety risks to personnel.

Inefficient data management and reporting

Low degree of digitization across sites. Data is scattered and not centrally managed or easily shared, creating bottlenecks and delaying addressing concerns.

Security gaps and limited monitoring coverage

Theft is one of the major problems faced by oil fields, often at night. Facilities are complex. CCTV cameras have blind spots and cannot provide full coverage.

How a drone-in-a-box benefits the oil and gas industry

Drones are widely used across the oil and gas industry, supporting operations across its lifecycle, from oil and gas exploration and production, to transport and storage, and finally product processing and usage. Many of these applications can be further enhanced through a drone-in-a-box such as DJI Dock, enabling automated and repeatable inspections.

Upstream (oil and gas exploration and production)

• Seismic Surveys

• Site Surveys and Mapping

• Wellhead and Rig Inspections

• Environmental Monitoring

• Emergency Response

Midstream (transport and storage)

• Pipeline Inspections

• Right-of-Way Monitoring

• Storage Tank Inspections

• LNG Terminal Monitoring

• Security and Surveillance

Downstream (product processing and usage)

• Refinery Inspections

• Flare Stack Inspections

• Environmental Compliance

• Emergency Response

• Security and Surveillance

Operational upgrade

Drone-in-a-box systems introduce a fundamental shift in how oil and gas inspections are operated. By automating deployment, flight, and data collection, they reduce reliance on manual patrols and enable more consistent, scalable monitoring.

The table below outlines the key operational differences between traditional inspection methods and drone-in-a-box solutions.

By replacing manual patrols and fragmented inspection methods, a drone-in-a-box helps operators improve coverage, safety, and operational efficiency. Key benefits include:

Flexibility and scalability

A drone-in-a-box can perform scheduled missions more frequently and cover large areas quickly, especially with the “dock hopping” capabilities. AI recognition technology can also help quickly identify and analyse potential issues.

Improved ROI and enhanced safety

A drone-in-a-box can reduce travel and labour costs for workers to be physically present while improving situational awareness across sites during security patrols, even at night.

Greater efficiency and inspection accuracy

A drone-in-a-box enables consistent and precise data capture. A single drone can fly multiple times per day, identifying potential faults and leaks. Collected data can be shared in real time or from digital twin to support faster decision-making and collaboration.

How the DJI Dock drone-in-a-box offers modern, autonomous industry solutions

DJI Dock enables organisations to automate drone operations, from planning to mapping, from execution to analysis, supporting reliable, scalable infrastructure monitoring. The key scene workflow includes:

Pre-flight preparation

• Obtain BVLOS waiver, process can take 3 months or longer

• Establish SOPs for Dock missions and sync with all personnel on site

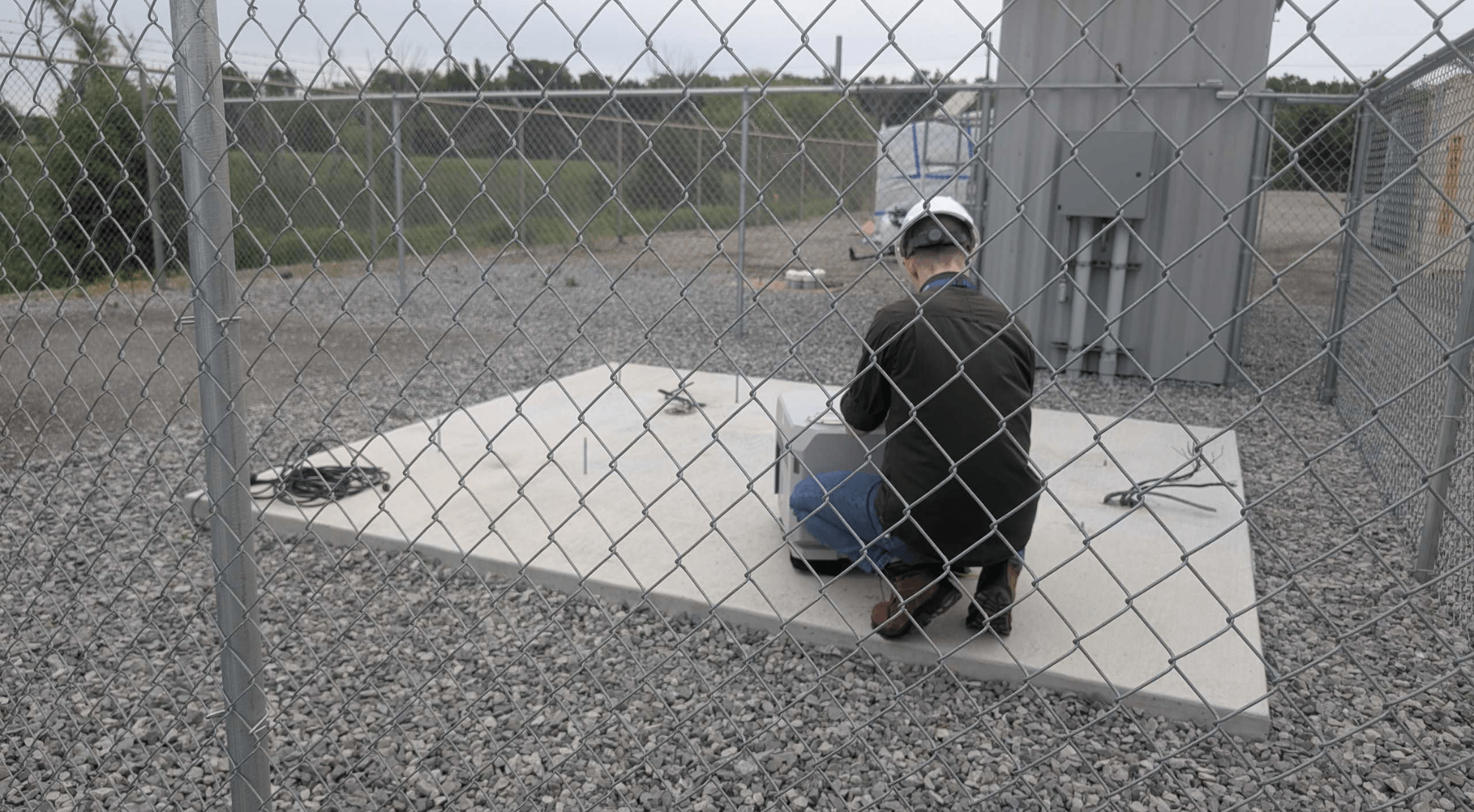

• Conduct site survey for Dock’s location for potential obstacles in surrounding

• Set up the Dock in fixed location or quickly calibrate location with mobile deployment

• Ensure weather conditions are safe to fly.

Model capture

• Use Matrice 4D/Matrice 4TD to create a mapping mission.

• Use Real-Time Terrain Follow, Smart 3D Capture, 3-Direction Ortho, 5 Direction Oblique to easily and quickly capture site data

• Use cloud mapping on FlightHub 2 to process and create digital twin of assets

• Create a custom flight area around your site

Mission plan on FlightHub 2

• From the digital twin created on FlightHub 2, set waypoints and plan your mission

• Plan and schedule inspection mission or security patrol missions around site

• Plan missions with “dock hopping” feature to further extend service area and coverage efficiency

Flight execution

• Upload the mission plan from Dock to drone and execute mission.

• Stay focused on drone’s live stream view to ensure operational safety.

• Manually fly to capture more detailed photos on blind spots or points of interest

• The drone flies at a consistent speed and captures photos at designated waypoints.

• Thermal and visual data are collected at the same time.

• Drone’s intelligent features help alert and monitor in real time.

Data analysis and share

• Export data into DJI Terra or offload data directly from the Dock to an AWS bucket by 3rd party software.

• Real-time data transmission and rapid modeling can be achieved during flight.

• Share QR code of drone’s video live stream with team members as well as project details and update

• Use FlightHub 2’s smart change detection feature to identify people, vehicles, and model comparisons. Easily generate a report for the team to review.

The end-to-end workflow is further strengthened by a range of advanced capabilities built into DJI Dock 3, enabling reliable inspections across complex environments. Key functions include:

• Fully automated operations

• Intelligent recognition and monitoring in real time

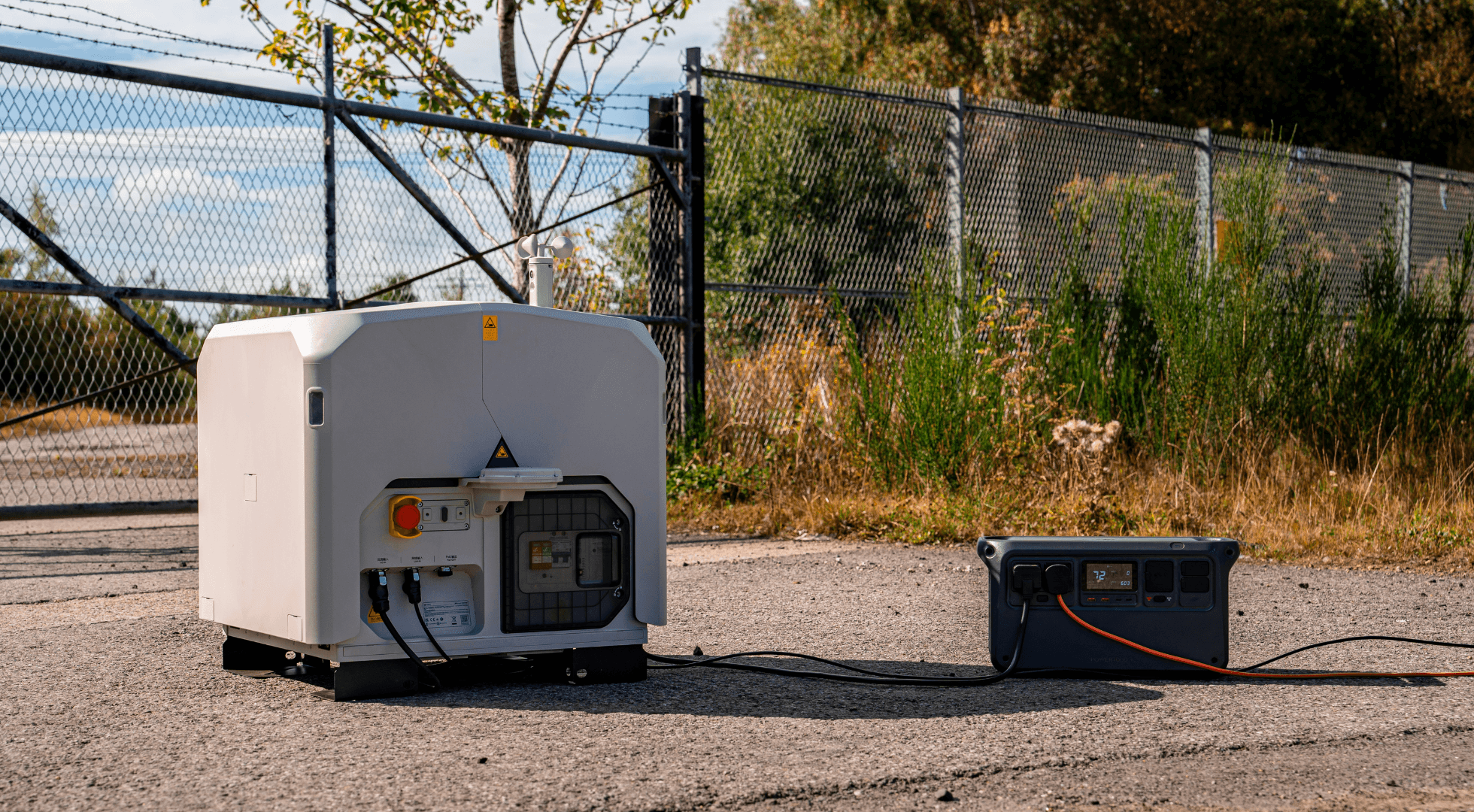

• Deploy anywhere with mobile deployment

• 10 seconds to take-off

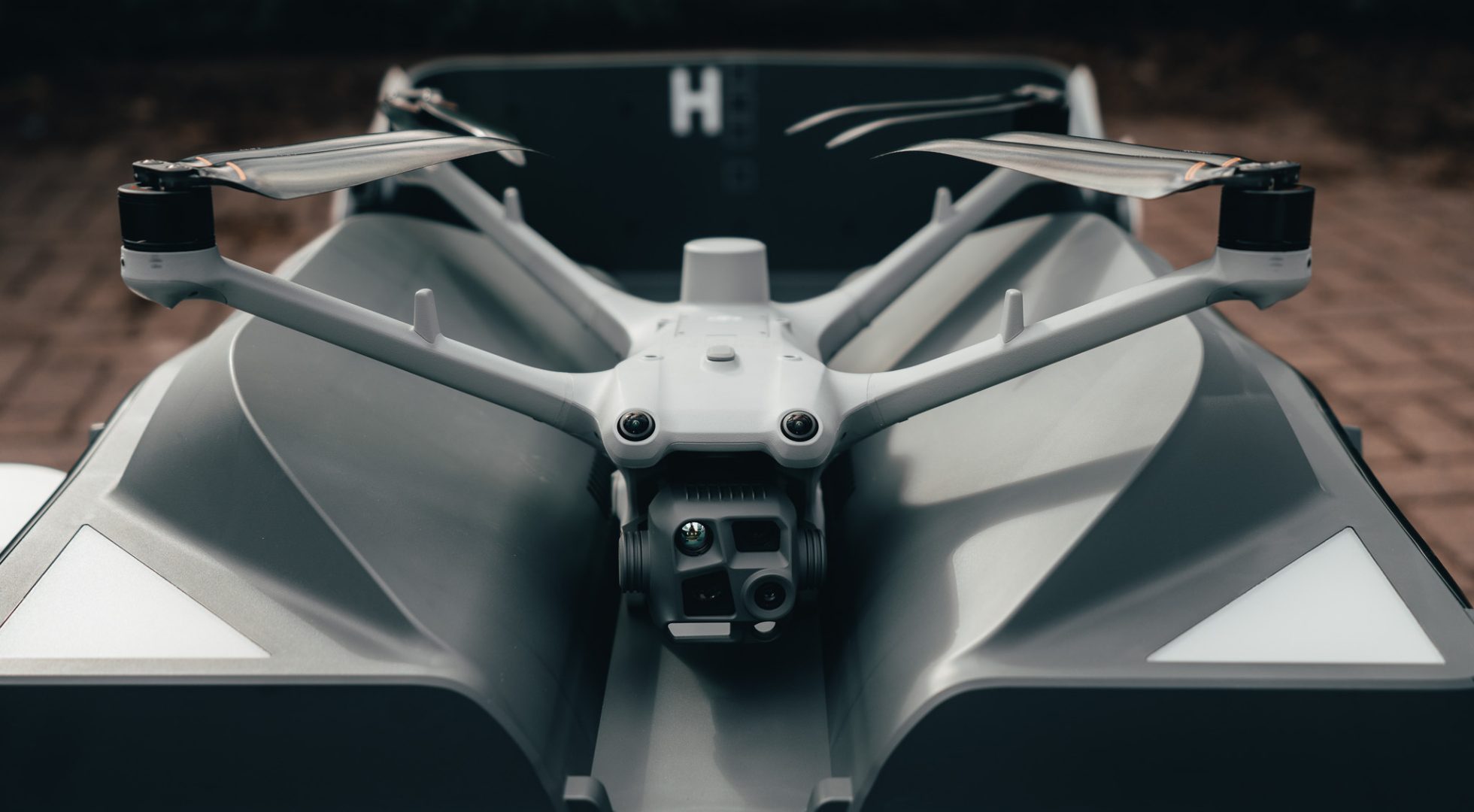

• Infrared or photogrammetry drone options, both with 112x zoom and 48 MP effective pixels

• Dock hopping and relay station for extended range

• 54 min flight time; 27 min charge time

• 12 m/s wind resistance during take-off / land

• IP56 (Dock) + IP55 (Drone) ratings

• -30 ℃to 50 ℃ operating range in extreme environments

• DJI OcuSync 4: 25 km max transmission distance

• Intelligent AI real-time detection analysis and alert

Read more about the key features, upgrades, and uses of DJI Dock 3.

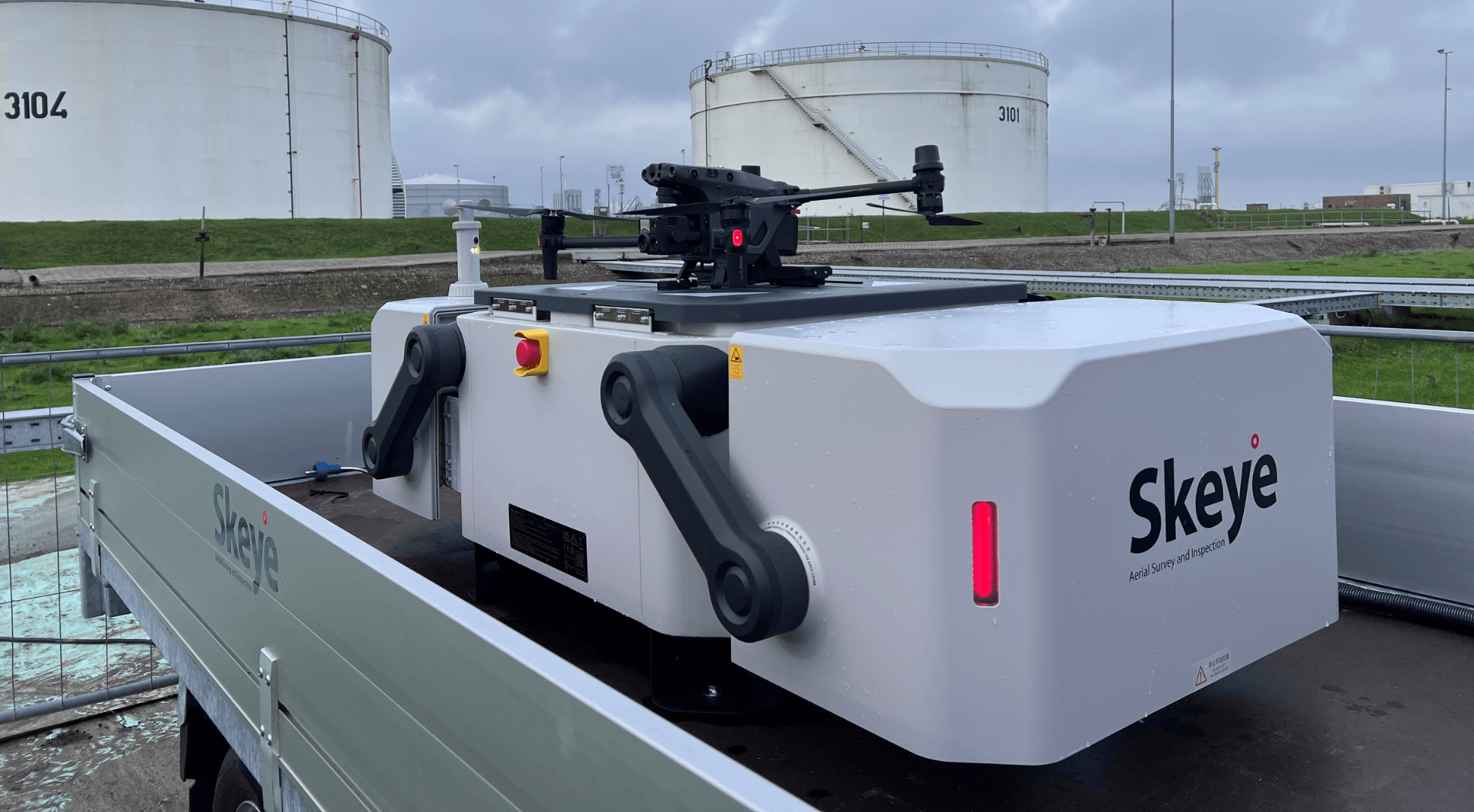

DJI Dock enables scalable, automated refinery inspections at Shell Pernis

Oil and Gas giant Shell Pernis has transformed its critical refinery inspection at Rotterdam Harbour through the deployment of drone-in-a-box technologies. Using permanently installed DJI Dock systems, Shell now conducts large-scale autonomous inspections across its refinery assets through remote BVLOS (Beyond Visual Line of Sight) operations.

Key aspects of the deployment include:

• High-volume inspection capability: The deployment supports more than 1,000 drone flights per month, covering approximately 30 kilometres of refinery infrastructure, including storage tanks, pipe racks, processing units, and jetties.

• 24/7 automated operations: DJI Dock systems remain permanently installed on site, allowing drones to automatically launch, complete scheduled inspection routes, and return to the dock for charging and data transfer.

• Consistent multi-sensor data capture: Each mission collects RGB imagery, thermal data, video, and emissions information, creating a continuous stream of inspection data for operational monitoring.

Before implementing drone-in-a-box systems, refinery inspections relied heavily on manual processes:

• Personnel often had to enter hazardous industrial areas around tanks and processing infrastructure.

• Inspections were time-consuming and resource-intensive, limiting how frequently assets could be checked.

• Maintaining consistent monitoring across such a large facility was challenging.

The introduction of DJI Dock changed this operational model by enabling more automated, repeatable inspections:

• Scheduled autonomous missions ensure infrastructure can be monitored more frequently and consistently.

• Reduced need for personnel in hazardous zones, improving safety.

• “Rounds by exception” workflows, where automated data highlights anomalies that require human attention.

• Machine-vision analysis helps detect irregularities in inspection data, supporting more proactive asset management.

"Shell’s BVLOS drone-in-a-box programme at Rotterdam Harbour is a blueprint for where the sector is heading. Continuous, machine-driven monitoring removes personnel from hazardous environments and shifts maintenance from reactive to proactive, evidence-based decision making. The economics are compelling, the safety case is clear, and the scalability has already been proven in one of Europe’s most complex industrial environments. "

- Ruairi Hardman

The deployment operates within a broader ecosystem of partners:

• Drone expert heliguy™'s accredited team provides DJI Dock supply, technical services, and training to Vortex.

• Robotics specialist Vortex leverages heliguy™’s support to offer rapid localised supply, assistance, and maintenance.

• Drone operator Skeye utilises its expertise to deliver remote and automated operations for Shell.

Together, these organisations powered a major industrial operator to modernise its workflows through drone automation.

Read more on how shell transformed refinery inspections.

How heliguy™ supports drone-in-a-box deployment

Deploying drone-in-a-box systems such as DJI Dock involves more than acquiring hardware. Organisations must:

• Comply with UK regulatory requirements for drone-in-a-box operations. Organisations who do not yet have BVLOS (Beyond Visual Line of Sight) permissions will first need to operate VLOS (Visual Line of Sight).

• Integrate the technology into existing workflows

• Build the internal capability to manage operations

• Ensure long-term operational reliability

As an experienced DJI Dock partner, heliguy™ supports the deployment process by providing:

• Compliance training (such as UK SORA consultancy and EVLOS/BVLOS training)

• Conducting BVLOS Dock operations on organisations’ behalf

• Maintenance training by DJI accreted Dock technicians

• Installation

• Site planning

Contact us to learn more about how heliguy™ can support you.

Summary

A drone-in-a-box such as DJI Dock enables autonomous drone operations, helping oil and gas operators monitor large and complex infrastructure more efficiently. Through automated missions, aerial coverage, and intelligent detection, organisations can improve inspection consistency and situational awareness while reducing reliance on manual patrols.

DJI Dock supports a structured operational workflow and advanced functions that enables reliable planning, flight execution, and data analysis. Shell’s adoption of an advanced automated drone inspection network provides a proven example of how drone-in-a-box technology can modernise refinery inspections, enabling safer, more frequent, and data-driven infrastructure monitoring at scale.
