How to Install DJI Air 3S Propeller Guards

• This guide provides step-by-step instructions for installing propeller guards on the DJI Air 3S;

• Explains how to properly prepare the aircraft before attaching the propeller guards;

• Details the correct alignment of left and right propeller guards for secure installation;

• Covers how to attach and lock the guards onto the frame arms of the aircraft;

• Includes instructions for verifying propeller guard detection in the DJI Fly app;

• Ensures your DJI Air 3S is ready for safe and stable flights with the propeller guards installed.

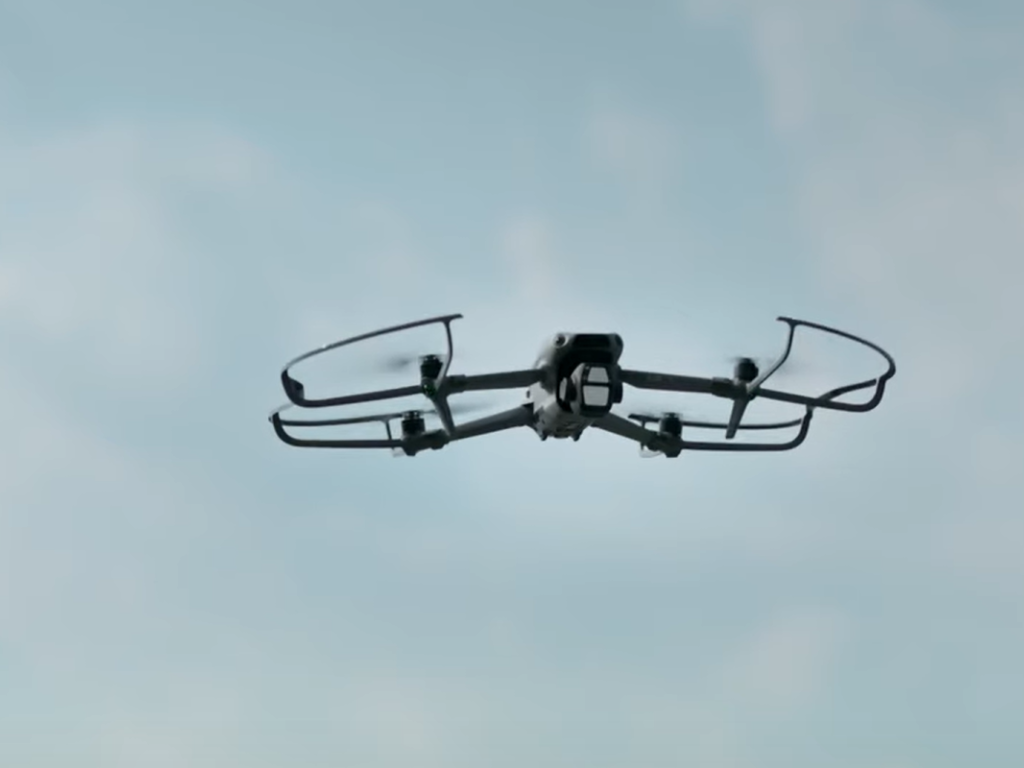

Propeller guards are essential for enhancing safety during your DJI Air 3S flights, especially in indoor or obstacle-rich environments.

These step-by-step instructions guide you through installing the propeller guards to ensure a secure fit and optimal performance.

Learn how to attach, lock, and confirm the guards so your aircraft is prepared for a safe and stable flight.

1. Prepare the aircraft:

   1. Unfold all the frame arms of the aircraft completely before attaching the propeller guards.

   2. Do not fold the frame arms with the propeller guards attached, as this may cause damage.

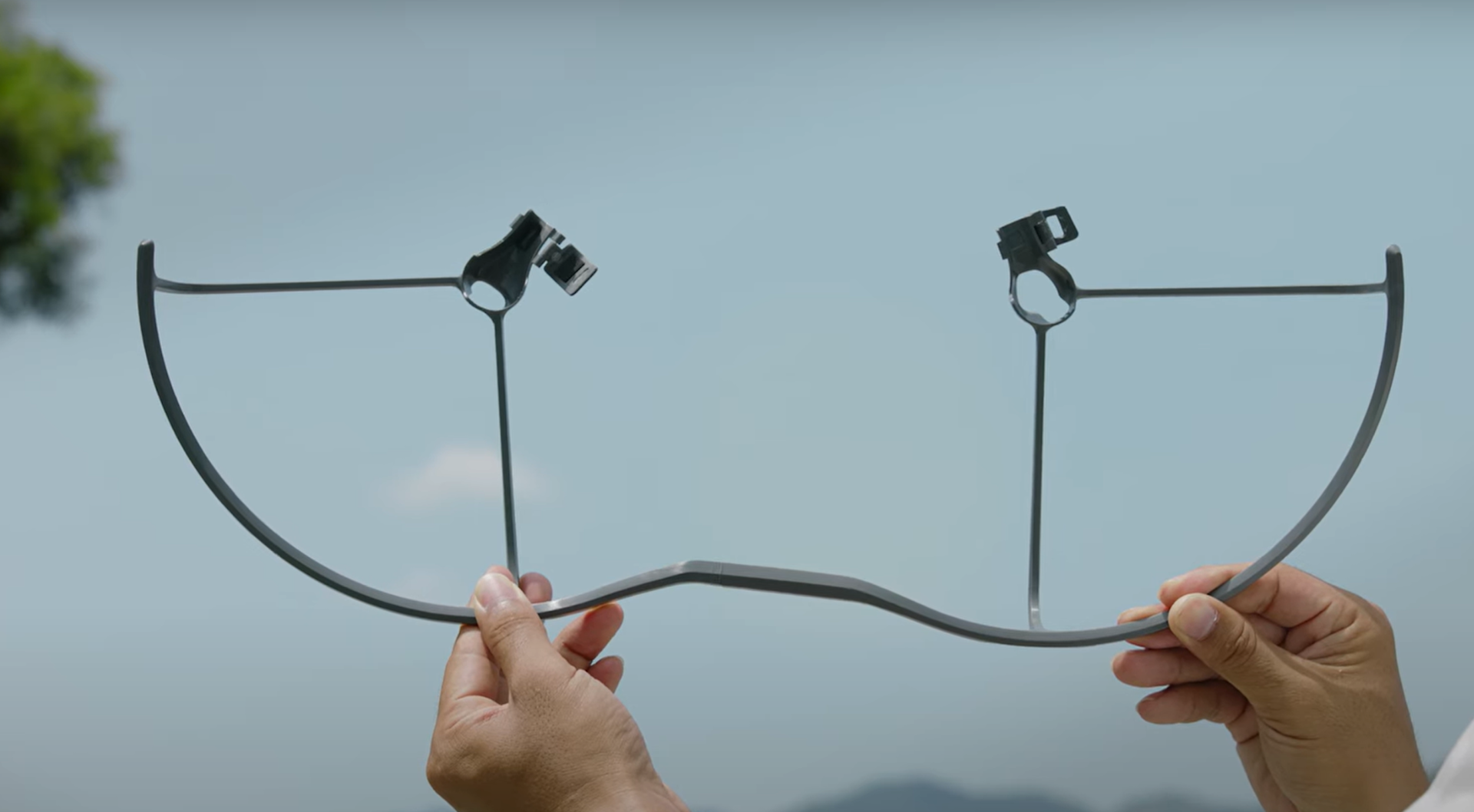

2. Identify the propeller guards: Check for left and right markings on the propeller guards to ensure proper installation.

3. Release the locks: Open the locks on each propeller guard before attaching them.

4. Connect the propeller guards: Locate the marks on the locks and connect the two guards marked RF (Right Front) and RB (Right Back).

5. Attach the propeller guards: With the rear of the aircraft facing you, attach the propeller guards from underneath the extended frame arms on the corresponding side.

6. Secure the locks: Close the locks on the propeller guards to ensure they are firmly attached.

7. Confirm detection:

   1. Hover the aircraft briefly until a prompt appears in the DJI Fly app indicating that the propeller guards have been detected.

   2. Once detected, the aircraft is ready to fly.

Summary

By following these step-by-step instructions, you can securely attach, lock, and verify the guards, making your aircraft ready for smooth and safe operation.
