Follow Me, Point of Interest and Waypoints

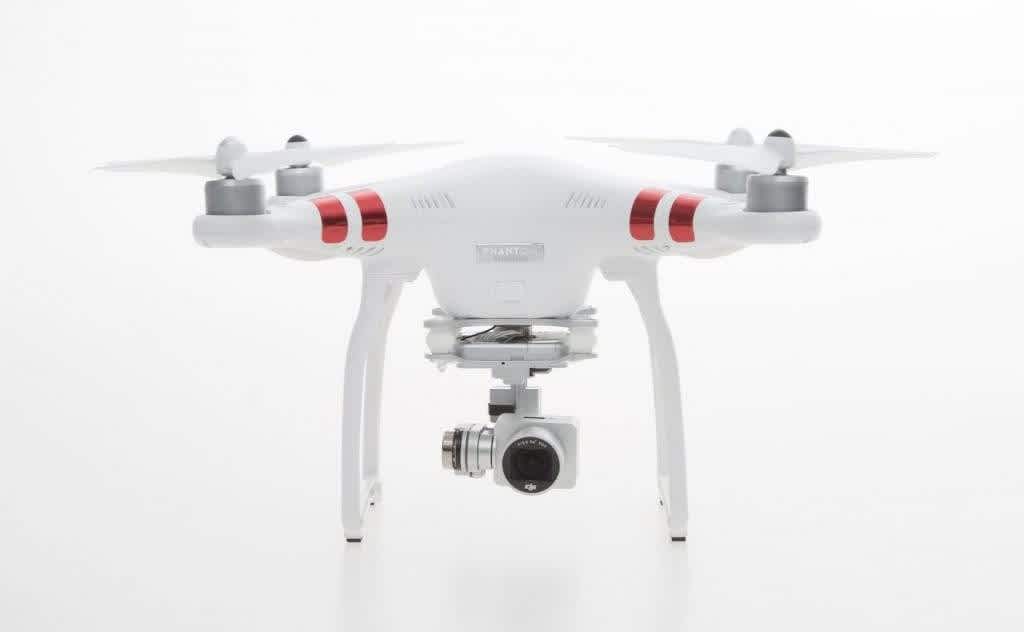

But the interesting news for the entire range of Phantom 3's is that all of them will now have long awaited Follow Me, Point of Interest and Way-point features. The Standard will get that out of the box but firmware upgrades announced today also mean that the Advanced and the Professional will get the features pilots have been waiting a long time for. The Inspire 1 and Matrice 100 won't be far behind with their upgrades. The DJI Phantom 3 Standard camera These options also feature in the upgrade of the DJI Pilot app to the DJI GO app which was also announced today. GO is effectively V2.0 of Pilot. There'll be a separate blog soon on the DJI GO app.Weight Loss Programme
DJI have managed to save weight - it's 1216 grams as opposed to 1280 grams for the Advanced and the Professional. The Visual Positioning system has been sacrificed as part of the weight reduction plan so that means the Phantom 3 Standard won't get a visual lock on the floor when flying indoors or in poor GPS signal areas. The satellite system has also been pared down to make it lighter. There is a GPS system on board but the GLONASS receiver, which pulls in the Russian constellation of satellites, has been left out. DJI Lightbridge has also been dropped from the Standard and the radio frequencies are different. The controller frequency is 5.8 GHz while the video transmission is over the 2.4 GHz band. The Advanced and Professional, which both have DJI Lightbridge, share control and video over the same 2.4 GHz range. The 5.8 GHz band means that the theoretical maximum control range of the Standard is much less than the other two but in the UK it is enough to keep you flying up to 500 metres away, which is the CAA limit. The controller of the DJI Phantom 3 Standard In fact the Standard's controller is an updated version of DJI’s previous Phantom 2 Vision+ controller, with an integrated WiFi range extender and wheel to angle the camera. There is an upside to all this weight loss - the DJI Phantom 3 Standard has a claimed maximum flight time of 25 minutes. That's a whole 2 minutes more than the Advanced and Professional.DJI Phantom 3 Standard Specs
Aircraft |
Weight (Including Battery)1216 g
Max Ascent Speed5 m/s
Max Descent Speed3 m/s
Max Speed16 m/s (ATTI mode, no wind)
Max Altitude Above Sea Level6000 m
Max Flight TimeApproximately 25 minutes
Operating Temperature0°C to 40°C
Navigation SystemBuilt-in GPS
|
---|---|
Gimbal |
Controllable RangePitch -90° to +30°
Angular Vibration Range±0.02°
|
Camera |
Sensor1/2.3” Effective pixels:12 M
LensFOV (Field Of View) 94° 20 mm (35 mm format equivalent) f/2.8
ISO Range100-3200 (video) 100-1600 (photo)
Electronic Shutter Speed8s -1/8000s
Image Max Size4000 x 3000
Still Photography Modes
Video Recording Modes
Max.Video Bitrate40 Mbps
Supported File Formats
Supported SD Card TypesMicro SD Card 8 GB included
Operating Temperature0°C to 40°C
|
Wi-Fi Video Link |
Operating Frequency2.400 GHz – 2.483 GHz
Max Transmission DistanceFCC: 1000 m; CE: 500 m (outdoors and unobstructed, aircraft's altitude at 400 feet (120 m))
Transmitter Power (EIRP)FCC: 27 dBm; CE: 20 dBm
|
Remote Controller |
Operating Frequency5.725 GHz – 5.825 GHz, 922.7 MHz – 927.7 MHz (Japan)
Max Transmission DistanceFCC: 1000 m; CE: 500 m (outdoors and unobstructed, aircraft's altitude at 400 feet (120 m))
Operating Temperature0°C to 40°C
Battery2600 mAh LiPo 18650
Transmitter Power (EIRP)
Working Voltage600 mA @ 3.7V
Charging PortMicro USB
|
Charger |
Voltage17.4 V
Rated Power57 W
|
Intelligent Flight Battery ( PH3-4480 mAh-15.2 V ) |
Capacity4480 mAh
Voltage15.2 V
Battery TypeLiPo 4S
Energy68 Wh
Net Weight365 g
Max Flight TimeApproximately 25 minutes
Operating Temperature-10°C to 40°C
Max Charging Power100 W
|
App / Live View |
Mobile AppDJI GO
EIRP100mW
Live View Working Frequency2.4GHz ISM
Live View Quality720P @ 30fps (depending on conditions and mobile device)
LatencyLow Latency Video (depending on conditions and mobile device)
Required Operating Systems
Recommended Devices
|
