Question 1

What are the differences between the DJI AL2D Spotlight and the DJI AL1 Spotlight?

Accepted Answer

The core differences between the DJI AL2D Spotlight and the DJI AL1 Spotlight are: The brightness has been significantly increased to 2.6 times that of the previous generation. A new dual-lens high-brightness spotlight has been added, supporting both spotlight and floodlight modes. Upward illumination is supported at angles up to +90°.

Question 2

Which aircraft are compatible with the DJI AL2D Spotlight?

Accepted Answer

The DJI AL2D Spotlight is compatible only with the DJI Matrice 5TD aircraft.

Question 3

What functions does the DJI AL2D Spotlight support?

Accepted Answer

The DJI AL2D Spotlight supports four lighting modes: Floodlight, Spotlight, Both On, and Auto. It also supports two alert modes: Fast Strobe and Slow Strobe, and allows gimbal follow to be enabled or disabled.

Question 4

What is the IP rating of the DJI AL2D Spotlight?

Accepted Answer

The DJI AL2D Spotlight has an IP55 rating.

Question 5

Does the DJI AL2D Spotlight support disabling gimbal follow function?

Accepted Answer

Yes, in the spotlight settings, you can choose to disable the gimbal follow function on the DJI AL2D Spotlight. Please note that once disabled, the spotlight will maintain its current angle; when re-enabled, the spotlight will automatically adjust to align with the gimbal's orientation. The gimbal follow function will remain enabled by default after the aircraft restarts.

Question 6

What are the tips for using the DJI AL2D Spotlight?

Accepted Answer

When using the DJI AL2D Spotlight during high-altitude flights, water vapour and suspended particles in the atmosphere may make the image appear washed out. It is recommended to enable the electronic defogging function for better image quality. To minimise the impact on the aircraft's flight endurance, reduce the spotlight brightness as appropriate and turn it on only when needed.

Question 7

What precautions should be taken when installing the DJI AL2D Spotlight?

Accepted Answer

The following precautions should be taken when installing the DJI AL2D Spotlight: Install the spotlight on the right side of the aircraft using the Matrice 5TD accessory mount, and make sure the mounting screws are securely tightened. Install the spotlight before powering on the aircraft. Do not install the spotlight while the aircraft is powered on. Make sure the plug is securely inserted. Do not pull the cable with excessive force, as this may compromise water resistance or cause damage. Tighten the connector screws properly. Do not overtighten them, as this may cause damage. After installation, connect to the internet and follow the prompts to activate the spotlight. If prompted to update the firmware, update it promptly to the latest version.

Question 8

What precautions should be taken when using the DJI AL2D Spotlight?

Accepted Answer

The following precautions should be taken when using the DJI AL2D Spotlight: After the spotlight is installed, the aircraft's propulsion performance and flight endurance will be affected. When the spotlight is turned on, visual obstacle sensing is disabled and only the mmWave radar and LiDAR remain active, reducing omnidirectional obstacle sensing performance. Fly with caution. DO NOT point the spotlight directly at anyone’s eyes, as this may cause eye injury. The spotlight may become hot after prolonged operation. Avoid touching it to prevent burns.

Question 9

How do I update the firmware of the DJI AL2D Spotlight?

Accepted Answer

After the DJI AL2D Spotlight is installed on the aircraft, its firmware will be updated together with the aircraft firmware. The firmware can be updated in either of the following ways: 1. Perform a one-click update on the Device Management page in DJI FlightHub 2. 2. Connect the aircraft to a computer and update it using DJI Assistant 2 (Enterprise Series).

Question 10

What functions does the DJI AS2D Speaker support?

Accepted Answer

The DJI AS2D Speaker supports real-time broadcasting, recorded broadcasting, media import, and text-to-speech, making emergency search and rescue and other operations more efficient and flexible.

Question 11

How does the DJI AS2D Speaker differ from the DJI AS1 Speaker?

Accepted Answer

The DJI AS2D Speaker has several upgrades on the DJI AS1 Speaker. These are: Loudness is increased to more than double that of the previous generation, reaching 120.5 dB at 1 m. The speaker is mounted facing downward, significantly improving loudness at ground level. Supports AI-powered text-to-speech (only supported on DJI FlightHub 2 Public Cloud), delivering a more natural-sounding voice.

Question 12

Which aircraft is compatible with the DJI AS2D Speaker?

Accepted Answer

The DJI AS2D Speaker is compatible with the DJI Matrice 5TD.

Question 13

What precautions should be taken when installing the DJI AS2D Speaker?

Accepted Answer

The following precautions should be taken when installing the DJI AS2D Speaker: Install the speaker on the left side of the aircraft using the Matrice 5TD accessory mount, and tighten the mounting screws during installation. Install the speaker before powering on the aircraft. Do not install the speaker while the aircraft is powered on. Make sure the plug is securely inserted. Do not pull the cable forcibly, as this may compromise water resistance or cause damage. Tighten the connector screws properly. Do not overtighten them, as this may cause damage. After installation, connect to the internet and follow the prompts to activate the speaker and calibrate the compass. If prompted to update the firmware, update it promptly to the latest version.

Question 14

What precautions should be taken when using the DJI AS2D Speaker?

Accepted Answer

Note the following when using the DJI AS2D Speaker? 1. After the speaker is installed, the aircraft's propulsion performance and flight endurance will be affected. Fly with caution. 2. Playing single-frequency sounds is not recommended, as this may cause irreversible damage to the speaker. 3. The speaker is very loud. DO NOT use it at close range or in urban areas with a high concentration of noise-sensitive buildings, as this may cause injury or pose a hazard.

Question 15

Which languages does the DJI AS2D Speaker support for text-to-speech?

Accepted Answer

The DJI AS2D Speaker supports Mandarin Chinese, English, Japanese, Korean, French, Spanish, and German. Only Mandarin Chinese and English support both male and female voices, while the other languages support female voices only.

Question 16

What are the tips for using the real-time broadcasting feature of the DJI AS2D Speaker?

Accepted Answer

For optimal live broadcasting performance with the DJI AS2D Speaker, use a handheld microphone. If using a computer microphone, speak as close to it as possible and maintain a steady pace. Press the backtick key () to activate real-time broadcasting. You can map the PTT button on the handheld microphone to the backtick key () for quick PTT broadcasting.

Question 17

How do I update the firmware of the DJI AS2D Speaker?

Accepted Answer

After the DJI AS2D Speaker is installed on the aircraft, its firmware will be updated together with the aircraft firmware. The firmware can be updated in either of the following ways: 1. Perform a one-click update on the Device Management page in DJI FlightHub 2. 2. Connect the aircraft to a computer and update it using DJI Assistant 2 (Enterprise Series).

Question 18

What is the effective broadcast range of the DJI AS2D Speaker?

Accepted Answer

The effective broadcast range of the DJI AS2D Speaker is 400 metres.

Question 19

What is the IP rating of the DJI AS2D Speaker?

Accepted Answer

The IP rating of the DJI AS2D Speaker is IP55.

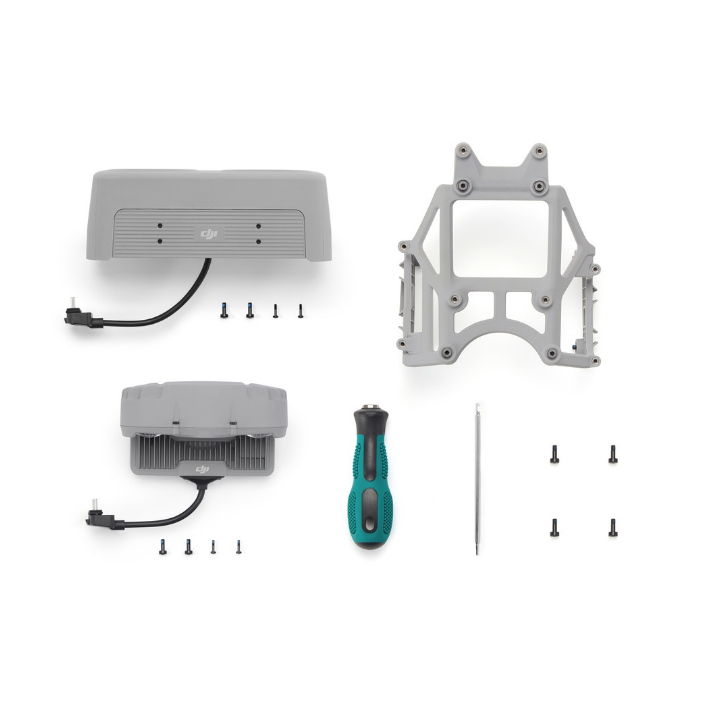

DJI AL2D Spotlight & DJI AS2D Speaker with DJI Matrice 5TD Series Accessory Mount
