£7,918.00 Regular price
/
Tax included in UK  & Free Delivery
Item in stock and ready for dispatch

Add Heliguy Repair Refresh

Free Repair or Replacement

Protect against failure or accidental damage.

Flying Commercially?

Find Out More

Online training platform

International Export Restrictions

Dual use product requires export license for deliveries outside the UK

  • heliguy™ has blanket export licenses for EU Member States, plus The Channel Islands, Iceland and the Isle of Man.
  • A fast-track license process is available for counties outside those listed above.
  • License types: OGEL, SIEL and OIEL pathways are available, contact us for your bespoke requirements.

DJI Matrice 30 Drone

The DJI Matrice 30 is DJI Enterprise's flagship drone.

It fits in a backpack or can be used with the DJI Dock (Dock Version) for autonomous deployment.

It integrates multiple high-performance sensors into one single camera payload and can be used with the new DJI FlightHub 2 fleet management and flight planning software.

The M30 has an IP55 weather-rating, making it ideal for missions in hostile environments.

It is the fastest, easiest high-performance DJI Enterprise drone to set up.

DJI Care Enterprise protection cover (Basic package) is included with the M30.

DJI Matrice 30 Accessories

Take your DJI Matrice 30 flights further with a wide range of accessories



Matrice 30 Cameras

The M30 series comes in two versions, the M30 and the M30T.

The M30 model has a 48 megapixel 1/2" CMOS sensor zoom camera with 5x to 16x optical and 200x digital zoom, a 12 megapixel wide-angle camera, 8k photo 4K/30 fps video resolution, and a laser rangefinder which can give the precise coordinates of objects up to 1,200 metres away.

The M30T features an additional 640 x 512 px radiometric thermal camera.

DJI M30 Design

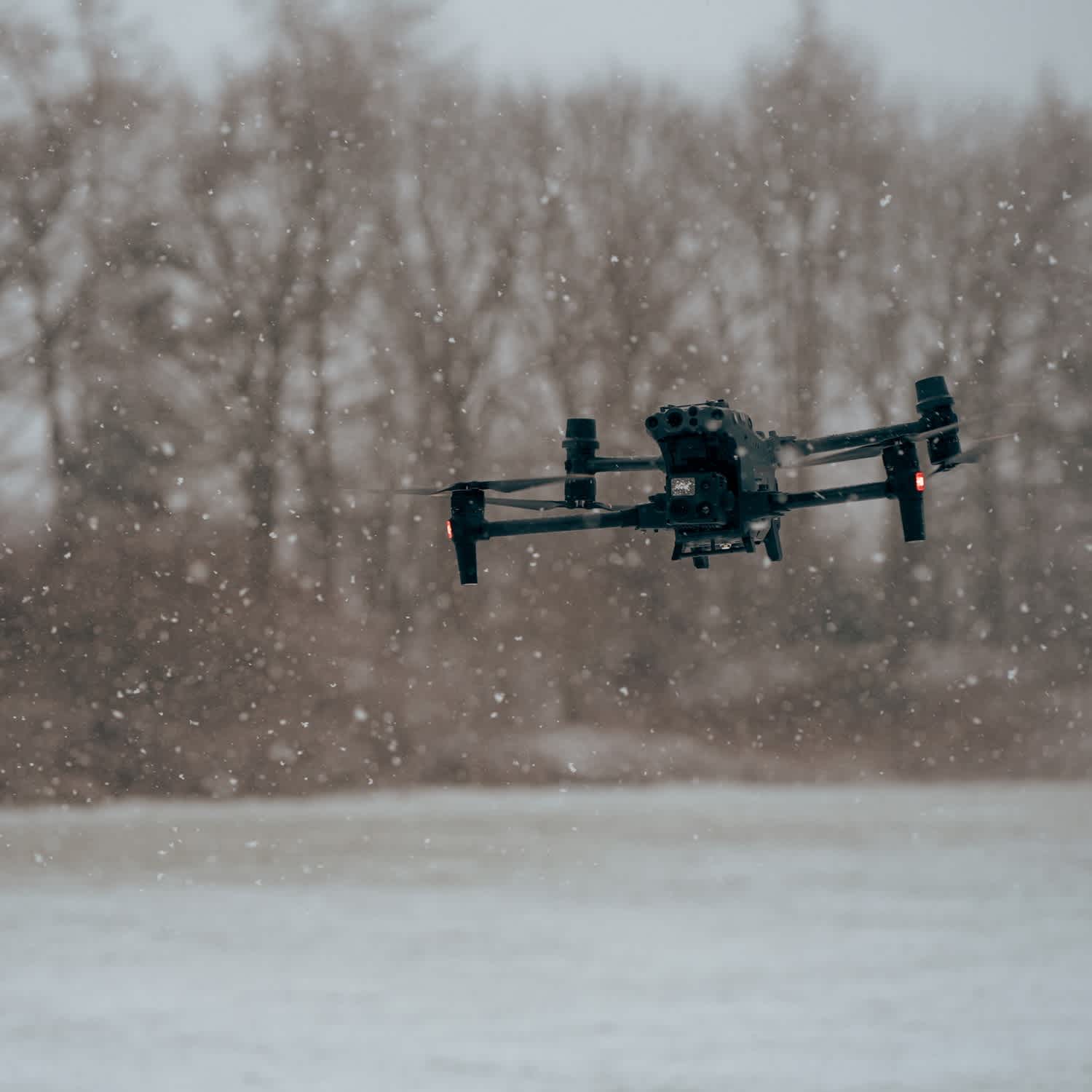

  • IP55 weather rating for outstanding performance in harsh environments, including wet weather.
  • Operation temperatures from -20° C to 50° C.
  • Improved first-person view pilot camera for low light conditions
  • Three-propeller emergency landing, Health Management System, six-way obstacle avoidance sensors.
  • Four-antenna OcuSync 3 Enterprise transmission ensures a strong redundancy, and it supports LTE link backup, in the face of complex terrain and working conditions.

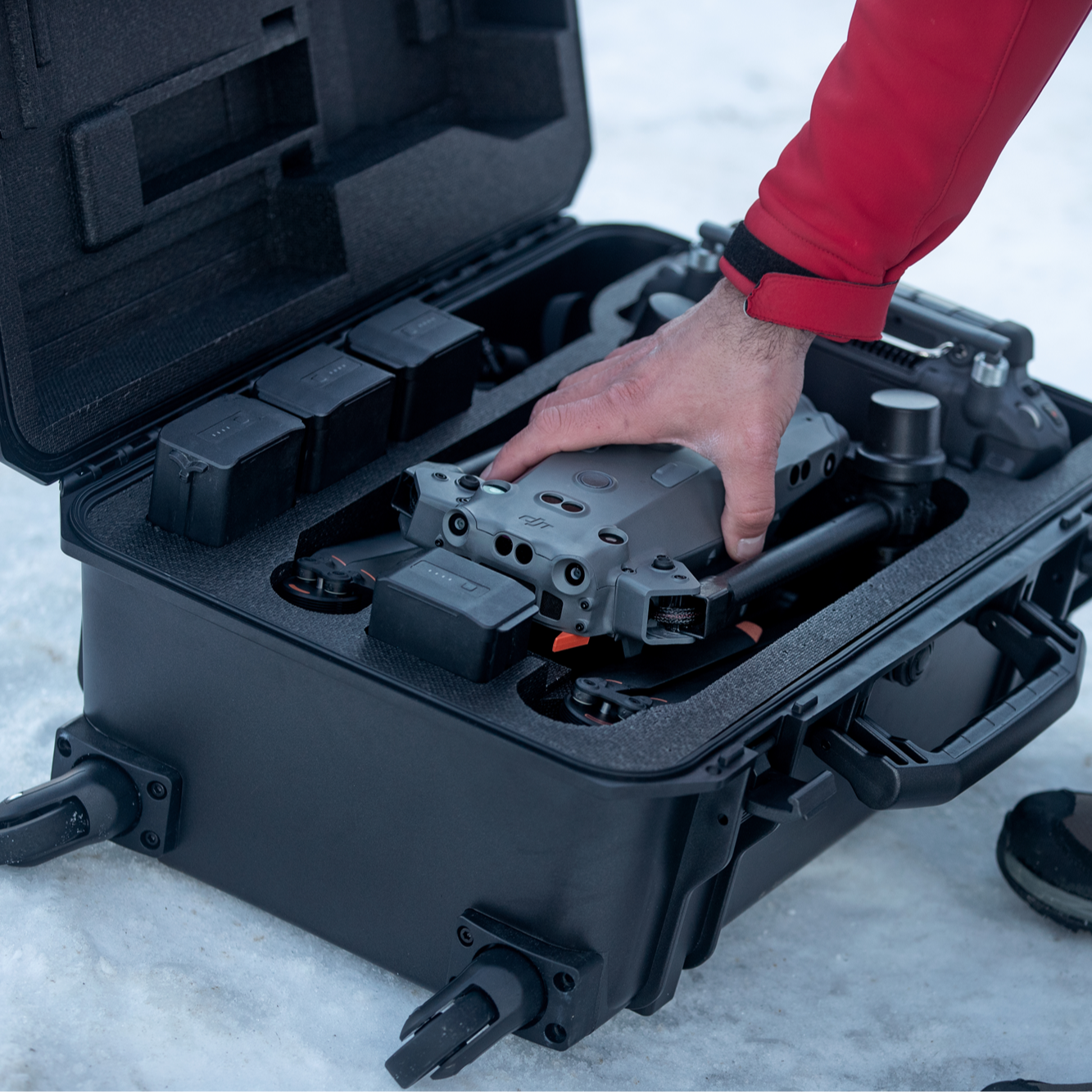

  • Foldable integrated lightweight design (3.7 kg take-off weight) that is easy to unfold, store and carry anywhere.
  • New self-heating TB30 battery design can support at least 400 charge cycles and allows a 41-minute flight time.
  • Smart BS30 charging case allows quick battery charging from 20% to 90% in 30 minutes.
  • New self-locking system and can be folded by just pressing a button.

M30 Data Security

The M30 features best in class data security.

Offline Updates: Enable future firmware updates to be completed entirely offline. Firmware packages can be downloaded from the DJI official website and saved to an external storage device such a microSD card, before being uploaded into the M30 and updated with DJI Pilot.

Local Data Mode: Acts like Airplane Mode on a phone by completely disconnecting the DJI M30 from the internet, ensuring all data stays only in the drone.

SD card AES encryption: Protects all the photos, videos, and flight logs that get stored on the microSD card by a security code and AES encryption.

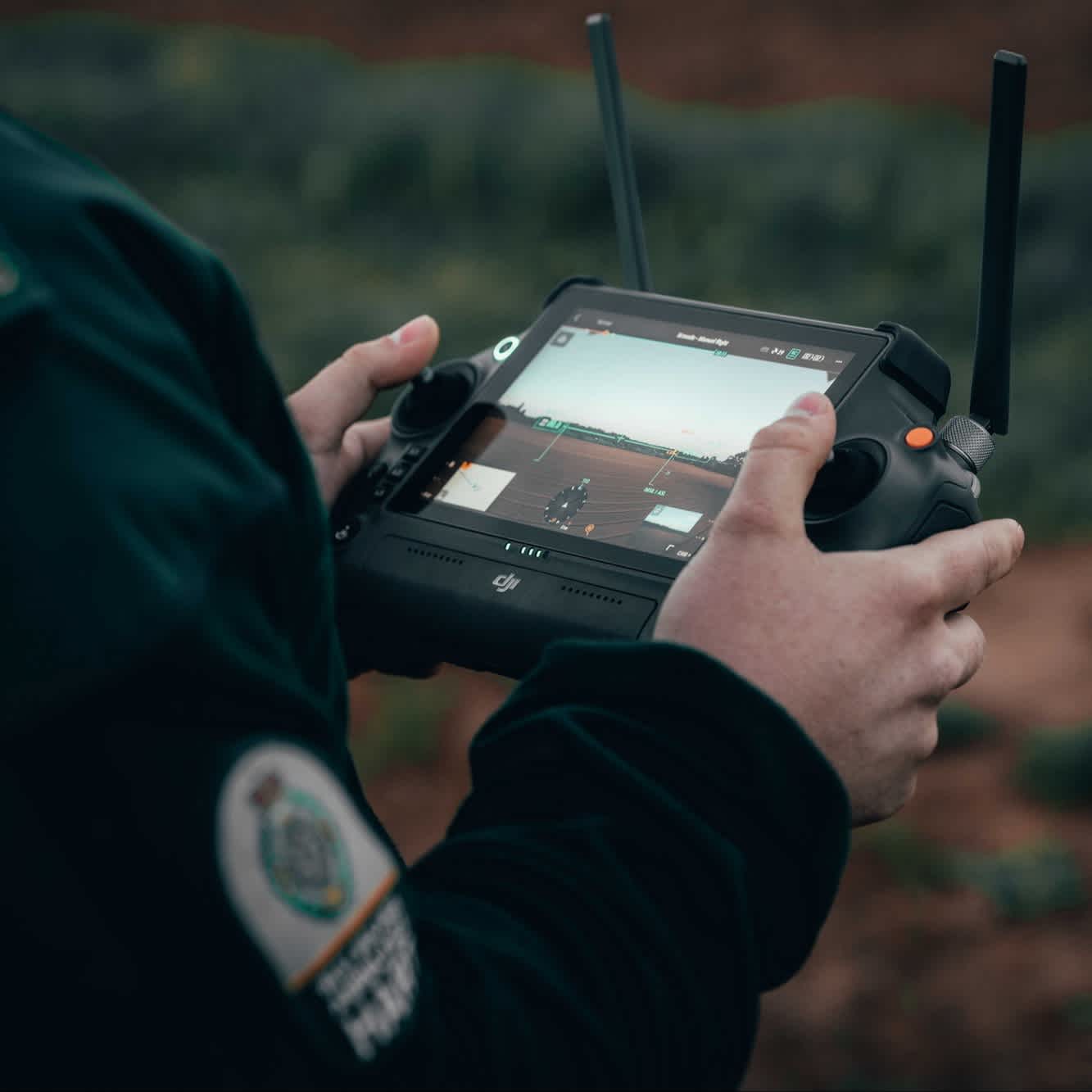

DJI RC Plus

The new flagship enterprise controller.

  • 7-inch-wide high-definition, bright screen
  • IP54 certified, meaning it can be used in heavy rain
  • The DJI RC Plus has six physical buttons below the control sticks next to the screen. This makes it easier to switch between key controls - such as wide angle, zoom, infrared, and FPV views - without having to take hands away from the control sticks.
  • 6 hours of screen-on time. It has an internal battery and a swappable external battery, preventing the interruption of a mission.
  • Ports for microSD card, USB, HDMI, USB type C and 4G connectivity (where offered), for customers needing transmission redundancy.

DJI M30 Drone FAQs

Answers to your most frequently asked questions.
FAQs
Why should I use a drone for surveying?

There are a number of reasons why drones are advantageous for surveying, including safe, efficient and accurate data collection.

A drone like the P4 RTK or DJI M300 can collect accurate survey data, faster and more safely than traditional/ground-based methods.

This data can be processed in sophisticated software to create detailed maps and models which can then be used to drive decision-making, spot mistakes, maximise return on investment, keep projects on track and collaborate with staff, stakeholders and the community.

For more information, read our in-depth guide to drone mapping or learn more about heliguy™ survey assist.

FAQs
What's the difference between the Matrice 30 and the Matrice 30T?

The DJI Matrice 30 series includes two versions: DJI M30 (its gimbal and camera have three sensors: wide-angle camera, zoom camera, laser range finder) and DJI M30T (its gimbal and camera have four sensors: wide-angle camera, zoom camera, laser range finder, thermal imaging camera).

FAQs
Does DJI Care Enterprise come with the M30 Series?

Yes, DJI Care Enterprise does come with the DJI M30 Series.

DJI Care Enterprise offers a comprehensive care package for your aircraft.

Please note that DJI Care Enterprise (Basic) is included with the M30 Series. This includes two replacements and a 'low-priced' replacement fee.

You can upgrade to the Plus package for an additional cost. The Plus package includes an unlimited number of replacements, with no replacement fee.

FAQs
Is frame arm lock detection supported on DJI M30?

Supported. M30 series aircraft comes with frame arm lock function. If the arm is not unfolded properly, the app will give a warning to prohibit takeoff.

FAQs
How long does it take to fully charge two TB30 Intelligent Flight Batteries?

With a BS30 Intelligent Battery Station, it takes about 50 minutes to fully charge the two TB30 Intelligent Flight Batteries, about 40 minutes to charge up to 90%, and only about 30 minutes to charge up from 20% to 90%.

FAQs
Can TB30 Intelligent Flight Batteries be used in low temperature environments?

TB30 Intelligent Flight Batteries can work in operating environments with temperatures ranging from -20°C (-4°F) to 50°C (122°F).

Battery life will be shortened when used in low temperature environments. Please plan your flight times accordingly.

For optimal battery performance, it’s recommended to keep the battery temperature above 18°C (64°F), or heat the battery to 18°C (64°F) with its self-heating function (a takeoff limit will be triggered if the battery temperature is below 10°C (50°F)).

FAQs
Can I board a plane with a TB30 Intelligent Flight Battery?

TB30 Intelligent Flight Battery’s power level is 131.6 watt hours. Please comply with local airline regulations when planning to fly with batteries.

FAQs
Why does the battery heat up when stored for a long time?

Long-term storage of a lithium battery at full charge will significantly shorten its battery life. In order to ensure safe storage and extend the battery life, a fully charged battery will activate its auto-discharging function to discharge itself to a level of about 60%. During the auto-discharging process, it will release some heat, which is normal.

FAQs
Does the BS30 Intelligent Battery Station support auto-discharging?

Not supported. The BS30 Intelligent Battery Station does not support auto-discharging

FAQs
Is the M30 series remote controller (RC) compatible with the Matrice 300 RTK?

The DJI RC Plus for DJI M30 will be supported on the Matrice 300 in the future via firmware updates.

FAQs
What photo modes are available on the M30 series aircraft?

DJI M30 supports the following photo modes: Single Shot, High-res Grid Photo, Timed Shot, Panorama, and Smart Low-light Photo

FAQs
How to use the gimbal lock function on DJI M30? Why does it need to lock the gimbal?

Flip the gimbal up by 90° to lock its tilt. Lock the tilt to better protect the camera lens and prevent scratches during transportation or storage of the aircraft.

The gimbal can be quickly and easily unlocked when arriving at the operation site, greatly reducing preparation time for the operation.

FAQs
Does the M30 series support accurate mapping?

Not supported.

The M30 series is not designed for aerial surveying.
Users can plan a flight path and capture photos in the aerial FPV mode of DJI Pilot 2.0 App, but the model's accuracy is not guaranteed.

FAQs
Does the M30 series support dual control?

Yes. The DJI M30 supports dual control.

FAQs
Will DJI launch an official M30 series backpack?

No, there is no plan to launch an official backpack for the DJI M30.

HPRC have created a protective backpack for the Matrice 30 series drone, available for purchase separately.

FAQs
Can the M30 series be used in different regions?

The M30 series includes two versions: the Chinese version and the International version. Please check with the local aftersales service centre and the dealers about the availability of the product.

FAQs
Which apps are supported by the M30 series?

DJI M30 drone can use DJI Pilot 2.0 (For Android) and other software developed by using MSDK.

FAQs
Can the M30 series be used with D-RTK 2 Mobile Station?

Yes. Upgrade the firmware of D-RTK 2 Mobile Station to the latest version to use with the M30 series.

FAQs
Does the M30 series support SDK function?

DJI M30 supports Payload SDK and Mobile SDK.

The Payload SDK interface on top of M30 series aircraft integrates the functions of Onboard SDK.
Please contact dev@dji.com for further technical support.

FAQs
Can the gimbal and camera of the M30 Series be replaced with other payloads?

The DJI M30 and M30T Gimbal and camera are fixed cannot be replaced.

FAQs

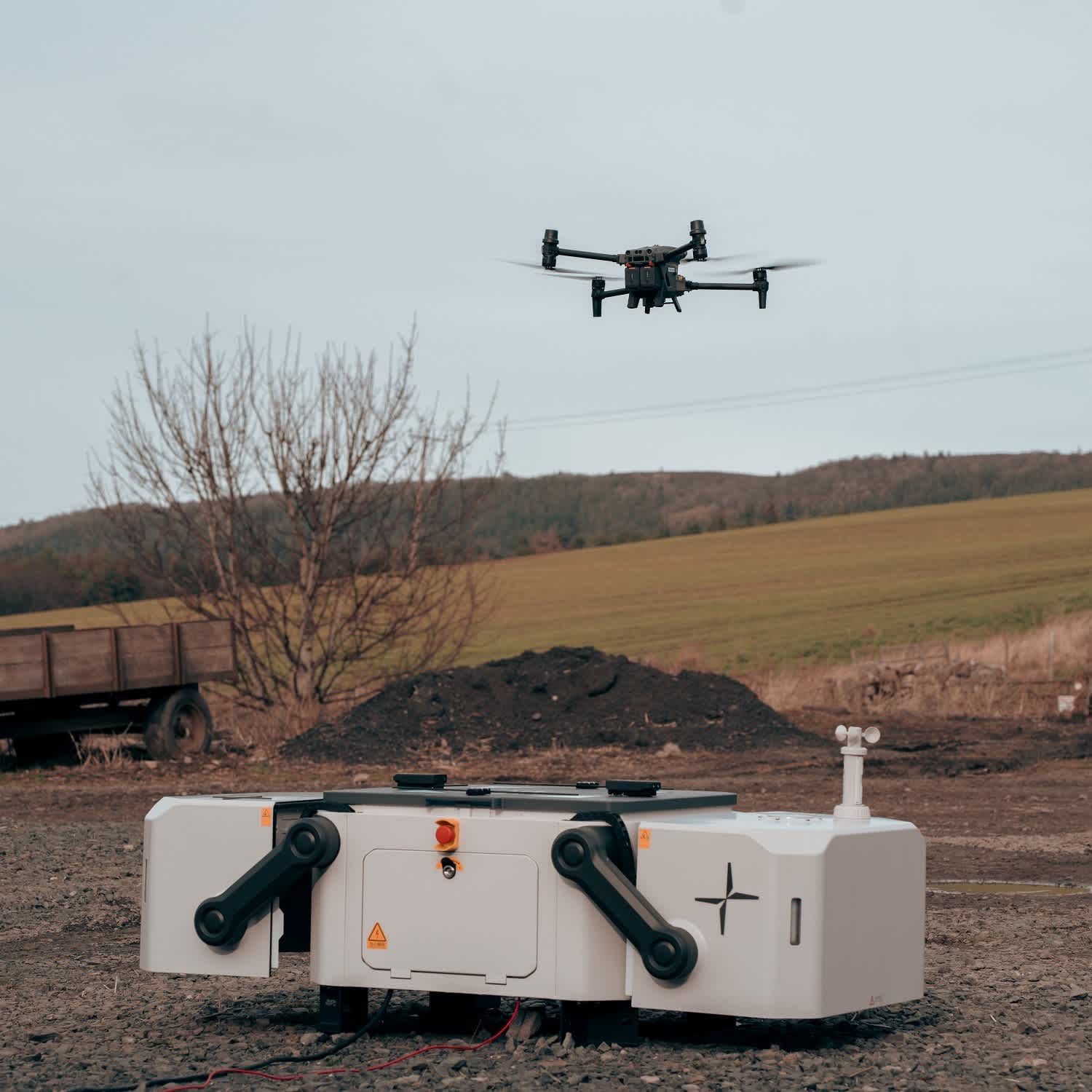

Which version of the M30 is compatible with the DJI Dock?

The DJI Dock is compatible with the M30 (Dock version) and the M30T (Dock version), but not regular M30 series drones.

This is because the M30 (Dock version) has slight differences in its body to be compatible with the DJI Dock. When you purchase the DJI Dock, it includes the M30 (Dock version) or the M30T (Dock version).

Specification

Value

Dimensions (folded)

365×215×195 mm (L×W×H)

Diagonal Wheelbase

668 mm

Weight (incl. two batteries)

3770 ± 10 g

Max Takeoff Weight

4000 g

Operation Frequency[1]

2.4000-2.4835 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)

5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)

Hovering Accuracy

(windless or breezy)

Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)

Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)

RTK Positioning Accuracy

(fixed RTK enabled)

1 cm+1 ppm (horizontal)

1.5 cm+1 ppm (vertical)

Max Angular Velocity

Pitch: 150°/sec.; Yaw: 100°/sec.

Max Tilt Angle

35° (N-mode and Forward Vision System enabled: 25°)

Max Ascent/Descent Speed

6 m/s, 5 m/s

Max Tilt Descent Speed

7 m/s

Max Horizontal Speed

23 m/s

Max Service Ceiling Above Sea Level (without other payload)

5,000 m (with 1671 propellers)

7,000 m (with 1676 propellers)

Max Wind Resistance

15 m/s

12 m/s during taking off and landing

Max Hover Time [2]

36 min

Max Flight Time[2]

41 min

Motor Model

3511

Propeller Model

1671

1676 High Altitude (not included)

Ingress Protection Rating[3]

IP55

GNSS

GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)

Operating Temperature

-20° to 50° C (-4° to 122° F)

Gimbal

Angular Vibration Range

±0.01°

Controllable Range

Pan: ±90°

Tilt: -120° to +45°

Mechanical Range

Pan: ±105°

Tilt: -135° to +60°

Roll: ±45°

Zoom Camera

Sensor

1/2 CMOS

Lens

Focal length: 21-75 mm (equivalent: 113-405 mm)

Aperture: f/2.8-f/4.2

Focus: 5 m to ∞

Wide Camera

Sensor

1/2 CMOS

Lens

DFOV: 84°

Focal length: 4.5 mm (equivalent: 24 mm)

Aperture: f/2.8

Focus: 1 m to ∞

Thermal Camera

Thermal Imager

Uncooled VOx Microbolometer

Lens

DFOV: 64°

Focal length: 9.1 mm (equivalent: 40 mm)

Aperture: f/1.0

Focus: 5 m to ∞

Infrared Temperature Measurement Accuracy[4]

±2°C or ±2% (using the larger value)

FPV Camera

Resolution

1920×1080

DFOV

161°

Frame Rate

30 fps

Laser Module

Wavelength

905 nm

Max Laser Power

3.5 mW

Single Pulse Width

6 ns

Measurement Accuracy

± (0.2 m + D×0.15%)D is the distance to a vertical surface

Measuring Range

3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Vision Systems

Obstacle Sensing Range

Forward: 0.6-38 m

Upward/Downward/Backward/Sideward: 0.5-33 m

FOV

65° (H), 50° (V)

Operating Environment

Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

Obstacle Sensing Range

0.1 to 10 m

FOV

30°

Operating Environment

Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 Intelligent Flight Battery

Capacity

5880 mAh

Voltage

26.1 V

Battery Type

LiPo 6S

Energy

131.6 Wh

Net Weight

Approx. 685 g

Operating Temperature

-20° to 50° C (-4° to 122° F)

Storage Temperature

20° to 30° C (68° to 86° F)

Charging Temperature

-20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)

Chemical System

LiNiMnCoO2

Auxiliary Lights

Effective Illumination Distance

5 m

Illumination Type

60 Hz, solid glow

Remote Controller

Screen

7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

Internal Battery

Type: Li-ion (6500 mAh @ 7.2 V)

Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)

Charge Time: 2 hours

Chemical System: LiNiCoAIO2

External Battery(WB37 Intelligent Battery)

Capacity: 4920 mAh

Voltage: 7.6 V

Battery Type: Li-ion

Energy: 37.39 Wh

Chemical System: LiCoO2

Operating Time[5]

Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours

Ingress Protection Rating[3]

IP54

GNSS

GPS+Galileo+BeiDou

Operating Temperature

-20° to 50° C (-4° to 122° F)

O3 Enterprise

Operating Frequency[1]

2.4000-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance (unobstructed, free of interference)

2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)

Max Transmission Distance (with interference)

Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)

Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC)

Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC)

5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi

Protocol

Wi-Fi 6

Operating Frequency[1]

2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)

5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)

5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)

Bluetooth

Protocol

Bluetooth 5.1

Operating Frequency

2.4000-2.4835 GHz

Transmitter Power (EIRP)

<10 dBm

BS30 Intelligent Battery Station

Dimensions

353×267×148 mm

Net Weight

3.95 kg

Compatible Battery Type

TB30 Intelligent Flight Battery

WB37 Intelligent Battery

Input

100-240 VAC, 50/60 Hz

Output

TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)

WB37 Intelligent Battery: 8.7 V, 6 A

Output Power

525 W

USB-C port

Max. output power of 65 W

USB-A port

Max. output power of 10 W (5 V, 2 A)

Power Consumption (when not charging battery)

< 8 W

Output Power (when warming up battery)

Approx. 30 W

Operating Temperature

-20° to 40° C (-4° to 104° F)

Ingress Protection Rating[3]

IP55 (with the cover closed properly)

Charging Time[6]

Approx. 30 min (charging two TB30 batteries from 20%-90%)

Approx. 50 min (charging two TB30 batteries from 0%-100%)

Protection Features

Anti-Backflow Protection

Short Circuit Protection

Over Voltage Protection

Over Current Protection

Temperature Protection

Other

Footnotes

[1] 5.8 and 5.1GHz frequencies are prohibited in some countries. In some countries, the 5.1GHz frequency is only allowed for use indoors.

[2] The maximum flight time and the hover time were tested in a lab environment and is for reference only.

[3] This protection rating is not permanent and may reduce over time after long-term use.

[4] Infrared temperature measurement accuracy was tested in a lab environment and is for reference only.

[5] The maximum operating time was tested in a lab environment and is for reference only.

[6] The charging time was tested in a lab environment at room temperature. The value provided should be used for reference only.

What's in the Box

1 x Matrice 30 Drone
2 x TB30 /intelligent Flight Battery
1 x BS30 Battery Station
1 x RC Plus Remote Controller

Training by Drone
heliguy™ Training Tools
