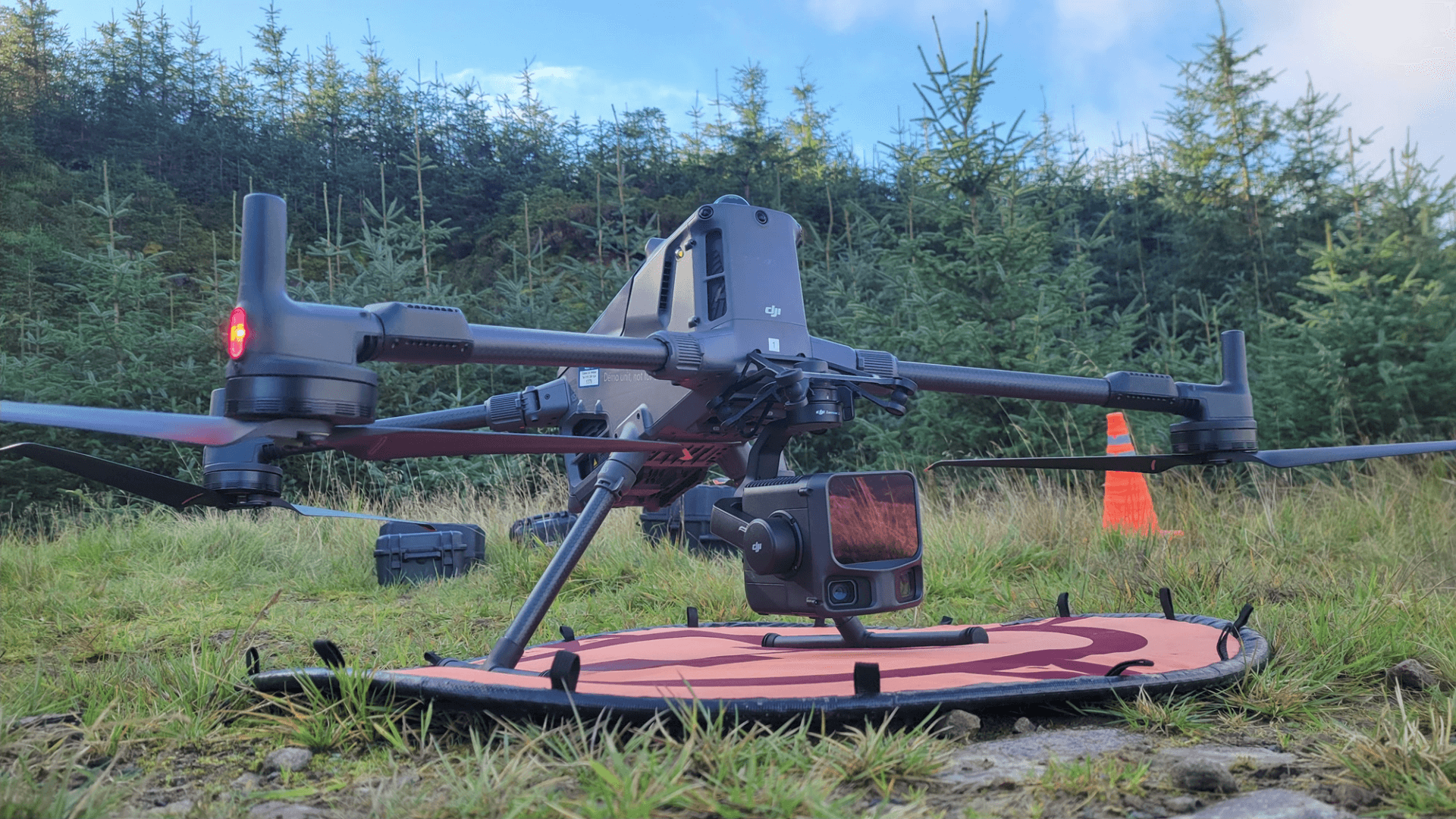

Best features of DJI Zenmuse L3 drone LiDAR payload

• DJI launches Zenmuse L3 payload, designed to enhance detection, penetration, accuracy, and efficiency.

• L3 is compatible with DJI Matrice 400 and features advanced LiDAR, dual 100MP cameras, and a high-precision inertial navigation system.

• Find out about the payload's key features and how they benefit drone surveys.

• Learn how heliguy™ can help you unlock the power of the DJI Zenmuse L3 and integrate it into your workflows.

The DJI Zenmuse L3 represents a major leap in drone-based LiDAR technology — offering enhanced detection, penetration, and accuracy.

Designed for the DJI Matrice 400 and powered by advanced LiDAR optics, dual 100MP cameras, and multiple scanning modes, the L3 gives survey professionals greater control, detail, and efficiency.

DJI Zenmuse L3 key takeaways

• Exceptional range: Detects targets up to 950m at 100kHz, delivering long-range performance with accuracy.

• Survey-grade accuracy: Obtain 3.5cm vertical accuracy and 5cm horizontal accuracy from an altitude of 150m metres.

• Up to 16 returns: Captures multiple reflections per pulse for rich, detailed point clouds — perfect for vegetation and structural mapping.

• Three scanning modes: Choose from Linear, Star-Shaped, or Non-Repetitive patterns for maximum mission flexibility.

• Extended working altitude: Typical flight altitude of up to 500m for high-efficiency missions, while still supporting 1:1000 scale mapping.

• Adaptive sampling rates: Adjustable from 100kHz–2MHz to optimise density, penetration, and range.

• Dual 100MP cameras: Capture LiDAR and RGB imagery simultaneously for efficient colourised mapping.

• Integrated workflow: Works seamlessly with DJI Terra and DJI Modify for a complete capture-to-analysis solution. Outputs include true-colour point clouds and Gaussian Splatting models.

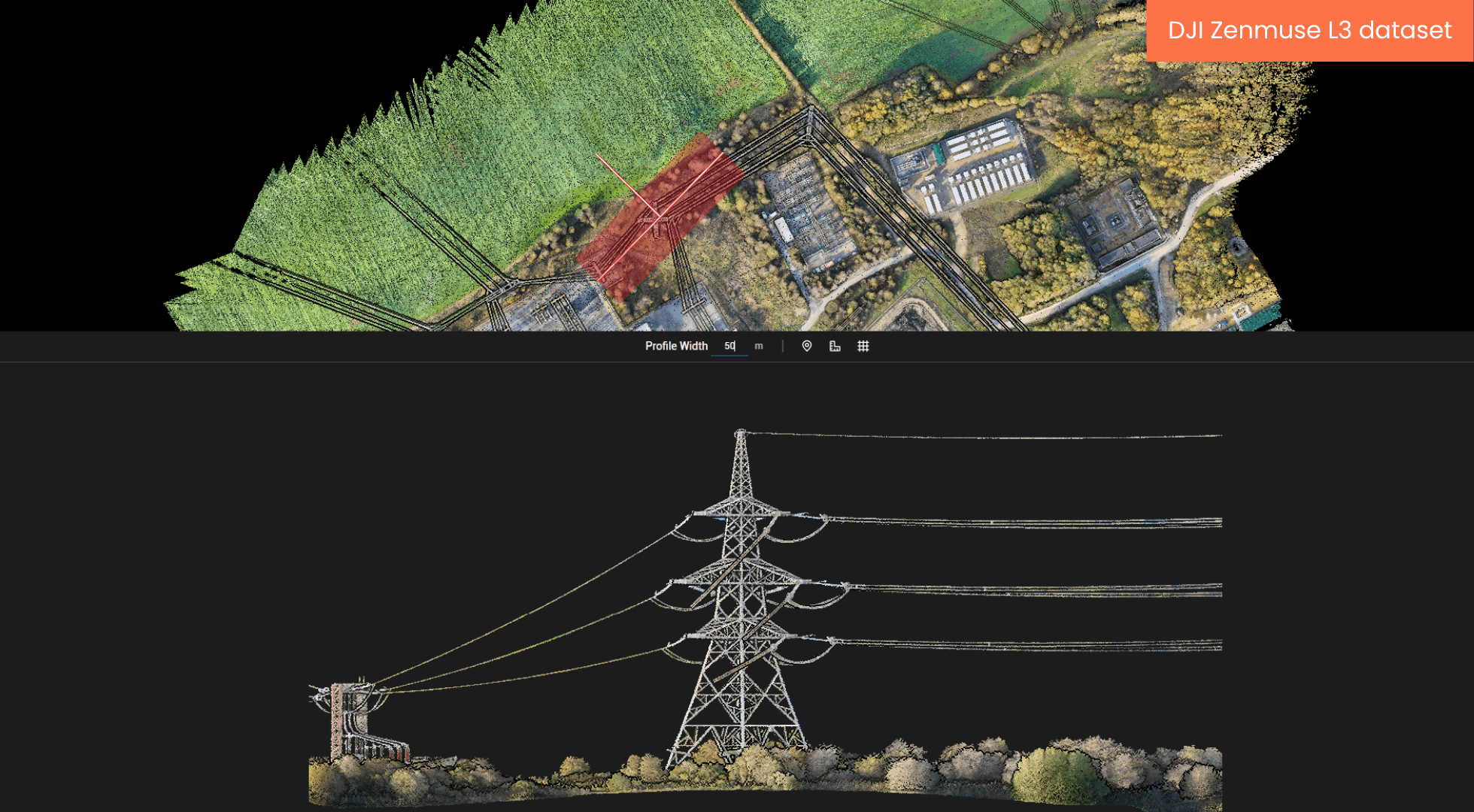

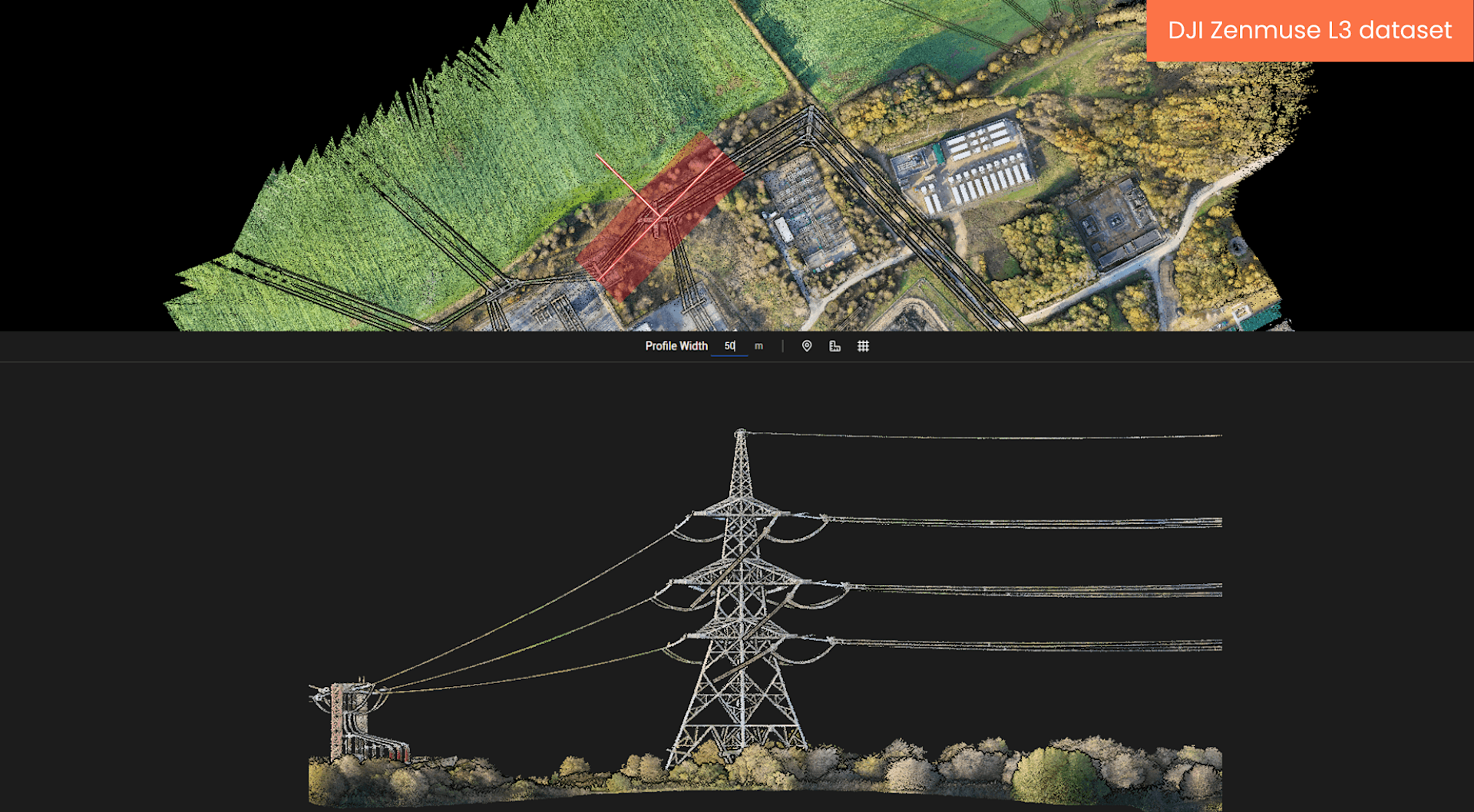

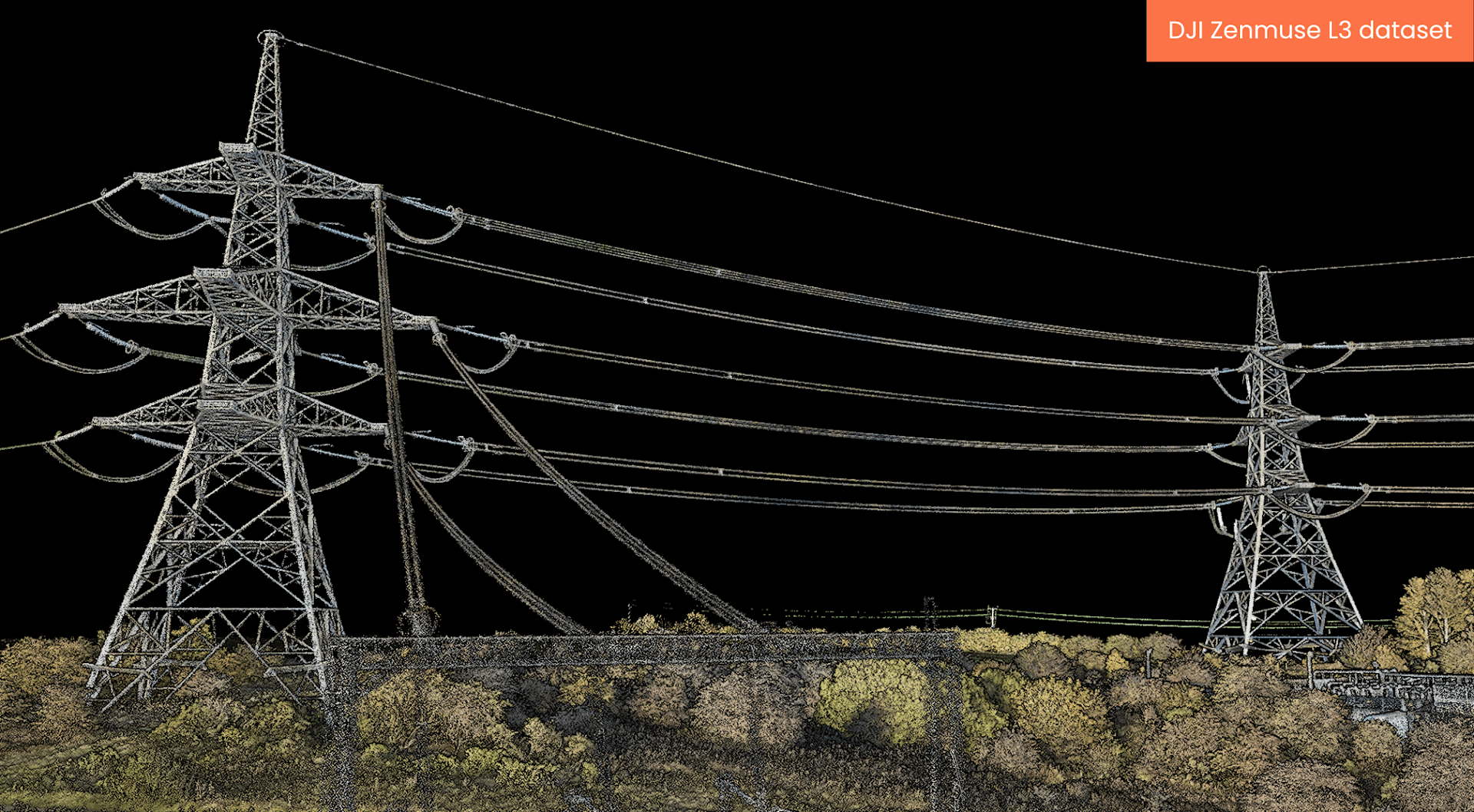

• Best applications: DJI Zenmuse L3 is ideal for topographic mapping, forestry analysis, powerline inspection, construction monitoring, urban modelling, and public safety — where accuracy, range, and data richness are critical.

• heliguy™ Support: Our in-house LiDAR team helps you start, scale, and succeed with expert setup, training, and integration.

Expert insight

“The Zenmuse L3 isn’t just an upgrade — it’s a step change for drone-based surveying. DJI has combined long-range LiDAR power, dual 100MP cameras, and intelligent scanning into one platform that’s faster, more flexible, and more accurate than previous generations. Whether you’re mapping dense forests, urban infrastructure, or open terrain, the L3 delivers the precision, efficiency, and adaptability that modern survey workflows demand.”

- Richard Dunlop, Head of Geospatial, heliguy™

DJI Zenmuse L3: Key specifications

Let's explore the key specifications of the DJI Zenmuse L3.

Key features of DJI Zenmuse L3

Let’s explore the DJI Zenmuse L3’s key features in more depth, and look at how they benefit aerial surveying.

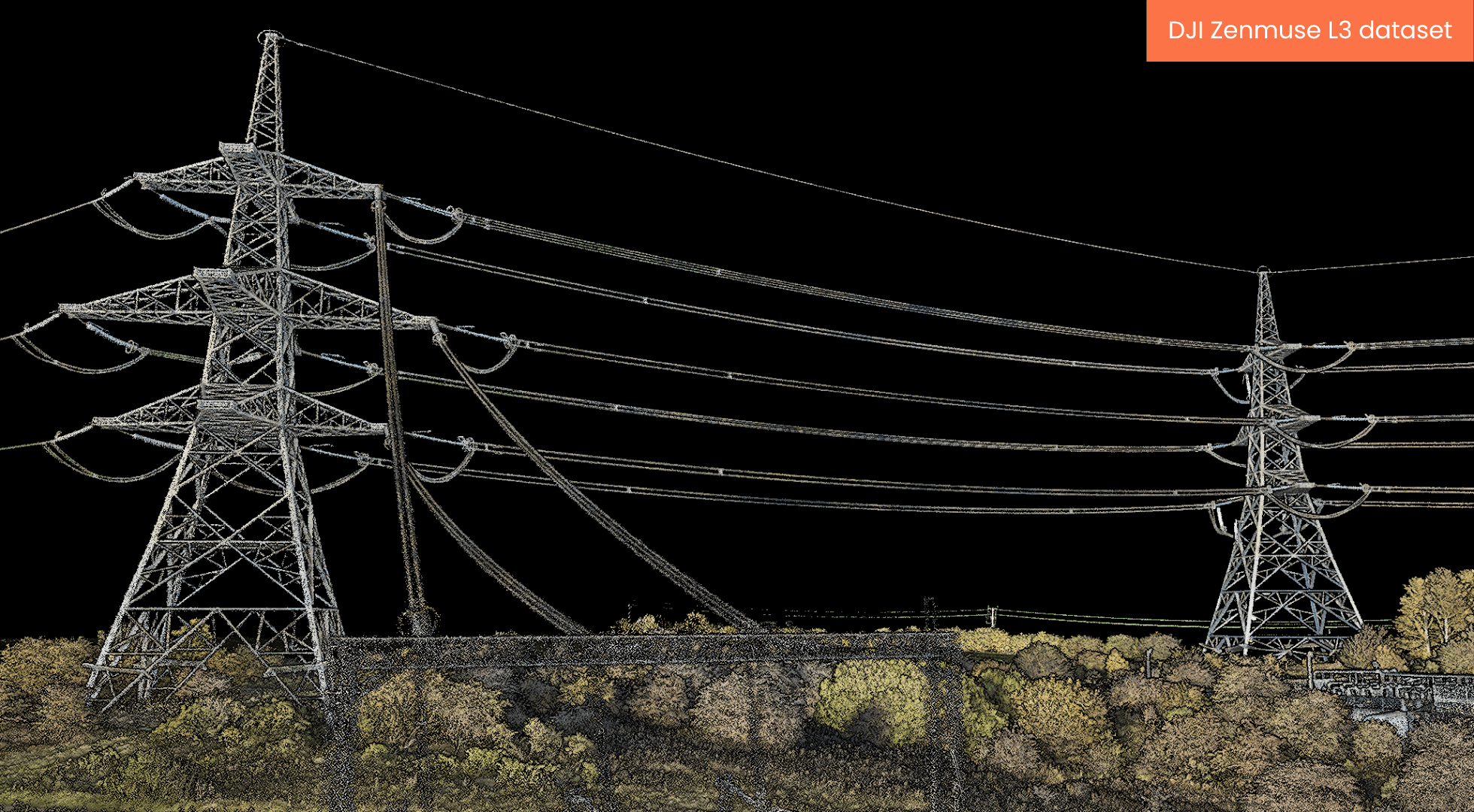

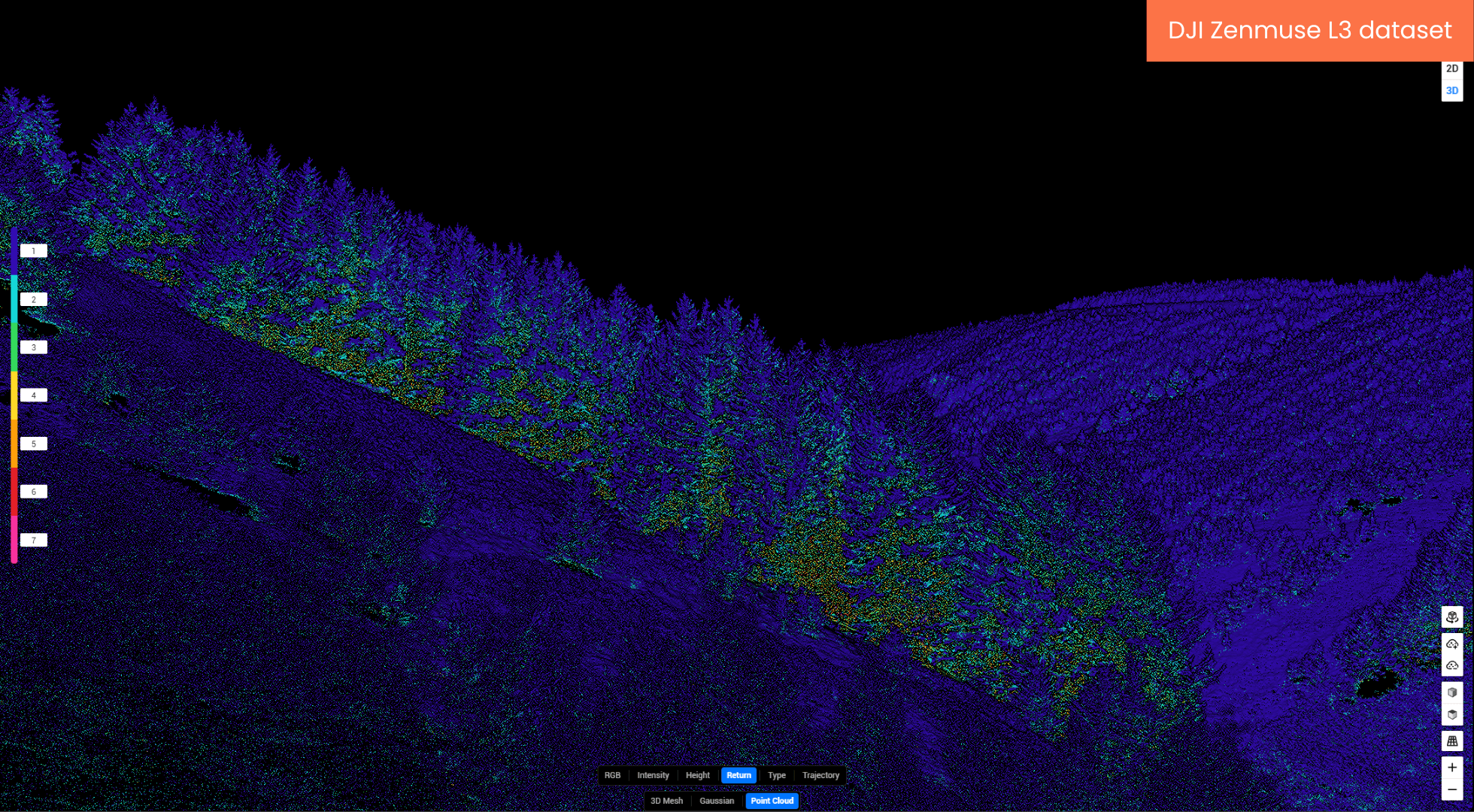

1: Up to 16 returns for richer data

The Zenmuse L3 can capture up to 16 returns per laser pulse, dramatically increasing data richness.

This means each pulse can record multiple surfaces — such as vegetation layers, canopy, and the ground below — simultaneously.

Surveying advantage:

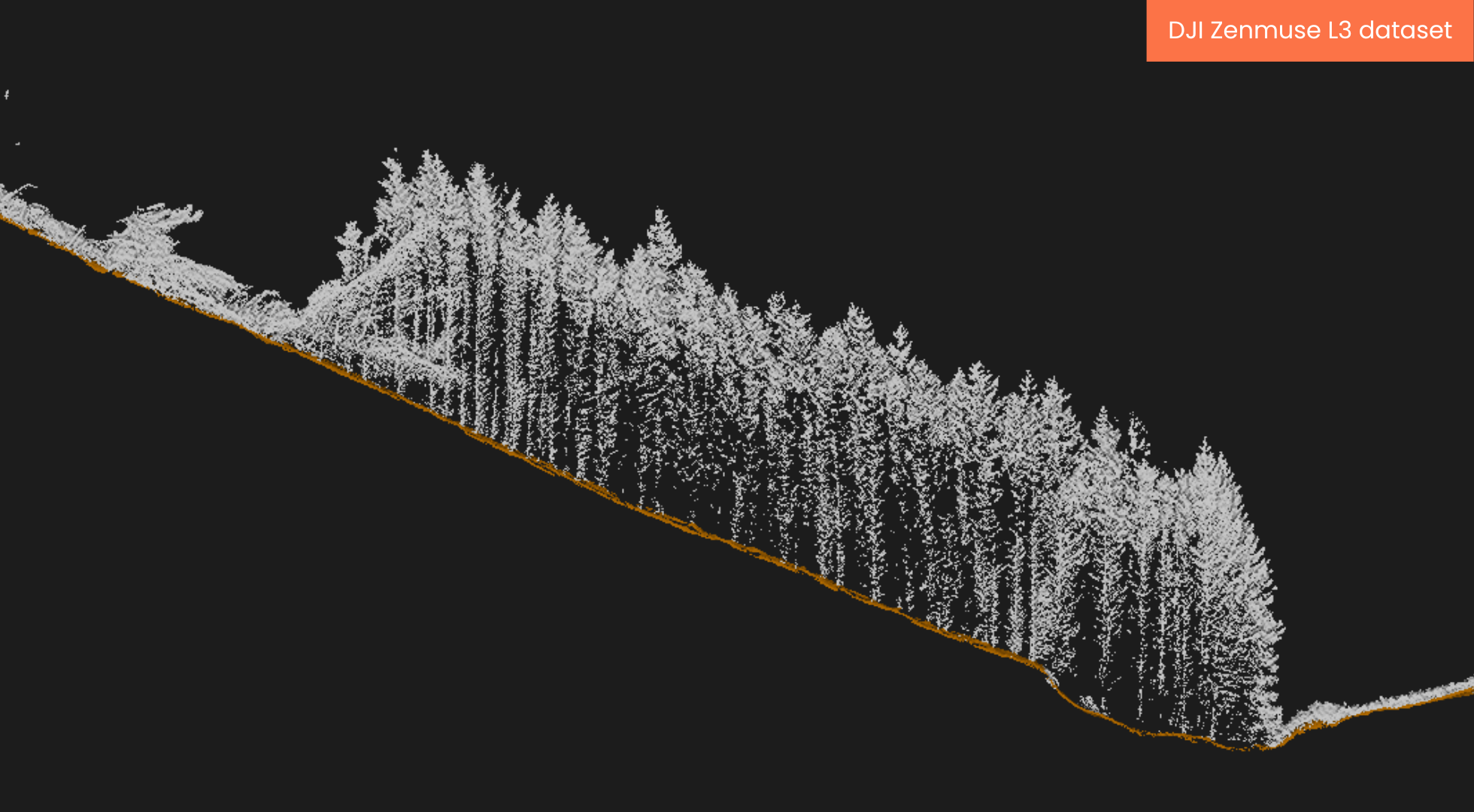

• Forestry & vegetation mapping: More accurate terrain models beneath canopy cover.

• Urban & structural mapping: Improved reconstruction of buildings, roofs, and vertical features.

• Mixed-terrain environments: Better classification between natural and man-made surfaces.

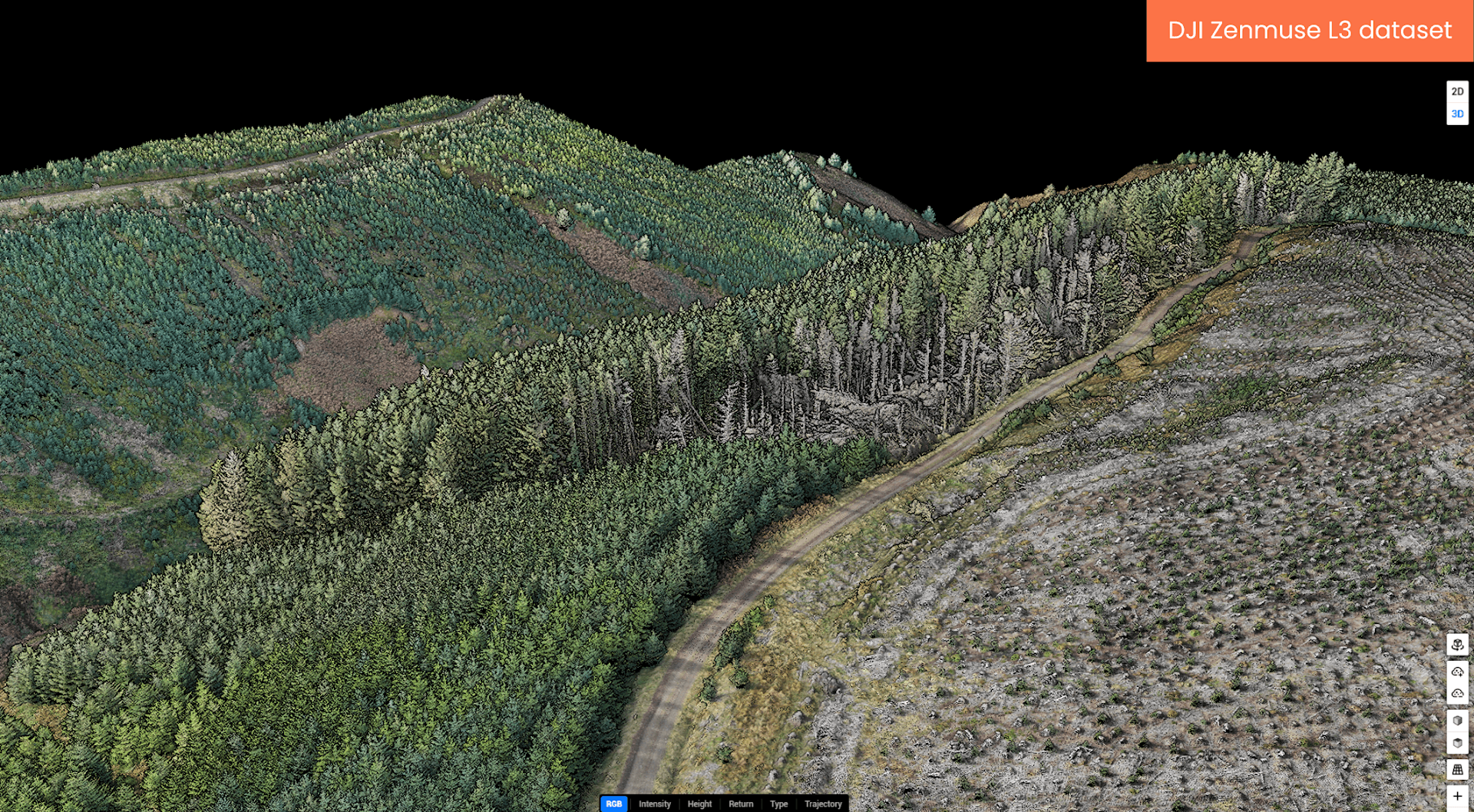

Why it matters: Produce highly detailed point clouds that reveal both canopy and ground — ideal for forestry, utilities, and mixed land-use surveys.

2: Three intelligent scanning modes for survey versatility

The L3 introduces three scanning modes — Linear, Star-Shaped, and Non-Repetitive — allowing operators to prioritise either accuracy, ground coverage, or structural detail.

Why this matters: With the L3, you can adapt instantly to your environment. Switching scanning modes lets you optimise for precision or completeness without changing payloads. Adapt scanning behaviour instantly for optimal results, regardless of terrain or target.

3: Adaptive sampling rate control

The L3 has adjustable sampling rates — up to 2 MHz for high-density scanning and as low as 100–350 kHz for long-range or high-altitude missions.

• Higher sampling rates: Emit more points per second, creating ultra-dense point clouds for detailed surfaces such as roads, rooftops, and stockpiles.

• Lower sampling rates: At higher altitudes or over vegetation, lower sampling rates preserve pulse strength and penetration depth, maintaining reliable returns even through foliage.

DJI’s recommendations include:

• Up to 2MHz: For low-altitude, high-detail missions (<50m).

• 1MHz: For lower altitude surveys (<100m).

• 350kHz: For medium-altitude, all-purpose mapping (60–300m).

• 100kHz: For high-altitude, deep-penetration mapping (up to 500m).

In tandem, the L3’s variable scanning frequency (100–2000kHz) allows control over coverage uniformity and lateral density, ensuring even data distribution across the flight path.

Why this matters: This flexibility ensures that surveyors can balance point density, accuracy, range, and efficiency - based on flight altitude - to match project requirements and environmental conditions.

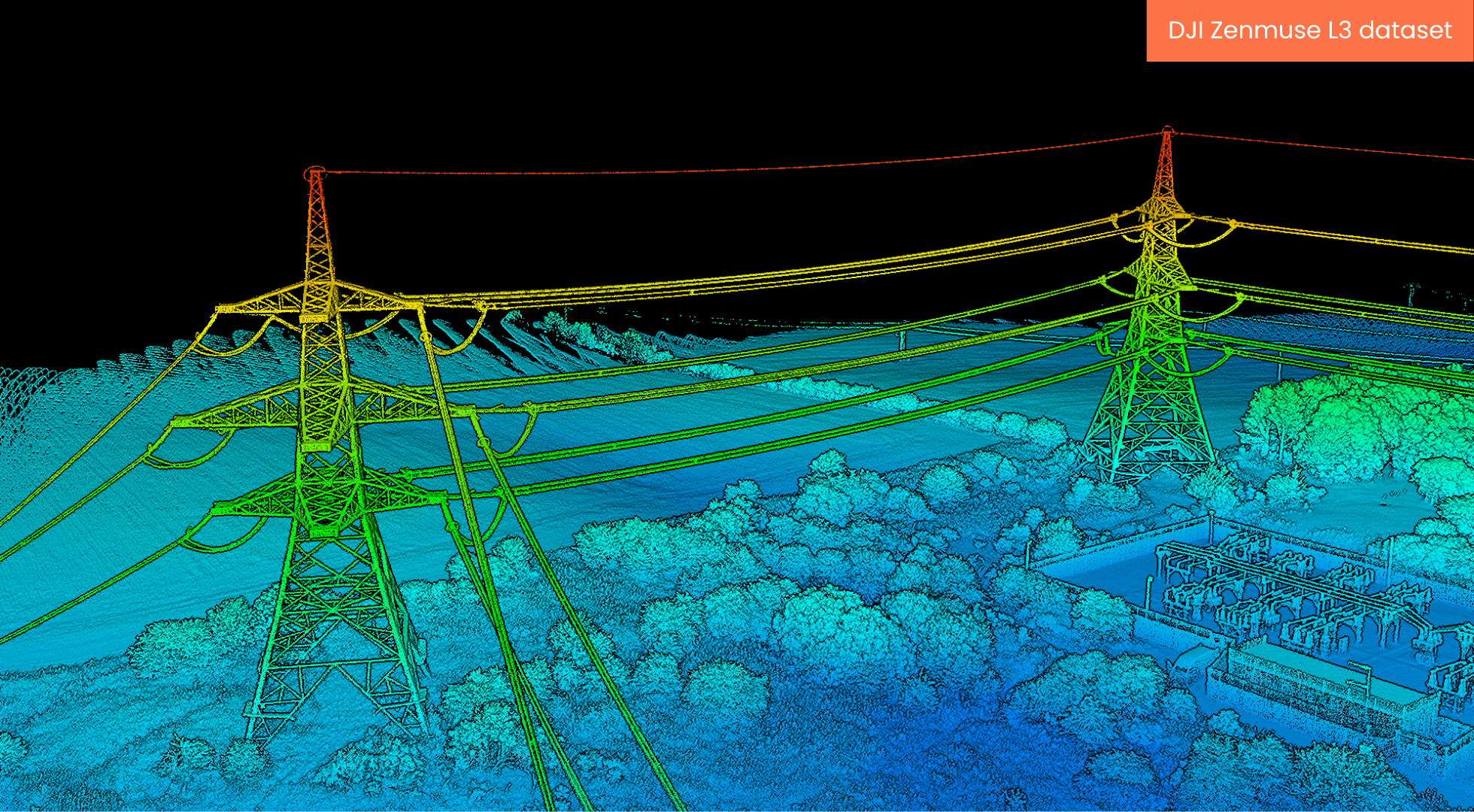

4: Long-range, high-precision LiDAR Powerhouse

The L3 is a high-accuracy, long-range LiDAR solution, engineered for efficient and precise surveys.

Headlines include:

• Measurement range of 950 metres at 100kHz.

• Can obtain vertical accuracy that is better than 3cm at 120m altitude, better than 5 cm at 300 m, and better than 10 cm at 500 m.

• An optimal working altitude of 300m (1:500) to 500m (1:1000).

Within UK airspace regulations (120 m flight ceiling for standard permissions), this translates to exceptional precision and range performance — enabling surveyors to capture 1:500–1:1000 mapping accuracy while maintaining compliance and safety.

To unlock the L3's true potential in the UK and fly at heights in excess of 120m to benefit from the system's high-efficiency/high-altitude system, you can apply for extended permissions through UK SORA. heliguy™ has an in-house UK SORA consultancy, with regulatory specialists, to help you streamline this process and create a tailored UK SORA application for your operations.

Why this matters: Surveyors can now map at a large range without sacrificing detail. This range expansion represents a significant leap over the L2, which was optimised for mid-range terrain capture.

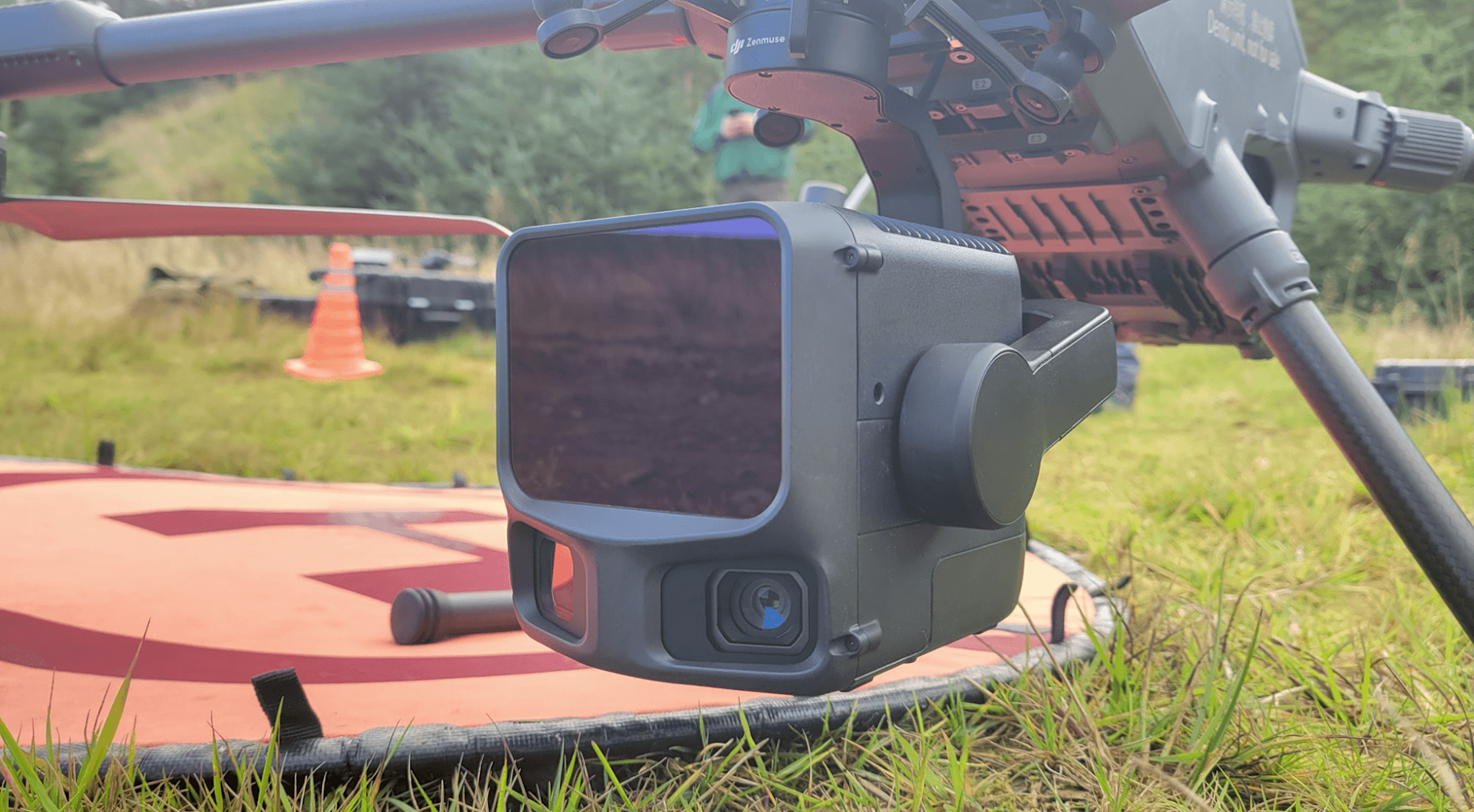

5: Dual 100MP tilt mapping cameras

The Zenmuse L3 is equipped with dual 100-megapixel M4/3 cameras - a major leap from the 20MP sensor found on the previous L2.

This increase delivers remarkably sharp, high-fidelity imagery with a 107° horizontal field of view, enabling simultaneous LiDAR and RGB data capture in a single flight.

Pixel binding supports an effective 25MP resolution with larger pixel size - producing superior colour reproduction, even under poor lighting conditions.

With its dual 100MP mapping system, DJI Zenmuse L3 achieves a ground sample distance of 3cm - even at a 300m flight altitude.

The camera also has a 0.5s shooting interval - perfect for precise mapping at faster speeds.

Benefits:

• Enhanced true-colour recreation: The sensors provide more accurate colour reproduction and finer tonal detail, resulting in visually rich, true-to-life orthophotos and realistic point-cloud colourisation.

• Sharper structural context: High-resolution imagery supports better alignment between LiDAR and visual datasets, ensuring cleaner 3D meshes and seamless photogrammetry integration.

• Efficient data capture: By combining high-definition RGB and LiDAR in one mission, surveyors reduce flight time while improving both geometric and visual accuracy.

Why it matters: The result is LiDAR assets that look as good as they measure — ideal for clients who require both quantitative accuracy and visual realism, such as in construction, utilities, or urban planning. It also means that a LiDAR point cloud and a Digital Orthophoto Map can be produced simultaneously after one flight.

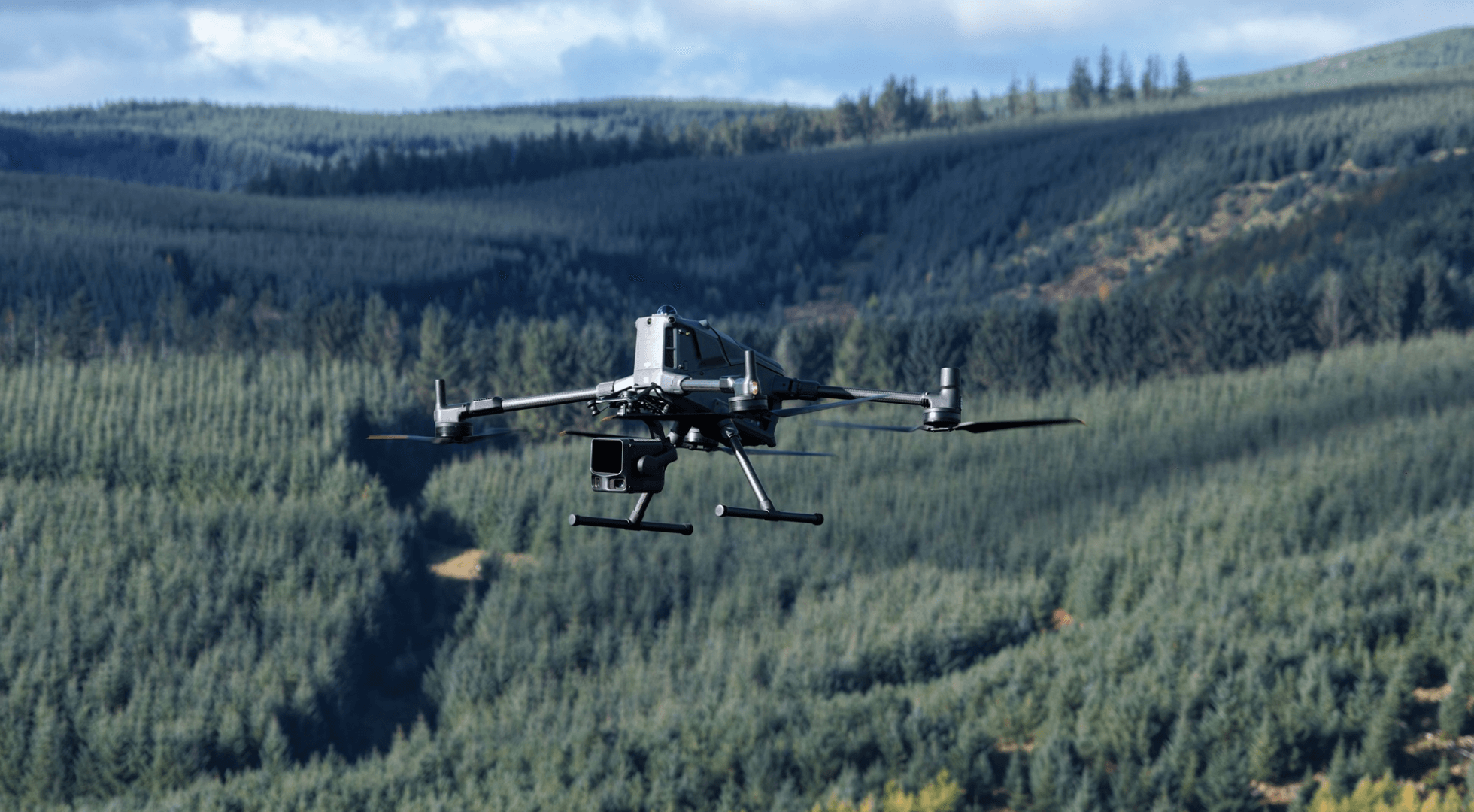

6: Efficient drone surveys

The DJI Zenmuse L3 is not only built for precision. It is also engineered for speed — enabling faster data collection without compromising accuracy.

Its optimal performance zone is around 15m/s-17m/s, balancing endurance and density — but it can go as fast as 25 m/s.

Recommended operating speeds:

• Base reference: 15 m/s (ensures consistent point density).

• Optimal for long-range missions: 17 m/s (best endurance and balance).

• Maximum flight speed: 25 m/s (reduced density but still accurate. Quicker, but reduces flight time).

Why this matters: Enhanced stability means cleaner, denser, and more accurate point clouds — even at higher speeds (up to 25 m/s). It’s worth noting that speeds below 15m/s will not affect accuracy and noise levels, but will increase point cloud density.

7: Smart data collection and flight performance

DJI Zenmuse L3 has a suite of smart operating features to streamline data collection.

These include:

• Ortho collection: LiDAR mapping often utilises ortho collection, and the aircraft will collect data along Z-shaped flight paths. This ensures uniform coverage and consistent overlap across the survey area, minimising data gaps and improving the accuracy of orthophoto and LiDAR point cloud stitching.

• Oblique collection: L3 supports oblique collection of five directional flight paths, such as collecting building facade information. This helps to produce more complete and realistic digital assets.

• Altitude mode: If the terrain is undulating, the DJI Zenmuse L3 can utilise Terrain Follow mode. This automatically adjusts the drone's altitude to maintain a consistent height above the ground, even when the terrain changes. This ensures the drone flies at a consistent relative height to the ground, helping to maintain data accuracy and overlap.

• Efficiency mode: When enabled, this reduces the calibration at the turning points of the route to improve efficiency.

Why this matters: These intelligent flight modes make data collection faster, more accurate, and more complete. By automatically managing overlap, altitude, and flight direction, the L3 ensures uniform coverage, precise ground clearance, and detailed capture of vertical structures—delivering higher-quality LiDAR and imagery with less manual planning.

8: Integrated Workflow with DJI Terra & Modify

DJI Zenmuse L3 is compatible with DJI Terra and DJI Modify software to build a complete, end-to-end solution for laser point cloud data acquisition, high-precision data processing, and point cloud application analysis.

This creates a closed-loop workflow — from data collection to analysis — all within DJI’s ecosystem.

Utilise for 3D point clouds, orthophotos, 3D mesh models, 3D Gaussian Spatting models, point cloud analysis and classification, and terrain generation.

L3 can be used in conjunction with DJI FlightHub 2.

L3 data can also be imported into third-party software, such as Terrasolid.

Why this matters: This seamless integration between DJI Zenmuse L3, DJI Terra, and DJI Modify enables surveyors to complete every stage of the workflow — from LiDAR data capture to 3D visualisation — within one connected ecosystem. It streamlines post-processing, ensuring faster turnaround, consistent accuracy, and a suite of deliverables.

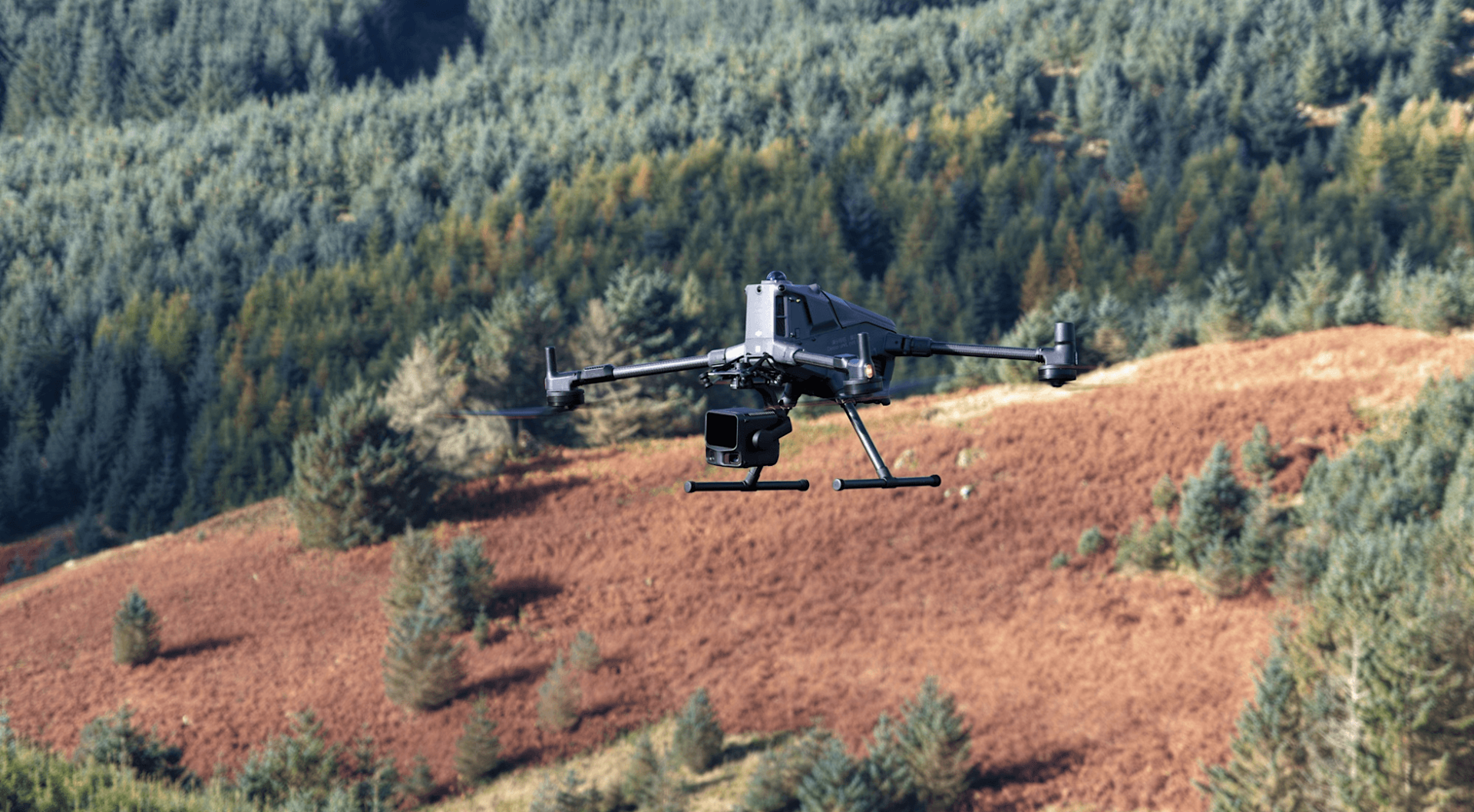

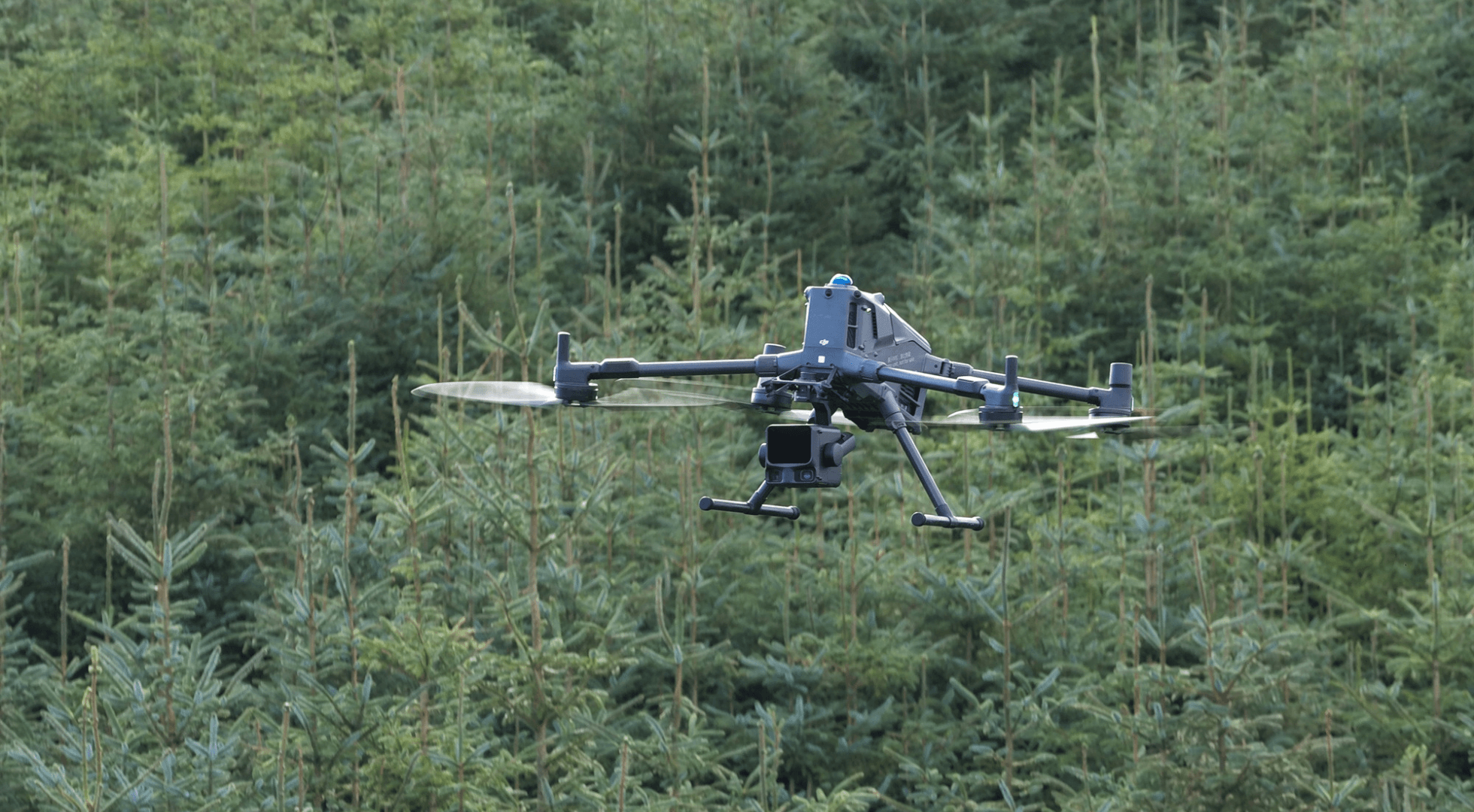

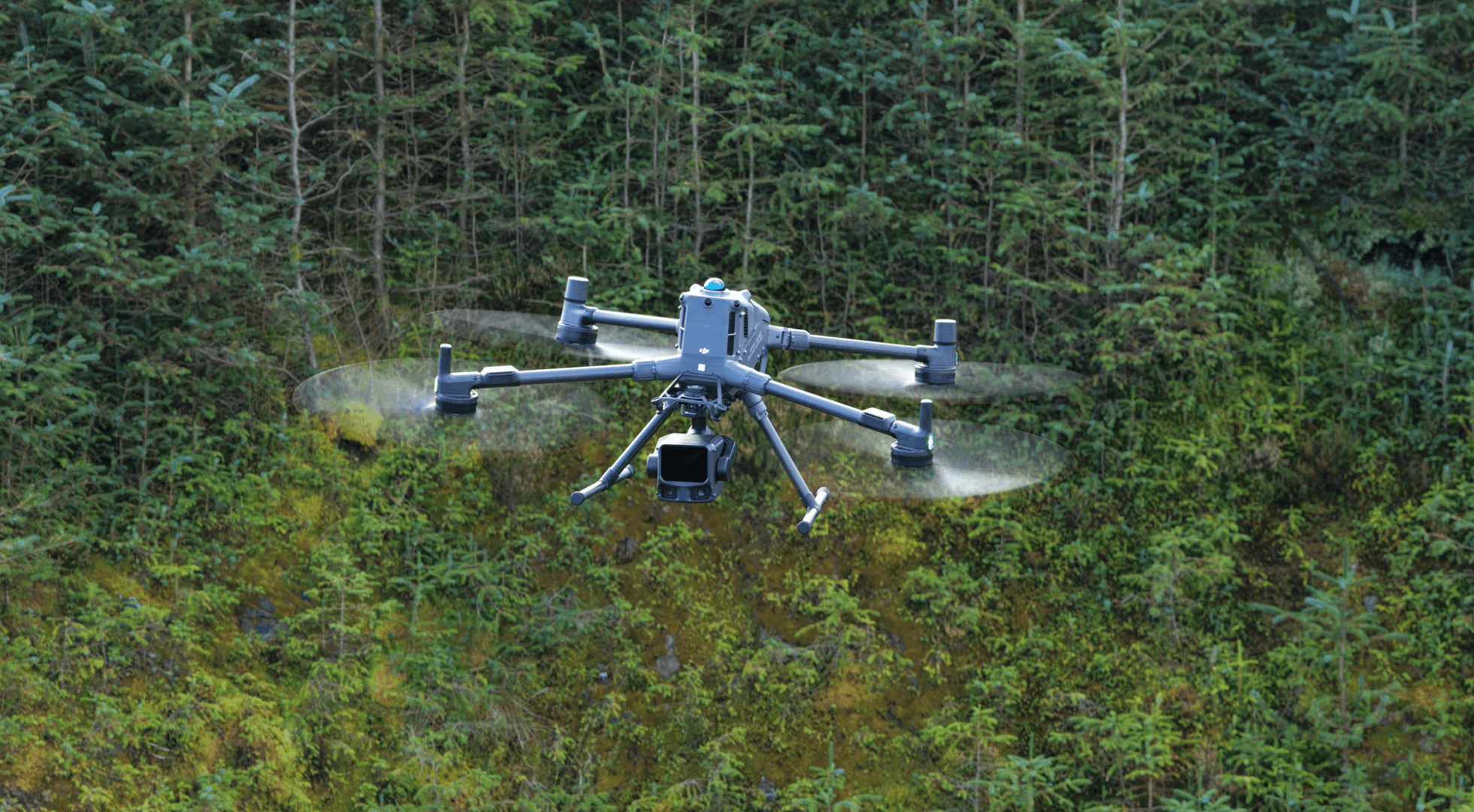

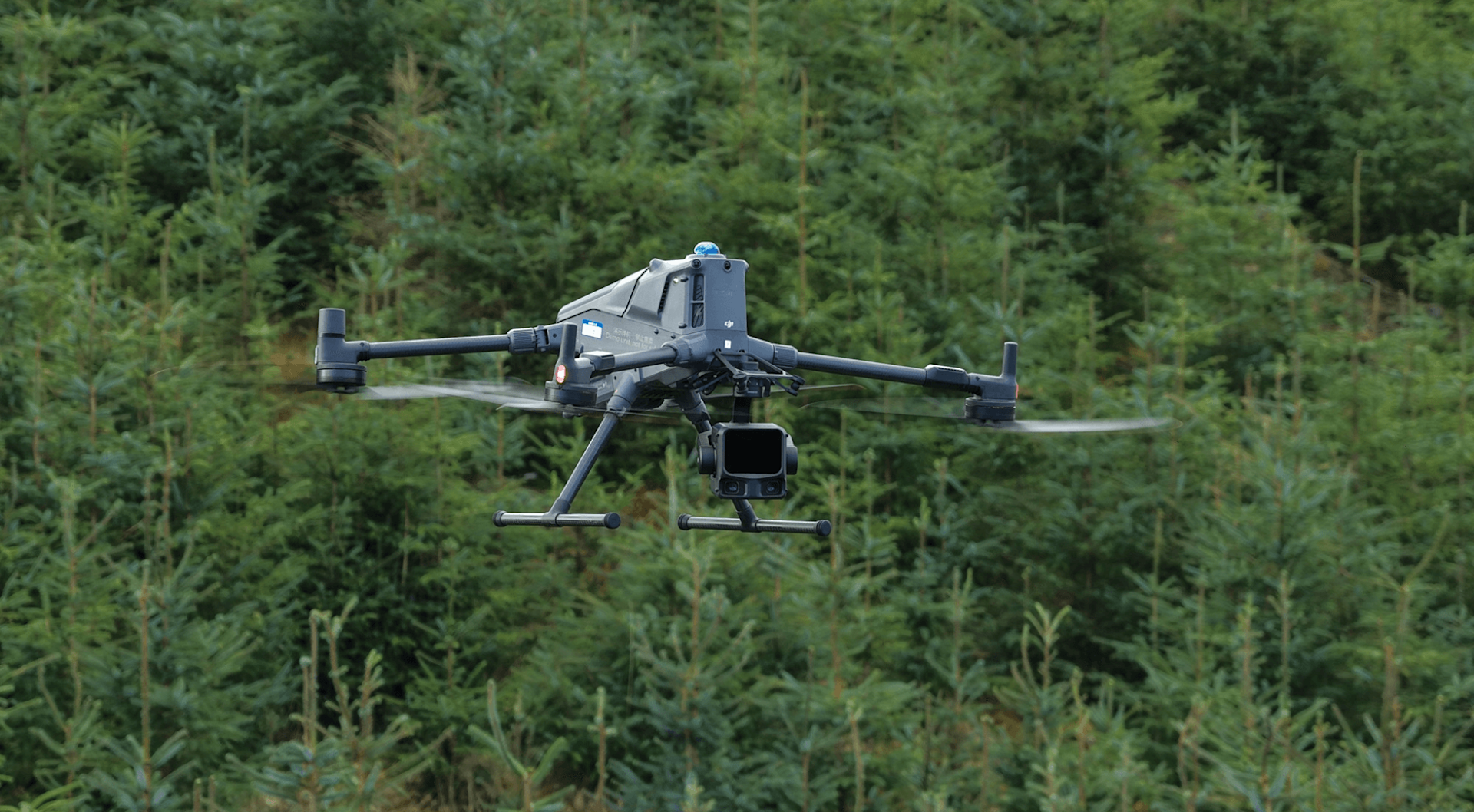

9: Designed for the DJI Matrice 400 ecosystem

DJI Zenmuse L3 is the first dedicated payload for the DJI M400.

It comes with a new pan-tilt bracket - included as a standard accessory with L3 - due to the increased weight of the payload.

Combined with high-precision three-axis stabilisation, the gimbal increases stability, including when flying at higher speeds.

The M400 is DJI's flagship enterprise drone platform, bringing advanced capabilities such as 59 minutes of flight time (depending on the payload), the ability to carry up to 6kg of weight, precise obstacle detection, and faster mapping with flight speeds of just shy of 56mph.

Why this matters: The DJI Zenmuse L3 is DJI's first dedicated payload exclusively for the DJI M400, and it offers an exciting glimpse into the future. With the M400's ability to carry large payloads, it means DJI can pack plenty into each new payload. The L3 sets the tone, and there is sure to be more to come!

FAQ: DJI Zenmuse L3 for drone surveying

Q: What’s the typical operating altitude of the L3?

A: 300–500 metres, supporting survey scales of 1:500 to 1:1000. When flying in the UK, operators must stick to the 120m flight limit - unless they have permission through UK SORA. heliguy™ has an in-house UK SORA consultancy and can help operators apply for extended permissions through UK SORA.

Q: How does the L3’s 16-return system help in real-world missions?

A: It captures multiple surface reflections from each laser pulse, improving data completeness beneath vegetation and in urban environments.

Q: Can the L3 integrate with DJI Terra and Modify?

A: Yes — both platforms support L3 data for point cloud reconstruction, analysis, and classification workflows.

How heliguy™ can help you start and scale with the DJI Zenmuse L3

As a world-leading DJI Enterprise partner, heliguy™ has an in-house drone survey team that offers hands-on support and training to help you maximise the potential of the L3 from day one.

Our experts can:

• Provide in-depth consultancy, including trials and demos, to streamline L3 integration.

• Assist with setup, calibration, and workflow.

• Provide DJI Terra and Modify training for advanced point cloud processing.

• Offer end-to-end support — from mission planning to data delivery.

Whether you’re upgrading from the L2 or entering LiDAR surveying for the first time, heliguy™ ensures you achieve accurate, efficient, and reliable results with the DJI Zenmuse L3.

Summary

The DJI Zenmuse L3 sets a new standard for professional drone LiDAR surveying — combining long-range capability, altitude efficiency, and multi-mode flexibility in one complete system.

With up to 16 returns, dual 100MP cameras, and precision at high altitudes, it delivers faster, deeper, and more accurate mapping than ever before.

For surveyors seeking a single payload that does it all — from vegetation to infrastructure — the L3 represents a new benchmark in drone LiDAR technology.
