DJI Zenmuse L3

£0.00

Tax included in UK & Shipping calculated at checkout

Pre-order now. Stock expected late November 2025.

  • 50-days return policy

  • Next-day delivery - order before 3 pm

Zenmuse L3 is DJI's first long-range, high-precision LiDAR payload, offering enhanced accuracy, penetration, and scanning range for more robust and efficient data collection.

  • Precision point clouds Compatible with the DJI M400, the L3 integrates high-performance LiDAR, dual 100MP tilt mapping cameras, and high-precision inertial navigation system.

  • In-house survey support Leverage end-to-end workflow support from our geospatial specialists, including best L3 data capture parametres and DJI Terra data processing.

  • Training and regulatory support Utilise our in-house training team and regulatory division to help you fly L3 legally and safely. Work with our UK SORA consultancy to apply for extended permissions to operate above 120m altitude, to maximise L3's high-altitude capabilities.

  • DJI Care Enterprise Basic: First year free Included as standard for the first year, DJI Enterprise Care Basic entitles you to two replacements.

  • Free DJI Terra processing DJI Terra enables free support for DJI Zenmuse L3 point cloud reconstruction.

DJI Zenmuse L3
DJI Zenmuse L3
DJI Zenmuse L3 Photo 2
DJI Zenmuse L3 Photo 3
DJI Zenmuse L3 Photo 4

DJI Zenmuse L3 key features

Powerful drone LiDAR payload

  • DJI's first long-range high-precision drone LiDAR payload.

  • Integrates high-performance LiDAR, dual 100MP mapping cameras, and high-precision inertial navigation system.

  • Designed to improve accuracy, penetration, and range of laser point clouds.

  • Compatible with DJI M400: Purpose-built commpatibility for high-efficiency and long-range survey missions.

  • Use with DJI Terra and DJI Modify software platforms for an end-to-end solution.

  • 3 scanning modes for mission versatility.

  • Up to 16 returns.

  • Adjustable scanning frequency (100-2000kHz).

  • Three-axis gimbal for enhanced stabilisation.

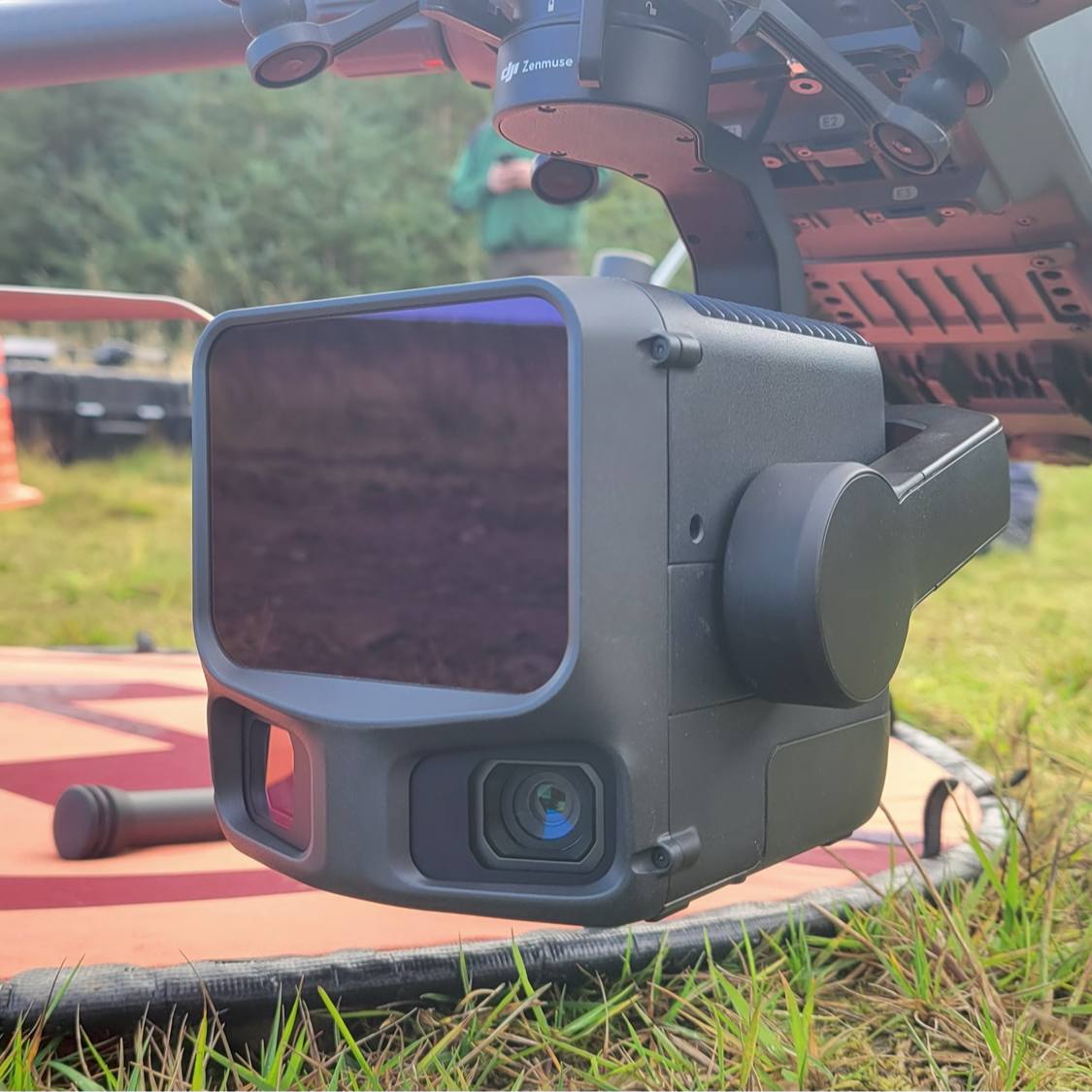

DJI Zenmuse L3.

Precise and accurate drone LiDAR payload

Elevate professional mapping tasks

  • 1535nm long-range LiDAR,

  • Vertical accuracy: Better than 3cm at 120m altitude, better than 5cm at 300m altitude, and 10cm at 500m altitude.

  • Laser beam divergence of 0.25 mrad (1/e²): Spot size one-fifth of Zenmuse L2, for detection of smaller objects.

  • Extended range up to 950 m under 100 kHz scanning frequency.

  • Adjustable scanning rates (100–2000 kHz) for flexible mission demands.

  • Up to 16 returns for enhanced penetration through dense vegetation.

  • Typical working altitude: 300–500m (supports 1:500–1:1000 mapping scale). Discuss UK SORA applications with our in-house regulatory specialists to explore flying higher than 120m.

  • Penetrates vegetation and captures complex terrain with minimal noise.

Three scanning modes for mission versatility

Flexible LiDAR capture for every terrain type

DJI Zenmuse L3 supports three scanning modes for different opertional scenarios.

  • Linear scanning: Achieves more consistent point cloud distribution, ideal for high-accuracy terrain mapping.

  • Star-shaped scanning: Balances accuracy with multiple scan angles and penetration capability, well-suited for forests or dense urban environments..

  • Non-repetitive scanning: Provides multiple scan angles and broader coverage, optimized for power line inspections and other complex structural surveys.

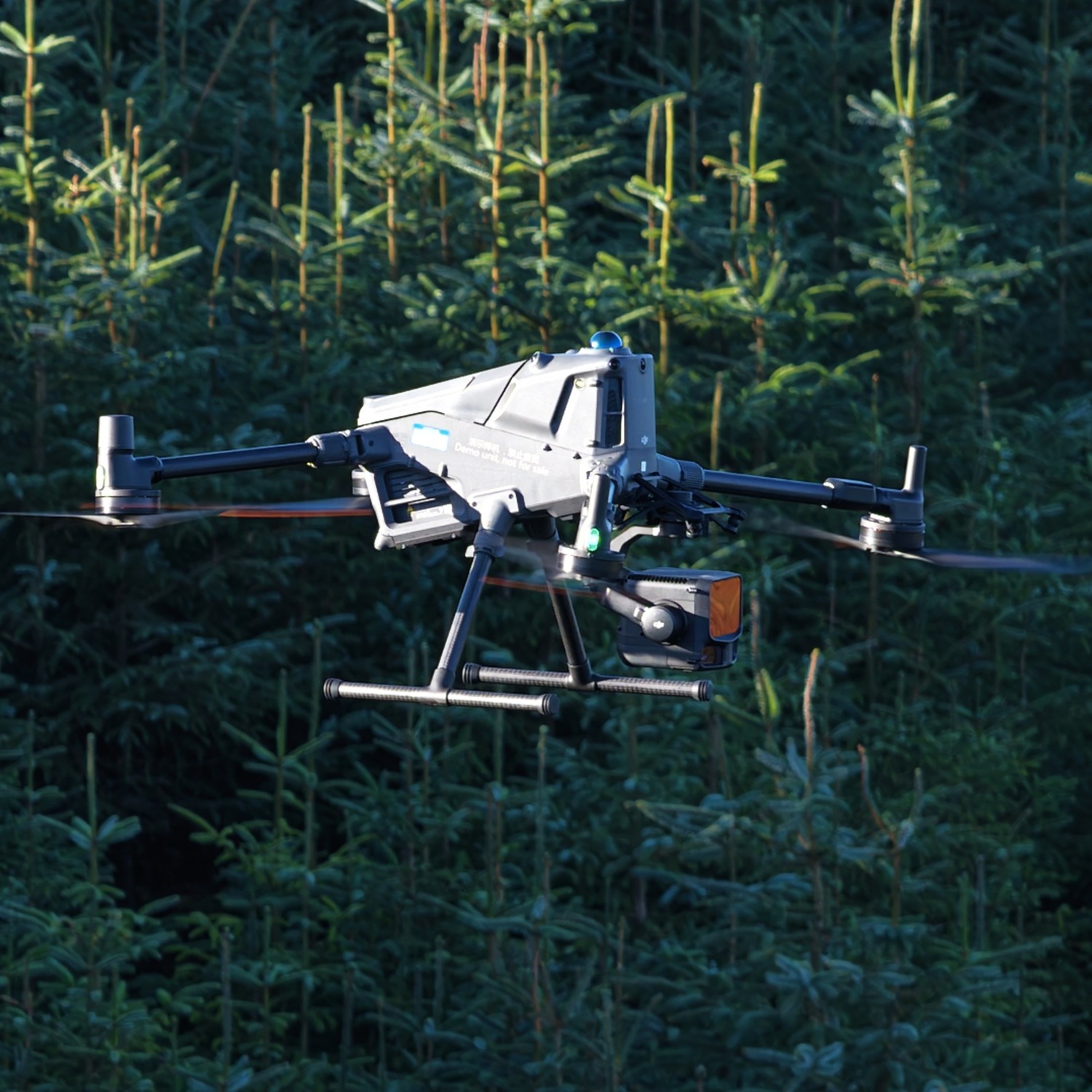

DJI Zenmuse L3.

Dual 100MP cameras for stunning visual details

Simultaneous LiDAR and RGB imaging for rich, accurate data

  • Two 4/3 CMOS 100MP cameras with mechanical shutter.

  • Pixel binning supports an effective 25MP resolution with large pixel size, supporting superior colour resolution, even in low-light environments.

  • Achieves a 3cm GSD at 300m altitude.

  • Real-time position synchronisation enables GCP-free operation.

  • Fastest continuous capture: 0.5 s (25 MP) / 1.2 s (100 MP).

  • Ultra-wide 107° horizontal FOV captures extensive ground coverage per flight.

  • Produce LiDAR point clouds and orthophotos in a single mission.

  • RGB camera enables the creation of true-colour point clouds.

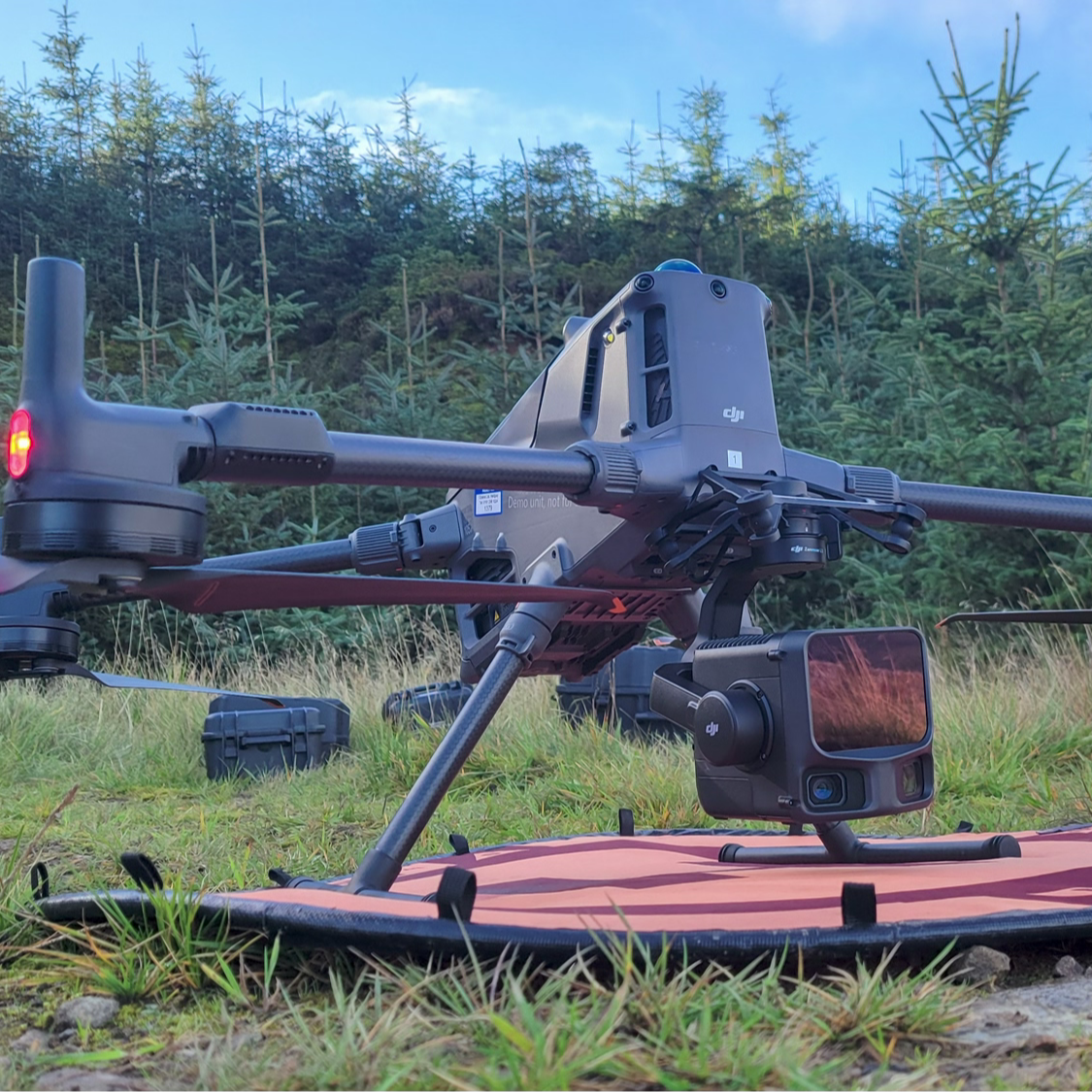

DJI Zenmuse L3 and DJI M400 drone.

Designed for performance and protection

Transform data collection

  • Compatible with DJI Matrice 400.

  • Dedicated gimbal mount for enhanced stabilisation - especially when mapping at quicker speeds.

  • Optimal flight speed: 15-17m/s recommended, or up to 25m/s for rapid mapping.

  • AGL terrain follow and efficiency modes enhance consistency and productivity.

DJI Zenmuse L3 and DJI M400.

Smart data collection

Streamlined surveying

  • Point cloud result preview: DJI Pilot 2 automatically recommends parameters based on user-defined routes and generates a Density Profile Chart and point cloud distribution.

  • Power Line Follow: Supports operations up to 130m. Complete electrical corridor data acquisition in a single straight flight in most scenarios.

  • Flexible split-screen view: View two data sources simultaneously - point cloud, RGB, or Vision Assist. During Power Line Follow or when RGB cameras face downward, Vision Assist provides real-time forward-facing visuals.

  • Real-time point cloud: Real-time point cloud SLAM reconstruction with instant 2D and 3D point cloud previews. Monitor progress and take measurements as data is being collected. Sync point clouds instantly to the cloud via DJI FlightHub 2.

  • Cloud-based point cloud measurement: Point clouds are compatible with DJI FlightHub 2. View and manage point cloud data, generate flight routes, annotate, and conduct measurements - all via the cloud.

DJI Zenmuse L3.

End-to-end mapping workflow with DJI Terra and Modify

Point cloud to 3D model in one ecosystem

  • End-to-end solution: Use L3 in conjunction with DJI Terra, DJI Modify, DJI FlightHub 2, and third-party software, including Terrasolid.

  • DJI Terra enables PPK data processing, Gaussian Splatting of point cloud and RGB data for enhanced realism, and fusion-based modelling to enable users to simultaneously generate accurate point clouds, 2D maps, and 3D mesh models.

  • DJI Terra offers free support for Zenmuse L3 point cloud reconstruction.

  • DJI Modify enables point cloud classification, point-cloud cross-section profiling, and the generation of outputs such as DEM, TIN, point grids, and contour lines.

  • Streamlined project management for surveyors and GIS professionals, and meets the needs of engineering and design CAD-related workflows.

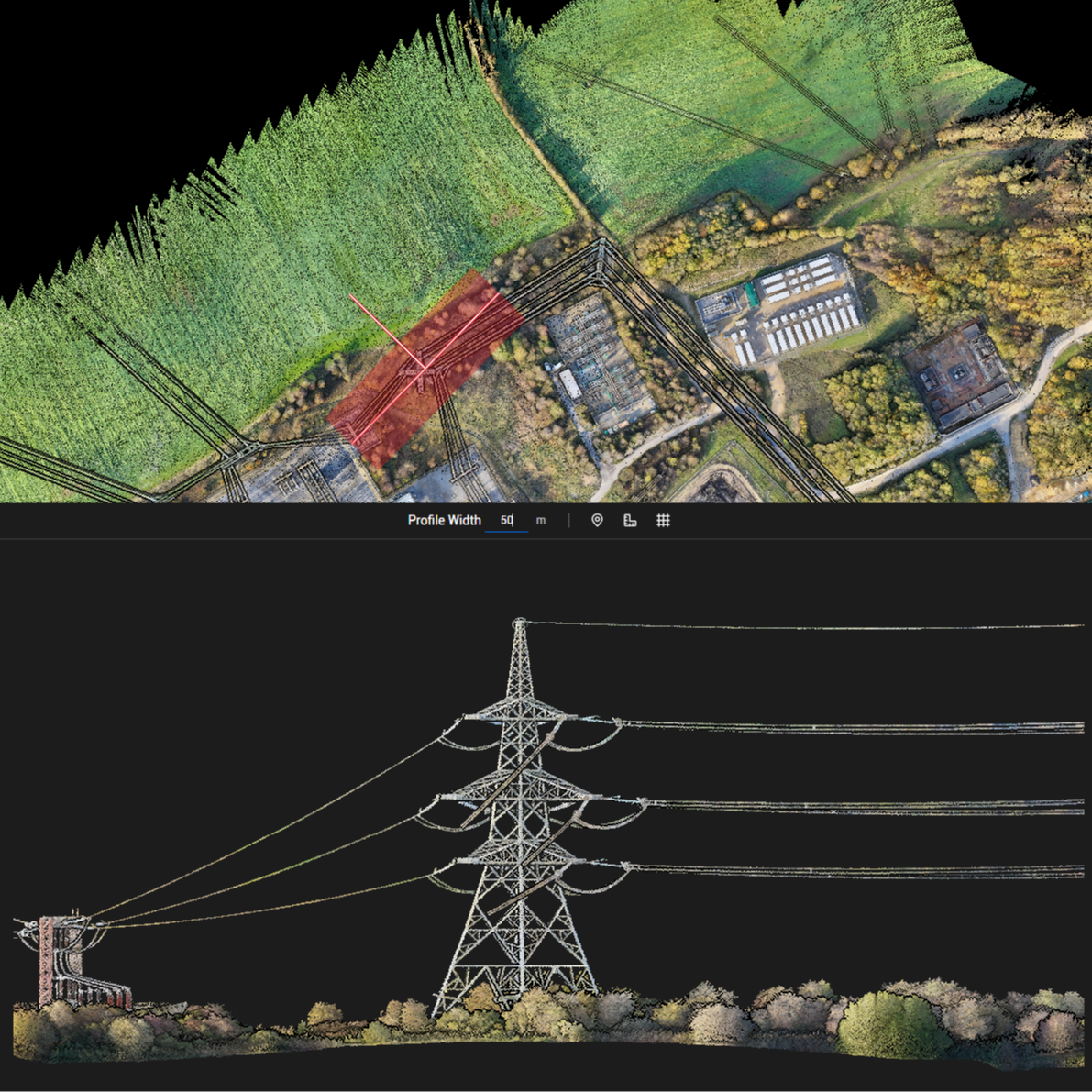

Use DJI Zenmuse L3 with DJI Terra and DJI Modify.

DJI Zenmuse L3: Applications and use cases

Built for professionals in every field

  • High-resolution terrain mapping and contour generation.

  • Urban and rural 3D modelling with exceptional structure clarity.

  • Forestry canopy analysis and vegetation penetration.

  • Construction and utility infrastructure surveys.

  • Suitable for power line, transport, and environmental monitoring projects.

  • Rapid 3D scene reconstruction for emergency response, accident investigation, and disaster management — delivering actionable intelligence from the air.

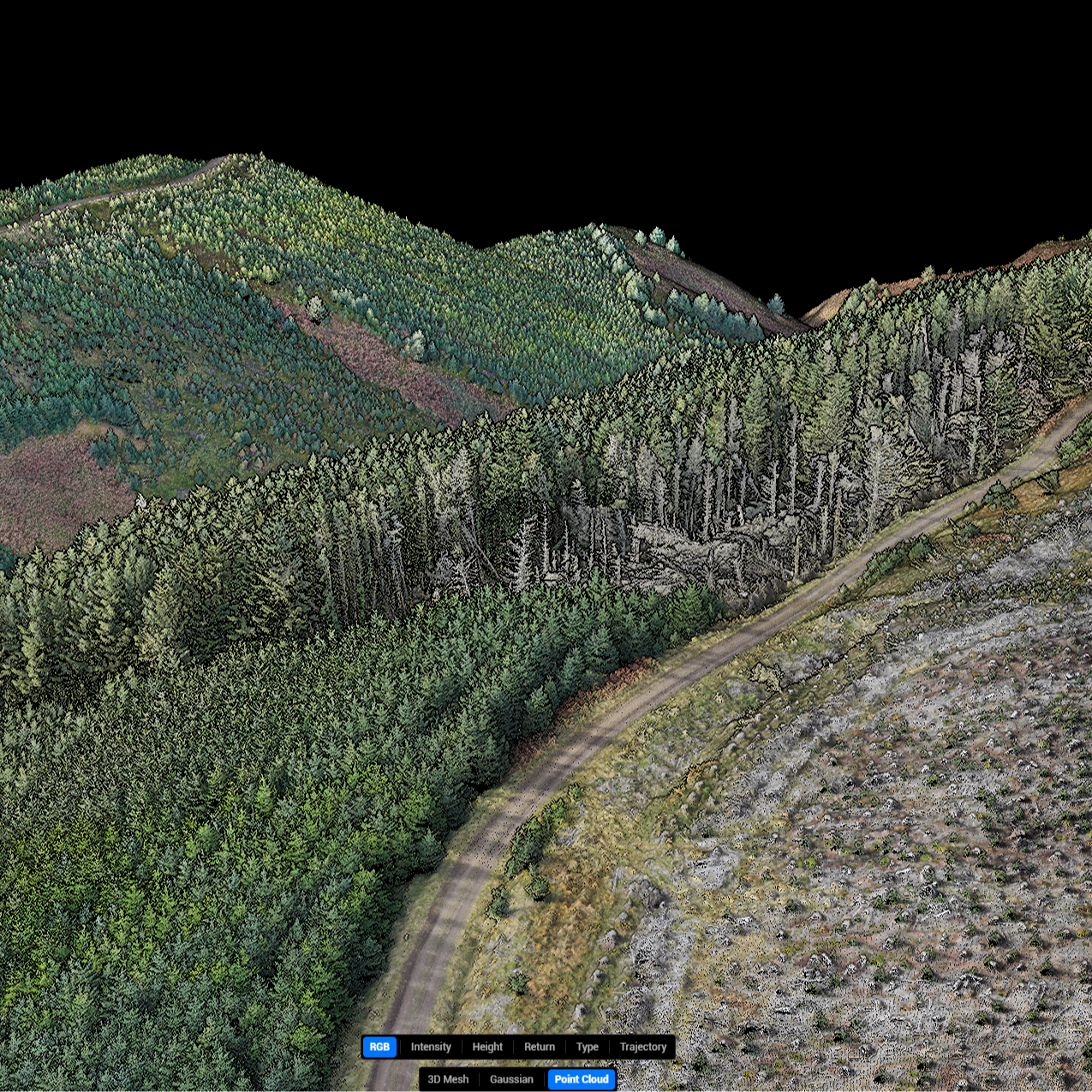

L3 dataset.
