DJI Launches Inspire 2 & Phantom 4 Pro
Everything you need to know about DJI's Inspire 2 and Phantom 4 Pro launch complete with images and the most up to date information available. ... Read More
What You Need to Know
Here's everything you need to know about these three awesome quadcopters:
DJI Inspire 2
The Inspire 2 is more powerful than its predecessor. It has a new magnesium-aluminium body which increases robustness while reducing weight. It has a top speed of 58mph (accelerating to 50mph in 5 secs), and its battery life is enough for 25mins of flight time. The Inspire 2 has a self-heating dual-battery system that can keep the drone flying even in frigid temperatures and can reach 16,400ft above sea level, although, there isn't much chance of that with current regulations.
What's most impressive though, is that the Inspire 2 is DJI's first drone to feature two cameras. There's the main camera for capturing footage, which is held underneath on a three-axis gimbal. The Inspire 2’s legs lift up just like the Inspire 1's, so they won’t get in the way of your footage, and it's free to rotate 360 degrees. In addition, there is also a front-mounted two-axis camera, allowing the pilot to always see where the drone is facing. The system is designed for dual operators: one to fly and one to frame the action, each with their own live video feed.

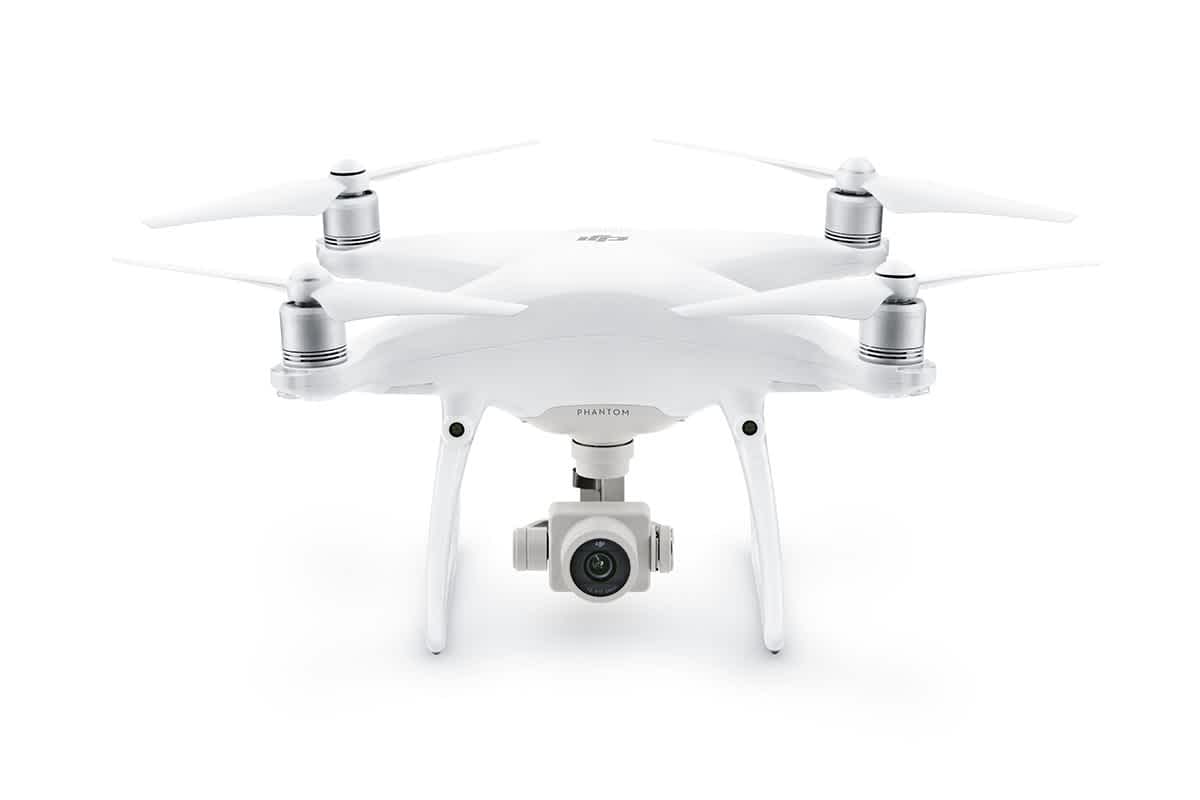

Phantom 4 Pro (and Pro+)
Key Features
See below for what we consider to be the key information from DJI's Inspire 2 / Phantom 4 Pro product launch. DJI Inspire 2
Flight time: 25-27mins
Control range: 7km
Speed: 30M/S
Video resolution 5.2K/4K
Sensory range: 30M
Live view: 1080p
DJI Phantom 4 Pro
1″ 20MP sensor capable of 4K/60fps & 14fps Stills
Mechanical Shutter
H.264 and H.265 Encoding
FlightAutonomy
Infrared sensing system
4.3mi/7km transmission range
30min flight time
'Draw' mode waypoint control
ActiveTrack settings include:
Trace
Profile
Spotlight
Phantom 4 Pro+
Included 5.5″ 1080p Display with 1000 cd/m2 brightness
Integration of display and DJI GO app reduces video lag
Built-in HDMI Port, microSD card slot, microphone, embedded loudspeaker and Wi-Fi connection allowing images to be edited and shared instantly
5-hour battery life
Videos
Here are the announcement videos for the Inspire 2 / Phantom 4 Pro.
Phantom 4 Pro
Inspire 2
Gallery
See below for a comprehensive Inspire 2 / Phantom 4 Pro gallery that will be added to as more images are released:
Specifications
Here are the full specifications for both the the Inspire 2 and Phantom 4 Pro.
Phantom 4 Pro
Read on for the specifications of the Phantom 4 Pro.
AIRCRAFT
#### Weight (Battery & Propellers Included) | 1388 g |
#### Diagonal Size (Propellers Excluded) | 350 mm |
#### Max Ascent Speed | S-mode: 6 m/s; P-mode: 5 m/s |
#### Max Descent Speed | S-mode: 4 m/s; P-mode: 3 m/s |
#### Max Speed | 45 mph (72 kph) (S-mode); 36 mph (58 kph) (A-mode); 31 mph (50 kph) (P-mode) |
#### Max Tilt Angle | 42° (S-mode); 35° (A-mode); 25° (P-mode) |
#### Max Angular Speed | 250°/s (S-mode); 150°/s (A-mode) |
#### Max Service Ceiling Above Sea Level | 19685 ft (6000 m) |
#### Max Flight Time | Approx. 30 minutes |
#### Operating Temperature | 32° to 104° F ( 0° to 40° C) |
#### Satellite Positioning Systems | GPS/GLONASS |
#### GPS Hover Accuracy Range | Vertical: ±0.1 m (With Vision Positioning); ±0.5 m (With GPS Positioning) Horizontal: ±0.3 m (With Vision Positioning); ±1.5 m (With GPS Positioning) |
VISION SYSTEM
#### Velocity Range | ≤31 mph (50 kph) at 6.6 ft (2 m) above ground |
#### Altitude Range | 0 – 33 ft (0 – 10 m) |
#### Operating Range | 0 – 33 ft (0 – 10 m) |
#### Obstacle Sensory Range | 2 – 98 ft (0.7 – 30 m) |
#### Field Of View | 60°(Horizontal), ±54°(Vertical) |
#### Detection Frequency | 10 Hz |
#### Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
CAMERA
#### Sensor | 1’’ CMOS; Effective pixels: 20M |
#### Lens Spec | FOV (Field of View) 84°, 8.8 mm / 24 mm (35 mm format equivalent), f/2.8 - f/11. auto focus at 1 m - ∞ |
#### ISO Range | Video: 100 - 3200 (Auto); 100 - 6400 (Manual) Photo: 100 - 3200 (Auto); 100- 12800 (Manual) |
#### Mechanical Shutter | 8 - 1/2000 s |
#### Electronic Shutter | 1/2000 - 1/8000 s |
#### Max Image Size | 3:2 Aspect Ratio: 5472 × 3648 4:3 Aspect Ratio: 4864 × 3648 16:9 Aspect Ratio: 5472 × 3078 |
#### PIV Image Size | ・4096 × 2160 (4096 × 2160 24/25/30/48/50p) ・3840 × 2160 (3840 × 2160 24/25/30/48/50/60p) ・2720 × 1530 (2720 × 1530 24/25/30/48/50/60p) ・1920 × 1080 (1920 × 1080 24/25/30/48/50/60/120p) ・1280 × 720 (1280 × 720 24/25/30/48/50/60/120p) |
#### Still Photography Modes | Single Shot Burst Shooting: 3/5/7/10/14 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV Bias Interval: 2/3/5/7/10/15/30/60 s |
#### Video Recording Modes | H.265 ・C4K:4096×2160 24/25/30p @100Mbps ・4K:3840×2160 24/25/30p @100Mbps ・2.7K:2720×1530 24/25/30p @65Mbps2720×1530 48/50/60p @80Mbps ・FHD:1920×1080 24/25/30p @50Mbps1920×1080 48/50/60p @65Mbps1920×1080 120p @100Mbps・HD: 1280×720 24/25/30p @25Mbps1280×720 48/50/60p @35Mbps1280×720 120p @60MbpsH.264 ・C4K:4096×2160 24/25/30/48/50/60p @100Mbps ・4K:3840×2160 24/25/30/48/50/60p @100Mbps ・2.7K:2720×1530 24/25/30p @80Mbps2720×1530 48/50/60p @100Mbps ・FHD:1920×1080 24/25/30p @60Mbps1920×1080 48/50/60 @80Mbps 1920×1080 120p @100Mbps ・HD: 1280×720 24/25/30p @30Mbps 1280×720 48/50/60p @45Mbps 1280×720 120p @80Mbps |
#### Video Storage Bitrate | 100 Mbps |
#### Supported File Systems | FAT32 (≤ 32 GB); exFAT (> 32 GB) |
#### Photo | JPEG, DNG (RAW), JPEG + DNG |
#### Video | MP4/MOV (AVC/H.264;HEVC/H.265) |
#### Supported SD Cards | Micro SD, Max Capacity: 128GB. Write speed ≥15MB/s, class 10 or UHS-1 rating required |
#### Operating Temperature | 32° to 104° F (0° to 40° C) |
CHARGER
#### Voltage | 17.4 V |
#### Rated Power | 100 W |
GIMBAL
#### Stabilization | 3-axis (pitch, roll, yaw) |
#### Controllable Range | Pitch: -90° to +30° |
#### Max Controllable Angular Speed | Pitch: 90°/s |
#### Angular Control Accuracy | ±0.01° |
INFRARED SENSING SYSTEM
#### Obstacle Sensory Range | 0.6 – 23 ft (0.2 – 7 m) |
#### Field Of View | 70° (Horizontal), ±10° (Vertical) |
#### Detection Frequency | 10 Hz |
#### Operating Environment | Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.) |
REMOTE CONTROLLER
#### Operating Frequency | 2.400 - 2.483 GHz and 5.725 - 5.825 GHz |
#### Max Transmission Distance | 2.400 GHz - 2.483 GHz(Unobstruoted, free of interference) FCC: 4.3mi (7km); CE: 2.2mi (3.5km); SRRC: 2.5mi (4 km) 5.725 GHz - 5.825 GHz(Unobstruoted, free of interference) FCC: 4.3mi (7km); CE: 1.2mi (2 km); SRRC: 2.5mi (4 km) |
#### Operating Temperature | 32° to 104° F (0° to 40° C) |
#### Battery | 6000mAh LiPo 2S |
#### Transmitter Power (EIRP) | 2.400 GHz - 2.483 GHz FCC: 26 dBm; CE: 17 dBm; SRRC: 20 dBm 5.725 GHz - 5.825 GHz FCC: 28 dBm; CE: 14 dBm; SRRC: 20 dBm |
#### Operating Voltage | 1.2 A @7.4 V |
#### Video Output Port | GL300E: HDMI,USB GL300F: USB |
#### Mobile Device Holder | GL300E:Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4G RAM+16G ROM) GL300F:Tablets and smart phones |
INTELLIGENT FLIGHT BATTERY
#### Model | PH4-5870MAH-15.2V |
#### Capacity | 5870 mAh |
#### Voltage | 15.2 V |
#### Battery Type | LiPo 4S |
#### Energy | 89.2 Wh |
#### Net Weight | 468 g |
#### Charging Temperature Range | 14° to 104° F (-10° to 40° C) |
#### Max Charging Power | 100 W |
Inspire 2
Read on for the specifications of the Inspire 2.
AIRCRAFT
#### Model | T650. |
#### Weight | 7.25 lbs (3290 g, including two batteries, without gimbal and camera) |
#### Diagonal Distance(propeller excluded) | 18 inch (605 mm, Landing Mode) |
#### Max Takeoff Weight | 8.82 lbs (4000 g) |
#### Max Takeoff Sea Level | 1.55 mi (2500 m); 3.1 mi (5000 m with specially-designed propeller) |
#### Max Flight Time | Approx. 27 min (with Zenmuse X4S) |
#### Max Tilt Angle | P-mode: 35° (Forward Vision System enabled: 25°); A-mode: 35°; S-mode: 40° |
#### Max Ascent Speed | P-mode/A-mode: 16.4 ft/s (5 m/s); S-mode: 19.7 ft/s (6 m/s) |
#### Max Descent Speed | Vertical: 13.1 ft/s (4 m/s); Tilt: 13.1-29.5 ft/s (4-9 m/s) Default tilt is 13.1 ft/s (4 m/s), can be set in-app. |
#### Max Speed | 58 mph |
#### GPS Hovering Accuracy | Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled) Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled) |
#### Operating Temperature | 14° to 104° F (-10° to 40° C) |
DOWNWARD VISION SYSTEM
#### Velocity Range | <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m) |
#### Altitude Range | <32.8 feet (10 m) |
#### Operating Range | <32.8 feet (10 m) |
#### Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
#### Ultrasonic Sensor Operating Range | 0.33-16.4 feet (10-500 cm) |
#### Ultrasonic Sensor Operating Environment | Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance) |
UPWARD INFRARED SENSOR
#### Obstacle Sensing Range | 0-16.4 feet (0-5 m) |
#### Field Of View | ±5° . |
#### Operating Environment | Large-size non-reflective obstacles |
CHARGER
#### Mode. | IN2C180 |
#### Voltage | 26.1 V |
#### Rated Power | 180 W |
CHARGING HUB
#### Mode. | IN2CH |
#### Input Voltage | 26.1 V |
#### Input Current | 6.9 A |
GIMBAL
#### Angular Vibration Range | ±0.01° |
#### Controllable Range | Pitch: -130° to+40°; Roll: ±20°; Pan: ±320° |
#### Max Controllable Speed | Pitch: 90°/s; Roll: 90°/s; Pan: 90°/s |
FORWARD VISION SYSTEM
#### Obstacle Sensing Range | 2.3-98.4 feet (0.7-30 m) |
#### Field Of View | Horizontal: 60°; Vertical: 54° |
#### Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
REMOTE CONTROLLER
#### Operating Frequency | 2.400-2.483 GHz; 5.725-5.850 GHz |
#### Max Transmitting Distance | 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) (unobstructed, free of interference) 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC) |
#### EIRP. | 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC) |
#### Battery | 6000mAh 2S LiPo |
#### Output Power | 9 W (Not supply power for mobile device) |
#### USB Supply Power | iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max) |
#### Operating Temperature | 14° to 104° F (-10° to 40° C) |
INTELLIGENT FLIGHT BATTERY
#### Mode. | TB50-4280MAH-22.8V |
#### Capacity | 4280 mAh |
#### Voltage | 22.8 V |
#### Battery Type | LiPo 6S |
#### Energy | 97.58 Wh |
#### Net Weight | 515 g |
#### Charging Temperature | 41° to 104° F (5° to 40° C) |
#### Operating Temperature | 14° to 104° F (-10° to 40° C) |
#### Max Charging Power | 180 W |
Order Yours Today
Get your DJI Inspire 2 / DJI Phantom 4 Pro from Heliguy today by following the product links below or, if you'd like to discuss these new quadcopters further, you can get in touch with us via email (info@heliguy.com) or telephone (0191 296 1024).
...
...
Keep checking back to Heliguy's Insider blog for more of the latest DJI product news and to find out what's going on in the drone industry.
