DJI Mavic 4 Pro: First Use Tutorial with RC 2

This support guide covers:

• Setting up the DJI Mavic 4 Pro, including battery checks and unfolding the drone

• Powering on the aircraft and DJI RC 2, and connecting to Wi-Fi

• Activating the drone via the DJI Fly app and updating firmware

• Performing pre-flight safety checks, takeoff, landing, and basic flight controls

• Using the camera, switching shooting modes, and operating Return to Home functions

This guide will help you get started with your DJI Mavic 4 Pro, using the RC 2. Follow the steps to unpack, activate, and fly your drone safely and correctly for the first time.

Instructions

1. Preparing the aircraft

• Unfasten the strap and remove the gimbal protector.

• Press the power button to activate the aircraft battery and check the battery level.

• The aircraft has internal storage and supports a microSD card for extended storage.

• Use the USB-C port on the aircraft for charging.

2. Unfolding and powering on

• Unfold the arms.

• When the right rear arm is unfolded, the aircraft powers on automatically.

• You can also press the power button once, then press and hold it for about two seconds to turn the aircraft on.

3. Remote controller setup

• Unfold the antennas.

• Remove the control sticks from the storage slots and mount them.

• Press the power button once, then press and hold for about two seconds to turn the remote controller on.

• Follow the on-screen prompts to complete settings.

• Connect the remote controller to Wi-Fi and set the time zone, date, and time.

• Log in with a DJI account. New users must register before logging in.

4. Activating the aircraft

• After logging in, tap Start to go through the function guide.

• The aircraft must be activated through DJI Fly for first use. Internet connection is required.

• Launch DJI Fly and follow the instructions to activate the aircraft.

• After activation, the aircraft is automatically bound to the remote controller.

6. Firmware update

• A prompt will appear if a firmware update is available.

• Tap the prompt to enter the update screen and tap Update to install the latest firmware.

• Do not power off the aircraft or exit DJI Fly during the update.

• After updating, the aircraft powers off automatically.

7. Preparing for flight

• Fly in an open, unobstructed area.

• Ensure propellers and battery are securely installed.

• Place the aircraft on level ground with the rear facing you.

• Set the flight mode switch to Normal mode.

• Launch DJI Fly and open System Settings > Safety.

• Set Obstacle Avoidance Action to Bypass or Brake.

• Set RTH height higher than the tallest nearby object.

• Ensure the GNSS status icon is white before takeoff.

8. Takeoff and landing

Auto takeoff:

• Tap the Takeoff icon on the left.

• Press and hold the prompt to enable Auto Takeoff.

• The aircraft takes off and hovers.

Auto landing:

• Tap the Landing icon.

• Press and hold the prompt to land and stop the motors.

Manual takeoff:

• Push both sticks inward or outward simultaneously to start motors.

• Gently push the left stick up to take off.

Manual landing:

• Pull the left stick down to land.

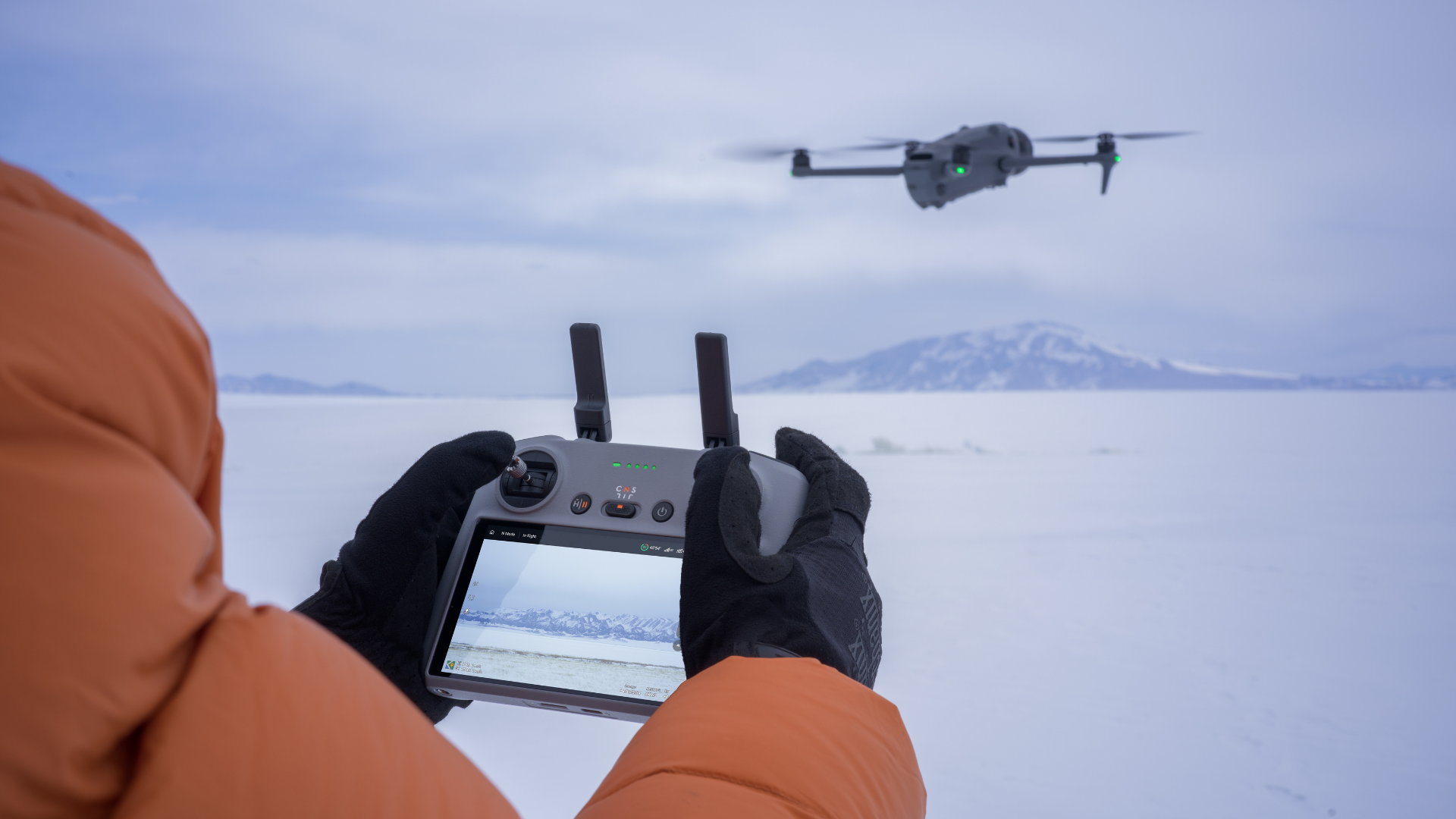

9. Flight controls

• Left Stick (up/down): Ascend / Descend.

• Left Stick (left/right): Rotate aircraft.

• Right Stick (up/down): Fly forward / backward.

• Right Stick (left/right): Fly left / right.

• Maintain a good signal by adjusting the controller's position relative to the aircraft.

10. Camera controls

• Press the Focus/Shutter button halfway to auto-focus, press fully to take a photo.

• Press the Record button once to start or stop recording.

• Use the left dial to tilt the gimbal.

• Use the right dial to zoom in or out.

• Tap the camera icon in the app to switch between manual and auto modes.

• Use the parameter menu to adjust camera settings.

• Tap: 2.5X for medium telephoto, 6X for telephoto, 1X for wide angle.

• Tap the portrait icon to switch to vertical shooting mode.

• Tap the playback icon to view or download footage.

11. Return to Home (RTH)

• Press and hold the RTH button on the controller, or

• Tap the RTH icon in the app and hold the confirmation prompt.

• The aircraft will fly back and land at the last recorded home point.

12. Powering off and packing up

• Press and hold the power button for two seconds to power off both the aircraft and the remote controller.

• Fold the arms and propellers.

• Reinstall the gimbal protector and strap it securely.

• Fold the antennas.

• Unscrew and store the control sticks in the slots on the back of the controller.

Drone cover

If you haven't already purchased drone insurance, we recommend heliguy™ Repair Refresh.

It covers accidental damage and maintenance for 12 months, includes free UK shipping, one-off repair or replacement, and UK-based support.

It’s up to 45% cheaper than DJI Care Refresh, with cover ending after your first successful claim. Purchase within 7 days of receiving your drone and choose the option that matches your Mavic 4 Pro package.

Mavic 4 Pro Repair Refresh options:

1. Mavic 4 Pro

2. Mavic 4 Pro Fly More Combo (RC 2)

3. Mavic 4 Pro Creator Combo

Summary

This guide has walked you through the essential steps to set up, activate, and operate your DJI Mavic 4 Pro and RC 2.

From powering on the drone and controller to performing safe takeoff, flight, and landing, you now have the knowledge to begin flying confidently.

Always follow safety checks and keep your firmware up to date for the best experience.
