DJI Mavic 4 Pro: Propeller and Guard Installation Guide

Step-by-step instructions for fitting and removing propellers and guards on the DJI Mavic 4 Pro safely and correctly.

In this guide, you'll learn how to:

  • Remove and replace propellers using the locking mechanism

  • Match and install propellers with the correct motor markings

  • Power off the aircraft and correctly attach left and right propeller guards

  • Confirm installation through prompts in the DJI Fly app

  • Safely remove the propeller guards after use

Removing the propellers

  • Firmly press the propeller cap down.

  • Rotate the propeller to unlock and remove the old blades.

Installing new propellers

  • Match the colour markings on the propellers with the corresponding motors.

  • Insert each propeller and press it down firmly.

  • Rotate to lock it into place.

  • Ensure all arms are unfolded before flight.

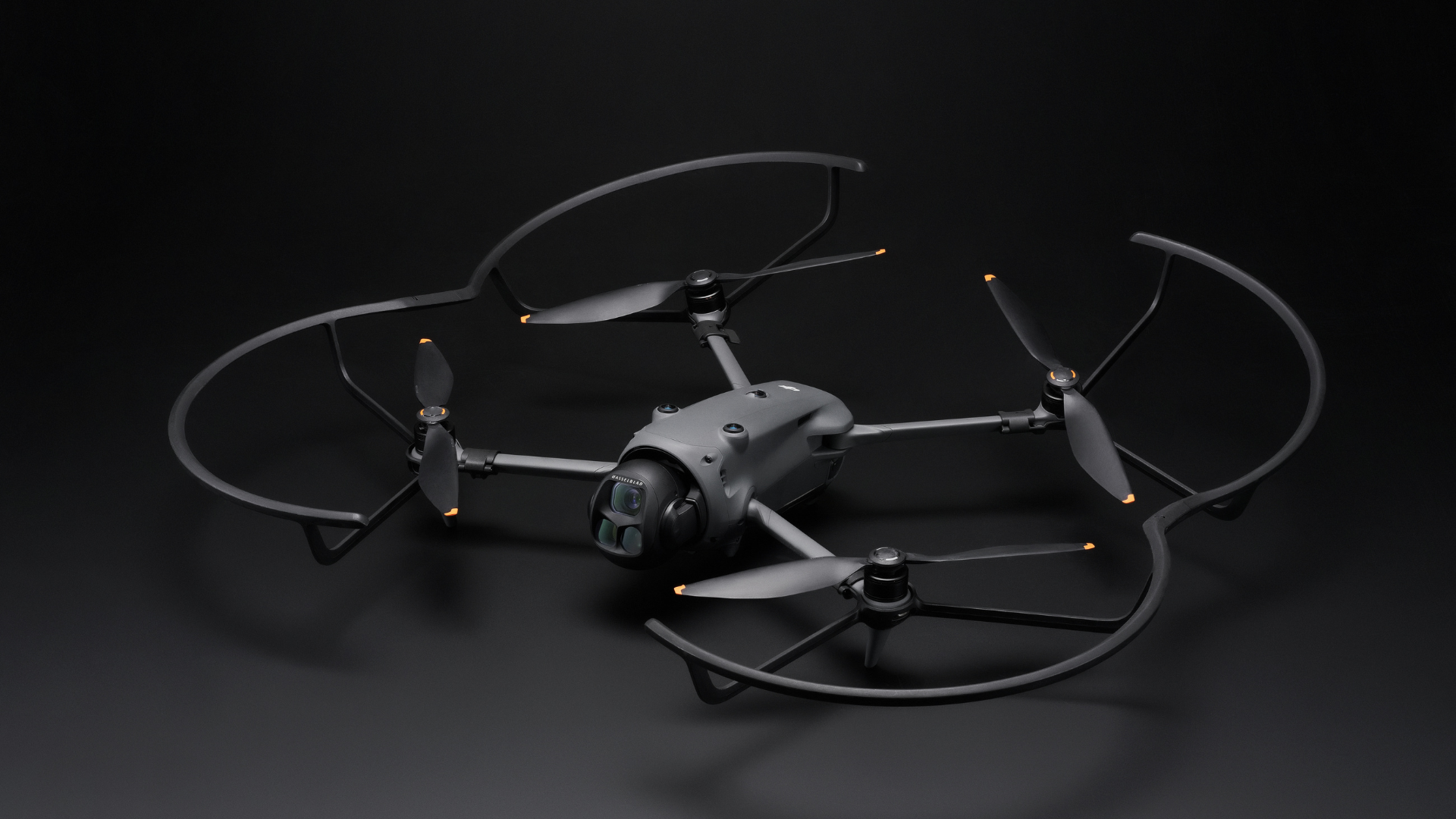

Propeller guard installation

  • Power off the aircraft before starting.

  • Identify the correct guards: LF and LB for the left side, and RF and RB for the right side.

  • Release the locks on the guards.

  • Attach the left-side guards under the front and rear arms.

  • Close the locks until you hear a click to confirm they’re secure.

  • Repeat for the right side using the matching guards.

System detection and flight

  • After installation, hover the aircraft.

  • A prompt will appear in the DJI Fly app confirming the propeller guards have been detected.

  • Once confirmed, the aircraft is ready to fly.

Removing the propeller guards

  • Open the lock on the propeller guard.

  • Press the buckle and separate the front and rear sections to detach the guards.

Summary

From matching propellers to motors to securing the guards with a click-lock system, these steps help ensure stable flight and proper detection in the DJI Fly app.

Always follow the setup process before takeoff and remove the guards carefully after use.
