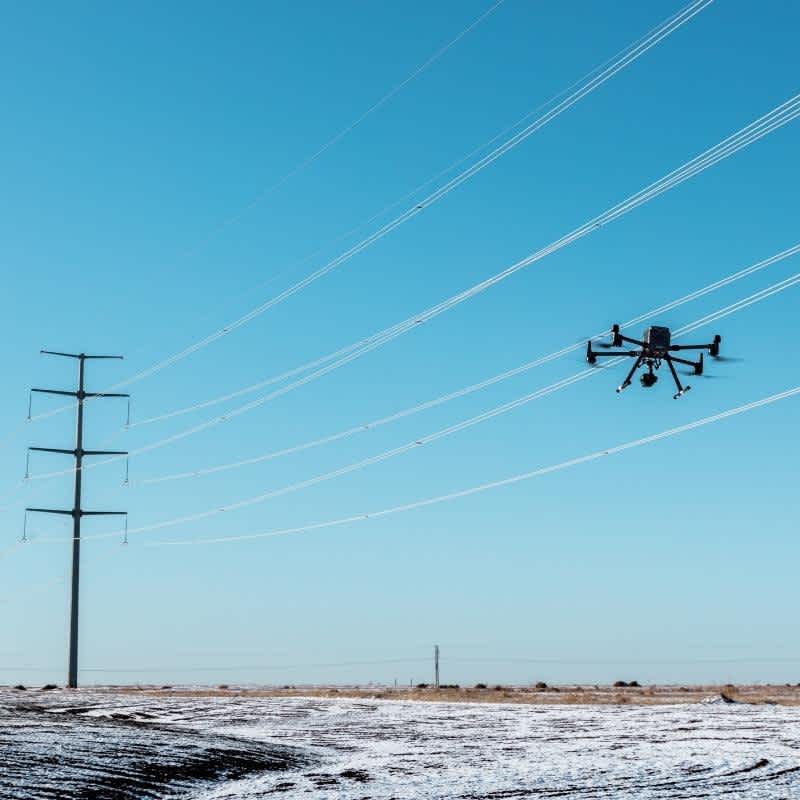

Matrice 300 RTK: Smart Inspection Set Waypoints and Live Mission Recording

The sophisticated M300 RTK has been built to maximise efficiency and provide accurate data capture. That's why DJI has integrated Smart Inspections to optimise your missions.

With the Set Waypoint and Live Mission Recording Smart Inspection options you'll be creating reliable data every flight.

Flightpath planning is also optimised to maximise flexibility and efficiency for your missions.

In this fast Heliguy™ tutorial you'll learn how to conduct Smart Inspections using the Set Waypoint and Live Mission Recording DJI M300 RTK features.

1. Start DJI Pilot App




2. Tap Mission Flight




3. Select Create a Route (Set Waypoint Tutorial)




   • Tap Waypoint




   • Choose Set a Waypoint




   • Set Your Waypoints


     Tap the on screen display to plan or set your waypoints on the map.


4. Select Create a Route (Live Mission Recording Tutorial)




   • Tap Waypoint




   • Choose Live Mission Record




   • Fly Aircraft Manually to Set Waypoints



     This is similar to the above way of settings waypoints but this is conducted by manually flying the aircraft to each location.


5. Each Waypoint Conducts Flight Action



   Each waypoint has an opportunity to carry out a specific action. This includes actions such as taking a photo, gimbal zoom, timed interval shots or recording video.


6. Edit Flight Functions and Actions




   Land your DJI M300 RTK to edit camera and aircraft functions . To select a specific action or function for each waypoint go into the Payload Actions menu and select the ones you want.


7. Press Start Function



   After successfully uploading your flight actions and functions you can now start the flight. The DJI M300 RTK will now carry out all selected pre-flight waypoint actions you've selected.

Once you've conducted the flight you can now save the waypoints for a later mission. The DJI M300 RTK will save the flight information which enables you to conduct reliable missions every time.
