Question 1

Which aircraft and docks are compatible with DJI O4 Ground Station?

Accepted Answer

Depending on the mode, the DJI O4 Ground Station is compatible with numerous DJI Enterprise drones. Gateway Mode: DJI Dock 3. Relay Mode*: DJI Dock 3, Matrice 400, Matrice 4E, Matrice 4T, Matrice 4D/4TD (DJI RC Plus 2 Enterprise), and FlyCart 100. *This feature is unavailable in countries or regions without 5GHz frequency support, such as Japan and Kazakhstan. Check local laws and regulations for more information.

Question 2

What operating modes does DJI O4 Ground Station support, and what are their use cases?

Accepted Answer

DJI O4 Ground Station supports Gateway Mode and Relay Mode. 1. Gateway Mode: DJI O4 Ground Station connects to DJI FlightHub 2* via Ethernet or the DJI Cellular Dongle 2**. Aircraft operating with DJI Dock 3 can use the ground station as a relay for extended-range video transmission. 2. Relay Mode***: No internet connection required. DJI O4 Ground Station can be positioned at an elevated location to serve as a communication relay for aircraft, working in conjunction with a remote controller or dock to overcome signal obstructions.Please observe local laws and regulations when performing relay flights. * In Gateway Mode, DJI O4 Ground Station connects via Ethernet or the DJI Cellular Dongle 2 to the DJI FlightHub 2 public cloud, FlightHub 2 On-Premises, FlightHub 2 AIO, and third-party software systems developed via Cloud API or FlightHub Sync. ** Sold separately. 4G Enhanced Transmission is not available in some countries and regions. Please consult your local dealer for details. *** This feature is unavailable in countries or regions without 5GHz frequency support, such as Japan and Kazakhstan. Check local laws and regulations for more information.

Question 3

How many aircraft can DJI O4 Ground Station connect to simultaneously?

Accepted Answer

1. Relay Mode: Only one aircraft can be connected at a time. Compatible remote controllers or docks* within a 1 km radius can connect via Remote Access, enabling multiple devices to share a single ground station sequentially. 2. Gateway Mode: Only one aircraft can be connected at a time. DJI Dock 3 units and their aircraft within the same organisation can connect to the ground station at different times, enabling sequential multi-device operation. *DJI Dock 3, the aircraft, and the remote controller must all be updated to firmware version V13.01.00.04 or later, and linked via Remote Access.

Question 4

How does DJI O4 Ground Station differ from the D-RTK 3 Relay Fixed Deployment Version?

Accepted Answer

DJI O4 Ground Station has numerous differences compared to the D-RTK 3 Relay Fixed Deployment Version, including differences in operating modes, video transmission frequencies, and other features. 1. Operating Modes: The D-RTK 3 Relay Fixed Deployment Version only supports relay station mode and is mainly used for fixed deployment of DJI Dock 3. DJI O4 Ground Station supports both Gateway Mode and Relay Mode and is compatible with DJI Dock 3 and multiple aircraft models*. 2. Video Transmission Frequencies: D-RTK 3 Relay Fixed Deployment Version supports 2.4 GHz, 5.2 GHz, and 5.8 GHz. DJI O4 Ground Station adds sub2G band support**. 3. Additional Features: DJI O4 Ground Station supports a smart low-power mode. When no aircraft is connected, standby power consumption is as low as 7 W***. It also supports connectivity with standard IP cameras (ONVIF and GB/T 28181 protocols) and third-party devices developed based on the ESDK 2.0. *Gateway Mode is compatible with DJI Dock 3. Relay Mode is compatible with DJI Dock 3, Matrice 400, Matrice 4E, Matrice 4T, Matrice 4D/4TD (DJI RC Plus 2 Enterprise), and FlyCart 100. Relay Mode is unavailable in certain countries or regions; check local laws and regulations for more information. ** Sub2G band support and multi-band auto-switching are only available when using DJI O4 Ground Station with Matrice 400. These features are not available in certain countries or regions. Check local laws and regulations for more information. *** 7 W refers to the power consumption of DJI O4 Ground Station only. When powered via PoE++, the actual total power draw, including that of the power supply itself, will be higher.

Question 5

Does DJI O4 Ground Station support RTK positioning for aircraft?

Accepted Answer

Yes, the DJI O4 Ground Station supports RTK positioning for aircraft. In both Gateway Mode and Relay Mode, after position calibration, the ground station can provide RTK reference data to connected aircraft.

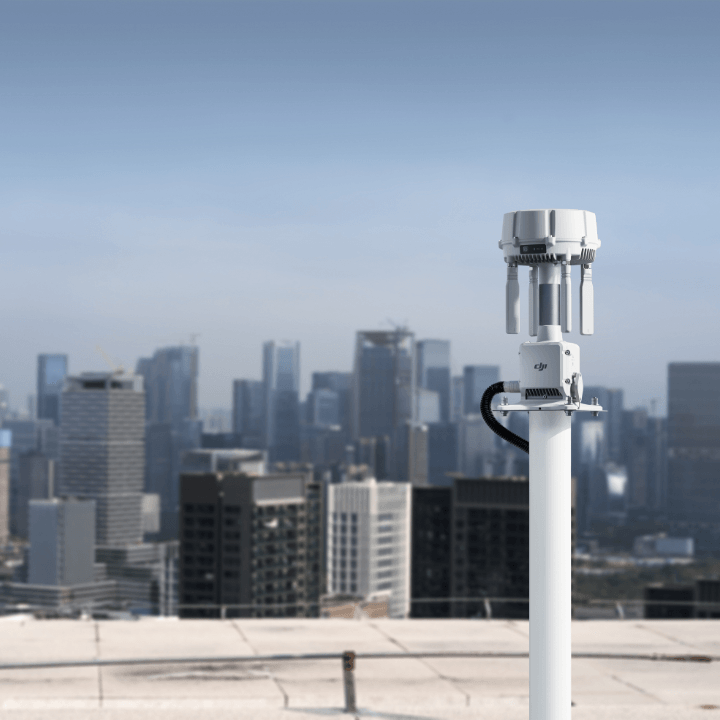

DJI O4 Ground Station

50-days return policy

Next-day delivery - order before 3 pm

Overview

Contents

Specifications

Support

FAQ

DJI O4 Ground Station: key features

Extend the Reach of Drone and Dock 3 Operations
