The Definitive DJI Osmo Comparison Guide
Since its release, DJI’s Osmo series has gone from strength to strength, improving the capabilities and usability across the various iterations of the handheld gimbals. Versions of the gimbals are available for vloggers and amateur videographers looking to capture stabilised footage with their smartphone, through to professional filmmakers who need a simple to use, lightweight gimbal with 4K RAW capabilities.
Heliguy Insider have put together a comprehensive guide of each of the Osmo series to help you decide which gimbal could be right for you. We’ll be looking at the specifications, features, opinions on the series and much more.
Keep reading to find out more on these impressive gimbals.
Specifications
Let's start by taking a look at the specifications of the gimbals available in the Osmo range.
What's in the Box?
Next, let's look at what's included with each of the different Osmos in the series:
What's Included?
Osmo
|
- Handheld Gimbal and Camera x 1
- Mobile Device Holder x 1
- Intelligent Battery x 1
- Battery Charger x 1
- Charger Power Cable x 1
- Storage Case x 1
- Wrist Strap x 1
- Shoulder Strap x 1
- Micro SD Card (16 GB) x 1
- UV Filter x 1
- Lens Cap x 1
- Rosette Protection Cap x 1
- OSMO - DJI FM-15 Flexi Microphone x 1
- Manuals
|
- Handheld Gimbal and Camera
- Mobile Device Holder
- Storage Case
- High Capacity Intelligent Battery
- Battery Charger
- Charger Power Cable
- Wrist Strap
- Shoulder Strap
- Micro SD Card (16 GB)
- Rosette Protection Cap
- Flexi Microphone
- Manuals
|
Osmo+
|
Osmo PRO
|
- Osmo - Handle x 1
- Zenmuse X5 x 1
- Osmo - X5 Adapter x 1
- Osmo Pro - Carrying Case x 1
- Osmo - Universal Mount x 1
- Osmo Phone Holder x 1
- Osmo - DJI FM-15 Flexi Microphone x 1
- Osmo - External Battery Extender x 1
- Osmo - Intelligent Battery (High Capacity) x 4
- Osmo - Quad Charging System (Adapter Excluded) x 1
- Osmo - 57W Power Adapter x 1
|
- Osmo - Handle x 1
- Zenmuse X5R x 1
- Osmo - X5 Adapter x 1
- Osmo RAW - Carrying Case x 1
- Osmo - Universal Mount x 1
- Osmo Phone Holder x 1
- Osmo - DJI FM-15 Flexi Microphone x 1
- Osmo - External Battery Extender x 1
- Osmo - Intelligent Battery (High Capacity) x 4
- Osmo - Quad Charging System (Adapter Excluded) x 1
- Osmo - 57W Power Adapter x 1
|
Osmo RAW
|
Osmo Mobile
|
- Mobile Phone Gimbal
- Intelligent Battery
- Power Cable
- Wrist Strap
- Rosette Protection Cap
- Carrying Pouch
- Manuals
|
- Mobile Phone Gimbal (Built-in Battery) x 1
- Power Cable x 1
|
Osmo Mobile 2
|
Now you've seen the specifications and what's included, we'll look at each of the individual gimbals to help you decide which is best suited to you. Each gimbal can be better suited to different types of people depending on their requirements and expectations. Keep reading to find out which one is right for you.
DJI Osmo Gimbal
DJI’s
Osmo has become an iconic product for DJI. Alongside the Mavic and Inspire series, the Osmo has become one of their most recognisable releases and was the first of its kind from DJI.
Offering stabilised footage at up to 4K quality, you’re guaranteed great videos, as well as 12MP stills when using the Zenmuse X3 which comes as standard with the gimbal.
It also helps that it’s highly intuitive with the full range of features available through the DJI GO app. You can access through your mobile device as it’s held in place on the side of the Osmo Handle.
There may have been a lot of updated models released in the ever-growing
Osmo series, but the
original Osmo still stacks up against the newcomers thanks to DJI’s robust engineering.
DJI Osmo Gimbal
Key Features
When considering the
Osmo, here are the most important things to keep in mind:
- 4K video at 24, 25 or 30fps and 12MP stills as standard with the DJI Zenmuse X3 camera
- Unparalleled image and video stabilisation thanks to DJI’s advanced gimbal expertise
- Packed with functionality giving you the ability to shoot long exposures and panoramas with ease
- Controlling the Osmo is easy using your mobile device and the DJI GO app
- The Osmo Handle is also compatible with the X5 and X5R to upgrade it to a PRO or RAW respectively
Target Users
The
standard Osmo model has the potential to produce professional quality imagery with its default X3 gimbal but many people are starting to look at it more for the handle itself than the standard setup.
4K video and 12MP stills are certainly not specs to be sniffed at but with more advanced cameras now compatible with the Osmo Handle, we’re finding that serious professionals are more likely to look at the PRO and RAW models.
This isn’t to say that the
Osmo doesn’t have plenty to offer. With robust stabilisation and a generous suite of features, not to mention the lower price point, this could prove to be an attractive possibility for those looking for their first handheld gimbal.
Availability
The Osmo has limited availability now in the UK. Keep an eye on our
Osmo product page and
Approved Used section to see when it is available.
DJI Osmo+ (Plus)
The
Osmo+ was released as an upgrade to the
original Osmo with a range of new features including the capability to offer up to 7x zoom. This allows for more flexibility when shooting, getting you closer to the action without the need to constantly be on the move. However, it’s worth bearing in mind that the zoom functionality performs a lot better in conjunction with a tripod.
DJI claims to have upgraded the stabilisation of the
Osmo+ but you’re unlikely to see much of an improvement from the original, which is no bad thing as its enduring popularity shows.
In addition to the full suite of features included with the
original Osmo, the Osmo+ is able to capture intelligent timelapses. The Osmo+ is a great mid-market model to the gimbal range with the ability to capture exceptional videos and images.
DJI Osmo+
Key Features
When considering the
Osmo+ (Plus), here are the most important things to bear in mind:
- Shoot 4K video at 30fps and 1080p at 100fps for smooth slow-motion and capture 12MP stills in Adobe DNG RAW
- Upgraded stabilisation technology has been developed for the Osmo+ building on the solid grounding of the original OSMO
- A shake-free (tripod recommended) 7× zoom, consisting of 3.5× optical and 2× digital lossless zoom offers a focal length of22mm to 77mm without losing its HD quality
- Controlling the Osmo+ (Plus) is easy using your mobile device and the DJI GO app
- Intuitive smart features like the motion timelapse give you the ability to create breath-taking shots with a tap of your device’s screen
Target Users
The
DJI Osmo+ (Plus) is their mid-range solution which also benefits from the ability to zoom in up to 7x, getting you even closer to your subject. The camera specs may be familiar to those who have read up on the
original Osmo but the addition of the zoom capability, as well as a number of upgraded features, make the Plus worth a look.
The Osmo+ has a range of features which make it a useful addition to a pro filmmaker’s kit as well as being accessible enough for amateurs to pick up and shoot. Enhanced long exposures and motion timelapses allow you to capture some beautiful, unique shots and this functionality is all available through DJI’s intuitive GO app.
It’s harder to pin down an exact market for the
Osmo+ as it fits neatly into both a professional and consumer niche. It all comes down to how much power you’re looking for. The zoom functionality is a great addition but you won’t be getting the same quality you can expect from the X5 and the X5R of the PRO and RAW – so it’s a case of weighing up your needs against the pertinent specifications.
Availability
The Osmo+ is available on our
product page and sometimes on the
Approved Used section of our website.
DJI Osmo Professional
The
DJI Osmo Pro features the Zenmuse X5 camera and, as such, offers superior footage and image quality to that of the
original Osmo. Designed for use by professional videographers, the Pro offers the same high level of stabilisation you can expect from all the models in the
Osmo range.
The Osmo Pro can either be purchased as part of a combo deal or, alternatively as an upgrade for the original. If you’re looking to improve the video quality and already own an Osmo, you can add an adapter kit to the handle which allows you to add on the X5 and begin shooting like a professional.
DJI Osmo Pro
Key Features
When considering the
Osmo Pro, here are the most important things to keep in mind:
- Record 4K at 30fps, 2.7K at up to 30fps, and ‘Full HD’ at 60fps (when shooting in the .mp4 or .mov formats) as well as 16MP stills
- Stabilised on the tried and true Osmo Handle enabling shake-free shots in very high quality
- Featuring an impressive 12.8 stops of dynamic range, the highlights and shadows in your footage and images are displayed in exceptional clarity
- Crisp, high sensitivity image recording at an ISO range of 100-25600
- Manufactured with high-grade aluminium and magnesium alloys, the Zenmuse X5 camera has been designed to withstand frequent use on the go, a perfect match for the Osmo
Target Users
The
Osmo Pro’s target market is self-evident. The name isn’t misleading either, it’s certainly powerful enough to be an integral part of a professional videographer’s toolkit.
Fitted with the Zenmuse X5 camera, you’re going to have access to some very high-quality video and image capabilities which, when coupled with the innate functionality of the Osmo Handle itself, offers a very attractive proposition for filmmakers looking at a portable, stabilised handheld solution.
If you’re crazy about high-quality video and stills but not overly concerned with shooting in the RAW format, the
Osmo Pro bundle with the Zenmuse X5 could be just what you’re looking for.
Availability
The Osmo Pro is available through heliguy™ on its dedicated
product page.

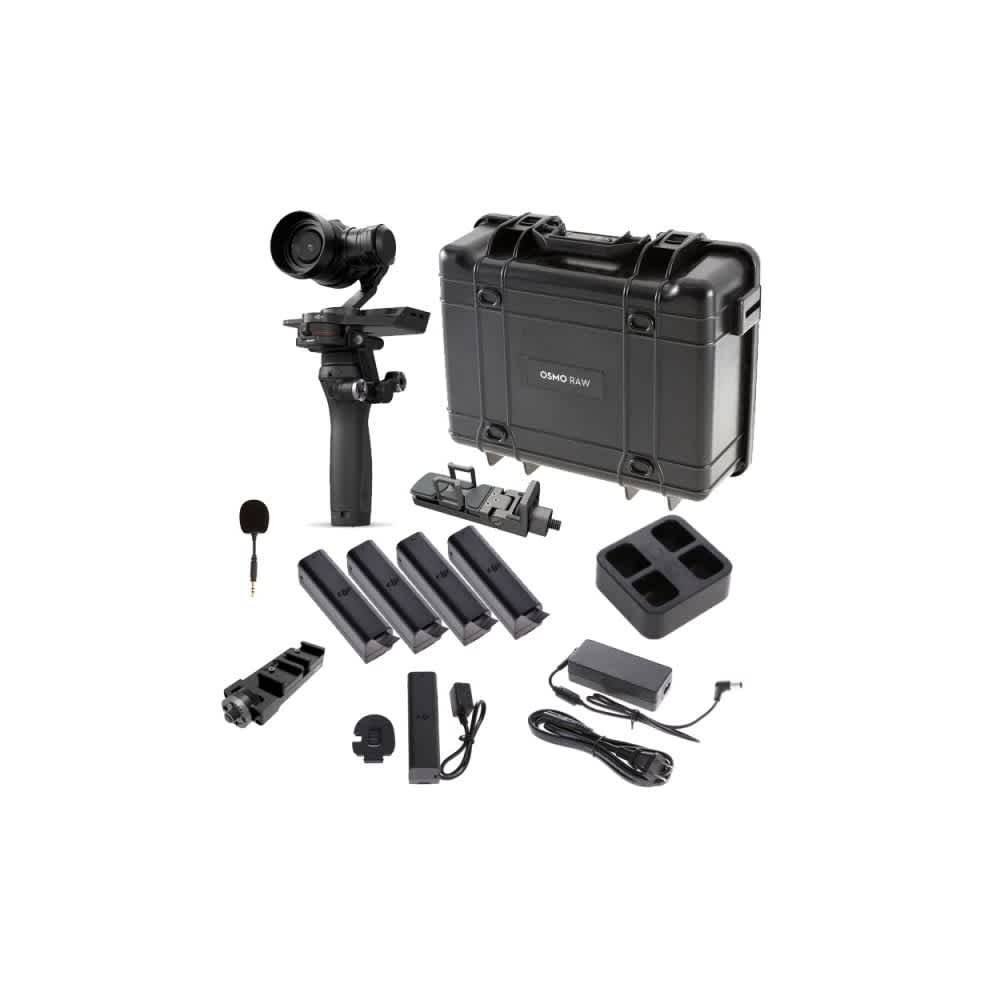

DJI Osmo RAW
The DJI
Osmo RAW features the Zenmuse X5R camera and, as such, offers some of the best footage you’re likely to get from a handheld gimbal. Designed for use by serious professional videographers the RAW offers the same high level of stabilisation you can expect from all the models in the
Osmo range. Couple this with its capacity to shoot in Adobe DNG RAW and you’re looking at a very powerful bit of kit.
The RAW can either be purchased as part of a combo deal or, alternatively as an upgrade for the original. If you’re looking to drastically improve the video quality you’re capturing and already own an Osmo, you can add an adapter kit to the handle which allows you to add on the X5R and begin shooting like a seasoned pro.
DJI Osmo RAW
Key Features
When considering the
Osmo RAW, here are the most important things to bear in mind:
- As with the X5, you can capture 4K footage at 30fps, 2.7K at up to 30fps, and ‘Full HD’ at 60fps (when shooting in the .mp4 or .mov formats) as well as 16MP stills. However, the X5R is also capable of recording 4K videos in the RAW format at up to 30fps
- Your RAW footage will benefit greatly from the stabilisation offered by the Osmo Handle
- The X5R captures all its video content while retaining the original data, offering total control of the post-production process as every single frame can be edited after the fact as a RAW file
- You can add the DJI Focus to your Osmo RAW set-up, allowing for professional levels of focus control as you shoot
- Make the most of this impressive Micro 4/3 sensor set-up with a generous 34 minutes of shooting time
Target Users
DJI’s
Osmo RAW bundle is aimed squarely at professional filmmakers, it’s a cinema-ready handheld filmmaking system.
The X5R camera is one of the most powerful on offer from DJI and, combined with the Osmo Handle, ensures that every shot is crystal clear, shake-free and able to be used commercially.
A modular construction allows professionals compatibility between, amongst other items, the
DJI Focus and the
Osmo RAW set-up. This is something that really makes serious videographers take notice, fine-tuning stabilised footage on the go gives an extra level of control and quality.
Essentially, DJI has given filmmakers the power to customise their own tailor-made videography solution using a variety of peripherals and a range of lenses. Want a handheld stabilised gimbal that gives you professional results every time? It’s hard to beat the
DJI Osmo RAW bundle.
Availability
The DJI Osmo RAW is available in a combo package on its product page
here.
DJI Osmo Mobile
The consumer branch of the
Osmo series, the
DJI Osmo Mobile is the original gimbal designed to give users the ability to create shake-free footage using their Android or iOS device’s camera. It’s a more affordable model that incorporates a lot of the features that made the
original Osmo so popular.
The Osmo Mobile is available in both
silver and
black, you also have some choice in how the device itself looks – highlighting DJI’s increasing commitment to providing consumers with greater variety in their products.
If you have an original Osmo Handle, the
DJI Zenmuse M1 is available to turn the gimbal into an Osmo Mobile.
DJI Osmo Mobile
Key Features
When considering the
Osmo Mobile, here are the most important things to keep in mind:
- Four shooting modes give you the ability to really personalise your shots with a choice of Standard, Portrait, Underslung & Flashlight
- Capture smooth, high-quality footage on your mobile device without the usual shaky end result
- Available in both Black and Silver versions allowing you to shoot in style
- The wide range of camera controls rivals a professional setup and include ISO, shutter and white balance settings
- There’s no need to rush with an impressive battery life of up to 4.5 hours at your disposal
- A variety of Intelligent Modes can be selected including timelapse, motionlapse hyperlapse, slow-motion, zoom control and ActiveTrack
Target Users
This version of the Osmo is marketed squarely at the consumer market with adverts focusing on people filming their holidays and family events with some amateur vlogging thrown in there for good measure.
The quality of the
Osmo Mobile’s video is down to the performance of your mobile device. Whereas the Pro and RAW feature purpose-built powerhouse cameras, the Mobile has been designed to eliminate shake from the everyday videos people are already taking.
It’s a powerful tool for improving your device’s videos and offers a range of functionality such as ActiveTrack, Beautify and the ability to livestream your videos to a social network of your choice, however, it won’t be making its way into many professionals’ gear lists.
If you’re looking for an affordable handheld gimbal to give your phone’s videos that next level of quality, you can’t go wrong with the Osmo Mobile.
Availability
The Osmo Mobile is available in
Silver or
Black on their dedicated product pages.
DJI Osmo Mobile 2
The Osmo Mobile 2 is the latest gimbal for iOS and Android smartphones, geared at the consumer market. It takes the original Osmo Mobile and puts it in an even more affordable and lighter package with simplified controls.
The feature on the new version of the Osmo Mile are similar to the original, however, a built-in battery gives up to 15 hours battery life. A dedicated portrait mode is also available, as well as 1/4" 20 screw mount for increase adaptability.
DJI Osmo Mobile 2
Key Features
When considering the DJI Osmo Mobile 2, these are the most important things to keep in mind:
- Like with the Osmo Mobile, the Osmo Mobile 2 allows users to capture high-quality stabilised footage
- A huge battery life of up to 15 hours is available with the ability to charge your smartphone
- Landscape and portrait modes as well as walk and sports modes to capture a range of footage for a variety of different mediums
- A range of Intelligent Modes are available including timelapse, motionlapse hyperlapse, slow-motion, zoom control and ActiveTrack
Target Users
Perhaps even more so than the DJI Osmo Mobile, the Osmo Mobile 2 is made for the commercial market. Its low price point makes it the most competitively priced gimbal from DJI and as such, their most accessible stabiliser to date.
Its portrait mode will likely be desirable for amateur vloggers and social media enthusiast as this format is the standard for the likes of Instagram and Snapchat. The Intelligent Modes can help those new to gimbals through to experienced users, create an impressive range of videos and images with the touch of a button.
Although aimed at the consumer market, the low price of the Osmo Mobile 2 will likely make it a popular product for anyone to pick up. Even an experienced filmmaker could add this bit of kit to their bag as a hobbyist product to enhance footage from a smartphone.
Availability
The Osmo Mobile 2 is currently available for
pre-order through the heliguy™ website.
Osmo Accessories
Take a look below to see some of the most popular peripherals for the DJI Osmo and links to their respective product pages. If you’re looking for a general overview of accessories, you can find it here on our
accessories page.
Batteries – High Capacity & Standard: There’s nothing worse than running out of power mid-shoot. Check out the Osmo batteries in stock at heliguy™ and ensure you have enough on-hand to capture everything.
X5 Adaptor - Want to upgrade an
original Osmo or Osmo Handle Kit into a Pro or RAW? You’ll need this Adaptor.
Tripod - Make your stabilised footage even more stable with the Osmo Tripod which is perfect for panorama shots, timelapses and the Osmo+ zoom functionality.
Rode Mic - It’s no secret that the built-in microphones for the
Osmo range aren’t designed for high-quality audio capture. This is a great solution, allowing you to capture high-quality sound alongside your footage.
Focus Handwheel - Designed for the higher end Osmo models (namely the RAW with X5R camera) this professional tool gives you even more control over your footage quality.
Filters - Get the most out of your Osmo image capture with a range of compatible filters.
These are just a few of the ways you can enhance the videos and images you're able to capture using one of the Osmo Series.
THE OSMO RANGE - FREQUENTLY ASKED QUESTIONS
Read on for a range of frequently asked questions which should provide answers to any queries you may have about the
DJI OSMO Series.
NAVIGATION
DJI OSMO FAQs
DJI OSMO+ FAQs
DJI OSMO PRO FAQs
DJI OSMO RAW FAQs
DJI OSMO Mobile FAQs
DJI OSMO Mobile 2 FAQs
OSMO FAQs
Camera / Gimbal
The OSMO has a quality range of 1.5m upwards.
In the DJI GO app go to Settings - Gimbal - Settings - Quick Set-up
Long exposure can be set in the camera settings beneath shutter speed in the DJI GO app. Go to S or M mode, then choose a slower shutter speed.
Zenmuse X3: 4K videos; 12MP photos.
The gimbal is set to SmoothTrack by default. To lock, press and hold the Trigger. Tap the Trigger twice to reset and re-enter SmoothTrack mode. Tap the Trigger three times to enter Selfie mode.
In DJI GO, go to Settings - Gimbal - Roll Axis Adjustment. Positive values: rotate the gimbal clockwise; negative values: rotate the gimbal counter-clockwise.
Gimbal settings and behaviour can be changed in the DJI Go app. After entering the OSMO’s Camera View, go to Setting - Gimbal to change gimbal profiles, turn on or off SmoothTrack for the Pan or Tilt axis, adjust SmoothTrack parameters, and change the joystick settings.
Yes. After updating the Zenmuse X3 camera firmware on the Inspire 1, you can install the X3 camera directly on the OSMO.
Microphone
Yes, there’s a built-in microphone or you may attach an external microphone.
The built-in microphone is used for reference recording or when audio is needed in a hurry, however, to get the highest quality audio, it‘s recommended to use an external microphone. A directional external microphone mounted slightly away from the camera on the optional Universal Mount can eliminate the fan noise.
Yes. There will be no sound during playback from the OSMO, but the sound will be available when the file is opened from the media library.
Yes, it can be changed in App – Settings – Camera – Audio Recording.
Battery
59°F to 104°F (15℃ to 40℃). The battery will stop charging if the temperature goes beyond this range.
14° to 122°F (-10° to 50° C)
The LED indicator on the charger will be solid green when in standby, and solid red during charging. When charging is complete it will go from red to green.
The video is saved as a temporary file on the microSD card as you record it. If the battery runs out while recording, the video can be recovered by inserting a new, charged battery. The OSMO will then automatically start a process to recover the video for you.
It lasts for 60 minutes when recording video under normal use and up to 6 hours of standby in sleep mode. The battery is removable and can be swapped in seconds.
App / Functions
The default Wi-Fi password is 12341234.
When in Camera View in the DJI GO app, tap Photo Modes and select Pano. You‘ll find 2 different modes: Automatic Panorama and Selfie Panorama. Choose your preferred mode and wait for the camera to move to its starting position.
- In Automatic Panorama mode, simply hold the OSMO still while it automatically turns to capture photos.
- For Selfie Panorama, the camera’s initial points at you. Tap the shutter release and the camera will automatically capture 180-degree panoramas with the user in the centre.
The finished panoramas can be found under Playback in the DJI GO app, and the individual photos used to compose the panorama can be found in a separate folder on the microSD card.
Long exposure shots can be captured by setting a slower shutter speed by tapping the fourth icon from the top on the left side of the DJI GO app while in Camera View. Choose S or M mode and then adjust the shutter speed accordingly. A slower shutter speed will result in longer exposures.
Yes, you can review the finished panorama within DJI GO by going to Playback.
Yes. You can remove your smartphone and the camera will continue recording video or capturing photos.
Yes, you can select different shooting modes (i.e. Panorama, Multi Shot, Interval, or Timelapse), change camera settings, and capture photo or video by using DJI GO.
GENERAL
The size of the mobile device mount is 116 x 30 x 34 mm. The OSMO can comfortably hold 5.5-inch devices.
The OSMO is a complex, advanced device and generates heat transferred through the rosette mount. Heat dissipation can be achieved via the mobile phone holder. A cap is provided to cover the rosette mount if a device is not attached to the handle.
Micro SD. Max capacity: 64 GB. Speed: UHS-1 or higher. Higher speeds are recommended.
Up to 36 minutes (and up to 145 minutes for 64GB SD card).
The Maximum Transmission Distance for both Operating Frequencies is 82 feet (25 m). The 5.8 GHz operating frequency works better than the 2.4 GHz frequency if many Wi-Fi signals are being transmitted at once.
No. Please do not expose your OSMO to water or moisture. Always use a dry cloth to clean it.
The OSMO shoots 4K video in MP4 and MOV formats. Select the format in DJI GO - Settings - Camera Video Format.
OSMO PLUS FAQS
CAMERA / GIMBAL
The OSMO+ uses a Zenmuse X3 zoom camera offering up to 7x zoom when shooting 1080p HD video. This is made up of a 3.5x optical zoom and 2x lossless digital zoom. The Zenmuse X3 camera on the OSMO uses a 20mm prime lens with a fixed focal length and focus. It provides a 2x lossless digital zoom when taking 1080p videos.
Yes. The OSMO+ will automatically focus on where you tap on the screen.
GENERAL
With the standard OSMO High Capacity Intelligent battery, you can shoot up to 100 minutes.
No, because the software and hardware solutions for the two products are different.
25m in ideal situations. Actual range is dependent on the environment.
Class10 and UHS1 or above.
Yes. As the OSMO+ is heavier, you will need to adjust the balance by turning the tension adjustment knob after mounting the OSMO+ on the Z-Axis.
OSMO PRO FAQs
CAMERA / GIMBAL
The PRO can capture 4K video and 16MP photos.
20cm (with the DJI standard 15mm lens)
Yes. A tripod is required as handheld long exposures are less stable than using the standard OSMO.
BATTERY
The new 4.4V High Capacity Intelligent Battery uses new battery cells (24% higher energy density), increasing shooting time.
Using the new battery, you can shoot for 80 minutes with the OSMO PRO. This compares to 59 minutes for the OSMO PRO using the regular battery.
100 minutes using the OSMO Charger; 120 minutes using the OSMO Quad Charger System, which charges up to four High Capacity Intelligent Batteries.
The OSMO High Capacity Intelligent Battery has over charge protection. Charging automatically stops when the battery is fully charged or if errors occur during charging. There is no need remove the battery when fully charged.
System Status Indicator will blink red quickly then the OSMO PRO will turn off. Video captured will be stored in the SD card as a temporary file. When a charged battery is inserted the file will be restored.
GENERAL
Connect the DJI Focus Handwheel and the X5 Adapter using an OSMO CAN-Bus cable.
The DJI Focus Handwheel can currently only be connected to the OSMO PRO. It does not feature a wireless transmission function or an air system.
Max. controllable range will vary by operating frequency. 2.4G has a maximum range of 82ft (25m) and 5G has a maximum range of 328ft (100m).
Yes. Handheld gimbals in the OSMO Series are interchangeable, except for the OSMO Mobile. When using the X5 camera, adaptors are required and the camera will need to be updated to the latest version.
No, you can only do this through Wi-Fi.
OSMO RAW FAQs
CAMERA / GIMBAL
The OSMO RAW is capable of capturing video in 4K CinemaDNG RAW and 16MP photos.
20cm (with the DJI standard 15mm lens)
Yes. A tripod is required as handheld long exposures are less stable than using the standard OSMO.
BATTERY
The new 4.4V High Capacity Intelligent Battery uses new battery cells (24% higher energy density), increasing shooting time.
Using the new battery, you can shoot for 34 minutes with the OSMO RAW. This compares to 25 minutes for the OSMO RAW using the regular battery.
100 minutes using the OSMO Charger; 120 minutes using the OSMO Quad Charger System, which charges up to four High Capacity Intelligent Batteries.
The OSMO High Capacity Intelligent Battery has over charge protection. Charging automatically stops when the battery is fully charged or if errors occur during charging. There is no need remove the battery when fully charged.
System Status Indicator will blink red quickly then the OSMO RAW will turn off. Video captured will be stored in the SD card as a temporary file. When a charged battery is inserted the file will be restored.
GENERAL
Connect the DJI Focus Handwheel and the X5 Adapter using an OSMO CAN-Bus cable.
The DJI Focus Handwheel can currently only be connected to the OSMO RAW. It does not feature a wireless transmission function or an air system.
Max. controllable range will vary by operating frequency. 2.4G has a maximum range of 82ft (25m) and 5G has a maximum range of 328ft (100m).
Yes. Handheld gimbals in the OSMO Series are interchangeable, except for the OSMO Mobile. When using the X5R camera, adaptors are required and the camera will need to be updated to the latest version.
No, you can only do this through Wi-Fi.
OSMO Mobile FAQs
FUNCTIONS
The Osmo Mobile supports smartphones measuring from 58.6mm-84.8mm width and up to 8.4mm thick. This covers most phones currently available, from the iPhone SE to the iPhone 6s Plus and Android phones of similar sizes. Please note that actual compatibility might be affected by accessories attached to your phone. Certain form factors including side button layout should also be considered.
Step 1: Activating the Intelligent Battery. Before powering on the Osmo Mobile, insert the battery into Osmo Mobile and connect the unit to a power source using the dedicated charging cable for battery activation.
Step 2: Registering your Osmo Mobile via DJI GO. Power on the unit and pair it with your mobile device. Instructions will be shown in DJI GO automatically to guide you through the registration and activation process.
Osmo Mobile utilizes Bluetooth 4.0 to communicate with phones. Though Bluetooth 4.0 has become a standard for current phones, we suggest you to check compatibility by revisiting the specs sheet.
ActiveTrack is available in all modes except Portrait Mode due to limited horizontal camera field of view (FOV) when the phone is held upright. When shooting in Portrait Mode, a subject might move out of the frame easily and leave no time for the gimbal to adjust its orientation.
No. Tracking speed cannot be set. The Osmo Mobile will adjust its movement according to the speed of the object, so you do not need to set its speed according to how you use it. The fastest it can track is the same as its Max Controllable Speed, 120°/s.
No. ActiveTrack is not compatible with certain phones (i.e. iPhone 5s and iPhone 5) due to limitations within the phones.
No. ActiveTrack is not affected by camera resolution.
DJI GO APP
Yes. You can set parameters manually in the Camera Settings menu. This function is only supported on iOS devices.
The DJI GO app will automatically select the optimal video resolution base on the performance and specs of your phone. If you want to manually change video resolution or ratio, you can access such feature via the Camera Settings menu in DJI GO. Maximum video resolution and still image size will be limited by the hardware specs, for example the iPhone 6s can shoot video at 4K resolution while iPhone 6 can only shoot FHD video.
If you are an iOS user, the app will tell you how much storage space there is for video. Unfortunately, this does not apply to Android users.
Yes. Go to Settings, Choose Live Broadcast Platform and choose the Custom option (or type in the platform’s name) then follow the on-screen instructions.
The main difference is the gimbal’s speed tracking your movements. In Sport Mode, the gimbal follows your movements closely and is suitable for shooting fast moving objects. In Walk Mode, the gimbal reduces shake generated by your hands, allowing you to get stable shots on the move.
Yes, you can choose and set slow, medium, and fast speeds in the app.
Yes. You can enable the Tripod Mode when shooting timelapse videos from a fixed angle. However, if shooting hyperlapse videos, Tripod Mode should be switched off.
To ensure optimum image quality, manual adjustment of these functions has been disabled when shooting timelapse videos.
The shooting direction of the phone camera will not be affected by the movement of your arms in a tilt axis.
For iOS users, they will be stored in the DJI GO app. For Android users, you can choose to store photos and video either in your phone or on a SD card.
Yes. You can use it for both. However, it is only available for video recording at 720p.
BATTERY
Yes. The Osmo Mobile uses the same battery as the original Osmo (980 mAh). A full charge requires 3 hours, and battery life varies between 3 and 4.5 hours.
The maximum charging current is 2.1A.
GENERAL
No. When using Osmo Mobile, the recording of sound is handled by your phone other than the gimbal system. For such reason, we redesigned the 3.5mm port as a dedicated port for charging and firmware upgrading.
Yes. The Osmo Mobile uses the same handle design as the Osmo. You can use the trigger for multiple controls for both the gimbal and camera — hold it down for locking the gimbal’s direction, double tap for re-centering. Unlike other Osmo cameras, tapping the trigger three times does not rotate the phone. Instead, it switches your phone from front camera to rear camera.
Yes. By holding the trigger then moving the joystick upward or downward, you can control the digital zoom. Please note that image quality will be affected as you zoom in digital way.
No. The Osmo Mobile connects to your phone via Bluetooth with a few easy taps in the DJI GO app.
The connection speed of Bluetooth is faster than Wi-Fi. Once your phone is connected to the Osmo Mobile, it will automatically connect again the next time you use the same phone.
We give every Osmo Mobile a unique serial number, which is located on the left of the phone holder. You can easily locate your device by finding the serial number. You can also change the name of your device in the DJI GO app.
OSMO Mobile 2 FAQs
Smartphones between 58.6-84.8 mm wide and up to 8.4 mm thick are supported. You might have to remove your phone case before installing.
Follow the following steps when using your Osmo Mobile 2 for the first time:
1. Charge the Osmo and your smartphone.
2. Mount your phone on the Osmo and adjust the balance as required.
3. Press and hold the power button for three seconds.
4. Launch the DJI GO app and select your Bluetooth device.
5. Follow the activation and registration.
Bluetooth 4.0 is required.
Remove your smartphone from the holder, then loosen the Holder Lock Knob. Follow the indicated directions on the Osmo as appropriate and tighten the Holder Lock Knob.
Quickly press the mode button twice.
Quickly press the mode button three times.
On the left side of the Osmo, a zoom slider is available.
No, this is not available.
Yes, these modes are available.
On the bottom left of the DJI GO app is a metering icon. Use this to select ActiveTrack, then select your subject to track.
Yes, you can change the parameters in the camera settings.
Yes, you can choose from slow, medium or fast.
The DJI GO app sets the standard at 720p. This can be changed through the app depending on your phone.
If using an iOS device, you can check this through the app.
Yes, you can choose the custom option in the settings and enter the platform's information for live broadcasting.
Yes, in the DJI GO app, enter the camera settings and choose to enable or disable this setting.
On iOS devices, the photos and videos are saved on the DJI GO app.
On Android devices, the photos and videos are saved on your phone or SD card.
In ideal conditions, the battery will last up to 15 hours.
A full charge takes around two hours.
The internal battery is charged using the micro USB charging port.
A smartphone is charged using the USB port on the Osmo.
Yes, the Osmo can be used whilst charging a smartphone.
Your unique serial number is displayed. You can also change the name of your device.
Disconnect the original smartphone and disable its Bluetooth. You're then able to select the new device.
No, the majority of accessories are not compatible. Any 1/4" 20 accessories including the Osmo Tripo will be compatible.
Yes, however, the balance may be affected.
The Definitive DJI Osmo Comparison Guide
Since its release, DJI’s Osmo series has gone from strength to strength, improving the capabilities and usability across the various iterations of the handheld gimbals. Versions of the gimbals are available for vloggers and amateur videographers looking to capture stabilised footage with their smartphone, through to professional filmmakers who need a simple to use, lightweight gimbal with 4K RAW capabilities.
Heliguy Insider have put together a comprehensive guide of each of the Osmo series to help you decide which gimbal could be right for you. We’ll be looking at the specifications, features, opinions on the series and much more.
Keep reading to find out more on these impressive gimbals.
Leave a comment
