How Different Focal Lengths Impact Drone Mapping

Explore how different focal lengths affect drone mapping accuracy and find the perfect lens for your surveying needs with heliguy™.

  • heliguy™ conducted a comprehensive survey with DJI M350 RTK with P1 Photogrammetry camera to ascertain the optimal lens choice for various surveying applications.

  • In-depth look at the exclusive data heliguy™ gathered.

  • Discover the most suitable lens for your survey requirements.

Exclusive datasets collected by heliguy™'s in-house geospatial team and processed using DJI Terra demonstrate the impact of different focal lengths on drone photogrammetry.

We flew the DJI M350 RTK and DJI Zenmuse P1 payload at one of our test sites in the North East of England to show how switching between its range of lenses impacts data quality and mission efficiency.

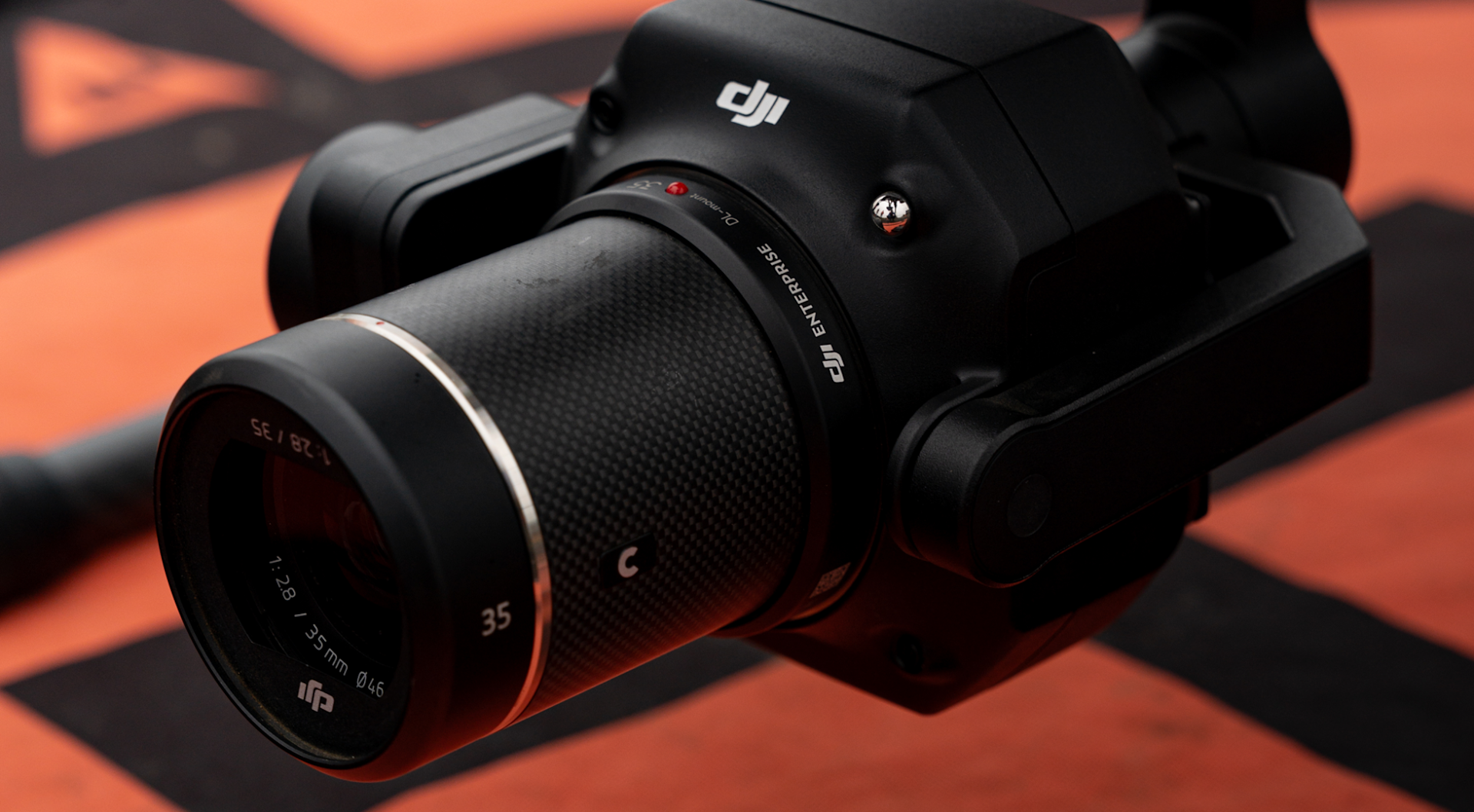

The 45MP full-frame sensor can be deployed with 24mm, 35mm, or 50mm lenses - we tested all three.

Overview

The data shows that the 24mm lens was the most efficient option, but the data collected with the 50mm lens was the most detailed and achieved the best GSD (Ground Sampling Distance).

Meaning that when it comes to focal lengths, there is a trade-off between efficiency and quality, and which is most important depends on your specific surveying needs.

Keep reading this blog to view the full results and to see sample datasets. Find out why different focal lengths impact speed/accuracy; and which option is best for you.

Flight Parameters

For consistency, we repeated the same mission with each lens.

The flight parameters were:

  • Flight Altitude: 50m

  • Data Collection Type: Nadir

  • Flight Overlap: 70 Side / 80 Forward Leap

24mm vs 35mm vs 50mm: The Results

Data Accuracy

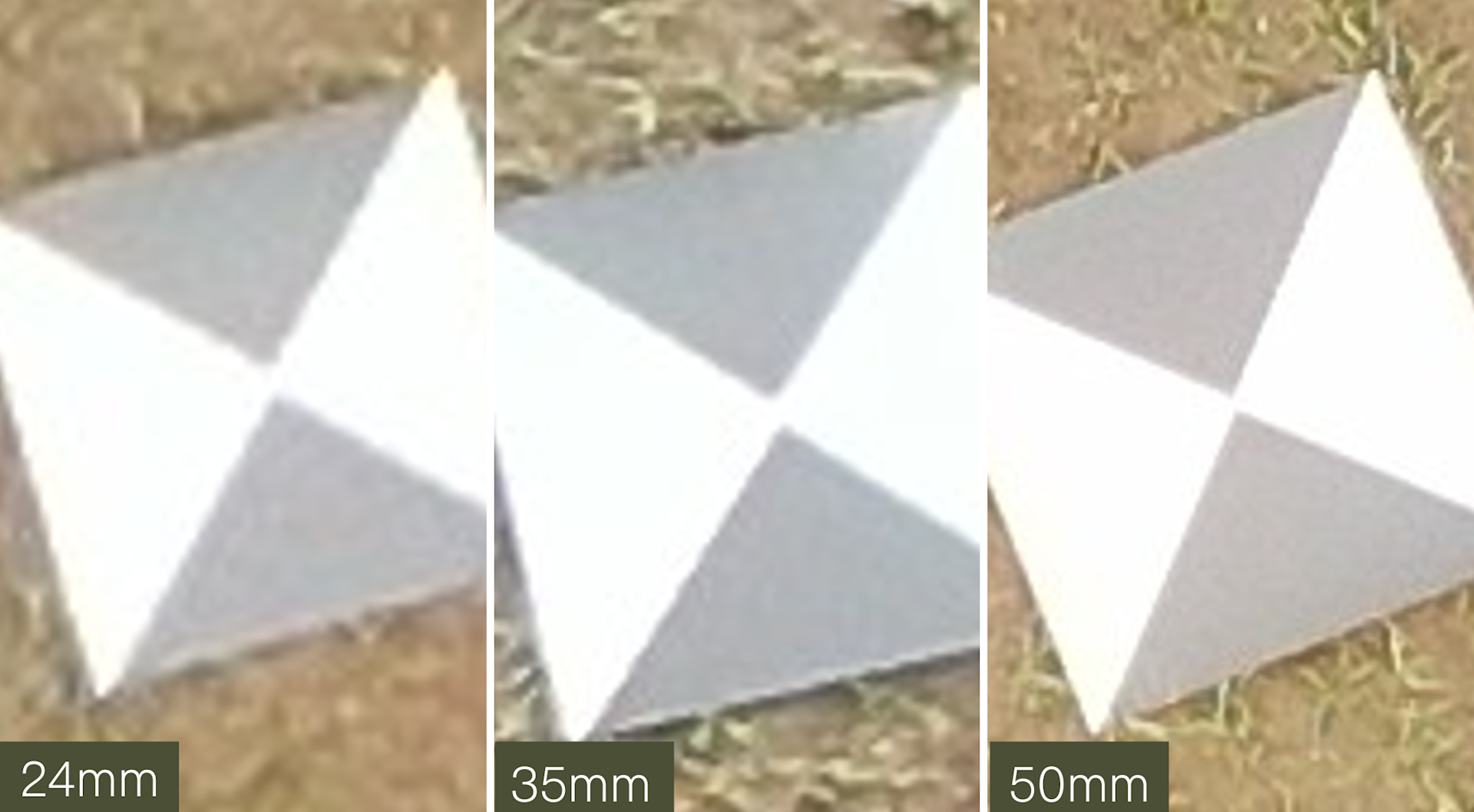

The image below clearly shows how the three different lens types compare in data accuracy. Each lens was focused on zooming in on the GCP, allowing us to see their zooming abilities and the level of pixilation produced by each.

As shown above, the 50mm lens was most capable of zooming in the closest without as much pixilation and blur as the other two lenses.

Speed

The bullet points below show the length of time it took to conduct the mission with each lens.

  • 24mm: 1.22 minutes

  • 35mm: 4.28 minutes

  • 50mm: 7.35 minutes

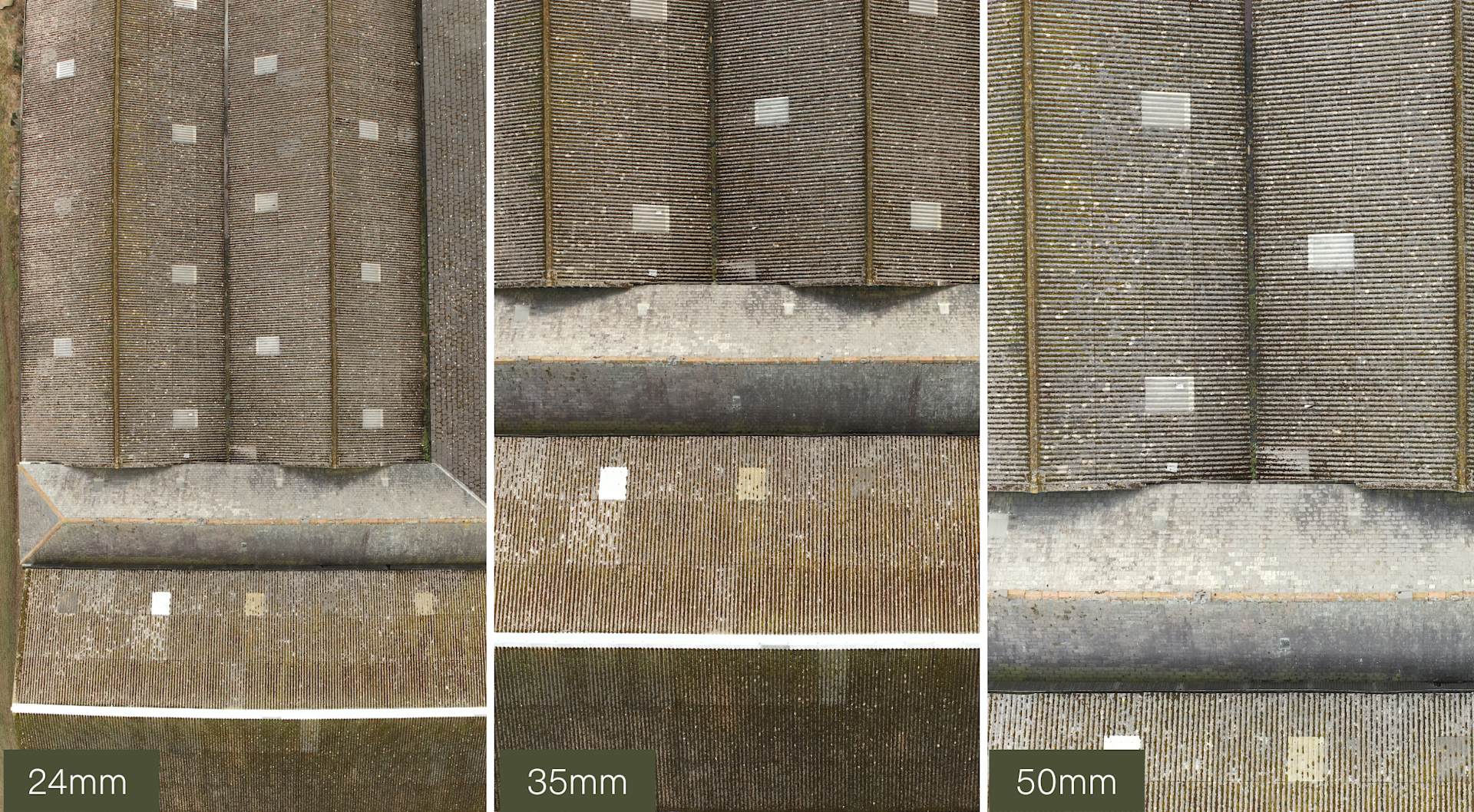

Surveying with the 24mm lens proved to be the most efficient, thanks to its expansive field of view, enabling it to capture more of the surrounding area in a single shot - evidenced in the image below.

This is further demonstrated by the number of images taken during the flight.

  • 24mm: 56

  • 35mm: 122

  • 50mm: 186

Data Quality

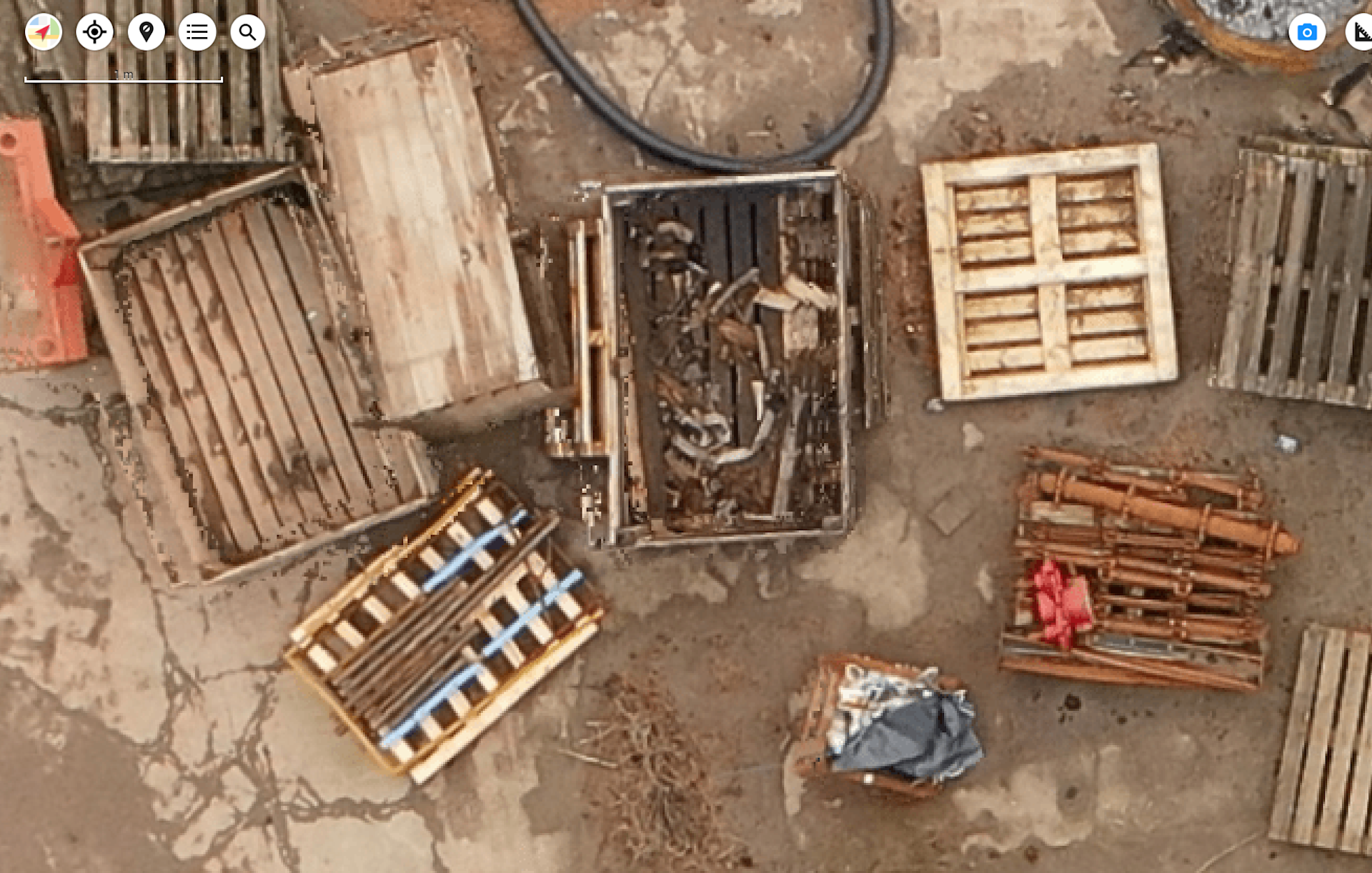

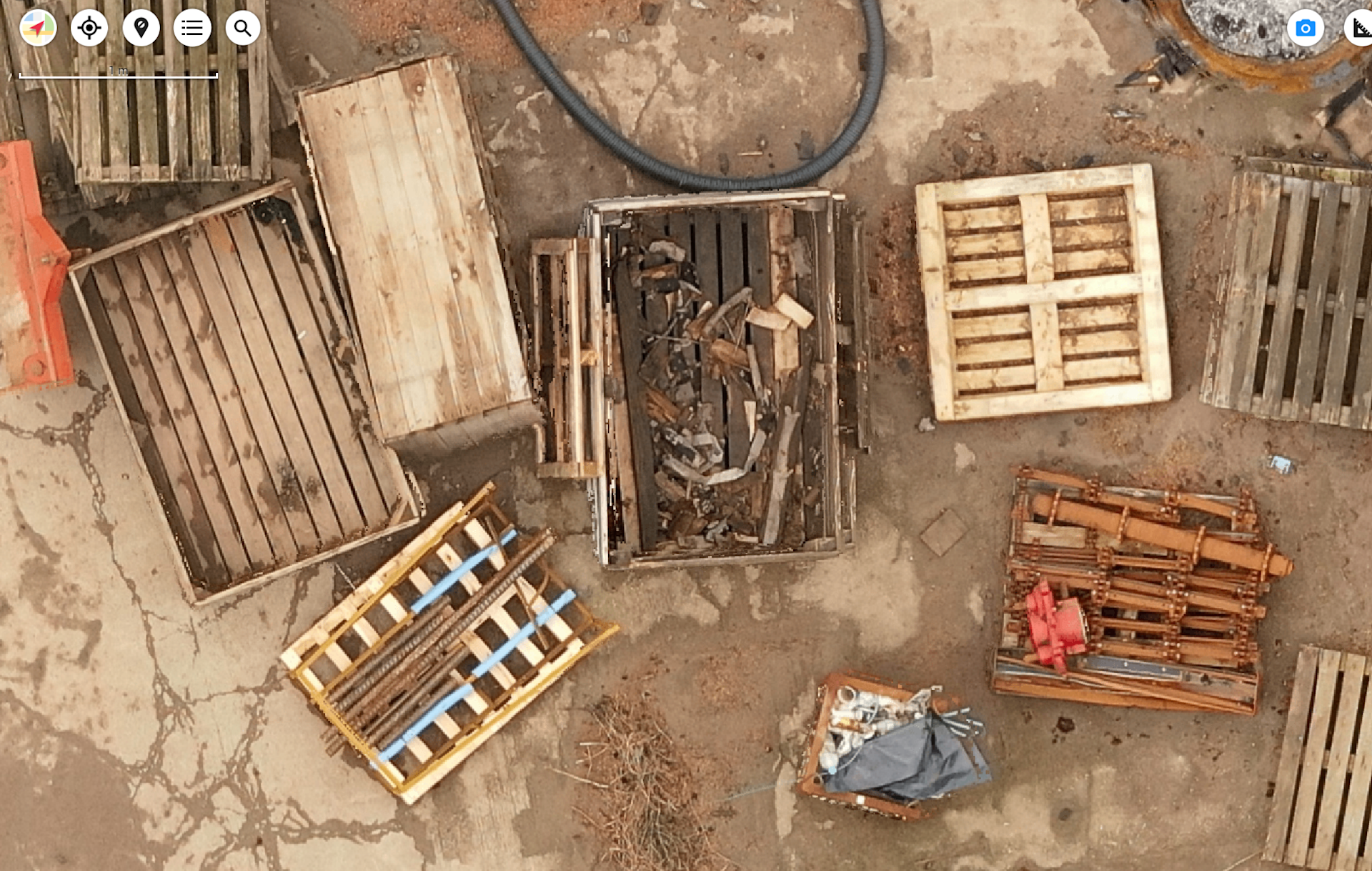

The picture below demonstrates the clear difference in data quality between the 24mm and 50mm lenses. We chose to focus on these two to best evidence the stark contrast of the lenses' capability to hone in on details.

Taking a closer look, you can see that the detail captured with the 50mm lens is superior to that of the 24mm lens - particularly if you look in the corner of the images where the round black tube is situated.

This is due to the 50mm lens' narrower field of view which provides higher detail of specific features due to less distortion and compression.

Ground Sampling Distance

Ground Sample Distance (GSD) impacts the accuracy of drone photogrammetry surveys.

GSD is defined as the length (in inches, centimetres, or millimetres) between the centres of two consecutive pixels on your map.

In a nutshell, the better the GSD, the more accurate is the data. You can find out more by reading our guide to GSD for drone surveying.

Our test flights demonstrated that, from 50m flight altitude, the 50mm lens yielded the best levels of GSD.

  • 24mm: 0.932 cm/px

  • 35mm: 0.6222 cm/px

  • 50mm: 0.44s cm/px

The 50mm lens achieved the best GSD because its narrower field of view meant the camera captured a smaller area in each image frame.

It therefore collected more detail of the ground within the smaller area, resulting in higher resolution imagery. This meant that each pixel in the image represented a smaller area on the ground, leading to a better Ground Sampling Distance.

Surveyors are able to collect data with the same GSD with the 24mm lens, but would need to fly lower, extending the flight time.

Matthew Sharples, Geospatial Specialist at heliguy™ said:

As evidenced by the data, lower Ground Sampling Distance values correspond to higher data accuracy and facilitate easier Ground Control Point marking.

Data Processing

The choice of lens impacted the data processing time - with the 24mm lens taking the shortest amount of time because of the reduced number of images and less detail in each.

The table below demonstrates the time it took to process the data through DJI Terra with each lens.

24mm

35mm

50mm

Number Of Images

56

122

186

Aerotriangulation

1 min 37s

57s

3 min 1s

2D Reconstruction

9 min 43s

3 min 49s

32 min 29s

3D Reconstruction

24 min 32 sec

17 min 46s

1 hr 17 min 39s

Total Consumption Time

35 mm 52s

22 min 32s

1 hr 53 min 9s

For context, each dataset was processed on the same computer, with the following specs.

  • CPU: Intel 12th Gen Intel(R) Core(TM) i7-12700H 20 cores

  • GPU Count: 1GPU 0: NVIDIA GeForce RTX 3060 Laptop GPU

  • RAM: 32452 M

Data processing times will vary depending on the quality of the computer hardware.

Which Lens Meets Your Survey Requirements?

Ultimately, which lens is best for you depends on where, what and why you are surveying your chosen area.

As such, the choice of lens should be based on the specific requirements of the surveying task. For example, for mapping large areas quickly, a wide-angle lens like the 24mm may be preferred.

For detailed inspection or monitoring of specific features, in applications such as construction monitoring or infrastructure inspection, a longer focal length lens like the 50mm may be more suitable.

In many cases, the go-to lens is the 35mm - as it reaches that middle ground between efficiency and data quality.

Richard Dunlop, Head of Geospatial at heliguy™ said:

Irrespective of the chosen lens, it's crucial to prioritise a fixed focal length to maintain sharp imagery and prevent distortion.

Summary

In summary, the choice between a 24mm, 35mm, or 50mm lens for drone surveying depends on factors such as the size of the area to be surveyed, the level of detail required, the presence of obstacles, and the specific objectives of the surveying task.
