DJI Mavic 3 Thermal Drone
DJI Mavic 3 Thermal
New standard for portable commercial drones
The DJI Mavic 3 Thermal is a new generation of multi-sensor, lightweight and compact commercial drone.
Especially suited for the emergency services and inspection missions, the quickly-deployable Mavic 3T has powerful imaging capabilities and enhanced 45 minutes flight time.
This versatile drone supports visual data collection, including hybrid zooming, and high-resolution thermal.
Integrate with a range of accessories to boost operations, including RTK Module for improved georeferencing accuracy, and high volume loud-speaker - especially suited to public safety and search and rescue missions.
Benefit from enhanced safety features, the new DJI RC Pro Enterprise smart controller with high-bright screen, and upgraded drone data security.
Make the most from your drone data with a comprehensive software suite, including compatibility with the all-in-one cloud operations management software, DJI FlightHub 2; and the DJI Terra mapping software.
Mavic 3 Thermal Key Features
- Versatile Data Collection: Thermal, wide, and hybrid zooming
- Wide Camera: 48MP
- Tele Camera: 12MP; 56x hybrid zoom
- Thermal Sensor: 640 x 512 @ 30Hz. Use with DJI Thermal Analysis Tool

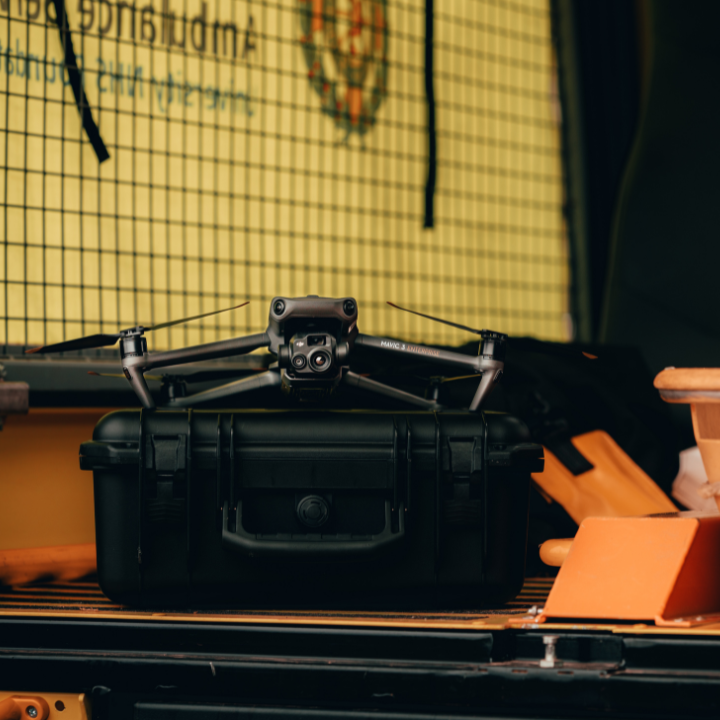

- Lightweight, compact, and portable: 920g airframe
- Ultra-long battery life: 45 minutes maximum flying time
- Enhanced Flight Safety: Omnidirectional obstacle sensing and advanced Return to Home
- Exclusive Controller: New DJI RC Pro Enterprise smart controller with high-bright screen.
- Accessories (available separately): RTK Module; Loudspeaker; D-RTK 2 Mobile Station high-precision GNSS receiver.
- Full Software Suite: DJI Pilot 2; DJI FlightHub 2; DJI Terra.

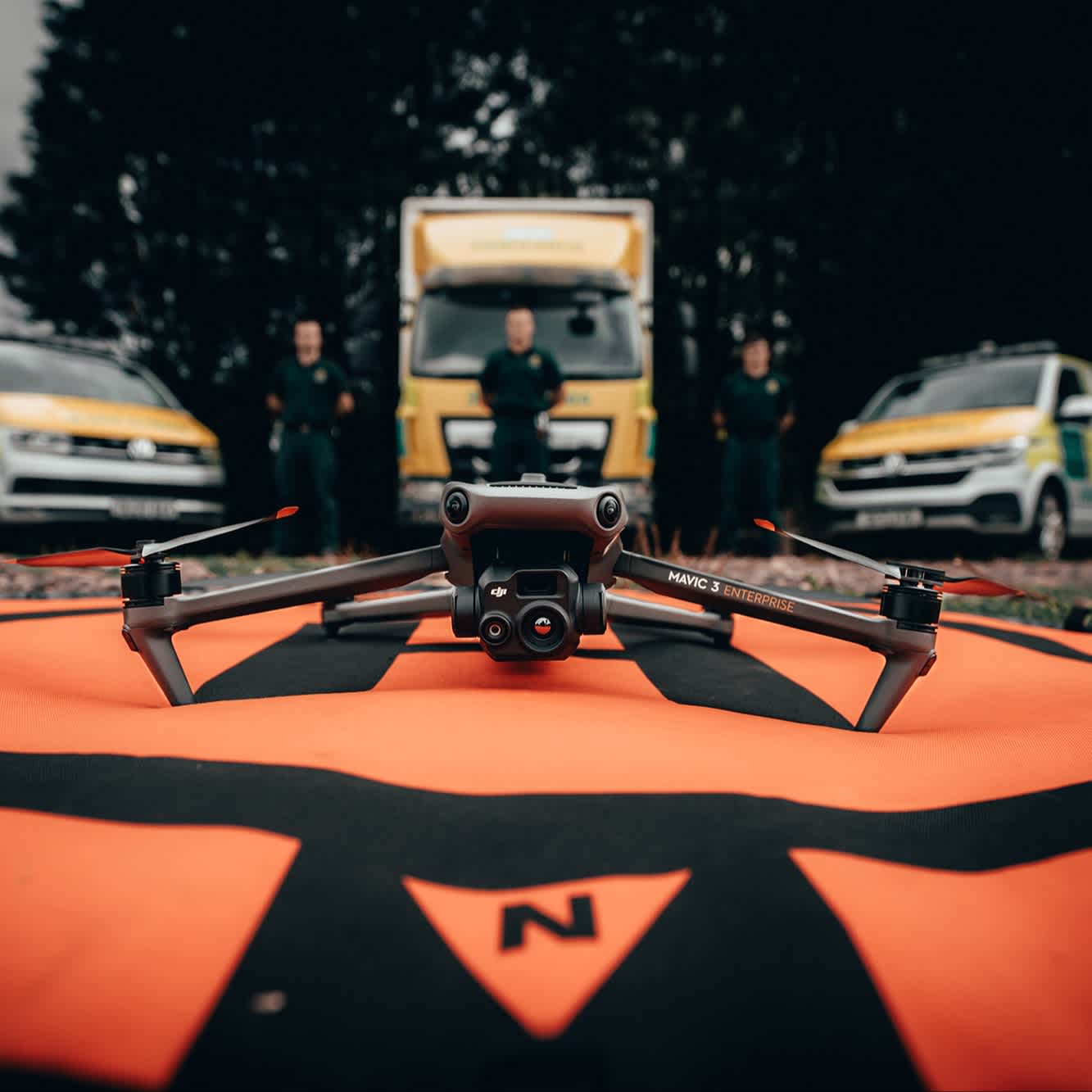

DJI M3T Cameras
Versatile Data Collection: Wide, Zoom, and Thermal
Collect visual and thermal data with the M3T for a variety of aerial insights: Ideal for public safety, inspection and night operations.
And with a simultaneous split-screen zoom, the M3T’s thermal and zoom cameras support 28× continuous side-by-side digital zoom for easy comparisons.
- ½ inch CMOS, 48MP
- 24mm Equivalent Focal Length
- ½ inch CMOS, 12MP
- 162mm Equivalent Focal Length
- Up to 56x hybrid zoom
- Uncooled VOx Microbolometer
- 640 x 512 @ 30Hz
- 40mm Equivalent Focal Length
- 61° Display Field of View (DFOV)
- Thermal Insights: Point and area temperature; high temperature alerts; colour palettes; isotherms
Next Generation Transmission And Safety Features
Greater peace of mind during flights
The Mavic 3 Thermal has enhanced safety features, including improved obstacle sensing and navigation systems and equipped with a robust transmission system.
DJI O3 Enterprise Transmission: Benefit from a maximum control range of 8km (CE). DJI O3 Enterprise Transmission enables operators to transmit signals with higher stability and obtain a high frame rate live feed at 1080p/30fps.
DJI AirSense: Receive ADS-B signals from traditional aircraft in the area to warn of other air traffic nearby, for greater airspace awareness.
DJI APAS System 5.0: The new improved DJI APAS system 5.0 for obstacle sensing with zero blind spots is supported by six omnidirectional fish-eye sensors.
Advanced RTH: The drone automatically determines the optimal route back to its home point and executes it quickly.

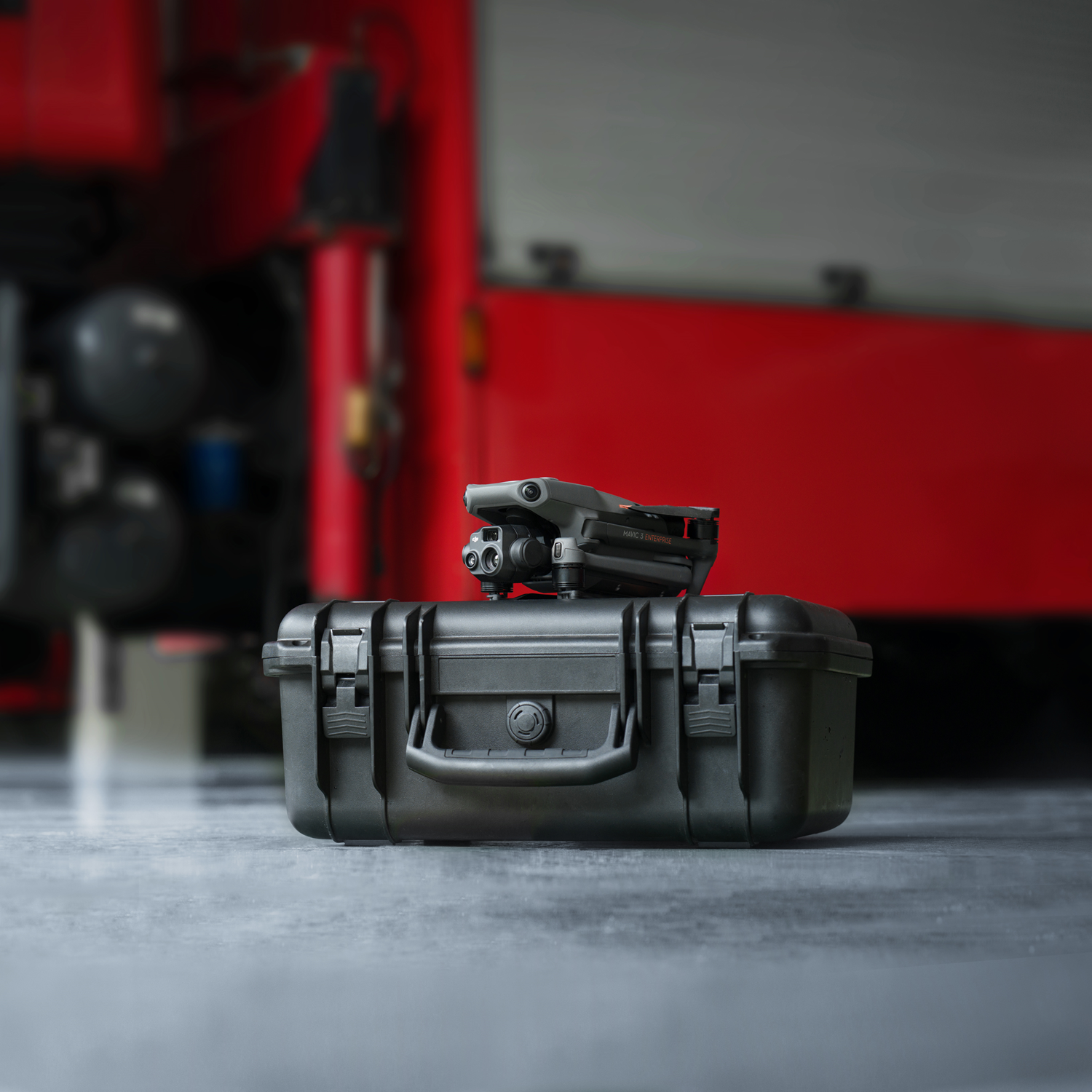

Mavic 3 Thermal Data Security
Protect your sensitive data
The Mavic 3T offers state-of-the-art security features to protect the integrity of photos, videos, flight logs and other data generated during sensitive flight.
Local Data Mode: When activated, Local Data Mode stops the DJI Pilot 2 flight control app from sending or receiving any data over the internet. This provides added security assurances for operators of flights involving critical infrastructure, governmental projects or other sensitive missions.
AES-256 Encryption: The radio link between the aircraft and remote controller features robust AES-256 encryption, ensuring critical information exchanged between the drone and its remote is protected.
Mavic 3T Controller
Professional remote controller for professional missions
The M3T is compatible with the new DJI RC Pro Enterprise.
Key features of this professional remote controller include:
- 5.5-inch, 1,000-nit high-brightness screen for enhanced visibility in direct sunlight.
- Built-in microphone for clear communication. Can be used with the loud speaker module.
- 1.5 hours to fully charged, 3 hours of battery life
- Enhanced CPU and GPU performance
- Compatible with DJI Pilot 2, including route planning such as waypoint, mapping, oblique and linear.

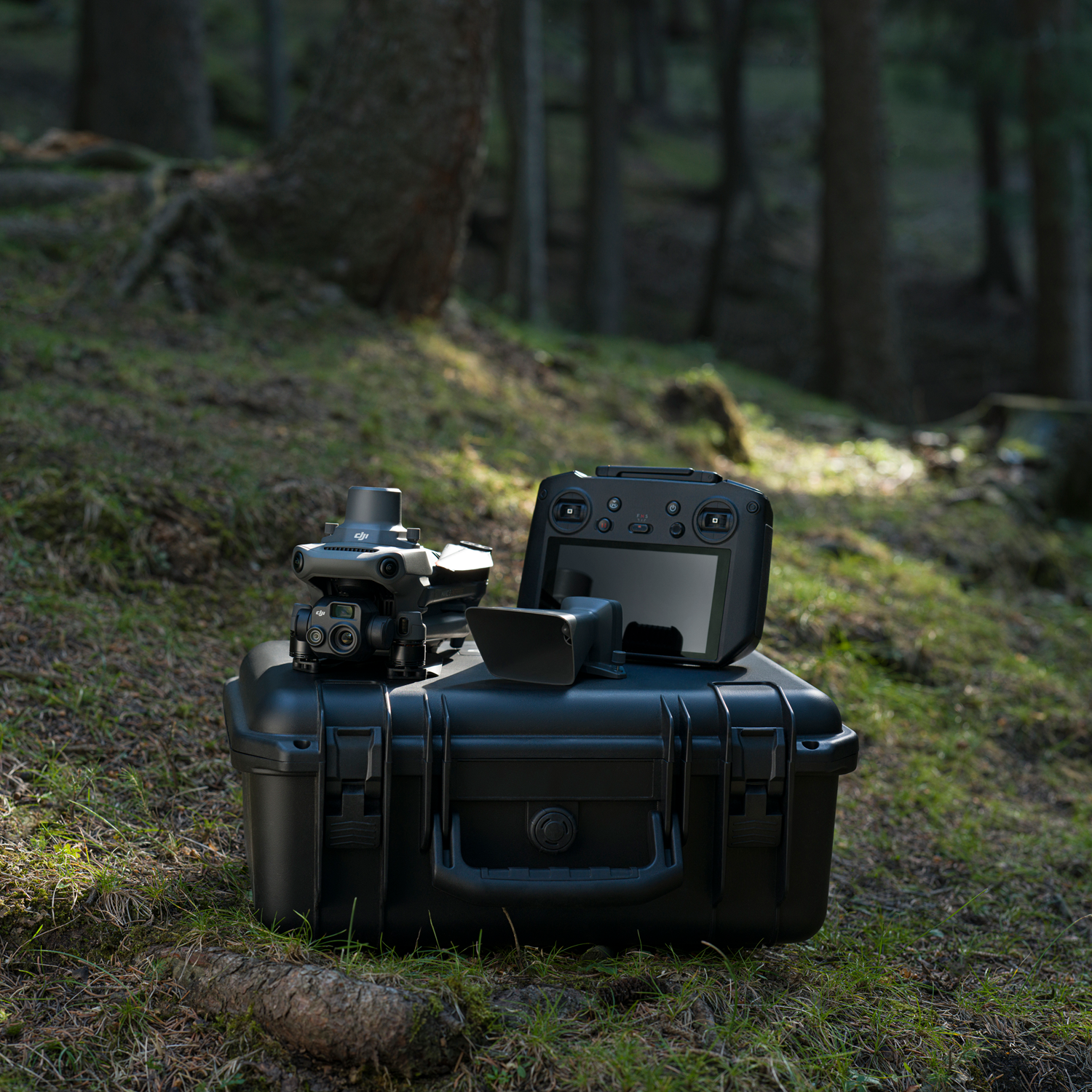

Get more from each flight
The Mavic 3 Thermal is compatible with a range of enterprise-level accessories, increasing the effectiveness of each drone mission. These accessories are available separately.
RTK Module: Enables improved georeferencing accuracy with support for network RTK, custom network RTK services, and D-RTK 2 Mobile Station.
Loud Speaker: Broadcast a message from above, with support for text-to-speech, audio storage, and looping.
D-RTK 2 Mobile Station: Compatible with the D-RTK 2 Base Station - DJI’s upgraded high-precision GNSS receiver that supports all major global satellite navigation systems, providing real-time differential corrections.
Full Software Suite
Supported by DJI Enterprise Software
The Mavic 3 Thermal is at the centre of an advanced and growing ecosystem of software for drone operations, allowing the aircraft to reach its full potential as a tool for data gathering, mapping, fleet management and flight operations.
DJI Pilot 2
The revamped flight interface is designed to improve piloting efficiency and flight safety.
Drone and payload controls can be easily accessed with one tap. Users can access the drone's hardware, video live-stream, and photo data.
DJI FlightHub 2
This all-in-one cloud operations management software for drone fleets allows drone operators to efficiently manage flight operations with route planning and mission management.
The full-featured mapping software for all stages of work, from mission planning to processing of 2D and 3D models.
To mark the launch of the Mavic 3 Enterprise Series, receive a free DJI Terra Electricity Licence for three months.
DJI Thermal Analysis Tool 3.0
Helps professionals analyse, annotate and process images captured by the Mavic 3 Thermal using DTAT 3.0 to detect temperature abnormalities during inspections.
