GL60 Zoom Spotlight
GL60 Zoom M300 RTK Spotlight
GL60 Zoom Spotlight On Matrice 300 Drone

GL60 Zoom Spotlight

Login to view prices.
/
Tax included in UK  & Free Delivery
Notify Me When Available
Currently 4 units in stock.

When You Spend £99

Free Next Working Day Delivery

Saturday Delivery Also available.

Need advice on this product?

Ask a Question

Our experts are on hand to help you.

Full Description

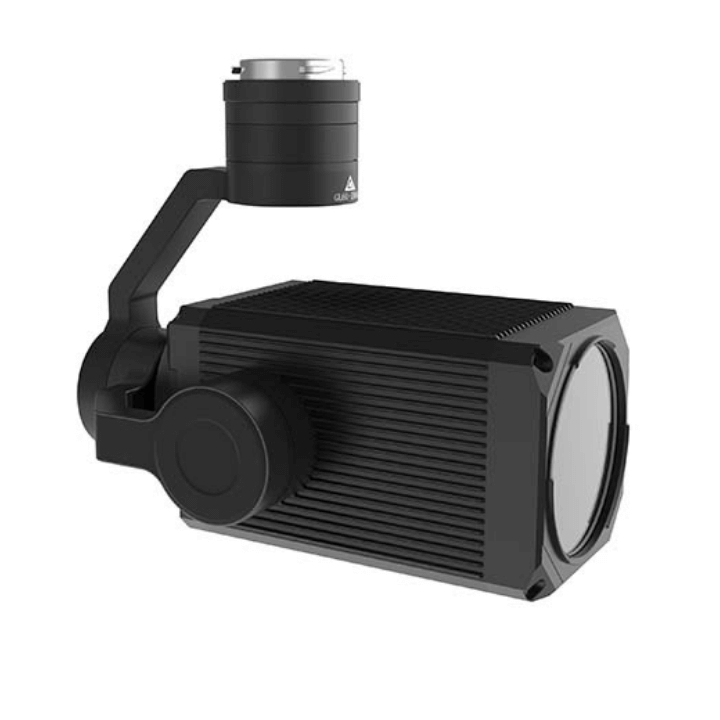

GL60 Zoom Spotlight

Light up the details that matter from 200 metres.

Plug-and-play Gimbal For DJI Drones

The CZI GL60 Zoom Gimbal Spotlight is a powerful and bright zoom spotlight.

It is a plug-and-play payload, compatible with the DJI M300 RTK and DJI Matrice 200 Series V2, via the DJI SkyPort V2.0 interface.


Featuring an optical imaging structure of multiple lenses, the spotlight can emit light from angles ranging from 7° to 34° to illuminate the areas that matter - from 200 metres away.

These capabilities, along with extremely high brightness and colour uniformity, ensure a flexible, convenient, and powerful aerial lighting strategy during night-time or low-light drone operations.

The spotlight can track targets, features a variety of lighting modes, and has a fanless fully-sealed design for enhanced waterproof and dustproof performance.

Control the spotlight via the DJI Pilot App to toggle between regular light and flash mode, and automatically follow the rotation of the pan-tilt-zoom camera.

The GL60 Zoom Spotlight - with its new zoom function - is based on the GL60 fixed focus payload.

High-powered Spotlight

  • Rated power up to 65W;
  • Effective irradiation up to 200 metres;
  • Flexible brightness control;
  • Fresnel lens optical zoom structure;
  • 7° to 34° illumination angle.

Multiple Modes

  • Features strong flash-light mode;
  • Dispatch the spotlight and floodlight;
  • Lockable to capture moving objects;
  • Continuous irradiation tracking;
  • Follows the camera zoom and rotation.

Rugged Design

  • Fanless fully-sealed design;
  • Better waterproof and dustproof performance;
  • Advanced automatic temperature control system.

DJI Compatibility

  • Compatible with DJI M300 RTK and M200 Series V2;
  • Plug-and-play using the DJI SkyPort universal adapter ring;
  • Control through DJI Pilot App;
  • Use in conjunction with other payloads, such as H20 Series, for enhanced mission effectiveness.

GL60 Zoom Spotlight Use Cases And Applications

The GL60 Zoom Spotlight is a versatile tool that can be used for a range of applications.

It can also be used alongside other payloads, such as the H20 Camera Series for the M300 RTK (pictured), to combine the bright spotlight with other imaging capabilities such as zoom, thermal, and laser rangefinder to enhance mission effectiveness.

Suitable use cases for the GL60 Zoom Spotlight include:

  • Drone night patrol;
  • Search and rescue;
  • Nighttime or low-light inspections;
  • Film / TV light supplement;
  • Electric power repair or powerline patrol;
  • Emergency lighting, following a power cut or after an incident such as a fire.
GL 60 Zoom Spotlight on Matrice 300 RTK DJI Drone

Product Specification

Specification

Value

Electrical

DJI SkyPort V2.0

Weight

740g

Size

166 (L) x 110 (W) x 137 (H) mm

Power

65 W

LED Power

60

Luminous Flux

4000±3%

FOV

7° to 34°

Central Illumination/Lux

50m, 7.2°, 125lx
100m, 7.2°, 28lx

Controllable Angle

Pitch Angle: -110° to 30°
Horizontal Angle: ±135°

Structural Design Scope

Pitch Angle: -110.3° to 40°
Horizontal Angle: Omnidirectional 360°)
Roll Angle: -90° to 60°

Working Temperature

-20°C to 50°C
