New CSM Radar Collision Avoidance System For DJI M300 RTK

New CSM Radar Collision Avoidance System For DJI M300 RTK

Last updated: Oct 07, 2021

10 minute read

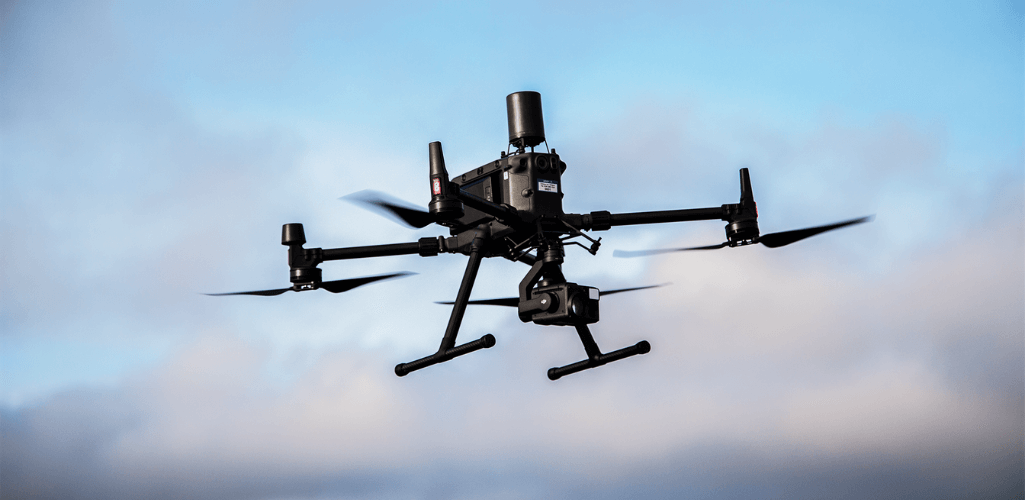

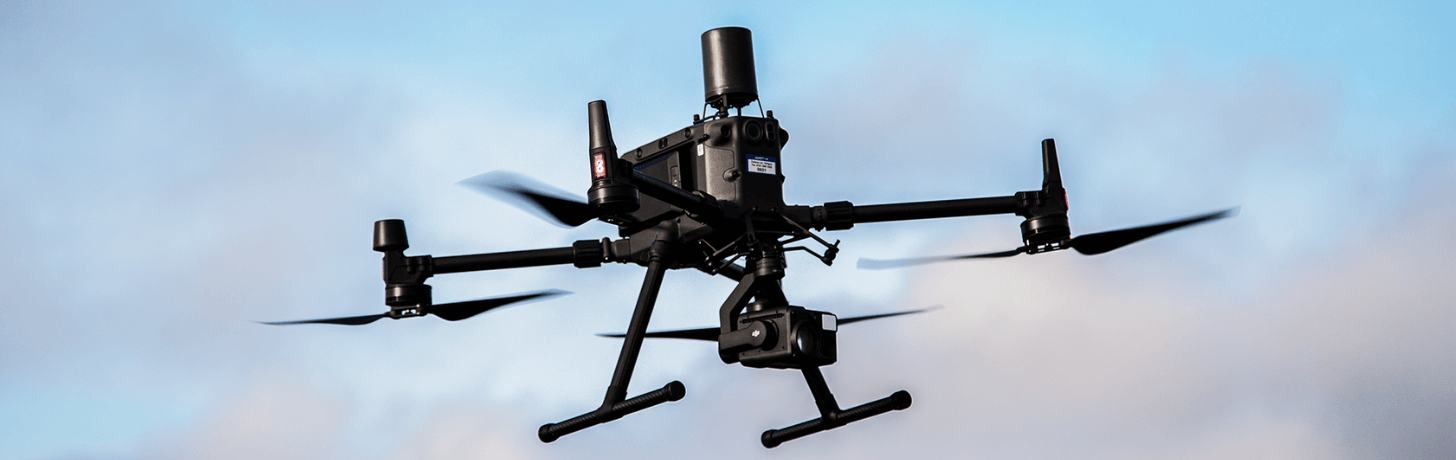

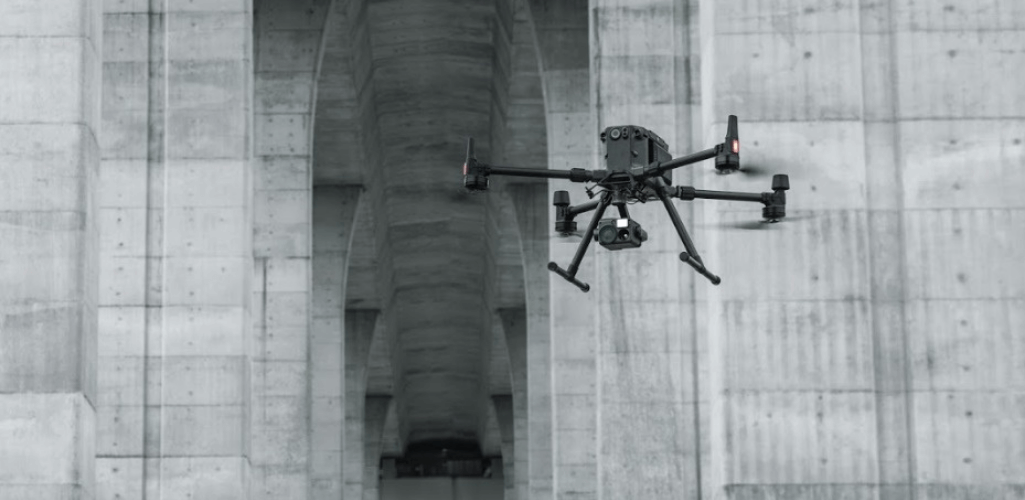

CSM Radar integrated with the M300 RTK.
  • CSM Radar for M300 RTK can detect thin obstacles, such as wires and branches;
  • System can detect objects up to 30 metres away and has 360° coverage;
  • Radar functions at night and has IP45 rating, providing safer flights across a larger range of missions;
  • Augments the drone's built-in sensors to enhance situational awareness;
  • The drone will brake if it gets too close to obstacles.

The M300 RTK is DJI's safest enterprise drone to date - and it is just about to get even safer, thanks to the imminent release of the CSM Radar.

This sophisticated object detection system can identify thin objects, such as branches, wires, and powerlines, to give pilots further confidence when operating the aircraft.

Designed to augment the drone's built-in vision sensors, the unit has a detection range of between 1 and 30 metres and provides comprehensive 360° horizontal coverage, detecting hazards which can get missed by the drone's obstacle-avoidance technology.

Pre-set the radar's detection range and the M300 RTK will brake when it comes close to an object; particularly useful for complex missions.

As an added advantage, the IP45-rated CSM module can function at night - when the drone's built-in vision system is not functional - and in difficult weather conditions, increasing safety during a wider range of jobs.

The CSM Radar is expected for release early 2021. Contact heliguy™ to inquire about the CSM Radar.

How Does The CSM Radar Work?

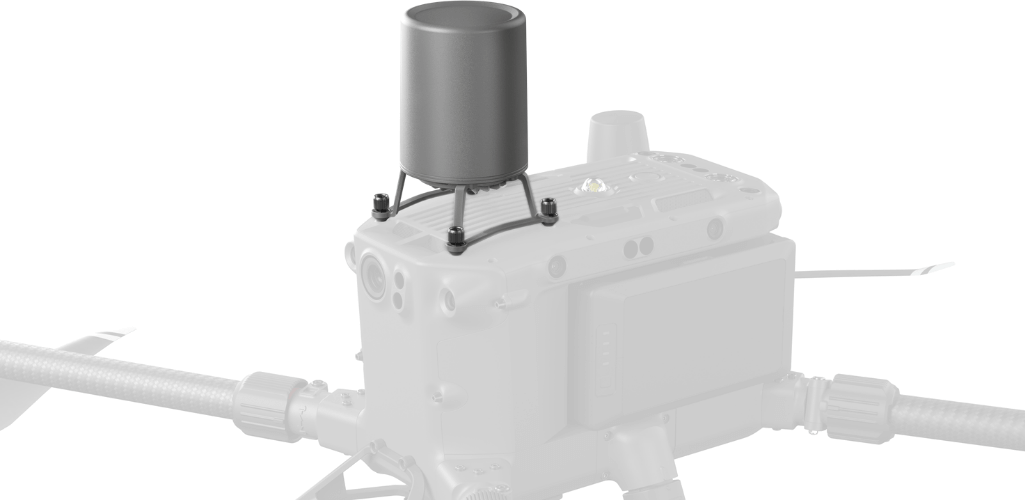

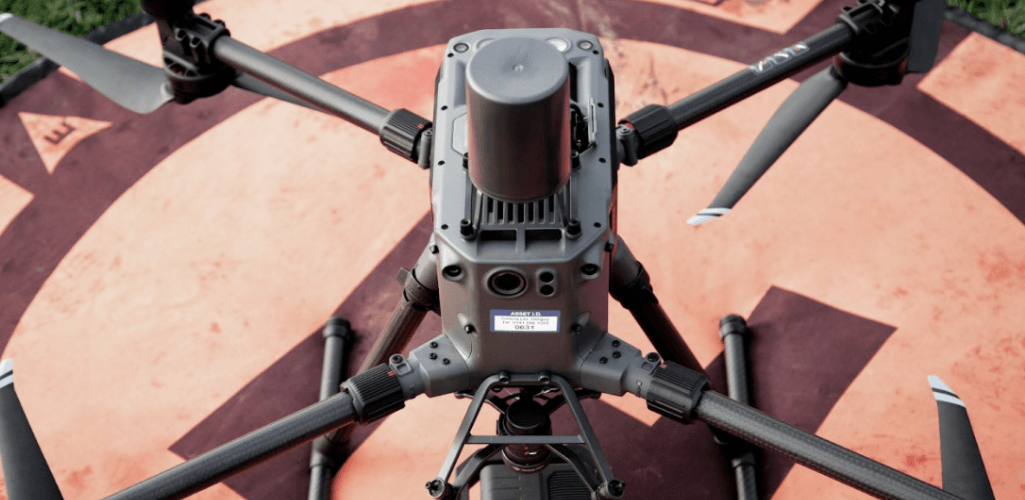

The CSM Radar attaches to the top of the M300 RTK in the upward gimbal position. It can be connected to the aircraft via the PSDK port.

When it is turned on, the radar emits radio waves, which then reflect off an object and bounce back to the receiver.

This provides locational information based on the time that it takes for the waves to return.

The radar can be toggled on and off, and operators can choose to use it in tandem with the drone's vision sensors, or deploy one or the other.

Object Detection - Notifying The Pilot

When obstacles are detected by the radar, the compass navigation display at the bottom of the Primary Flight Display (on the controller screen) will show numerous colours.

  • Red: Obstacles detected within the pre-set braking distance. The drone will halt.
  • Yellow: Obstacles detected within the warning distance. The remote controller will beep slowly.
  • Green: Obstacles detected within the radar's range, but outside of the braking/warning distances.

In the example below, the Obstacle Braking Distance is set at 14.1ft, and the Warning Distance is 60.6ft.

This means that the drone will stop if it detects an obstacle at 14ft and the display will show red.

As a side note, it is recomended to set the braking distance to at least 8.2ft.

If anything comes within 60ft, the display will turn yellow and the remote controller will beep slowly.

If the radar detects anything outside of the pre-set perimeter of 60ft, there will be no notification, and the display will show green.

Collision Avoidance System - Increased Protection

The radar is designed to detect obstacles which might be missed by the built-in sensors, either for being too thin or for falling within the sensors' blind spots.

The graphic below sums this up perfectly.

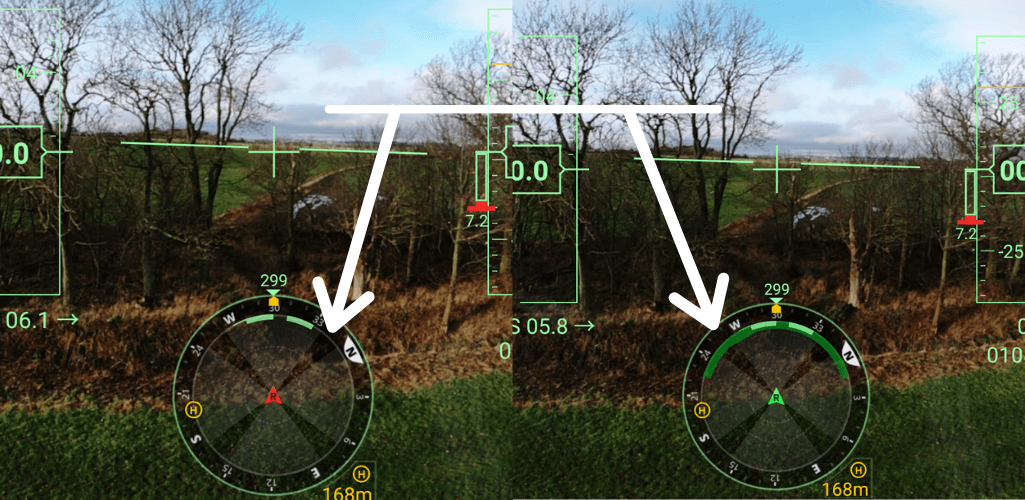

The image on the left - without the radar turned on - shows a small area of green within the navigation display; ie less obstacles detected. Note also the white arrow pointing to the thin black - and empty - line in the display; this is one of four blind spots, unable to detect obstacles.

Now, the right-hand image shows the same scene, but with the radar switched on. The green area is larger than before - covering the dark black lines in the process - helping to detect more objects and eliminate the blind spots.

Detecting Powerlines - The CSM Radar In Action

With the ability to detect thin objects, the CSM Radar is particularly useful during complex missions.

For instance, operating close to powerlines, as the below video demonstrates.

The opening sequences of the clip show the M300 RTK flying close to powerlines without the radar activated.

The navigation display shows pockets of yellow and green, but the aircraft is able to approach the cables as they are not being picked up by the drone.

Notice, too, that the yellow and green shades are not overlapping any of the display's four darker spokes, ie the blind spots.

But this all changes when the radar obstacle avoidance is activated.

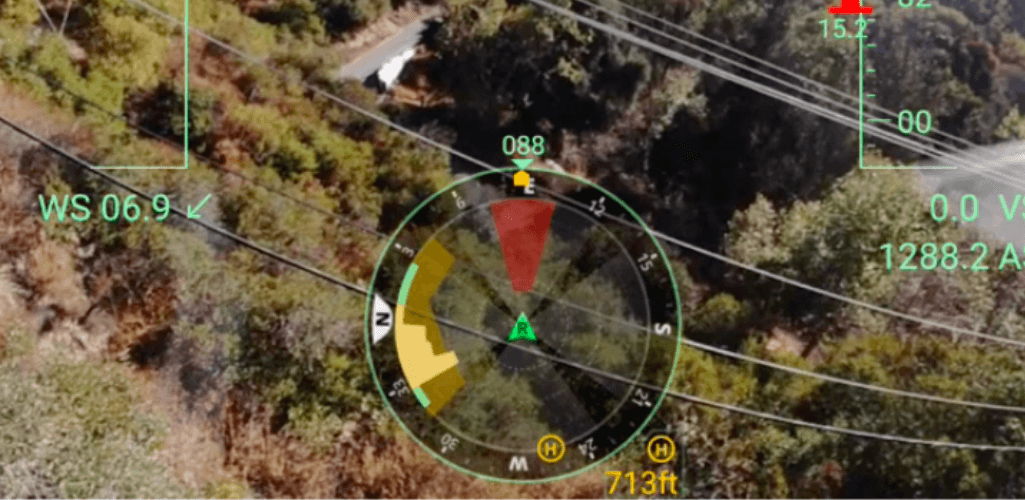

The drone immediately detects the powerlines in front of it - with the display flashing red (eliminating the blind spots in the process). The aircraft subsequently stops and no longer flies towards the cables.

It is worth pointing out that the CSM Radar is a detection tool; it will not autonomously fly the aircraft around any type of obstacle, nor will it help the drone with positioning data.

Operating At Night

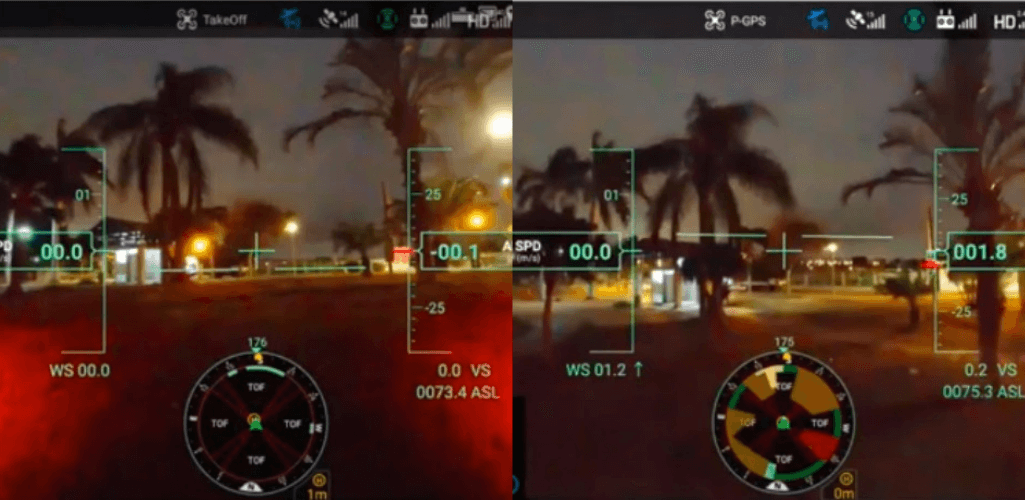

Another example shows the CSM Radar in action during an evening flight, when the drone's built-in vision system is not functional.

The image on the left shows the radar disabled. But when it is activated (image right), the display is filled with colour, as the CSM unit goes to work and starts detecting obstacles.

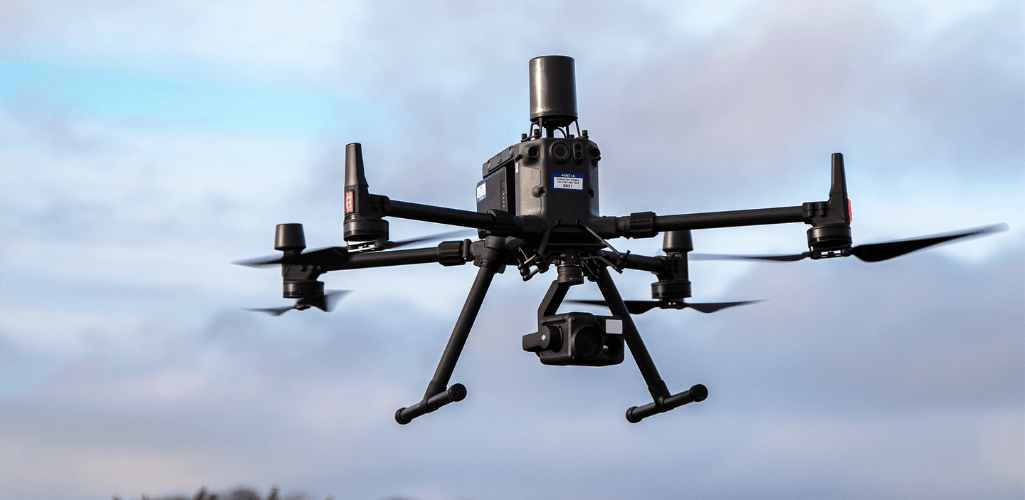

What Is The Detection Range Of The Radar?

The radar offers comprehensive coverage to give pilots even greater confidence when flying the M300 RTK; which is already an incredibly safe aircraft.

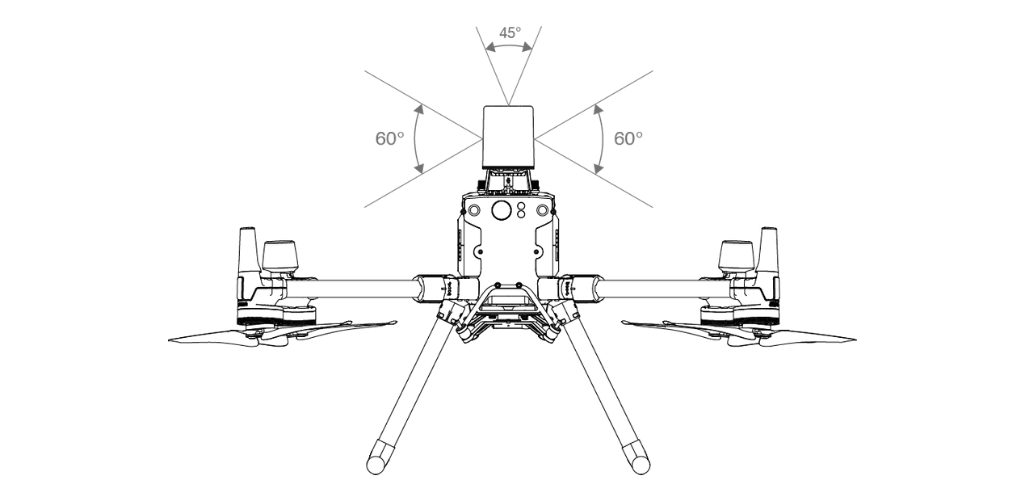

The radar has various detection angles:

  • Horizontal direction: 360°.
  • Vertical direction: 60°.
  • Upper direction: 45°.

The radar's detection distance ranges from 1.5 metres to 30 metres (5 ft to 98 ft).

Operators should be aware that the effective detection distance varies depending on the size and material of the obstacle.

For instance, when sensing strong reflective objects such as a building, the effective detection distance stretches to the limit (30m/98ft).

But, when sensing weak reflective objects, such as dry tree branches, the distance is around 15m/49ft.

Obstacle sensing may malfunction or be invalid in areas outside the effective detection distance.

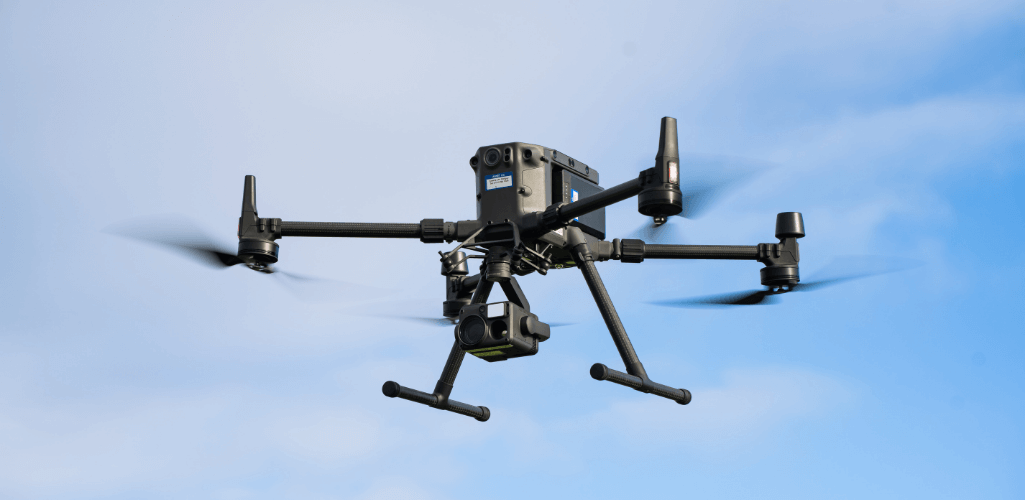

The CSM Radar And M300 RTK Flight Performance

The M300 RTK has some stellar flight performance stats; 55 minutes of maximum flight time, the ability to carry three payloads at once; and that all-important IP45 rating.

So how does the CSM Radar alter things?

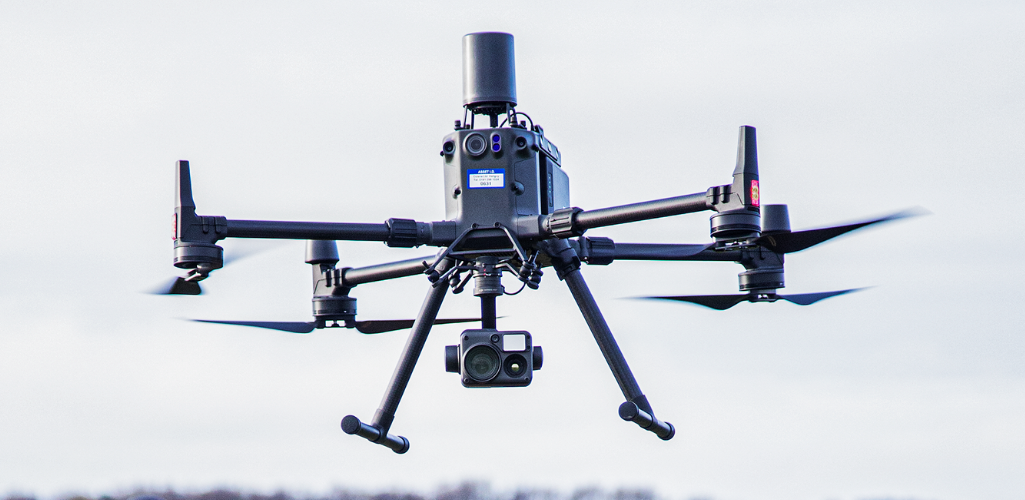

Flight Time

Firstly, the radar weighs around 369g, meaning that the M300 RTK - with a 9kg maximum takeoff weight - has more than enough strength to carry the radar coupled with a quality payload, such as the H20T quad-sensor solution.

Typically, the drone can muster around 43 minutes of flight time when integrated with the H20T.

DJI says that the CSM Radar will reduce flight times by about three or four minutes.

So, in this case, a 40-minute mission with the radar and the H20T. This is still an impressive return, especially when you consider the added safety of the radar, coupled with the multi-purpose capabilities of the H20T (zoom, thermal, wide-angle, laser rangefinder).

Speed

The M300 RTK can reach a top speed of 23 m/s (51.4 mph) in S mode and 17 m/s (38 mph) in P mode.

When the radar obstacle avoidance is in use, the drone's maximum speed drops to 10m/s (22.3mph).

Flying In The Rain

The M300 RTK has an IP45 rating, making it a robust and reliable drone in difficult weather conditions - as this test clip shows.

While IP45 is not a complete waterproofing, DJI has stated that the M300 RTK can withstand 100mm of rain during a 24-hour period.

The CSM Radar also has an IP45 rating to align with the aircraft, meaning it can be deployed with the drone during tricky weather conditions.

The fact it can operate at night - and enhances safety in low-light conditions - is an added bonus, and further endorses the M300 RTK as a rugged and mission-flexible platform.

For more advice on the M300 RTK's performance in wet weather and high/low temperatures, as well as tips for operating and maintaining the drone in flights against the elements, read our blog How Waterproof Is The DJI M300 RTK Drone?

While not weather-related, it is worth flagging that, in ATTI mode, the radar obstacle avoidance will be disabled.

The M300 RTK's Safety Features

Taking all of this into account, the CSM Radar is a very welcome addition to the M300 RTK ecosystem; a robust unit which detects thin obstacles, works at night and increases situational awareness.

As a result, it enhances flight safety - making an incredibly reliable and safe drone, even safer.

After all, the M300 RTK has set a new standard for assured and panic-free missions.

So, what makes it such a safe drone - even without the CSM Radar?

Next-gen Collision Avoidance

The M300 RTK has six direction dual visual sensors and dual Time of Flight sensors.

In fact, it is DJI's first industrial drone to feature omnidirectional collision avoidance.

Detection ranges reach up to 45m.

Back-Up Components

The M300 RTK has backups of 12 vital flight components - ensuring flight safety, stability, and reliability.

In the event of a hardware failure, the backup module will kick in.

This includes the dual battery configuration; if one battery fails, the second will help bring the drone to a safe landing.

The M300 RTK also features an extra IMU, barometer, and compass, each of which will come online if the primary unit fails.

For instance, in the unlikely case that the main IMU fails, the backup IMU will activate within 200 milliseconds.

RTK + GNSS Module

The Real Time Kinematic (RTK) system is a positioning system that generates aerial data including latitude, longitude, and altitude readings for the drone’s flight control system.

This data allows the aircraft to perform actions such as flying with manual commands through the remote controller, following an automated flight path, or hovering steadily and precisely.

The drone's dual RTK antennas also enable the aircraft to navigate complex environments with high electromagnetic interference, such as close to powerlines, or metallic structures.

The M300 RTK’s GNSS module supports GPS, GLONASS, Beidou, and Galileo satellite positioning systems, and is also backed up by the dual RTK antennas, providing the aircraft with accurate positioning capabilities wherever the mission takes place.

Auxiliary Lights

The M300 RTK has auxiliary lights - with a 5-metre effective distance - on its top and bottom.

These lights automatically turn on in low-light conditions, aiding the aircraft's onboard collision avoidance sensors.

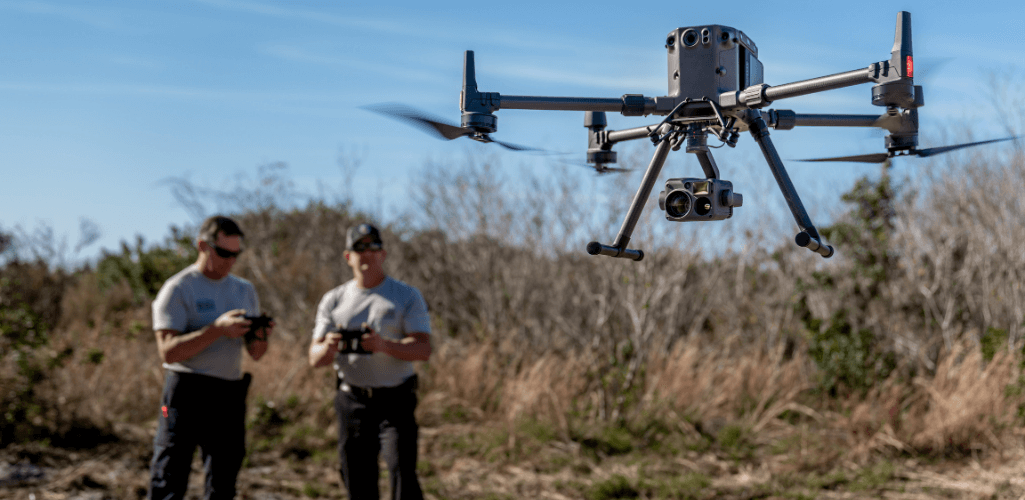

Advanced Dual Control Mode

The dual remote controller mode of the M300 RTK allows each of the two operators to take over control of the aircraft and payloads quickly in the case where communication is lost between the remote controller and the drone.

Operations can continue seamlessly without compromising flight safety.

OcuSync Enterprise

OcuSync Enterprise is an upgraded version of OcuSync 2.0.

It provides pilots with the longest and most responsive connection to their drones and cameras (8km, CE).

With triple-channel 1080P 30FPS video downlink, OcuSync Enterprise gives pilots peace of mind knowing that the feed displayed on their Remote Controllers is live and stable.

Primary Flight Display

The new Primary Flight Display provides real-time information to telemetry data, such as altitude and speed, as well as access to an obstacle map to enhance situational awareness.

Other Safety Features

The M300 RTK also has:

  • Extra-wide FPV camera with a 145° FOV;
  • ADS-B Receiver (AirSense) to detect nearby manned aviation;
  • Health Management System, providing an overview of critical aircraft systems and enabling operators to carry out fleet-wide firmware updates, track pilot hours, and review flight missions;
  • Three-propeller emergency landing.

CSM Radar - Summary

Safety is a fundamental aspect of any drone flight.

Ever the innovator, DJI has continually pushed the boundaries to set new in-flight standards.

The global drone maker pushed the bar higher with the M300 RTK - equipped with its array of safety features and redundancy systems.

And now, this rugged and reliable industrial platform will become even safer, thanks to the CSM Radar.

With the ability to detect thin objects and provide another layer of protection to the drone's already reliable on-board sensors, the Radar is a worthy addition to the ecosystem.

It is particularly useful during complex missions and will give operators even greater confidence when deploying the M300 RTK.

Inquire with heliguy™ about the CSM Radar.
